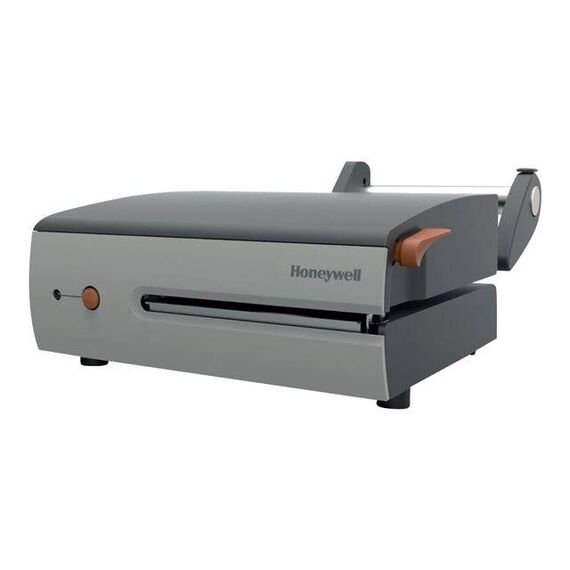

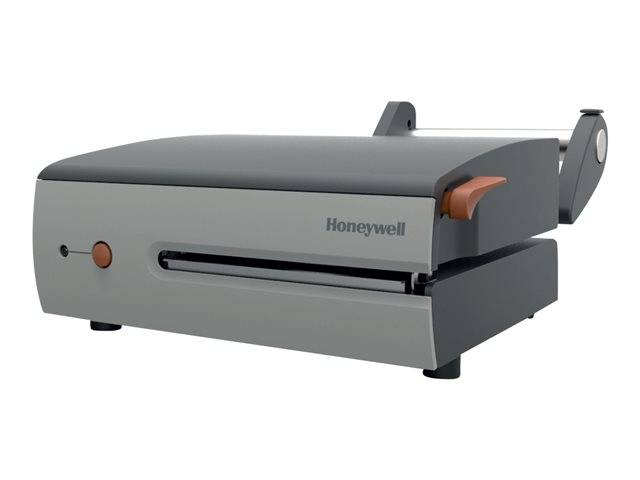

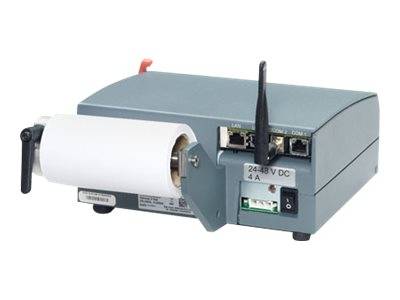

Datamax MP-Series Compact4 Mobile Mark III / Label printer / thermal paper / Roll (11.5 cm) / 200 dpi / up to 125 mm/sec / USB, LAN, serial | XJ1-00-07000000
Datamax MP-Series Compact4 Mobile Mark III / Label printer / thermal paper / Roll (11.5 cm) / 200 dpi / up to 125 mm/sec / USB, LAN, serial | XJ1-00-07000000
Description The Compact4 is a powerful response to desktop thermal printing requirements, and optimal for on-demand printing, especially where space is limited. The printer is great at the front desk of a hospital or in the box office of a movie theater. Able to deliver continuous operation, the Compact4 is the printer of choice whenever ease of use, reliability and high performance are a must. Datamax MP-Series Compact4 Mobile Mark III / Label printer / USB, LAN, serial | XJ1-00-07000000Special Features
Product features
|
Product Specification
Printer Type | Label printer - direct thermal - monochrome |
Print Speed | Up to 125 mm/sec - max speed - 200 dpi |
Connectivity Technology | Wired |
Interface | USB, LAN, serial |
Max Resolution (B&W) | 200 dpi |
Fonts | CG Times, CG Triumvirate, CG Triumvirate Bold Condensed, Letter Gothic Bold, OCR-A, OCR-B, Univers Bold, Univers Condensed Bold, CG Times Bold, Univers Medium, Univers Condensed, CG Times Italic, CG Times Bold Italic, Coronet |
Features | Realtime clock |
Fonts Included | 10 x scalable |
Barcodes | Code 39, QR code, MaxiCode, EAN/JAN-13, Interleaved 2 of 5, PDF417, Data Matrix |
RAM Installed (Max) | 64 MB |
Flash Memory | 128 MB |
Media Type | Tickets, continuous paper labels, tag labels, die cut labels |
Max Media Size | Roll (11.5 cm) |
Min Media Size (Custom) | 40 mm x 10 mm |
Max Media Size (Custom) | 115 mm |
Media Sizes | Roll (4 - 11.5 cm) |
Max Printing Width | 104 mm |
Media Thickness Range | 0.058 mm - 0.18 mm |
Roll Maximum Outer Diameter | 10 cm |
Roll Core Diameter | 40 mm |
Media Feeders | 1 x manual - 1 roll - Roll (11.5 cm) |
Networking | Print server |
Connections | 1 x RS-232 ¦ 1 x USB - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
Cables Included | 1 x USB cable |
Features | Rugged |
Voltage Required | DC 24 - 48 V |
Service & Support | Limited warranty - parts and labour - 1 year ¦ Limited warranty - printhead - 1 year or 1,000,000 inches |
Min Operating Temperature | 5 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 20 - 85% (non-condensing) |
Width | 23 cm |
Depth | 26 cm |
Height | 12.5 cm |
Weight | 4.5 kg |
