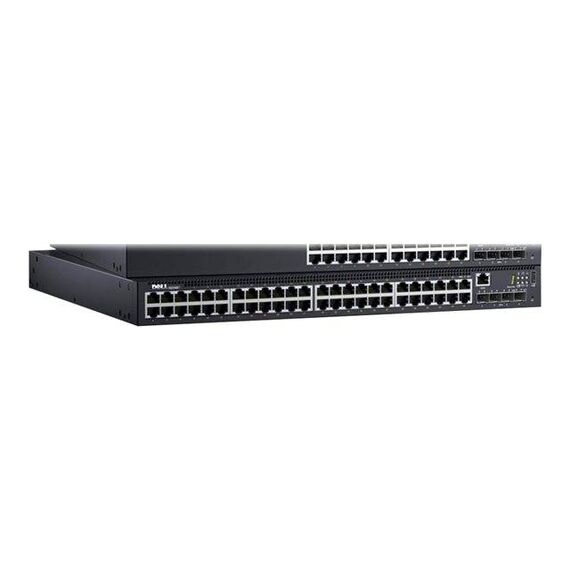

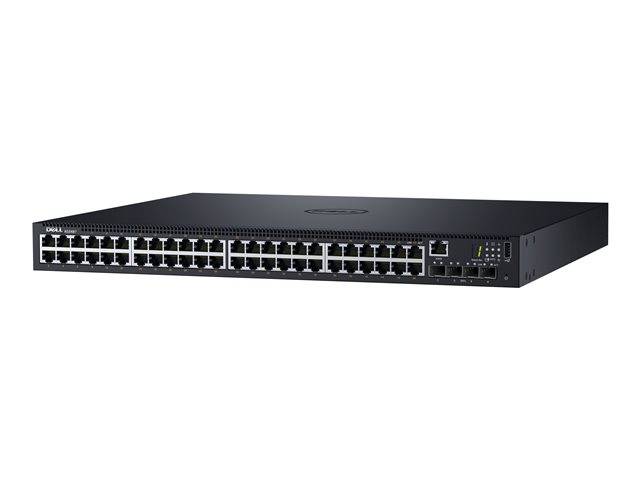

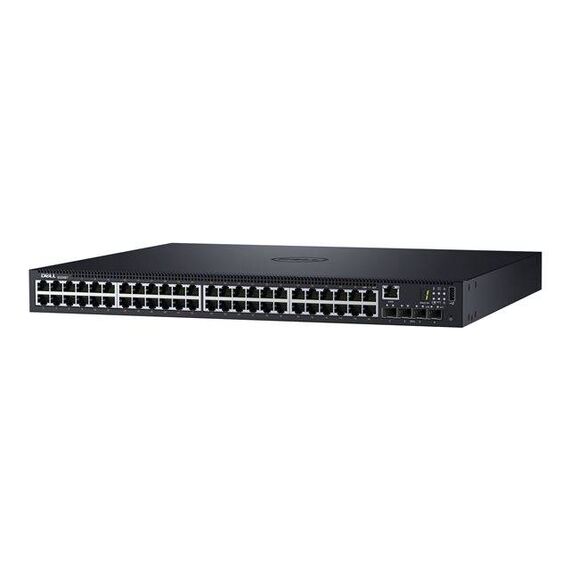

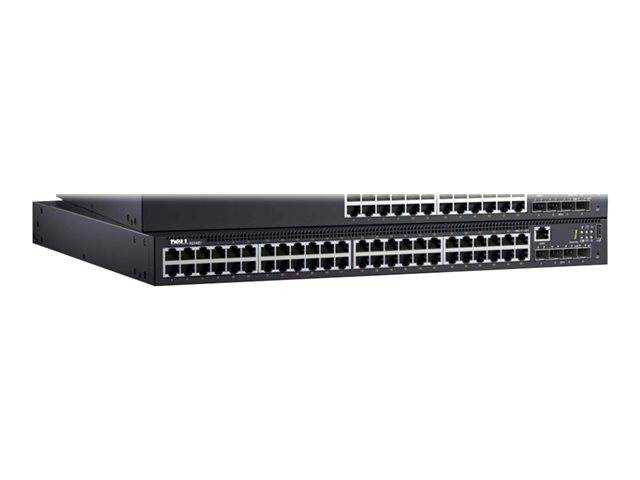

Dell Networking N1548P / Switch / L2+ / Managed / 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ / rack-mountable / PoE+ (30.8 W) | 210-AEWB
Dell Networking N1548P / Switch / L2+ / Managed / 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ / rack-mountable / PoE+ (30.8 W) | 210-AEWB
Description The N1500 switch series offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. The N1500 switch series has high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to handle unexpected traffic loads easily. These switches offer simple management and scalability via a 40Gbps (full-duplex) high-availability stacking architecture that allows management of up to four switches from a single IP address. Special Features
Product features
|
Product Specification
Device Type | Switch - 48 ports - L2+ - Managed - stackable |
Enclosure Type | Rack-mountable 1U |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 30.8 W |
Performance | Switching fabric bandwidth: 176 Gbps ¦ Forwarding performance: 164 Mpps |
Capacity | Virtual interfaces (VLANs): 512 ¦ ARP entries: 1024 ¦ NDP entries: 400 ¦ Priority queues per port: 8 ¦ IPv4 routes (static): 256 ¦ IPv6 routes (static): 128 ¦ IPv4 routes (dynamic): 256 ¦ VLAN routing interfaces: 128 ¦ ACL: 100 ¦ Max ACL rules system-wide: 2048 ¦ Maximum rules per ACL: 1023 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv4) egress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 512 ¦ Maximum ACL rules per interface (IPv6) egress rules: 509 ¦ Maximum VLAN interfaces with ACLs applied: 24 ¦ Maximum dynamic ports per switch stack: 144 ¦ Maximum member ports per LAG: 8 ¦ MAC addresses: 16000 |
MAC Address Table Size | 16000 entries |
Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing |
Remote Management Protocol | Telnet, TFTP |
Encryption Algorithm | MD5, AES, SSL, TLS |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), port mirroring, Broadcast Storm Control, front to back airflow, redundant fans |
RAM | 1 GB |
Flash Memory | 256 MB |
Interfaces | 48 x Gigabit LAN - RJ-45 ¦ 4 x 10Gbit LAN - SFP+ ¦ 1 x serial (RS-232) - RJ-45 - management ¦ 1 x USB - Type A |
Power Device | Internal power supply |
Installed Qty | 1 |
Power Provided | 600 Watt |
Rack Mounting Kit | Included |
Compliant Standards | FCC Class A certified, cUL, GS, RoHS, WEEE, REACH, ICES Class A, VCCI Class A, EAC, CCC Class A |
Width | 44 cm |
Depth | 38.7 cm |
Height | 4.32 cm |
Weight | 7 kg |
Service & Support | Limited warranty - lifetime |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 45 °C |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 65 °C |
