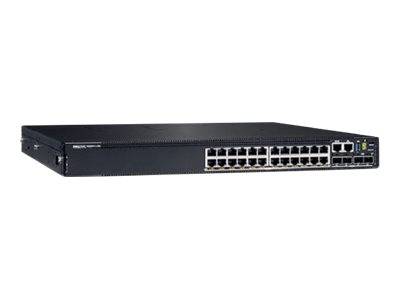

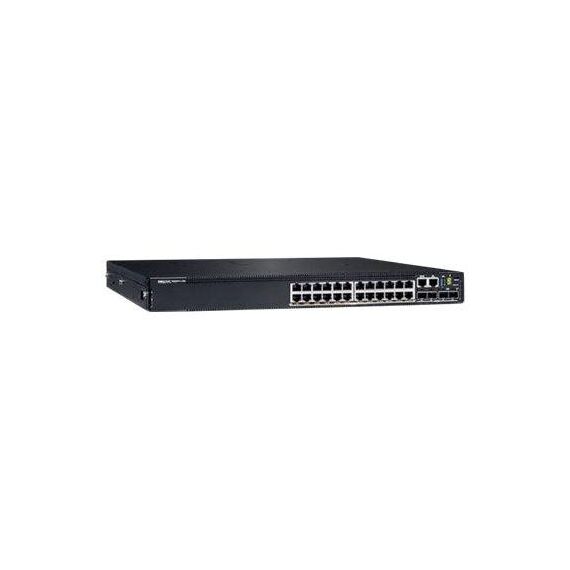

Dell EMC PowerSwitch N2200-ON Series N2224PX-ON / Switch / L3 / Managed / 12 x 10/100/1000/2.5G (PoE+) + 12 x 1/2.5G (PoE++) + 4 x 25 Gigabit SFP28 / front to back airflow / rack-mountable / PoE++ / CAMPUS Smart Value | 210-ASPC

Description

The N2200-ON switch series offers a power-efficient Multigigabit Ethernet network-access switching solution with integrated 25GbE uplinks. With high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to easily handle unexpected traffic loads, the switches offer simple management and scalability via an 160Gbps (full duplex) high availability stacking architecture that allows management of up to twelve switches from a single IP address. An integrated 80PLUS Platinum certified power supply provides energy efficiency to help decrease power and cooling costs.

Dell EMC PowerSwitch N2200-ON Series N2224PX-ON / Switch | 210-ASPC

Special Features

• Modernize campus network architectures
• Leverage familiar tools and practices
• Deploy with confidence at any scale

Product features

• Modernize campus network architectures
  Modernize campus network architectures with a power-efficient and resilient 1/2.5/25GbE switching solution with 802.3bt Type-3 (60W) Power over Ethernet. PoE ports can deliver clean power to network devices such as wireless access points (APs), Voiceover-IP (VoIP) handsets, video conferencing systems, security cameras, LED luminaries and many more. For greater interoperability in multivendor networks, N2200 switches offer the latest open-standard protocols.
• Leverage familiar tools and practices
  All N-Series switches include Dell EMC Networking OS6, designed for easier deployment, greater interoperability and a lower learning curve for network administrators. One common command line interface (CLI) and graphic user interface (GUI) using a well-known command language gets skilled network administrators productive quickly. With USB auto-configuration, network administrators can rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key. N2200-ON switches also support the Open Network Install Environment (ONIE), enabling installation of alternate network operating systems.
• Deploy with confidence at any scale
  N2200-ON series switches help create performance assurance with a data rate up to 600Gbps (full duplex) and a forwarding rate up to 833Mpps. Scale easily with built-in rear stacking ports. Switch stacks of up to 624 1/2.5/25GbE ports can be managed from a single screen using the highly-available stacking architecture for high-density aggregation with seamless redundant availability.
