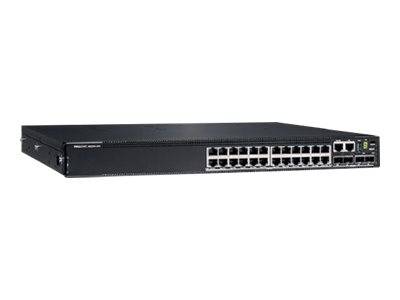

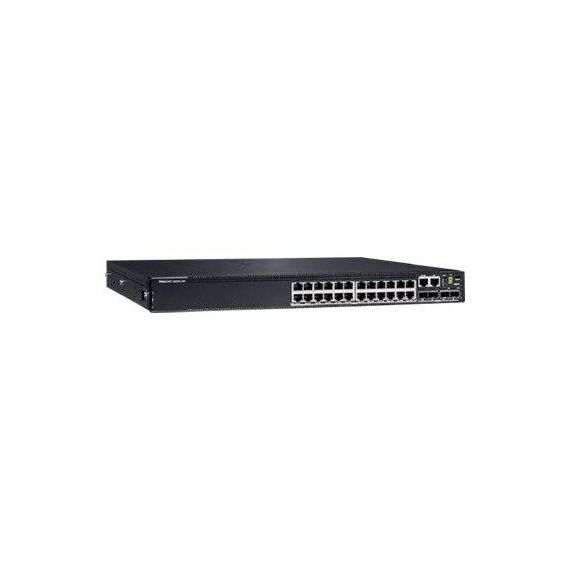

Dell EMC PowerSwitch N2200-ON Series N2224X-ON / Switch / L3 / Managed / 24 x 10/100/1000/2.5G + 4 x 25 Gigabit SFP28 / front to back airflow / rack-mountable / CAMPUS Smart Value | 210-ASPJ
Dell EMC PowerSwitch N2200-ON Series N2224X-ON / Switch / L3 / Managed / 24 x 10/100/1000/2.5G + 4 x 25 Gigabit SFP28 / front to back airflow / rack-mountable / CAMPUS Smart Value | 210-ASPJ
€4369.23 inc. VAT
210-ASPJ
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Dell EMC PowerSwitch N2200-ON Series N2224X-ON / Switch / L3 / Managed / 24 x 10/100/1000/2.5G + 4 x 25 Gigabit SFP28 / front to back airflow / rack-mountable / CAMPUS Smart Value | 210-ASPJ
Description
Enhance employee productivity with better connectivity.
Dell EMC PowerSwitch N2200-ON Series N2224X-ON / Switch | 210-ASPJ
Special Features
- Modernize existing campus networks to handle modern workloads
- Facilitate Workforce Transformation and enhance employee productivity with immersive, bandwidth intensive applications
- Realize the many benefits of IoT and automation with enhanced PoE capabilities that Dell EMC PowerSwitch N series deliver
Product Specification
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 24 x 10/100/1000/2.5G + 4 x 25 Gigabit SFP28 |
| Performance | Switching capacity: 480 Gbps ¦ Forwarding rate: 667 Mpps |
| Capacity | Priority queues per port: 8 ¦ RIP interfaces: 256 ¦ ARP entries: 4096 ¦ NDP entries: 512 ¦ VLANs supported: 4096 ¦ IPv4 routes (static): 256 ¦ IPv4 routes (dynamic): 256 ¦ IPv6 routes (static): 128 ¦ Maximum ACL rules per interface (IPv4) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv4) egress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) ingress rules: 1023 ¦ Maximum ACL rules per interface (IPv6) egress rules: 509 ¦ Maximum VLAN interfaces with ACLs applied: 24 ¦ Max ACL rules system-wide: 3914 |
| MAC Address Table Size | 32K entries |
| Routing Protocol | OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3, OSPFv3, IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP 2, SNMP, RMON, HTTP |
| Authentication Method | RADIUS, TACACS+ |
| Features | VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, 4MB packet buffer, VLAN Tagging, flow-based QoS |
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3ax |
| RAM | 4 GB |
| Flash Memory | 8 GB |
| Interfaces | 24 x 10/100/1000/2.5G RJ-45 ¦ 4 x 25Gbit LAN SFP28 ¦ 1 x 10/100/1000 Base-T RJ-45 management ¦ 2 x 40Gbit LAN QSFP+ stacking ¦ 1 x USB Type A ¦ 1 x micro-USB 2.0 Type B ¦ 1 x serial (RS-232) RJ-45 console |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 1 |
| Power Redundancy | Yes |
| Power Provided | 550 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 238 Watt |
| Cables Included | RJ-45 to DB-9 cable ¦ Micro-USB to USB cable |
| Rack Mounting Kit | Included |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 60825-1, EN 60825-2, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, ICES-003 issue 4 Class A, EN 300 386 V1.4.1, AS/NZS CISPR22:2006 Class A, FDA 21CFR1040.10, EN 55022:2006+A1:2007 Class A, FDA 21CFR1040.11, VCCI V-3/2009 Class A, UL/CSA60950-1 (2nd Edition), EN 55024:1998+A1:2001+A2:2003 |
| Manufacturer Selling Program | CAMPUS Smart Value |
| Software Included | Dell EMC OS6 |
| Width | 43.4 cm |
| Depth | 40 cm |
| Height | 4.34 cm |
| Weight | 6.5 kg |
| Service & Support | Limited warranty - lifetime |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 65 °C |
| Humidity Range Storage | 0 - 85% |
Features - Dell - 210-ASPJ
General
24-Port
More Details
Product Code
03:155474
EAN Code
5397184224540
Manufacturer
Dell
