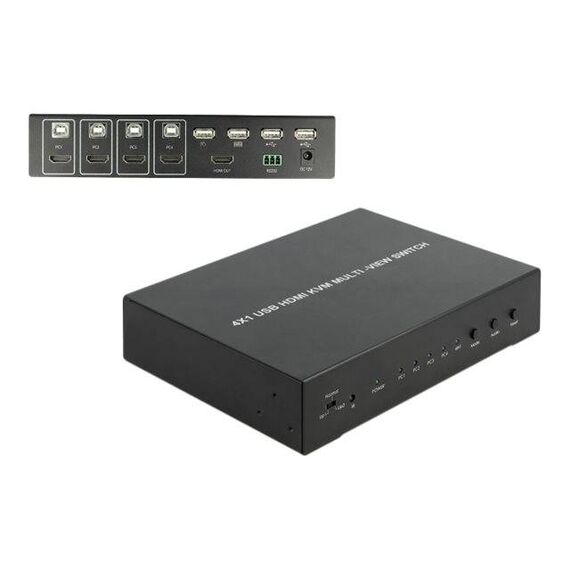

DeLock 4 in 1 Multiview / KVM / audio / USB switch / 4 x KVM / audio / USB / 1 local user / desktop | 11488
Please sign in so that we can notify you about a reply
Product Features
- 4 in 1 Multiview Mode
In Multiview Mode, all 4 PCs are displayed on one monitor simultaneously. Operating the keyboard and mouse is possible without switching. When the mouse is moved over one of the desktops, it is activated for input. Alternatively, the Sync Mode can be turned on, where all connected PCs receive the same signals from the input devices. - Flexible Control
The active computer can be selected by mouse button, keyboard hotkey, button on the device or infrared remote control.
Special Features
- 4 in 1 Multiview Mode
- Flexible Control
Product Specification
| Device Type | KVM / audio / USB switch - 4 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 4 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Performance | Bandwidth: 2.25 Gbps |
| Max Resolution | 1920 x 1080 @ 60 Hz |
| Max Video Bandwidth | 225 MHz |
| Features | HDCP compliant, input selection buttons, metal housing, Hotkey/Remote/Mouse switching, Full HD (1920 x 1080) streaming video support |
| Compliant Standards | HDCP 1.2 |
| Status Indicators | Source |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x HDMI input ¦ 4 x USB 2.0 Type B ¦ 1 x mouse (USB) Type A ¦ 1 x keyboard (USB) Type A ¦ 2 x USB 2.0 ¦ 1 x HDMI output ¦ 1 x serial (RS-232) 3 pin terminal block |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 12 V - 2 A |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | Miscellaneous |
| Colour | Black |

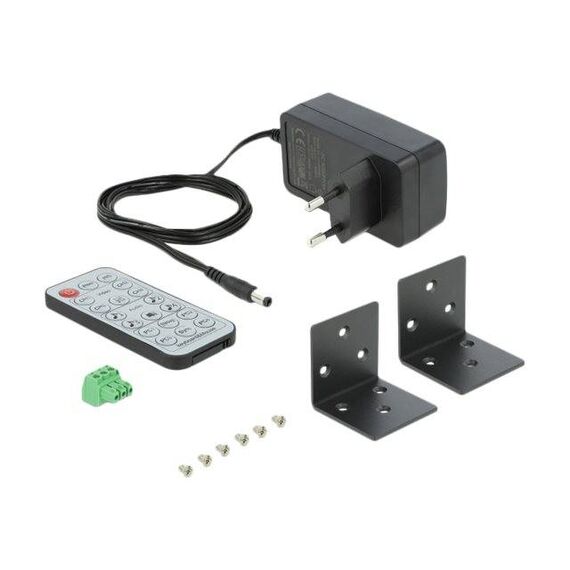

| Included Accessories | Wireless remote control, mounting screws, 2 mounting brackets, 3-pin terminal block |
| Dimensions & Weight | Dimensions & Weight |
| Width | 16 cm |
| Depth | 21 cm |
| Height | 4.4 cm |
Features - DeLOCK - 11488
More Details
Product Code
04:382844
EAN Code
4043619114887
Manufacturer
DeLOCK
