DeLOCK / Antenna / Wi-Fi / 7 dBi (for 5 GHz), 4 dBi (for 2.4 GHz) / omni-directional | 88913
Description
This Wireless LAN antenna can be connected to your device with RP-SMA interface, in order to send and receive signals.

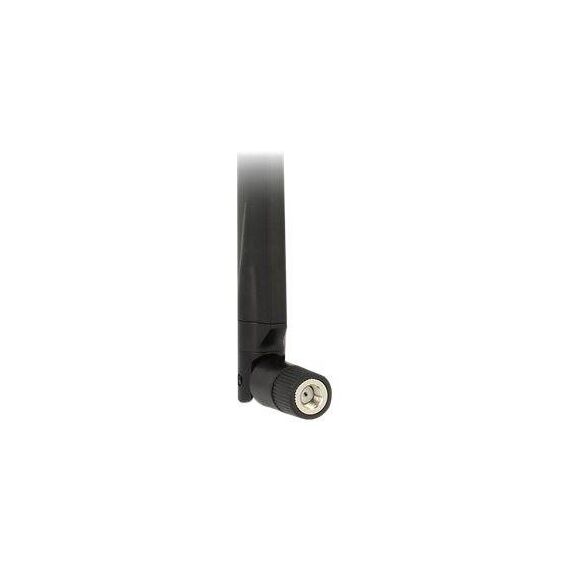

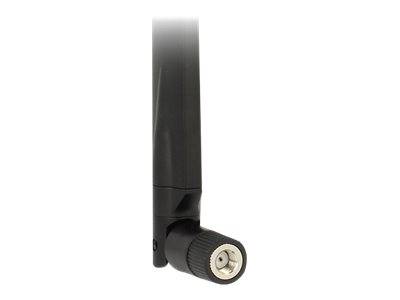

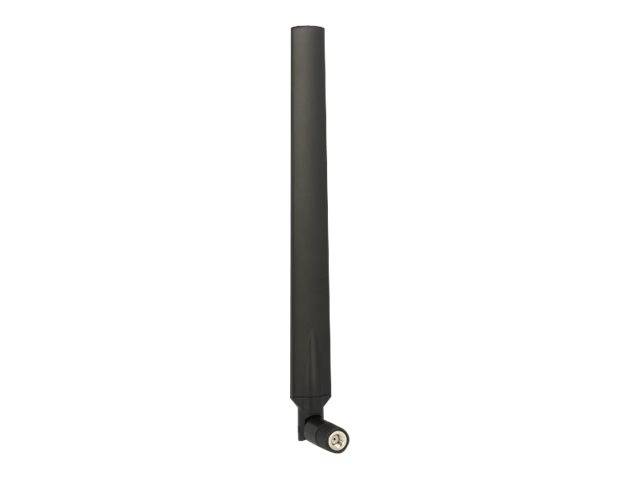

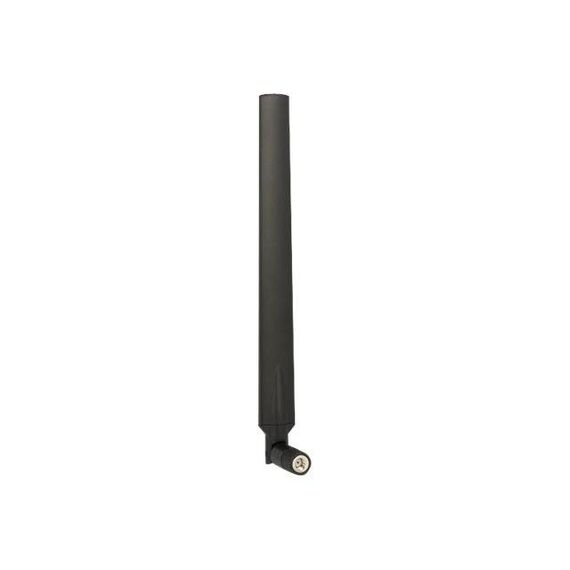

DeLOCK Wi-Fi Antenna 7dBi (5GHz), 4dBi (2.4GHz) OD
Special Features
- WLAN Antenna external with joint, rotatable

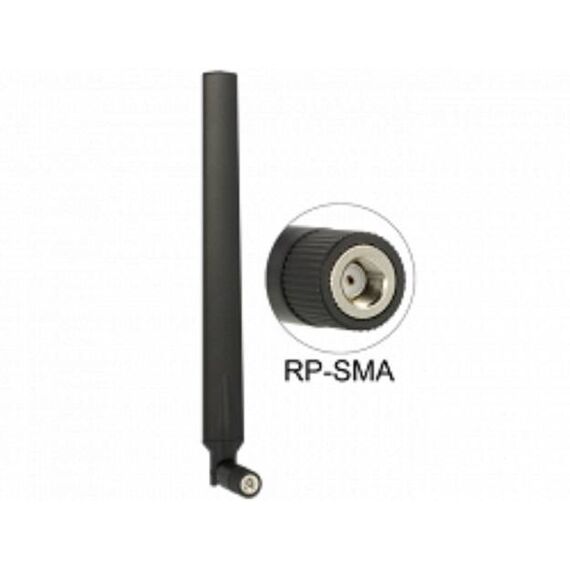

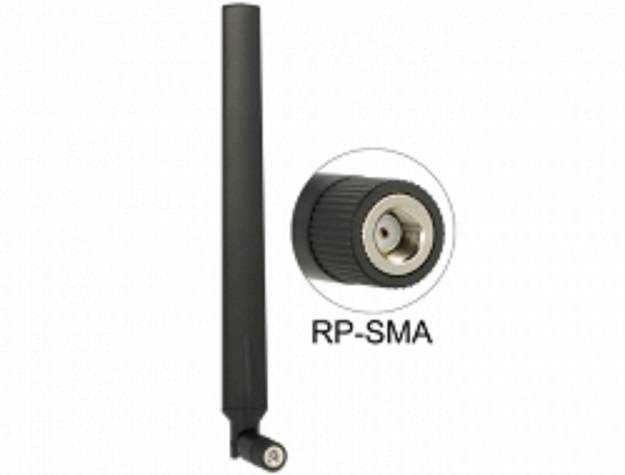

- RP-SMA plug
Product Specification
| Product Type | Antenna |
| Width | 2 cm |
| Depth | 2 cm |
| Height | 23.2 cm |
| Intended For | Wi-Fi |
| Compatibility | 802.11 a/b/g/n/ac |
| Frequency Range | 2.4 - 2.4835 GHz, 5.150 - 5.875 GHz |
| Gain | 7 dBi (for 5 GHz), 4 dBi (for 2.4 GHz) |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Impedance | 50 Ohm |
| Connector Provided | 1 x RP-SMA female |
| Features | Rotating |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
Features - DeLOCK - 88913
More Details
Product Code
04:167031
EAN Code
4043619889136
Manufacturer
DeLOCK
