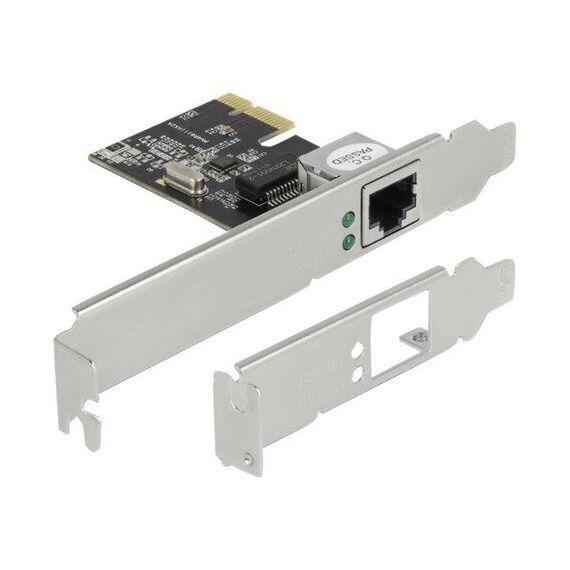

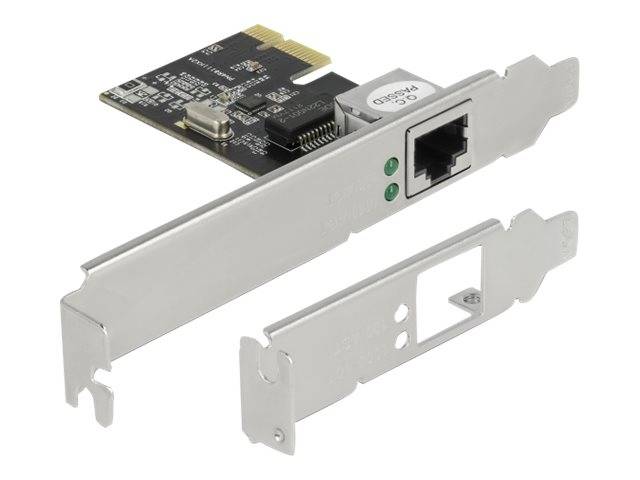

Delock / Network adapter / PCIe 1.1 low profile / Gigabit Ethernet x 1 | 89189
Please sign in so that we can notify you about a reply
Special Features
- LED indicator for link and activity
- Chipset: Realtek RTL8111H
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 1.1 x1 |
| PCI Specification Revision | PCIe 1.1 |
| Networking | Networking |
| Ports | Gigabit Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Status Indicators | Link/activity |
| Features | Flow control, VLAN support, wake on LAN (WOL), half duplex mode, full duplex mode, Energy Efficient Ethernet, 9 KB Jumbo Frame |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Processor / Memory | Processor / Memory |
| Processor | Realtek Semiconductor RTL8111H |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T - RJ-45 - female |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket, standard bracket |
| Package Type | Retail |
| Package Details | Box |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| OS Required | Linux Kernel 3.2 or later, Windows 8.1 / 10 (32/64 bits) |
Features - DeLOCK - 89189
More Details
Product Code
04:409724
EAN Code
4043619891894
Manufacturer
DeLOCK
