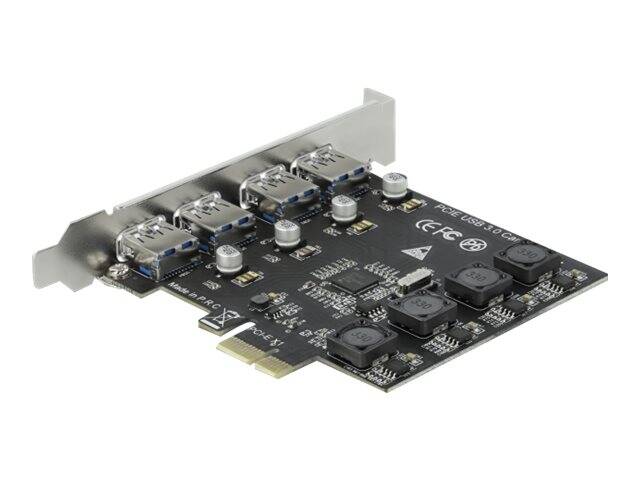

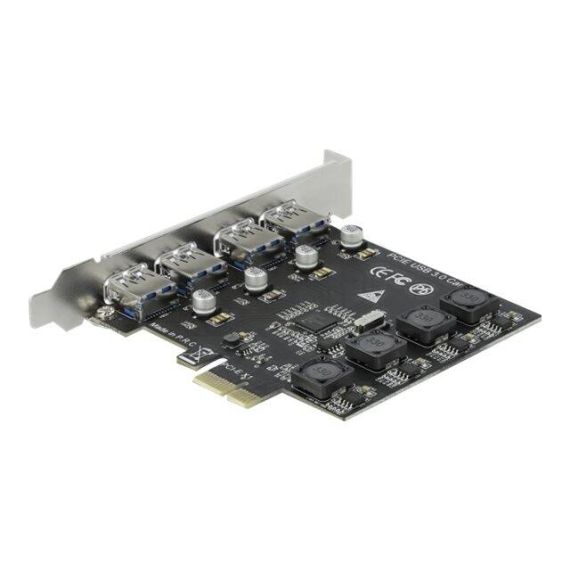

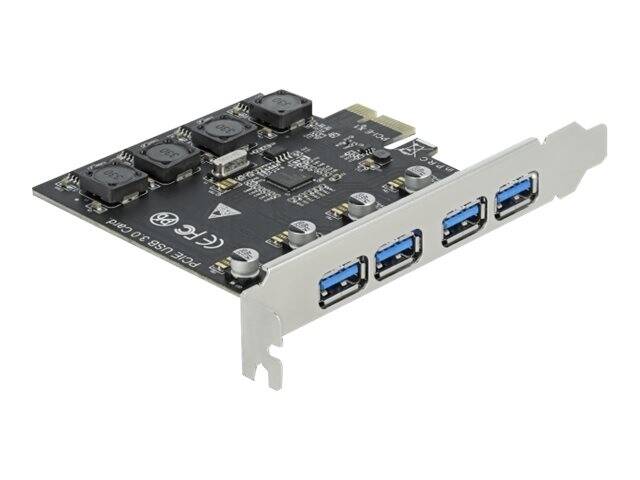

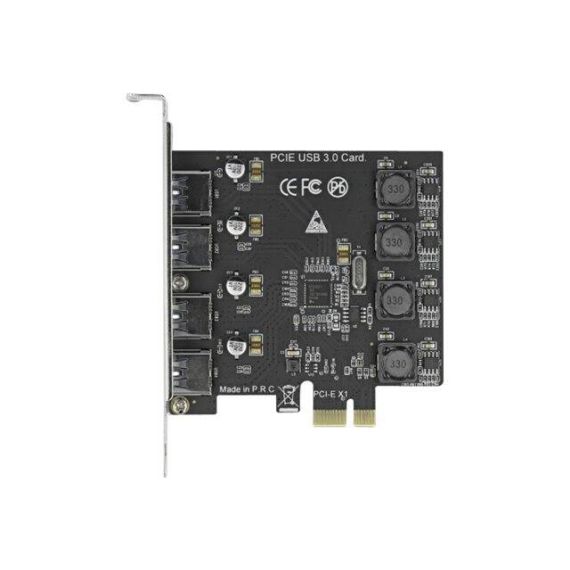

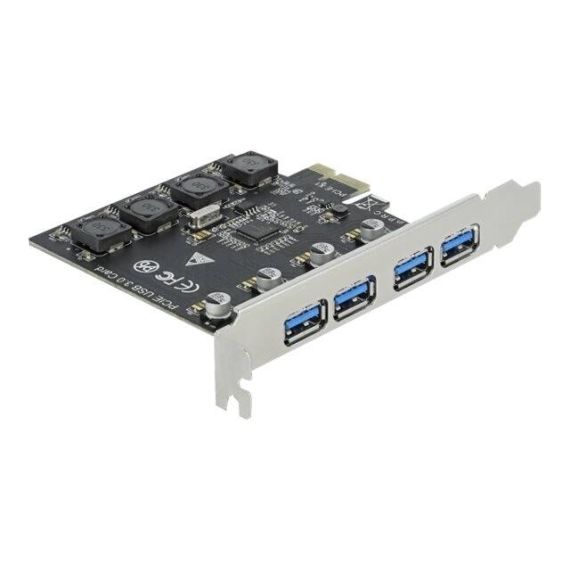

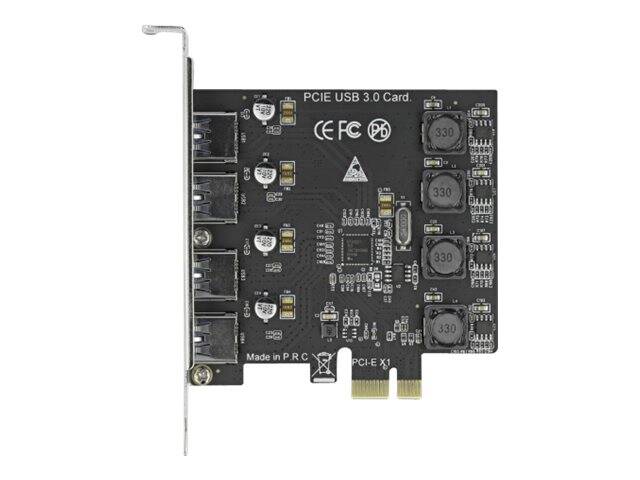

Delock / USB adapter / PCIe 2.0 / USB 3.2 Gen 1 x 4 | 90509
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | USB adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 2.0 x1 |
| PCI Specification Revision | PCIe 2.0 |
| Networking | Networking |
| Ports | USB 3.2 Gen 1 x 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | USB, USB 2.0, SuperSpeed USB 3.0, USB 3.2 Gen 1 |
| Data Transfer Rate | 5 Gbps |
| Performance | Maximum throughput: 5 Gbps |
| Features | Up to 10W/2A power per port |
| Compliant Standards | USB 1.1, USB 2.0, USB 3.0, USB 3.2 Gen 1 |
| Processor / Memory | Processor / Memory |
| Processor | 1 x Renesas D720201 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x USB 3.2 Gen 1 - 9 pin USB Type A |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screw |
| Package Type | Retail |
| Software / System Requirements | Software / System Requirements |
| OS Required | Windows 8 / 8.1 / 10 (64 bits), Linux Kernel 3.18 or later |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - DeLOCK - 90509
More Details
Product Code
04:481821
EAN Code
4043619905096
Manufacturer
DeLOCK
