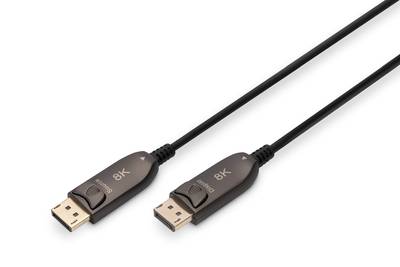

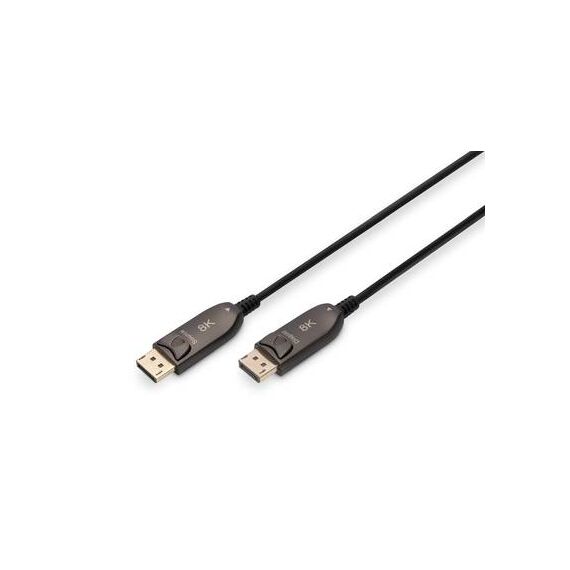

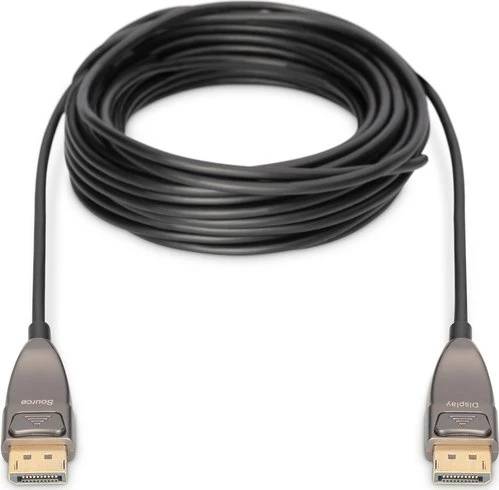

DIGITUS / DisplayPort cable / DisplayPort (M) to DisplayPort (M) / DisplayPort 1.4 / 10 m / snap fastener, Active Optical Cable (AOC), Dolby DTS-HD Master Audio support, Dolby TrueHD support, FEC, 4K120Hz support, 8K60Hz (7680 x 4320) s | AK-340107-100-S

Product Features

· Resolution: 7680 x 4320p / 60 Hz (UHD-2)
· Supports 8K 3D
· Data transfer rate of up to 32.4 Gbps (max. bandwidth)
· Supports up to 120Hz at 4K & Full HD (1080p)
· Subsampling: YUV 4:4:4
· HDCP version: 2.2
· DisplayPort version: 1.4
· Supported color depth: 16 Bit Deep Color
· Supports HDR
· Supports Consumer Electronic Control (CEC)
· Supports Lip Sync (audio/video synchronization)
· Supports stereoscopic 3D video
· Supports Display Stream Compression 1.2 (DSC)
· Supports EDID 2.0 (device recognition)
· Supports DVI Version 1.0 (in conjunction with adapters)
· Supports forward error correction (FEC)
· Multi Stream audio/video support
· Supports 21:9 Cinemascope
· 32 channel audio support
· Dolby TrueHD capable
· Supports 8-channel LPCM, 192 kHz, 24-bit audio capability
· Supports DTS-HD Master Audio bitstream
· Supports Super Audio CD (DSD)
· Supports DVD audio
· Supports Blu-ray Disc and HD DVD audio and video
· Latency: Zero frame delay
· Bending radius: 25.4 mm
· OM version: OM3
· Operating temperature: -20 ~ 70°C
· Operating humidity: 10 - 75% RH
· Power consumption: 360 mW max.

Special Features

· Active fiber optic data transfer with up to 32.4 Gbps - zero latency
· Resolutions of up to 8K@60Hz
· Transfers uncompressed HDMI® video and audio signals over a distance of 10 m
· Flexible installation with a tight bending radius of 25.4 mm
· Compact cable with small diameter (OD 4.8 mm)
· Immune to electromagnetic interference (EMI)
· Supports HDR (High Dynamic Range)
· Supports HDCP 2.2 / EDID / CEC
· Hybrid construction with fiber optic and copper cores with gold-plated contacts
· Loss-free data transfer rate at high transmission speed

Product Specification

Type	DisplayPort cable
Technology	Hybrid copper/fibre optic
American Wire Gauge (AWG)	24/28
Plated Connector	Gold
Features	Snap fastener, Active Optical Cable (AOC), Dolby DTS-HD Master Audio support, Dolby TrueHD support, Forward Error Correction (FEC), 4K120Hz support, 8K60Hz (7680 x 4320) support, HDCP compliant, Display Stream Compression 1.2 (DSC), HDR support, 32 audio channels, 3D video supported, Chroma subsampling (4:4:4), 32.4 Gbps data rate, 16-bit deep colour, Lip-Snyc supports, zero frame delay, metal housing
Length	10 m
Outside Diameter	4.8 mm
Colour	Black
Connectivity	Connectivity
Connector	20 pin DisplayPort - male
Connector (Second End)	20 pin DisplayPort - male
Miscellaneous	Miscellaneous
Compliant Standards	DisplayPort 1.4, CEC, OM3, HDCP 2.2, EDID 2.0
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	20 cm
Shipping Depth	6 cm
Shipping Height	20 cm
Shipping Weight	390 g
