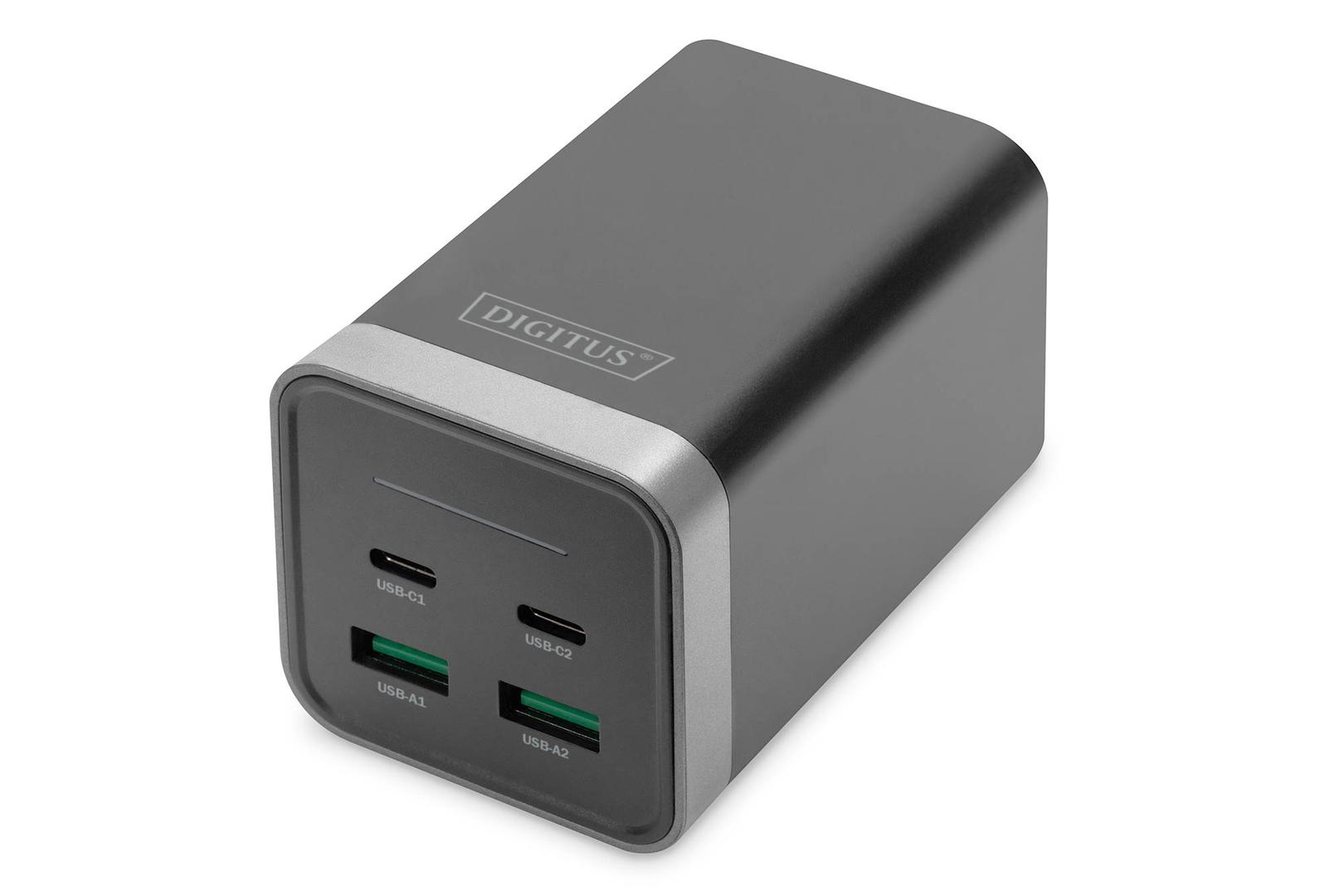

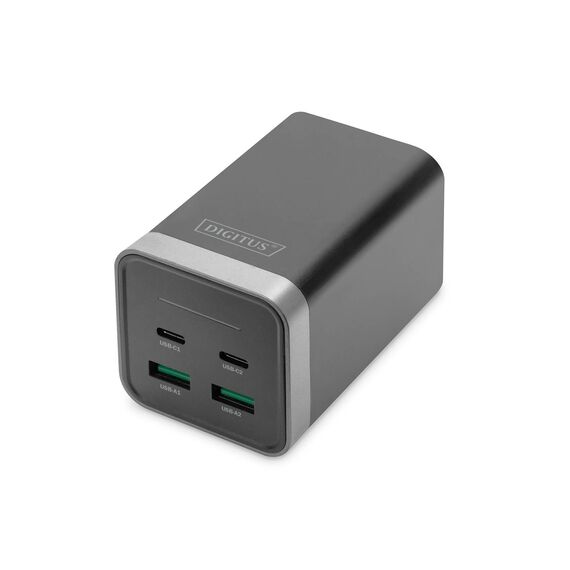

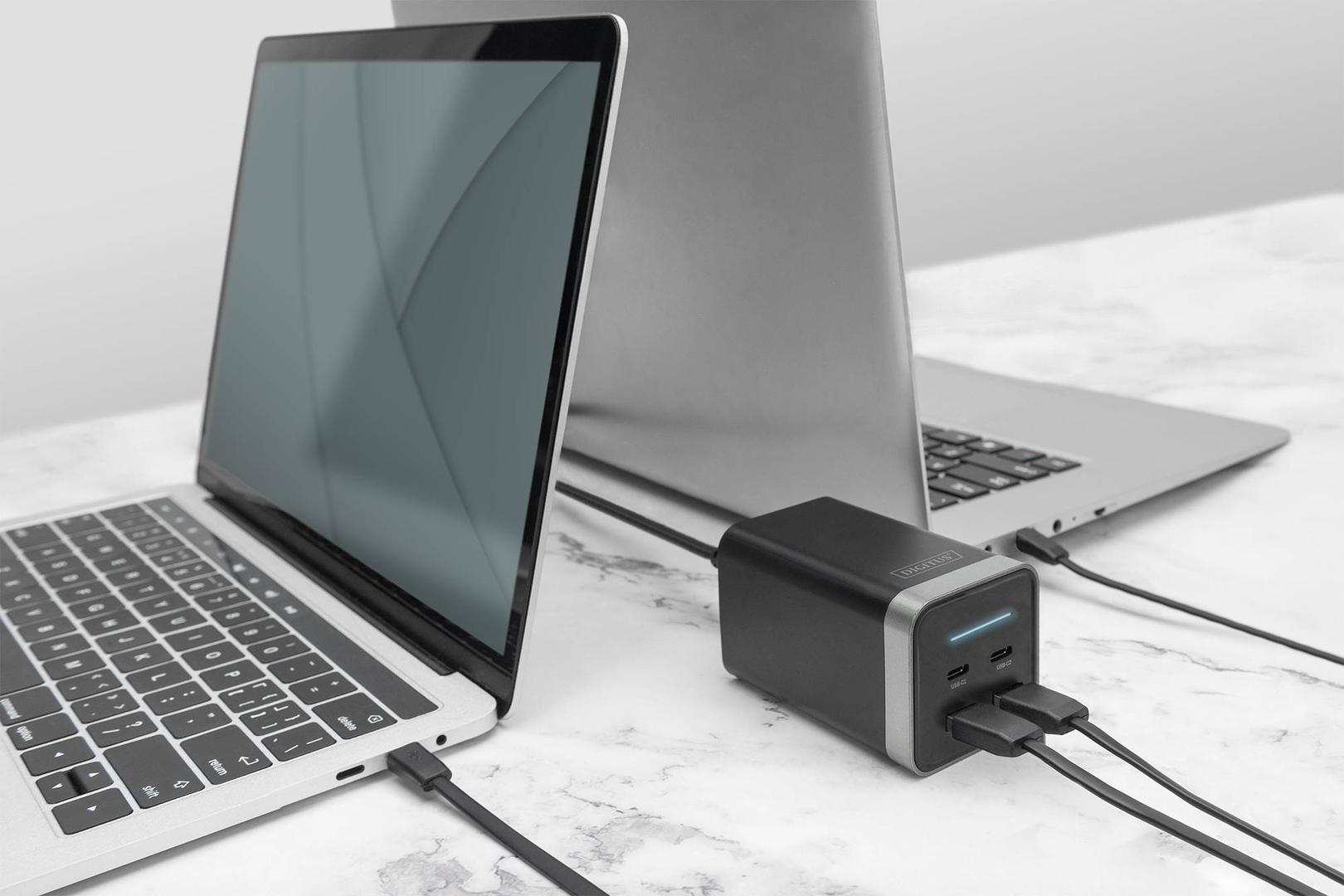

Digitus / Power adapter / GaN,universal / 150 Watt / 5 A / PD 3.0 / 4 output connectors (USB, 24 pin USB-C) / black, silver | DA-10181

Product Features

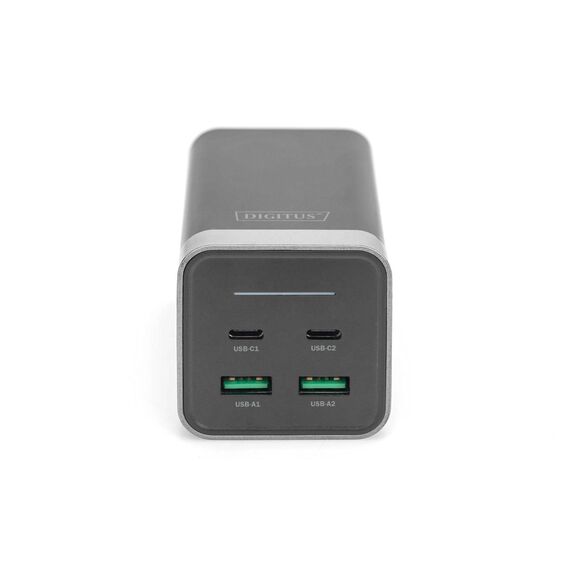

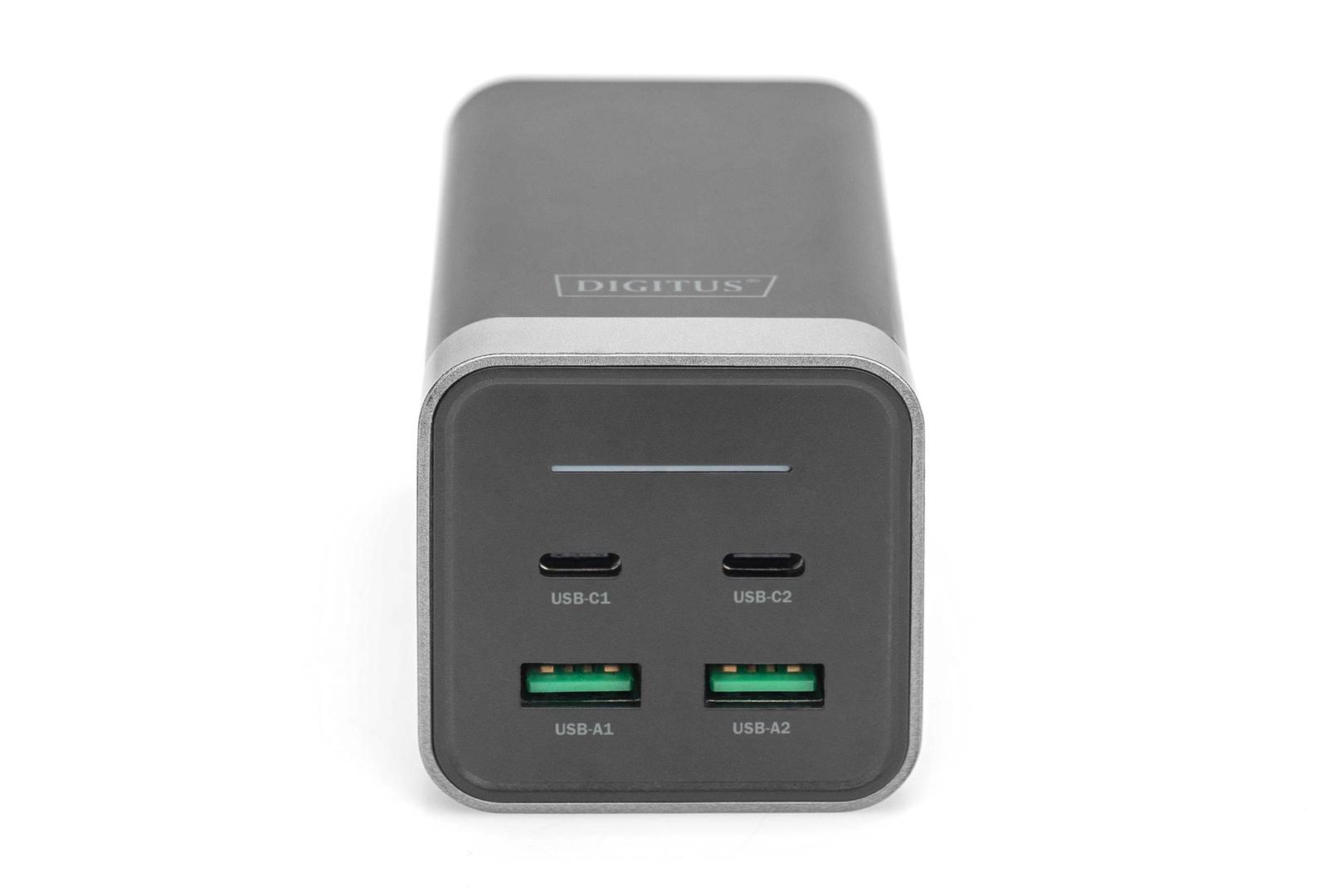

· Connection: 2x USB-C + 2x USB A
· Supports Power Delivery 3.0 and PPS function with 150W charging power

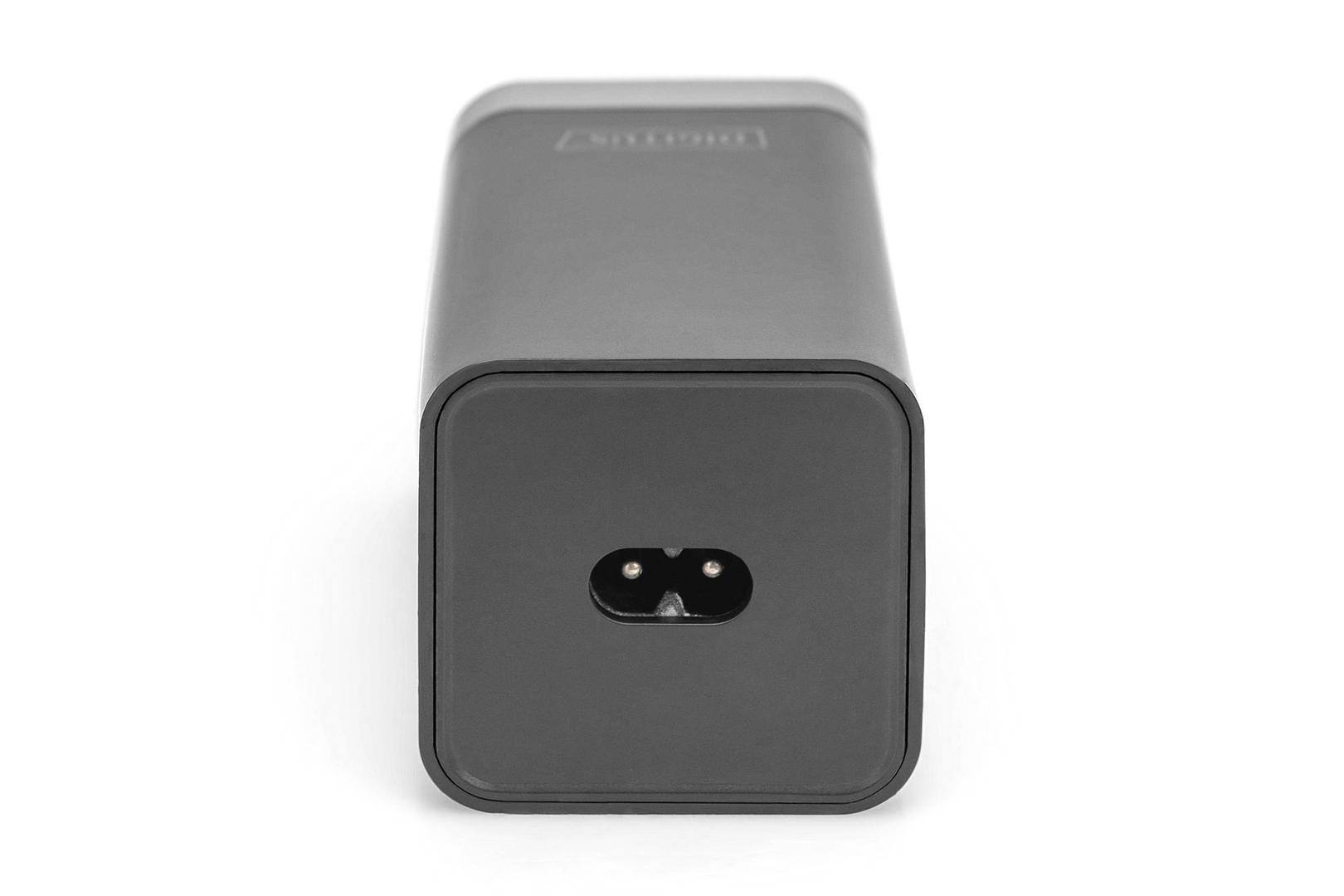

· Input Voltage: 100~240 V AC, 50/60Hz
· Output voltage: USB-C1/C2: PD 100W (PD: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)
· Output voltage: USB-A1/A2: 22.5W (5V/4.5A, 5V/3A, 9V/2A, 12V/1.5A) SCP & QC3.0
· Output voltage: USB-C1+C2+A1+A2: C1: 100W + C2: 30W + A1: 10W + A2: 10W
· Over Voltage Protection / Over Current Protection / Over Load Protection / Short Circuit Protection
· Protection against overheating with automatic shutdown and recovery (auto-recovery)
· Dimensions: L 85 x W 52 x H 52 mm
· Colour: black/silver
· Weight: 500 g
· Attention: When multiple devices are connected, the adapter will choose the appropriate fast charge protocol to split the power for each device optimally, resulting in 2-3 times disconnection before fast charge begins

Special Features

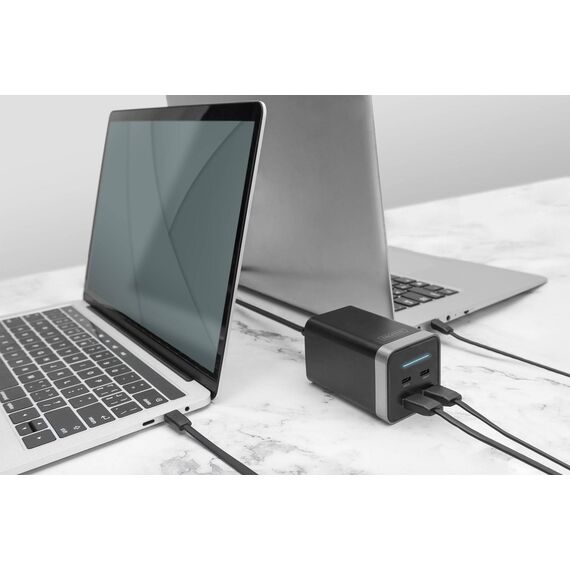

· Compact charger for devices such as notebooks, smartphones or tablets. The latest GaN technology is extremely efficient and can charge devices up to four times faster than conventional chargers.
· Supports power up to 150W - compatible with Power Delivery (PD3.0) and PPS function

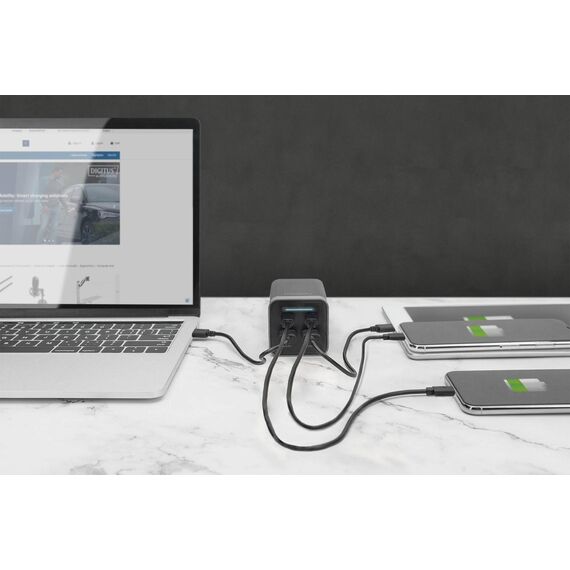

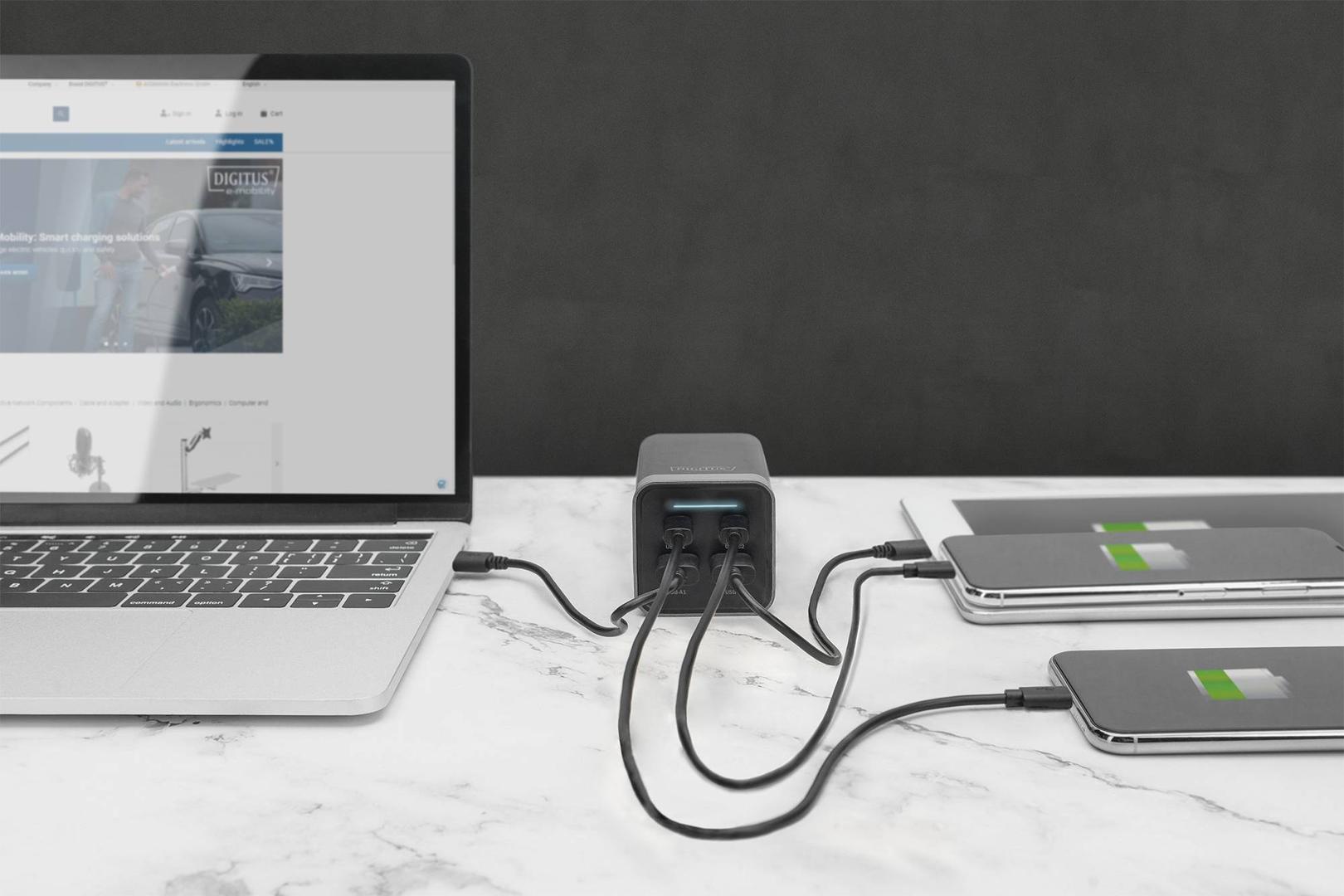

· An intelligent power distribution divides a total of 150W charging power to several connected devices and provides the optimal charging current for the connected
· Ports used: 2 x USB-C ports with 150W (100W + 45W) charging power
· Ports used: 2 x USB A ports with 24 W (12W + 12W) charging power
· Ports used: 2x USB-C 145 W & 2x USB A 12 W charging power
· The use of GaN technology makes it smaller compared to silicon power supplies, more efficient because less heat is dissipated, noise is minimized and stable charging is ensured.
· Built-in over-voltage protection / over-current protection / short-circuit protection and over-heating protection with auto-recovery for maximum security
· The housing is made of fire-resistant material

Product Specification

Product Type	Power adapter
Designed For	Tablet, mobile phone, notebook
Width	5.2 cm
Depth	8.5 cm
Height	5.2 cm
Weight	500 g
Enclosure Colour	Black, silver
Power Device	Power Device
Voltage Required	AC 100-240 V (50/60 Hz)
Voltage Provided	5 / 9 / 12 / 15 / 20 V
Output connectors	Total 4: 4 pin USB Type A, 24 pin USB-C
Power Provided	150 Watt
Max Electric Current	5 A
Fast Charge Technology	Power Delivery 3.0
Features	Overload protection, short circuit protection, overheat protection, over voltage protection, shuts off automatically, overcurrent protection, compact design, auto-recovery
Miscellaneous	Miscellaneous
Included Accessories	Power cable
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	10.2 cm
Shipping Depth	15.5 cm
Shipping Height	5.6 cm
