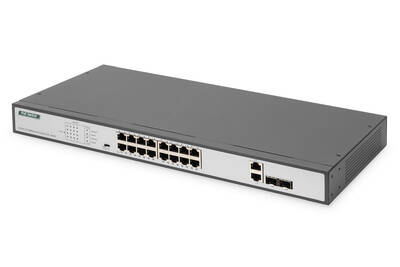

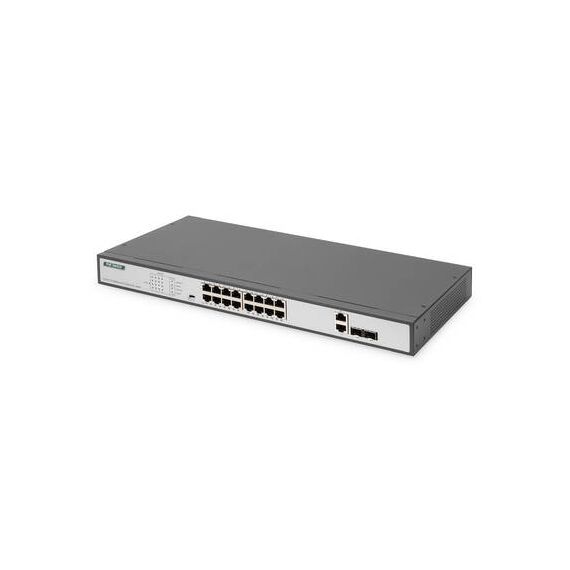

Digitus 16 Port Fast Ethernet PoE Switch, 19 Inch, Unmanaged, 2 Uplinks / Unmanaged / Fast Ethernet (10/100) / 16 / Full duplex / 8000 entries / 7.2 Gbit/s / IEEE 802.3 / 1U | DN-95342-1
Please sign in so that we can notify you about a reply
Product Features
· 16-port 10/100Base-TX with PoE support· 2-port Combo Gigabit TP/SFP Uplink
· Meets the network standards IEEE 802.3, IEEE802.3u,IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af, IEEE802.3at
· PoE current output 55V DC, max. 30 W per port
· PoE power supply mode A, PIN 1/2(+), 3/6(-)
· Supports non-blocking, non-head-of-line forwarding
· Store and forward technology for optimized data transfer
· Automatic speed and half/full duplex
· recognition/adjustment
· Auto MDI/MDI-X function
· 8K MAC addresses
· Integrated power supply unit
· Power supply: 270 watts
· Maximum PoE output power: 250 watts
· Power Input Spec: AC:100-240V
· Power consmption:4.34W
Special Fetures
· 16-port 10/100Base-TX with PoE support 2-port Combo Gigabit TP/SFP Uplink Maximum PoE power of 250 watts· Support one-click VLAN & CCTV mode
· Support PD-ALIVE function
Product Specification
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Full duplex | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 7.2 Gbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Rack mounting | Yes |
| Form factor | 1U |
Features - Digitus - DN-95342-1
More Details
Product Code
03:205176
EAN Code
4016032485667
Manufacturer
Digitus
