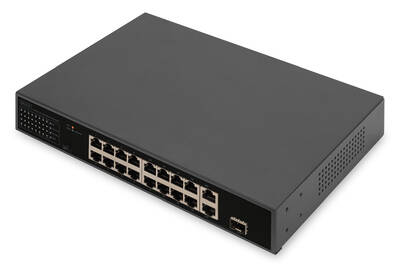

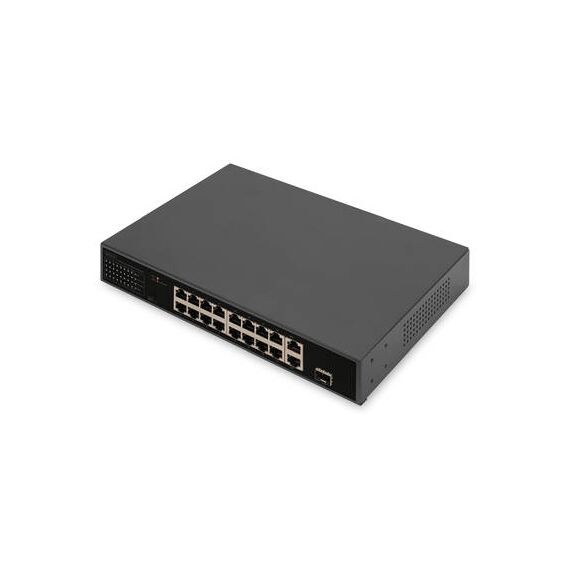

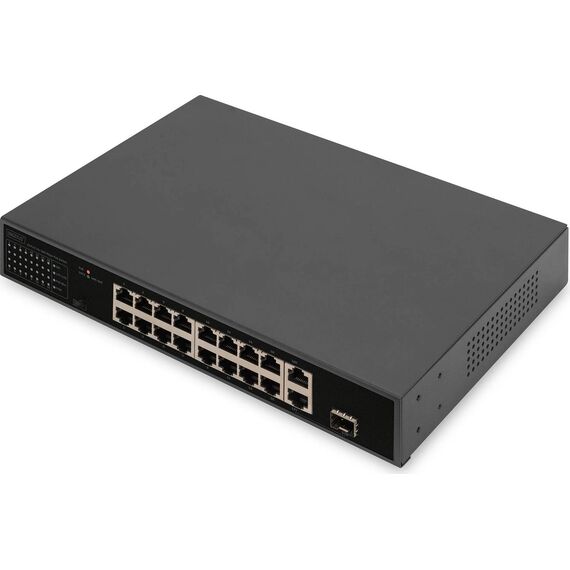

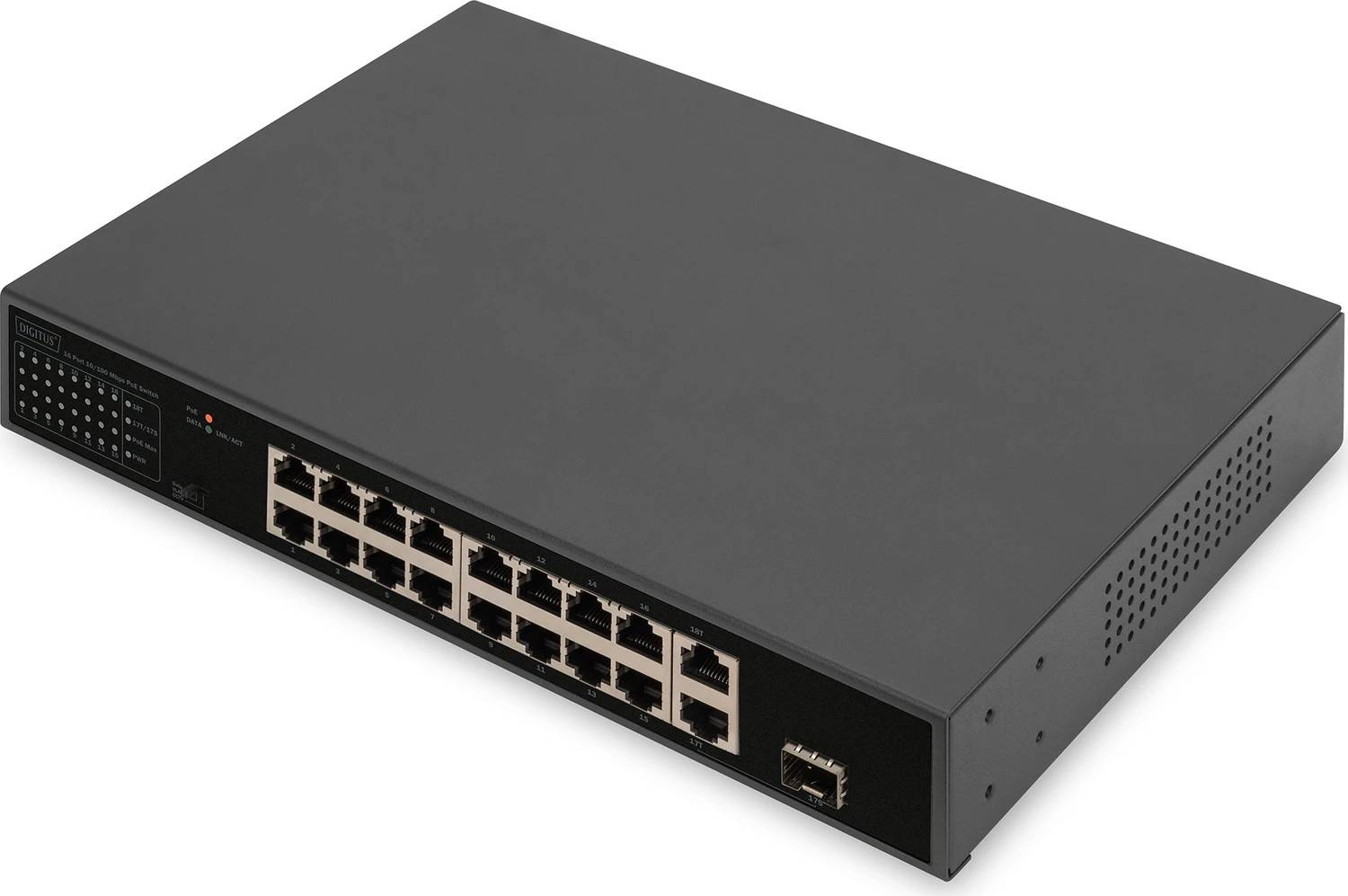

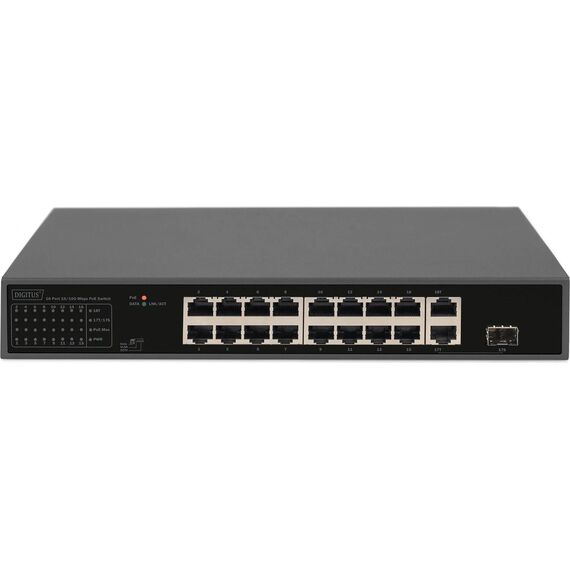

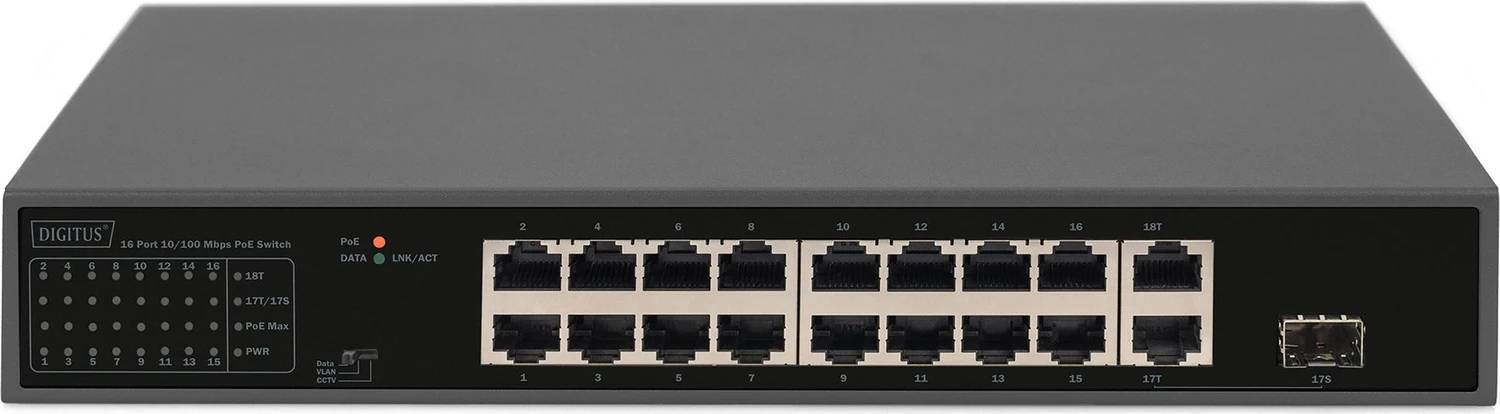

Digitus 16 Port Fast Ethernet PoE Switch , 2 Gigabit Uplinks (RJ45 / SFP) / Unmanaged / Gigabit Ethernet (10/100/1000) / 16 / Full duplex / 16000 entries / IEEE 802.3 / AC-in jack / Power over Ethernet (PoE) / 1U | DN-95355

Product Features

· Interface: 16 x 10/100Mbps RJ45 port, 1 x 10/100/1000Mbps Combo port, 1 x 10/100/1000Mbps RJ45 port
· PoE standard: IEEE802.3af/at
· PoE Port: 1~16
· PoE Budget: 185W
· Power supply: 200W
· Key function: CCTV & VLAN
· PoE port output: Max 30W
· RJ45 PoE power supply: Mode A 1/2(+), 3/6 (-)
· Indicator: PWR, LNK/ACT, PoE, PoE Max
· Network media: 10BASE-T: UTP cables in categories 3, 4, 5 (100m), 100BASE-TX: UTP cables in categories 5, 5e (100m), 1000BASE-T: UTP cables in categories 5e, 6 (100m), 1000BASE-X: SMF, MMF
· MAC Address Table: 8K, Auto-learning, Auto-aging
· Packet buffer: 4Mbit
· Transfer Mode: Store-and-forward
· Packet Forward Speed: 5.4Mpps
· Maximum Pocket Length: 16K
· Bandwidth: 7.2Gbps
· Device Dimension: 280x180x44mm
· Mains Input: 100~240V AC, 50/60Hz
· Operating Temperature: 0°C ~ 40 °C
· Storage Temperature: -40 °C ~ 70 °C
· Operating Humidity: 10% ~ 90% non-condensing
· Storage Humidity: 5% ~ 90% non-condensing
· Surge Protection: Common mode ±4KV, differential mode ±2KV
· MTBF: >50000 hour
· Electrostatic standard: Contact 4KV, air 6KV
· Rack Installation: Yes

Special Fetures

· 16*10/100Mbps PoE RJ45 Ports
· 1*10/100/1000Mbps Combo Ports
· 1*10/100/1000Mbps RJ45 Ports
· Complies with IEEE802.3af/at Power over Ethernet
· Supports PoE Power up to 30W for each PoE port
· Auto detect power device
· Remote power and Data feeding up to 100m
· Flow Control for Full Duplex operation and back pressure for Half Duplex Operation
· Support VLAN and CCTV function
· 16K MAC address, automatic address learning and address aging
· Support Energy-Efficient Ethernet (EEE) function EEE802.3az
· Support PD Alive functionthe switch port is disconnected will automatically connected

Product Specification

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	16
Full duplex	Yes
MAC address table	16000 entries
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Power connector	AC-in jack
Power over Ethernet (PoE)	Yes
Rack mounting	Yes
Form factor	1U
