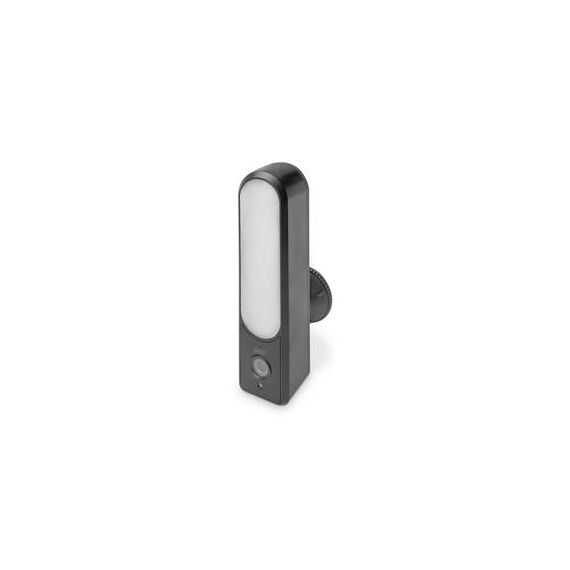

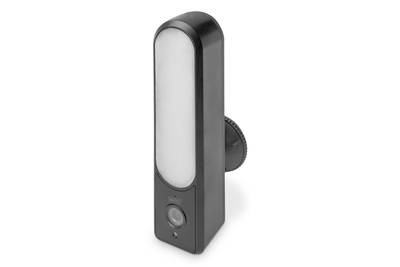

DIGITUS / Network surveillance camera / outdoor / weatherproof / colour (Day&Night) / 2 MP / 1920 x 1080 / 720p, 1080p / fixed focal / audio / wired / Wi-Fi / LAN 10/100 / H.264+ / DC 12 V | DN-18602

Product Features

· Video resolution: 1920 x 1080p@20 BpS (Full HD)
· Video compression: Smart H.264+ / Dual stream
· Lens: FOV: 90° viewing angle / 3.6 mm lens
· Light sensitivity: 0.1 Lux / Aperture: F1.2
· Sensor: 1/2.9" CMOS - 2 megapixel
· Night vision range: Up to 10 m
· Day / night switching: IR-CUT
· Video frame rate: Mainstream 1080p@20 bps, 720p@20bps,
· Supports motion detection
· Infrared LEDs: 8 pcs.
· Floodlight LEDs: 21 units (700 Lumens)
· Integrated speaker and microphone
· Two-way audio communication / compression: G.711
· Connection types: Wireless LAN / LAN RJ45
· Wireless LAN: 2.4 GHz (IEEE 802.11b/g/n)
· LAN: RJ45 10/100M
· Recording modes: Manual / Motion / Scheduled
· With microSD card slot
· MicroSD card storage capacity: Up to 128 GB
· Supports cloud storage
· Network protocol: TCP/IP, P2P, RTSP, Private Cloud, ONVIF
· System requirements: iOS 7 / Android 4 or higher
· Power supply camera: 12 V DC, 2 A via 5.5 mm DC jack
· Power consumption: 15 W max.
· Power adapter input voltage: 100 - 240 V, 50/60 Hz, 0.7 A via Euro plug Type C (CEE 7/16)
· Power adapter output voltage: 12 V DC, 2 A, 24 W via coaxial plug 5.5 mm
· Operating temperature: -20 °C to +55 °C
· Operating humidity: 10% ~ 90%
· Protection type: IP65
· Dimensions: L 61 x W 55 x H 210 mm
· Weight: 300 g incl. bracket
· Color: Black

Special Features

· Full HD video resolution 1080p with wide angle of 90°
· Ultra-bright floodlight with 21 LEDs for optimal lighting
· Voice control via Amazon Alexa & Google Assistant possible
· Motion detection with push notification via app
· Supports two-way audio transmission
· Night vision mode with range up to 10 m
· Recording on MicroSD card / cloud possible
· Free Smart Life (Tuya) app available for iOS and Android
· Simple installation by scanning the QR code possible
· Suitable for wall installation, weatherproof, IP65

Product Specification

Device Type	Network surveillance camera
Audio Support	Yes: built-in speaker, two-way audio capability, built-in microphone
Audio Formats	G.711
Camera Mount Type	Wall mount
Connectivity Technology	Wired, wireless
Width	5.5 cm
Depth	6.1 cm
Height	21 cm
Weight	300 g
Camera	Camera
Type	Colour - Day&Night - fixed - outdoor - weatherproof
Digital Video Format	H.264+
Max Digital Video Resolution	1920 x 1080
Motion Detection	Yes
Video Modes	720p, 1080p
Minimum Illumination	0.1 lux
Infrared LEDs	8
Infrared Distance	10 m
Video Capture	1920 x 1080 @ 20 fps
Features	ONVIF support, infrared cut filter, Push Notification, dual video stream, voice control, cloud recording, 90° field of view, built-in 21 LED lights, 700 lumens floodlight sensor
Image Sensor	Image Sensor
Type	2 MP CMOS 1/2.9"
Lens Construction	Lens Construction
Type	Fixed focal
Focal Length	3.6 mm
Lens Iris	F/1.2
Interfaces	Interfaces
Network Interface	Ethernet 10Base-T/100Base-TX, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Protocols	TCP/IP, RTSP
Expansion / Connectivity	Expansion / Connectivity
Supported Memory Cards	microSD Card, microSDHC Card, microSDXC Card
Miscellaneous	Miscellaneous
Included Accessories	Wall mount bracket
Compliant Standards	IP65
Colour	Black
Power	Power
Power Requirements	DC 12 V - 2 A
Power Device	Power adapter - external AC 100-240 V (50/60 Hz)
Software / System Requirements	Software / System Requirements
OS Required	Android 4.0 or later, Apple iOS 7 or later
Internet of Things (IoT)	Internet of Things (IoT)
Internet of Things (IoT) Compatible	Yes
Supported Host Device Platform	iOS, Android
Intelligent Assistant	Google Assistant, Alexa
Dimensions & Weight (Shipping)	Dimensions & Weight (Shipping)
Shipping Width	15 cm
Shipping Depth	7.5 cm
Shipping Height	23.8 cm
Shipping Weight	750 g
Environmental Parameters	Environmental Parameters
Min Operating Temperature	-10 °C
Max Operating Temperature	55 °C
Relative Humidity (operating)	10 - 90%
