Digitus HDMI Extender Set, 4K/120Hz, 40 m, 3840 x 2160 pixels, AV transmitter & receiver, 40 m, Wired, Black, HDCP | DS-55342

Product Features

· HDMI signal transmission (point-to-point) up to 40 m in UHD resolution (4K/120 Hz, 4:4:4)
· Bi-directional IR transmission
· Max. resolution: 4K/120Hz (4:4:4)
· Video bandwidth: 32 Gbps
· Supports HDCP 2.3
· Supports High Dynamic Range (HDR)
· HDMI 2.1
· Suitable for wall mounting
· Supports CAT 6, CAT 6A, CAT 7 network cable

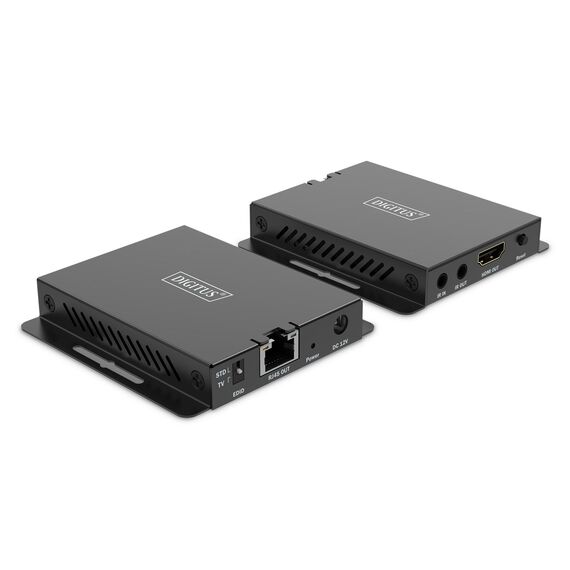

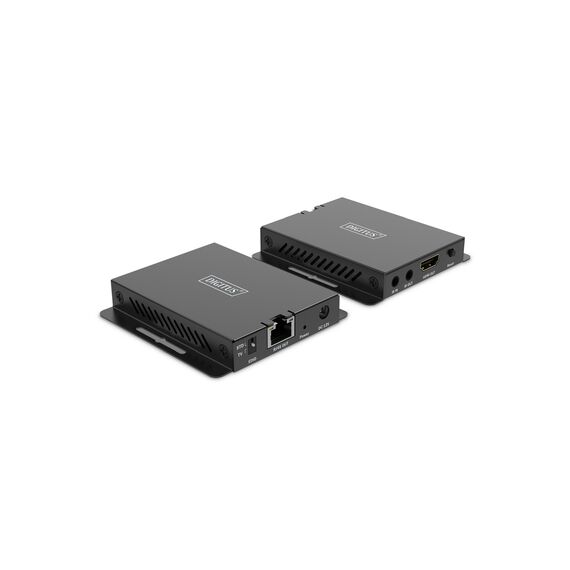

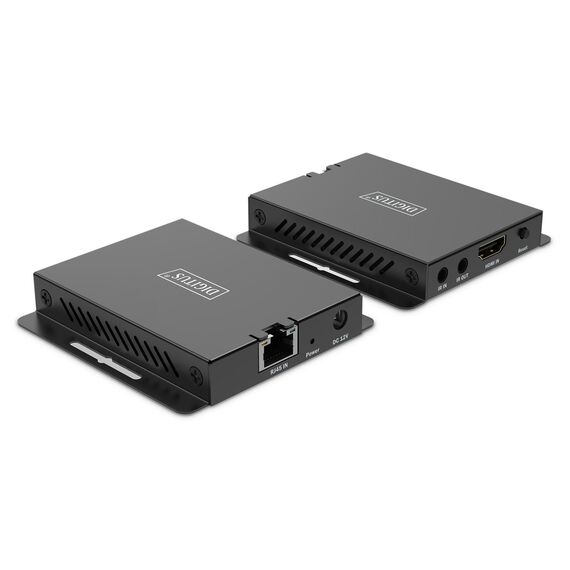

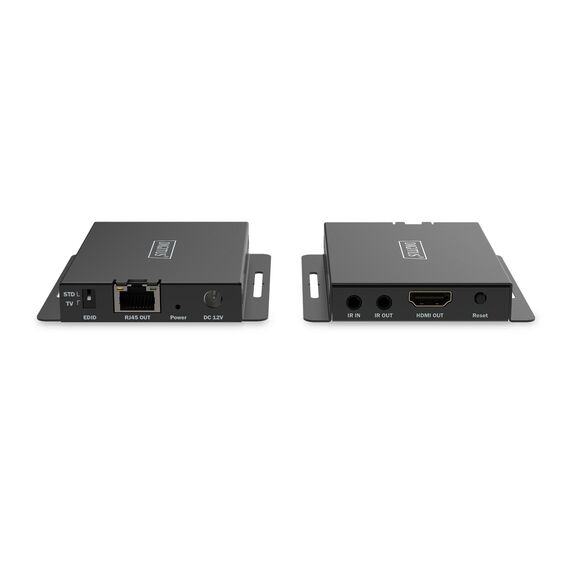

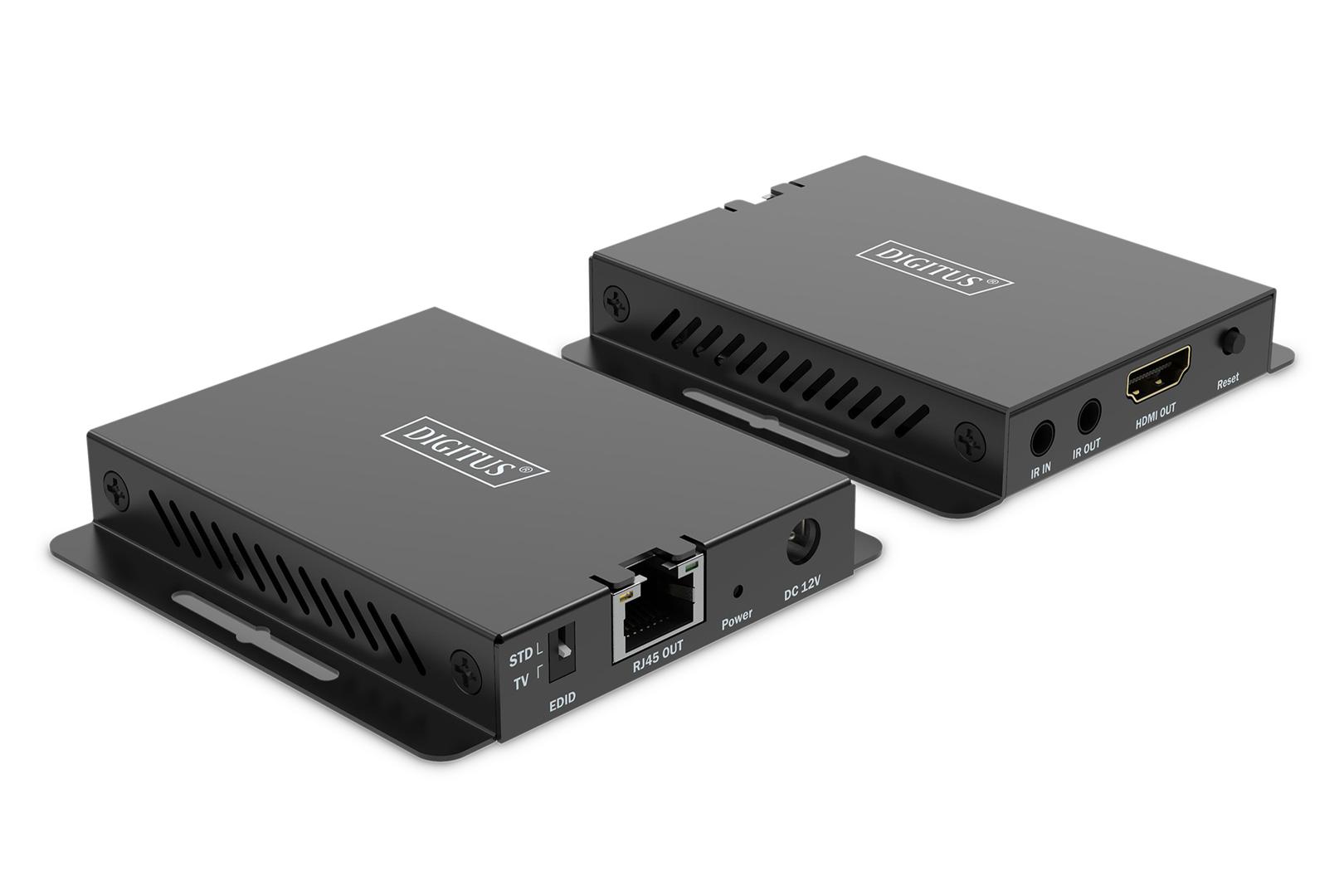

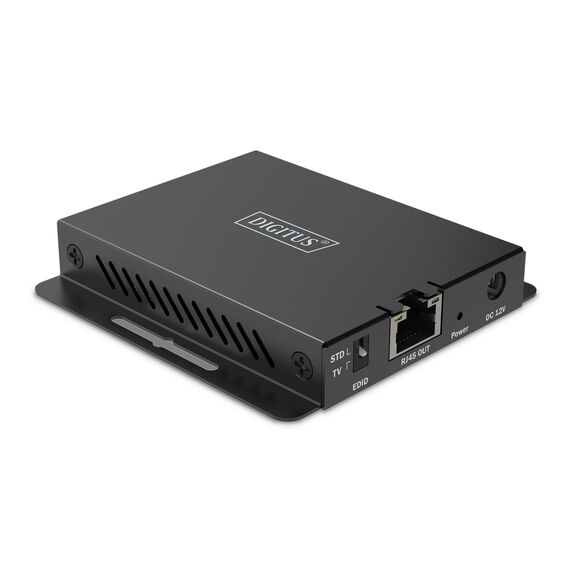

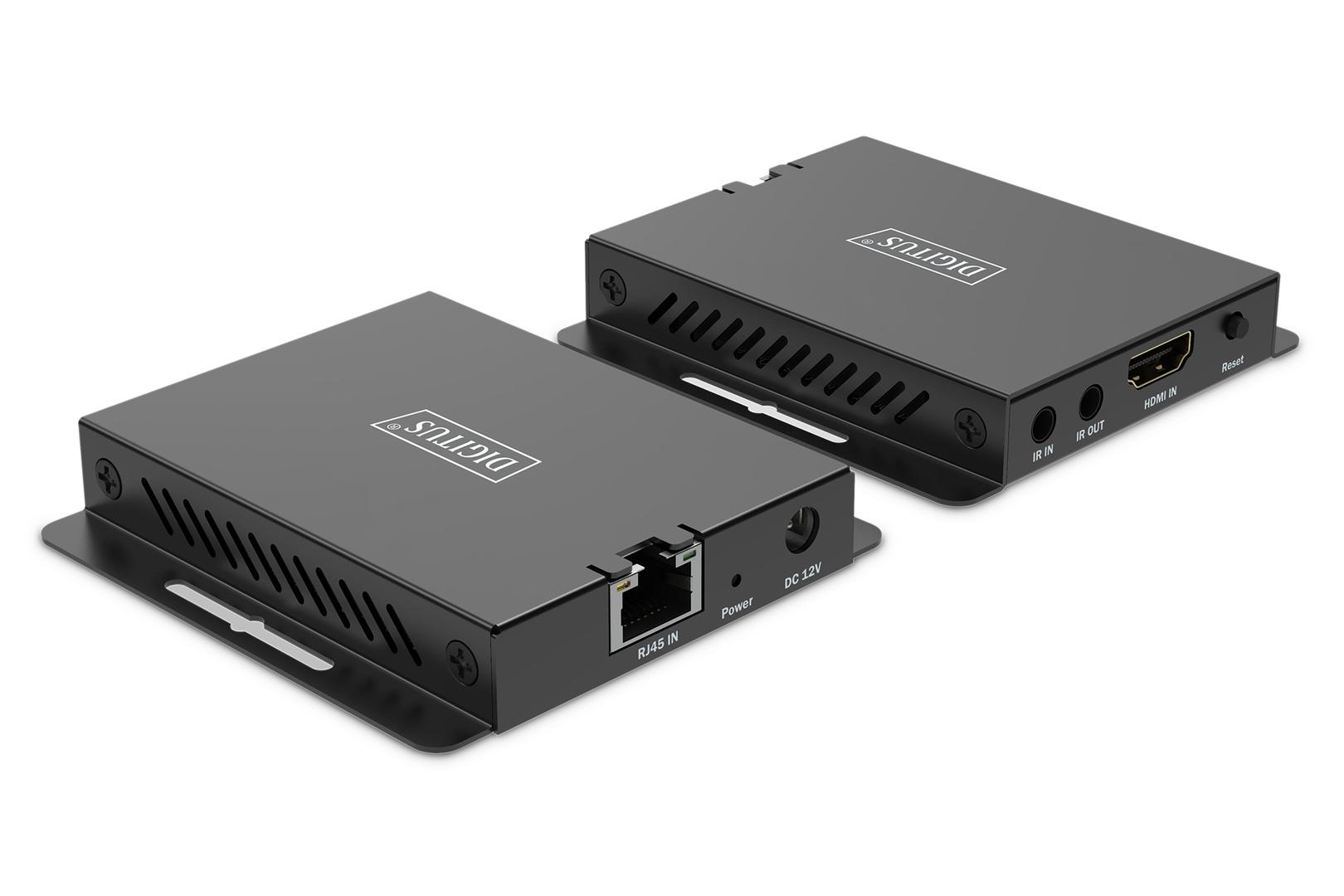

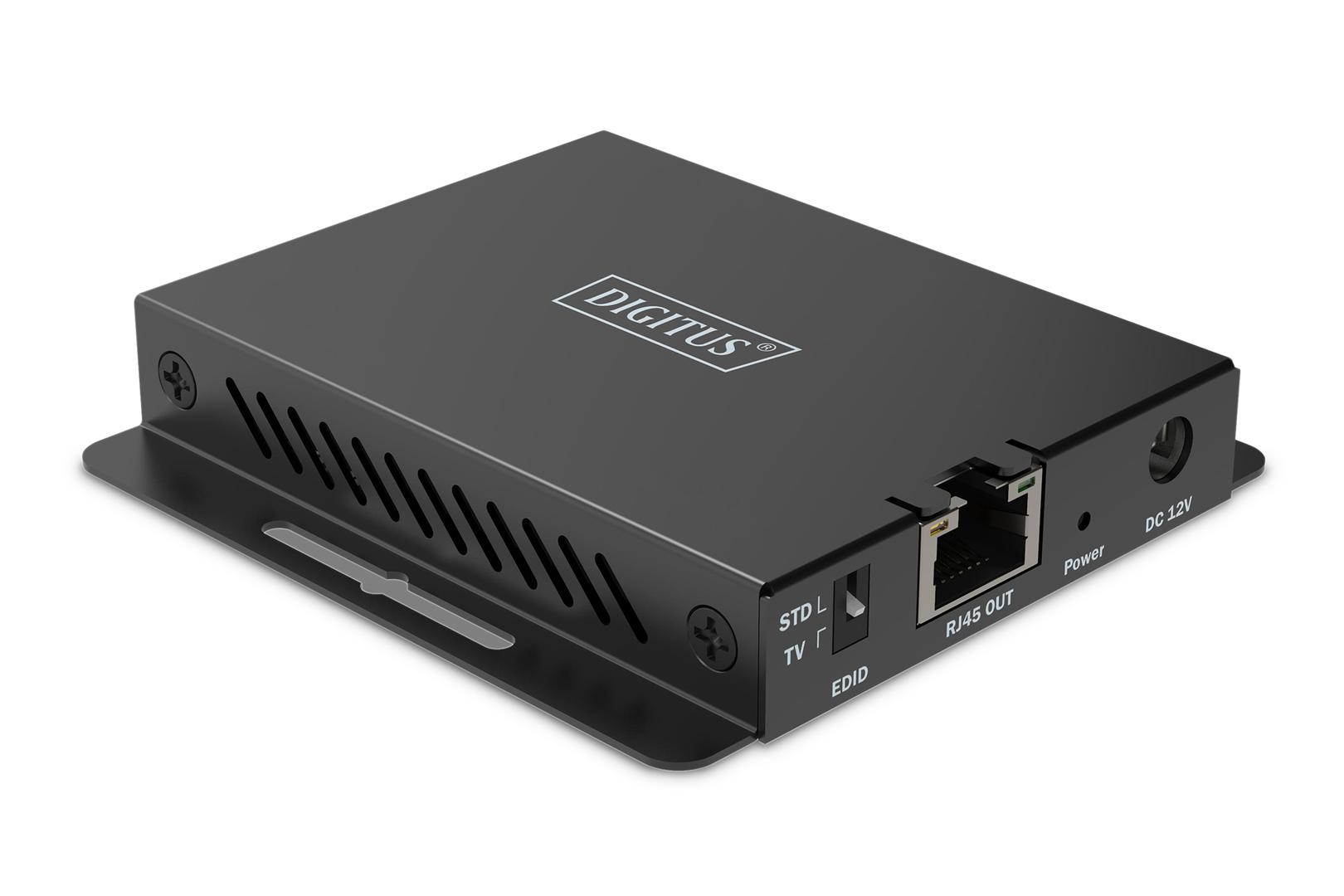

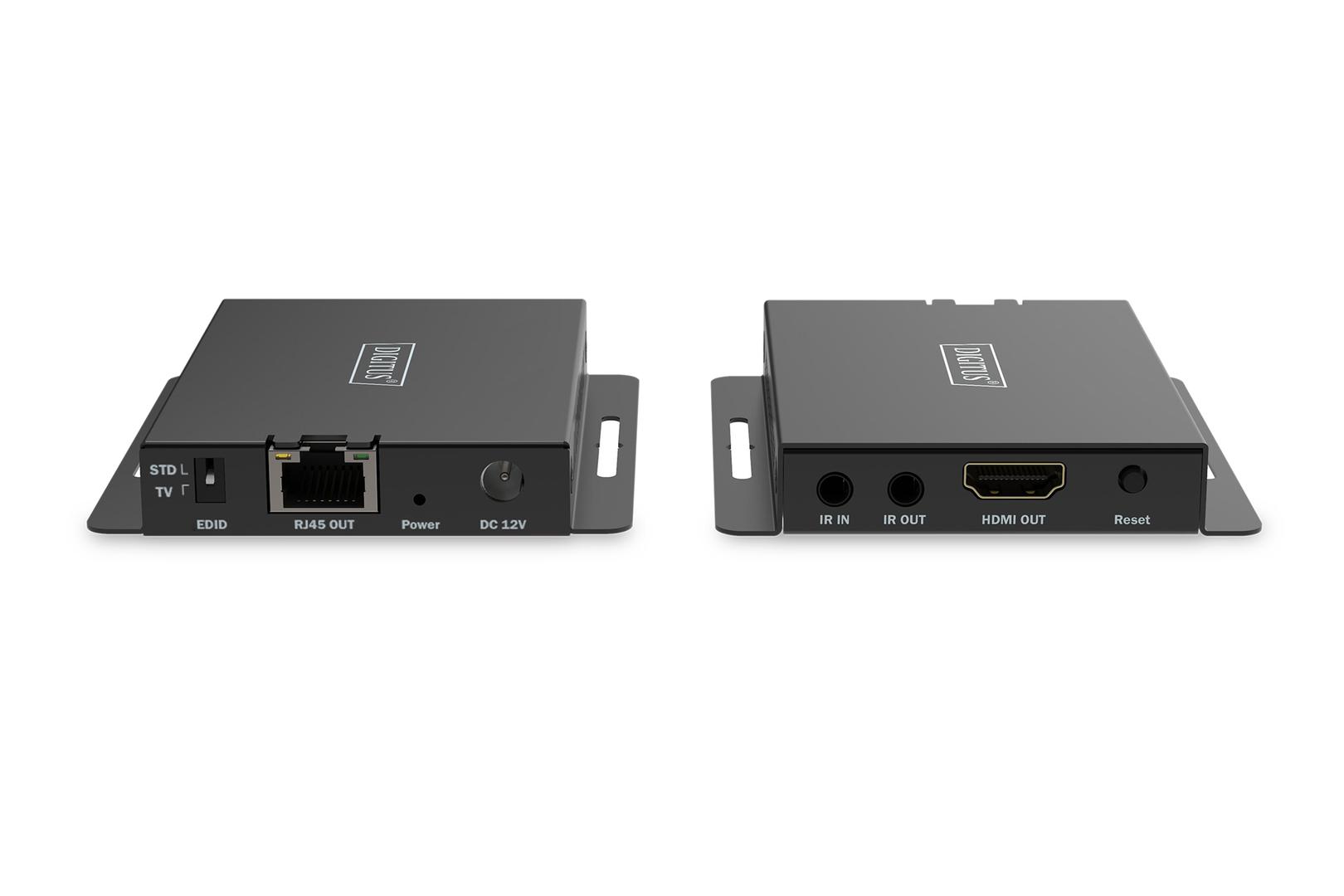

· Transmitter unit connections:
· 1x HDMI input (4K/120Hz) - Connection signal source
· 1x RJ45 output - Connection CAT transmission cable
· 1x IR output - Connection of IR transmitter
· 1 x IR input - Connection of IR receiver
· 1x Power adapter input (DC 12V/1A) - Connection for external power adapter
· 1x Changeover switch resolution (4K/120Hz, EDID pass-through)
· 1x Reset button
· 1x Status LED

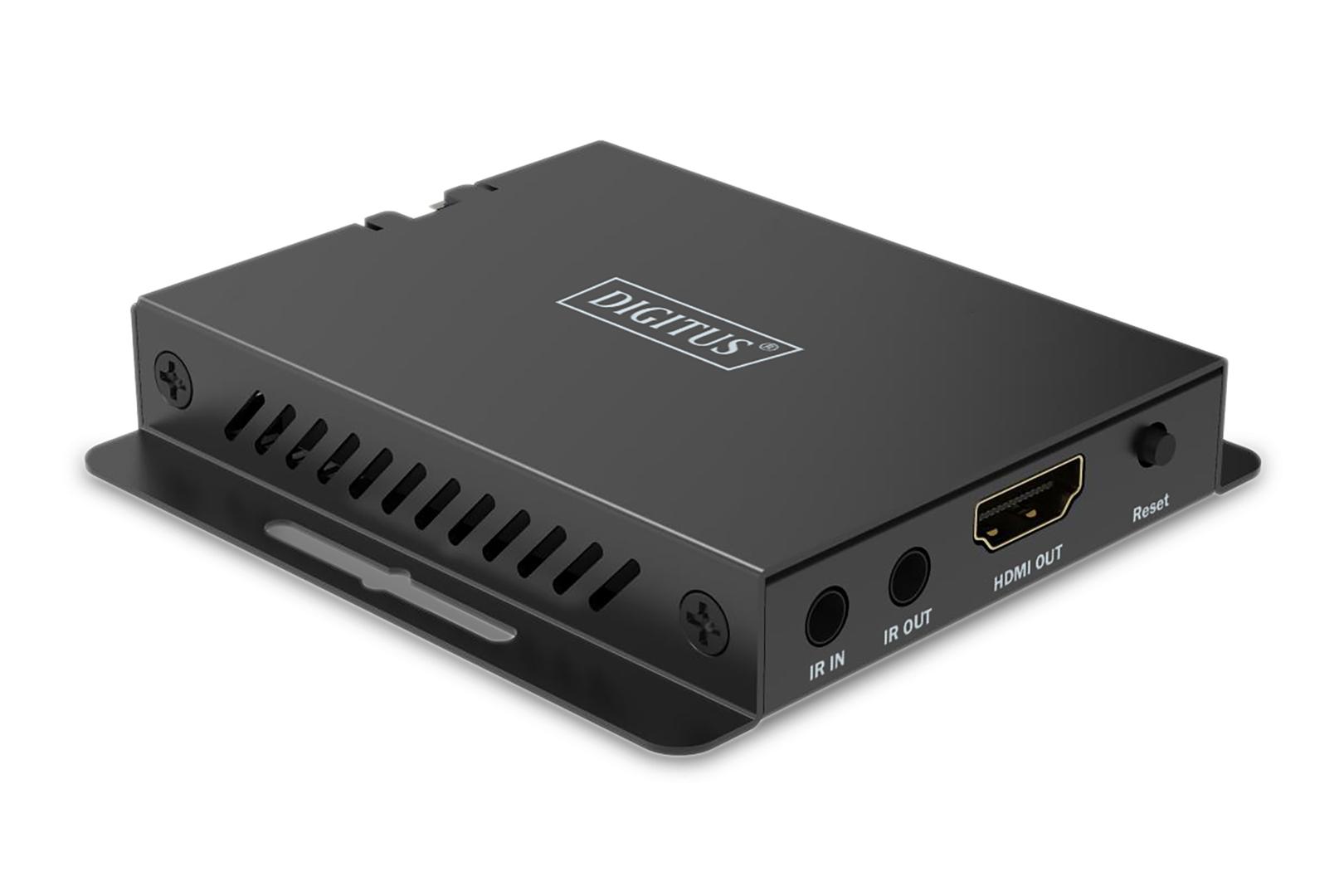

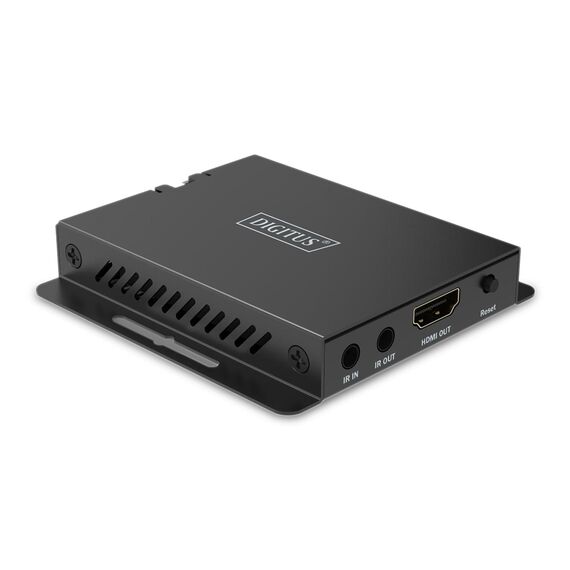

· Receiver unit connections:
· 1x HDMI output (4K/120Hz) - Connection display
· 1x RJ45 input - Connection CAT transmission cable
· 1x IR output - Connection of IR transmitter
· 1 x IR input - Connection of IR receiver
· 1x Power adapter input (DC 12V/1A) - Connection for external power adapter
· 1x Reset button
· 1x Status LED
· Operating temperature: 0-50°
· Power consumption: TX: ca. 4W, RX: ca. 3.5W
· Housing: Metal
· Dimensions (1 unit): L 8.4 x W 8.2 x H 1.5 cm
· Weight (1 unit): 125 g
· Color: black

Special Fetures

· HDMI signal transmission (point-to-point) up to 40 m in UHD resolution (4K/120Hz, 4:4:4)
· Bi-directional IR transmission
· Max. resolution: 4K/120Hz (4:4:4)
· Video bandwidth: 32 Gbps
· Supports HDCP 2.3
· Supports High Dynamic Range (HDR)
· HDMI 2.1
· Suitable for wall mounting
· Supports CAT 6, CAT 6A, CAT 7 network cable

Product Specification

Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6, Cat6a, Cat7
Connectivity technology	Wired
Power source type	DC
Power consumption (transmitter) (max)	4 W
Power consumption (receiver) (max)	3.5 W
Receiver dimensions (WxDxH)	82 x 84 x 15 mm
Receiver weight	125 g
Transmitter dimensions (WxDxH)	82 x 84 x 15 mm
Package width	196 mm
Package depth	243 mm
Package height	60 mm
