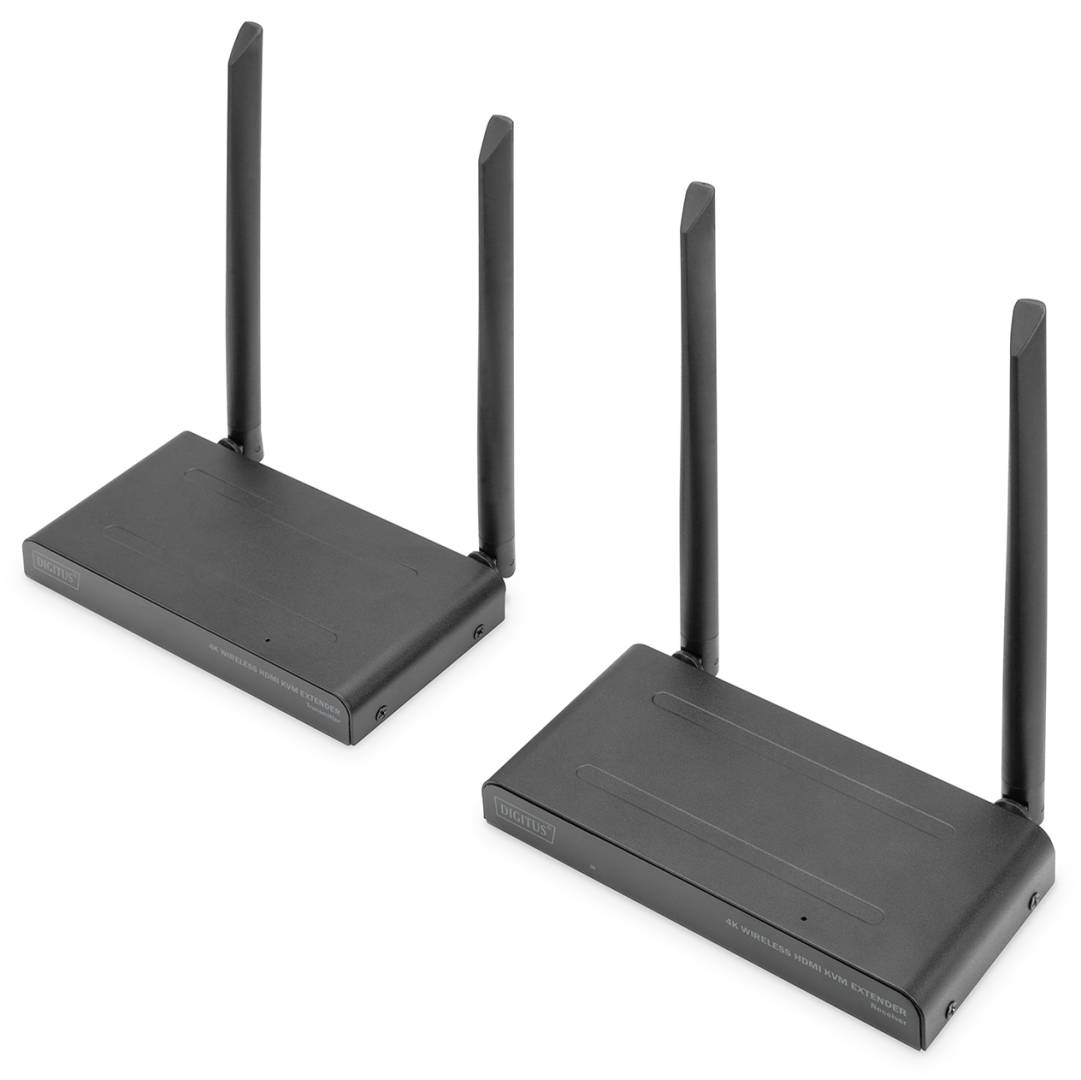

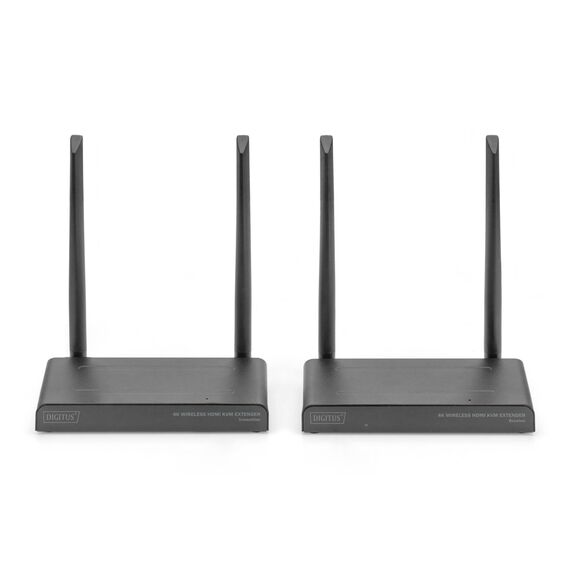

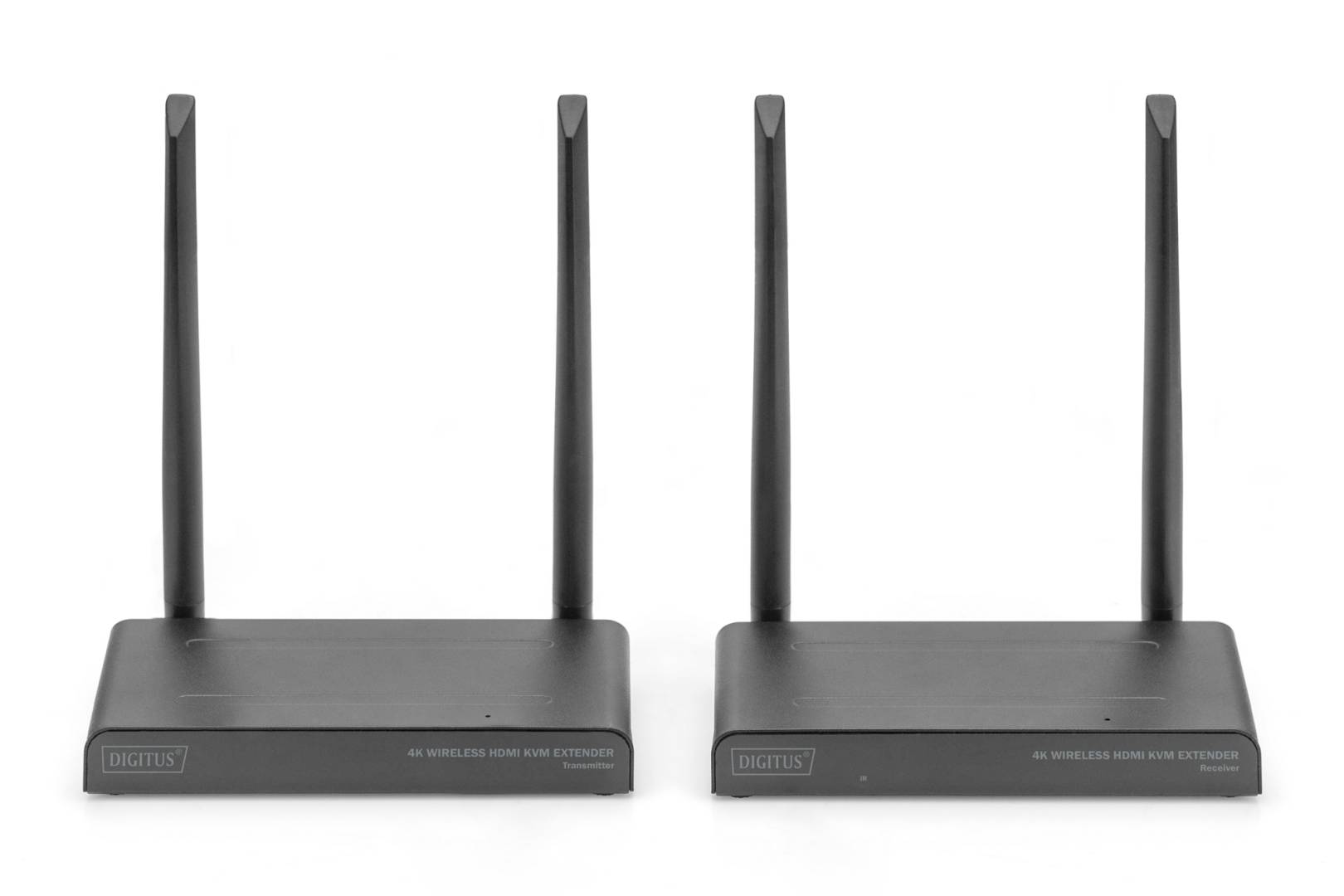

DIGITUS 4K Wireless HDMI KVM Extender Set, 150 m KVM

Product Features

· Wireless HDMI signal transmission up to 150 m (unobstructed view)
· Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
· Additional receiver units available separately: DS-55329
· Supports wireless AV signal transmission with resolutions up to 4K UHD (2160p/30Hz)
· Easy operation and handling thanks to Plug & Play - Just plug in and get started, no driver or software required
· Touch Screen Back Control - Supports touch panels (via USB connection on the receiver)
· Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise), AES 128 bit encryption
· Transmission distance 1:1 connection: up to 150 m (unobstructed view)
· Transmission distance 1:2 connection: up to 100 m (unobstructed view)
· Transmission distance 1:3 connection: up to 30 m (unobstructed view)
· Transmission distance 1:4 connection: up to 15 m (unobstructed view)
· HDMI version: 2.0
· HDCP version: 2.2
· Wireless channel: IEEE 802.11.b/g/n/ac
· Frequency band: Dual Band, 2,4/5G
· Compression: H.265
· Latency: approx. 100 ms
· Audio format: PCM
· Audio channel: 2 channels

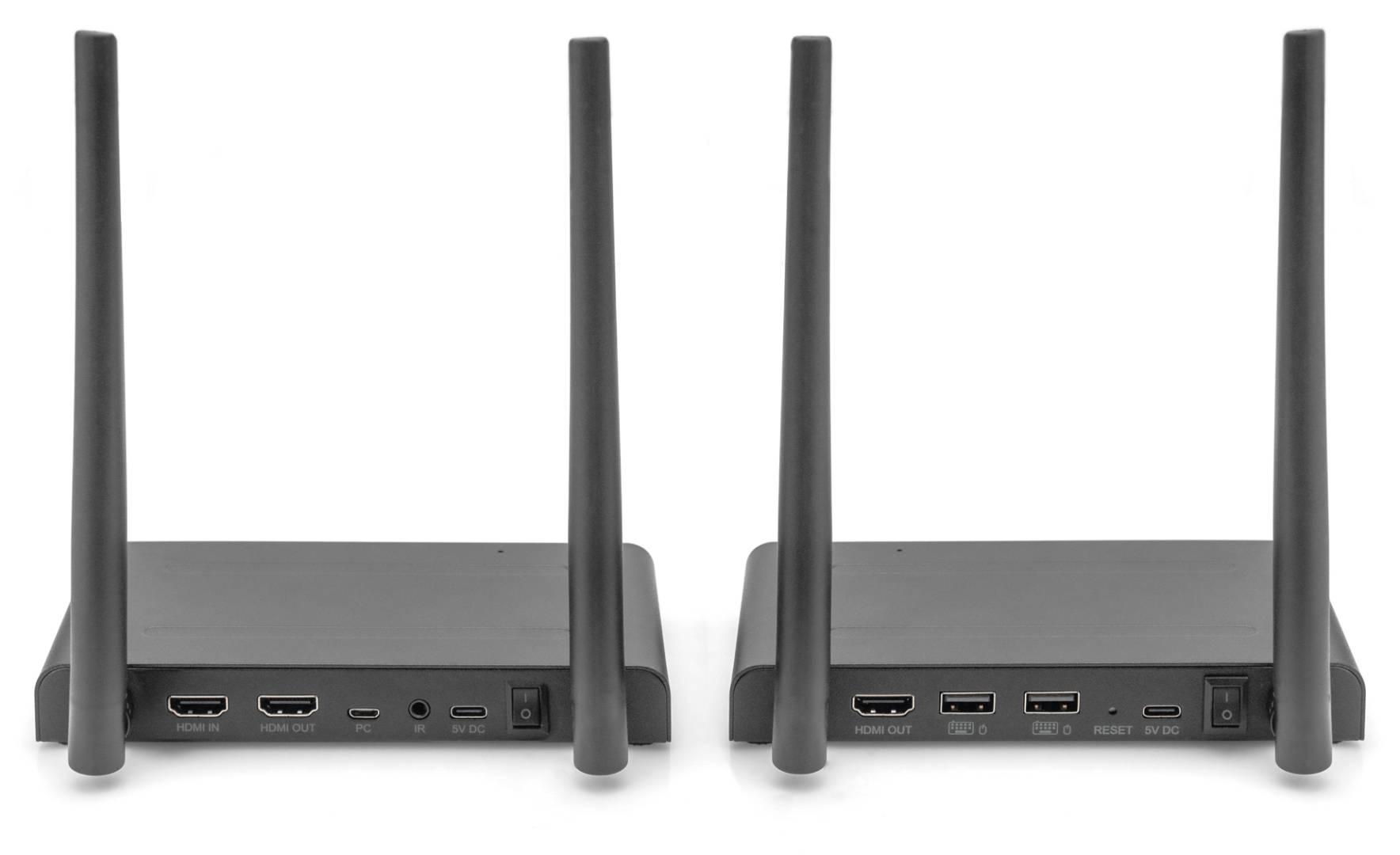

· Transmitter unit connections:
· 1x HDMI input (signal source, 4K/60Hz max.)
· 1x HDMI loop-out/output (output device, 4K/60Hz max.)
· 1x Micro USB input - Data connection of source for use of KVM function
· 1x IR output - Connection of IR transmitter to control the signal source
· 1x USB-C input - connection power adapter (5V/2A)
· 1x On/Off switch
· Receiver unit connections:
· 1x HDMI output (output device, 4K/60Hz max.)
· 2x USB-A input (connection of mouse/keyboard/touch panel)
· 1x USB-C input - connection power adapter (5V/2A)
· 1x Reset button
· 1x On/Off switch
· Housing: Metal
· Color: black
· Dimensions (1 unit): W 15.4 x D 7.75 x H 2.1 cm
· Weight (1 unit): 330 g
· Power consumption (1 unit): approx. 5W
· Operating temperature: 0-40 °C
· The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
· Walls, glass etc. shorten the signal range or cause signal losses

Special Features

· Wireless HDMI signal transmission up to 150 m (unobstructed view)
· Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
· Additional receiver units available separately: DS-55329
· Supports wireless AV signal transmission with resolutions up to 4K UHD (2160p/30Hz)
· Easy operation and handling thanks to Plug & Play - Just plug in and get started, no driver or software required
· KVM functionality for connection to mouse and keyboard
· Touch Screen Back Control - Supports touch screen panels (via USB connection on the receiver)
· Power supply via USB-C connection + power adapter (included)
· AES 128 bit encryption
· WPA2 protocol
· HDMI 2.0 / HDCP 2.2

Product Specification

Type	Cable / adapter set
Video / network interfaces	HDMI
Network standards	WLAN
Technical specifications	Technical specifications
Application	Digital / Display / Video
Cable length	150 m
Cable medium	WLAN
Video/AV and network connections	HDMI
