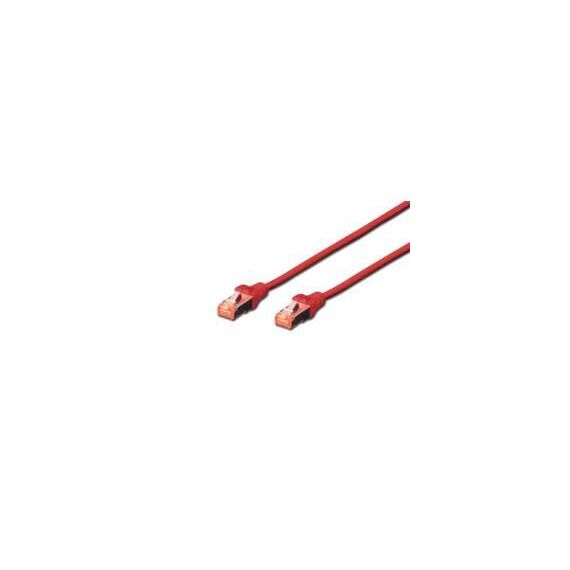

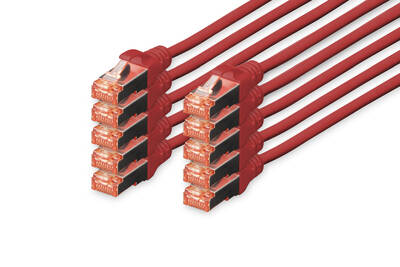

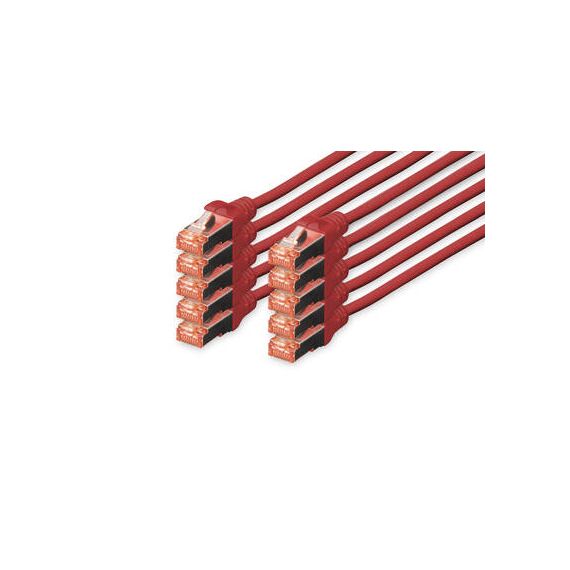

DIGITUS Professional - Patch cable - RJ-45 (M) to RJ-45 (M) - 5 m - SFTP, PiMF - CAT 6e - IEEE 802.3 - halogen-free, molded, snagless - red (pack of 10) | DK-1644-050-R-10
Please sign in so that we can notify you about a reply
Product Features
· 2x RJ45 (8P8C) connectors· Boots with kink protection, strain relief and latch protection
· Length marking on boot
· Conductor: Copper (Cu)
· 10 pieces
Special Fetures
· With LSZH (Low Smoke Zero Halogen) sheath for best fire behaviour and low smoke emissions.· Transparent red colored plug with metal shielding for easy identification of Category 6 (250 MHz)
· Conductor: Copper (Cu)
· PoE+ ready
Product Specification
| Packaged Quantity | 10 (specifications are for single item) |
| Network Cable Type | Patch cable - CAT 6e - IEEE 802.3 |
| Technology | SFTP, PiMF |
| Wiring Scheme | T568B |
| Shielding Material | Metal foil with braid |
| American Wire Gauge (AWG) | 27/7 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Features | Halogen-free, molded, snagless, PoE+ Ready, strain relief, length indication, kink protection, latch protection, poly bag package, red connectors |
| Length | 5 m |
| Colour | Red |
| Connectivity | |
| Connector | RJ-45 - male |
| Connector (Second End) | RJ-45 - male |
| Miscellaneous | |
| Compliant Standards | IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801-1 - up to 250 MHz |
| Environmental Parameters | |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 60 °C |
Features - Digitus - DK-1644-050-R-10
Colour
red
Length
5m
General
CAT6e
More Details
Product Code
04:365187
EAN Code
4016032442318
Manufacturer
Digitus
