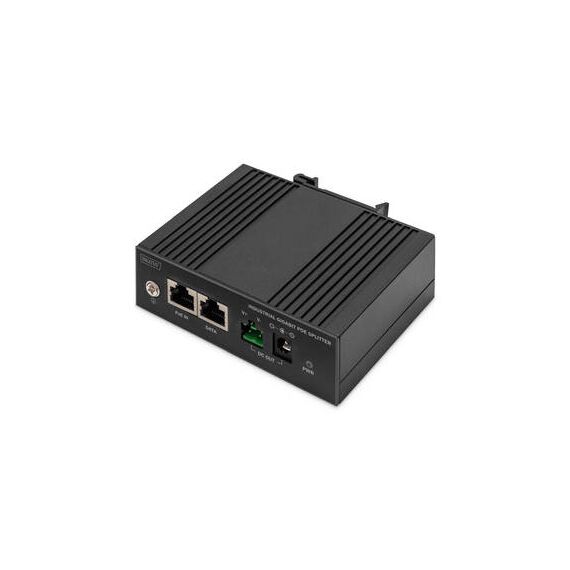

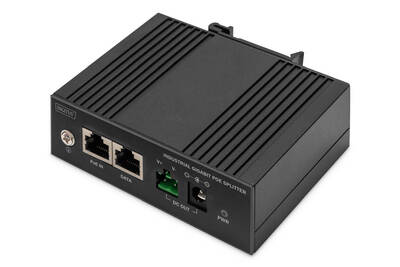

Digitus Gigabit Ethernet PoE Splitter, Industrial, 60W / IEEE 802.3af / 10/100/1000Base-T(X) / Black / China / 36 - 57 V / 12V / 12 V / DC | DN-651140

Product Features

· Complies with IEEE802.3af, IEEE802.3at, IEEE802.3bt
· Support PoE applications in Gigabit Ethernet environments
· Auto-Sensing Algorithm enables taking power from IEEE802.3at PSE
· Splits the 48VDC power over RJ45 Ethernet cable into different DC output
· Support wide input voltage range 36Vdc to 57Vdc
· Maximum power output up to 51W
· Output 12VDC/4.25A
· Thermal cut off
· Short circuit protection
· High efficiency DC/DC converter
· LED indicators for power input indication
· DIN-Rail installation

Special Fetures

· Ports: 1 10/100/1000M RJ45 PoE Port (DATA + POWER IN), 1 10/100/1000M RJ45 LAN Port (Only DATA),1 Connector (DC OUT)
· Network Media: 10Mbps: Cat 3,4,5 Unshielded Cable, 100Mbps: Cat 5,5E Unshielded Cable, 1000Mbps: Cat 5E, 6 Unshielded Cable
· Pass Through Data Rates: 10/100/1000 Mbps
· Supported Standards:IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x,IEEE802.3af, IEEE802.3at , IEEE802.3bt
· Power Output: 12VDC/4.25A
· Input Power Requirements DC Input Voltage: 36 to 57 Vac
· Indicators: PoE ready / in-use
· Network Media(Cable): 10BASE-T: UTP category 3,4,5 cable (100m), 100BASE-TX: UTP category 5 cable (100m),1000BASE-T: UTP category 5e cable (100m)
· Connectors: Shielded RJ-45, EIA 568A and 568B
· Environmental Conditions: Operating Ambient Temperature:-40 to 75
· Operating Humidity:Maximum 90%, Non-condensing
· Storage Temperature:-40 to 75
· Storage Humidity:Maximum 95%, Non-condensing
· Regulatory Compliance IEEE 802.3bt, IEEE 802.3at,IEEE 802.3at
· Dimensions (L*W*H):103 *177 *32 mm

Product Specification

Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Cabling technology	10/100/1000Base-T(X)
Product colour	Black
Country of origin	China
Input voltage	36 - 57 V
DC output voltage	12V
Output voltage	12 V
Width	80 mm
Depth	32 mm
Height	108 mm
Cables included	DC
