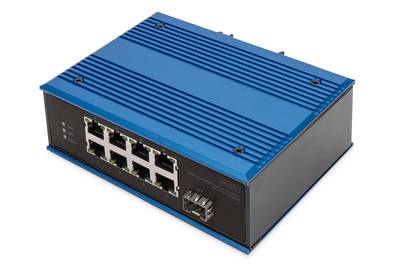

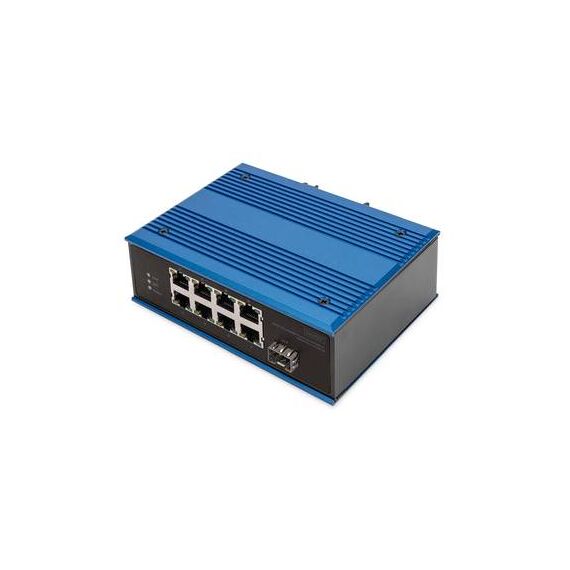

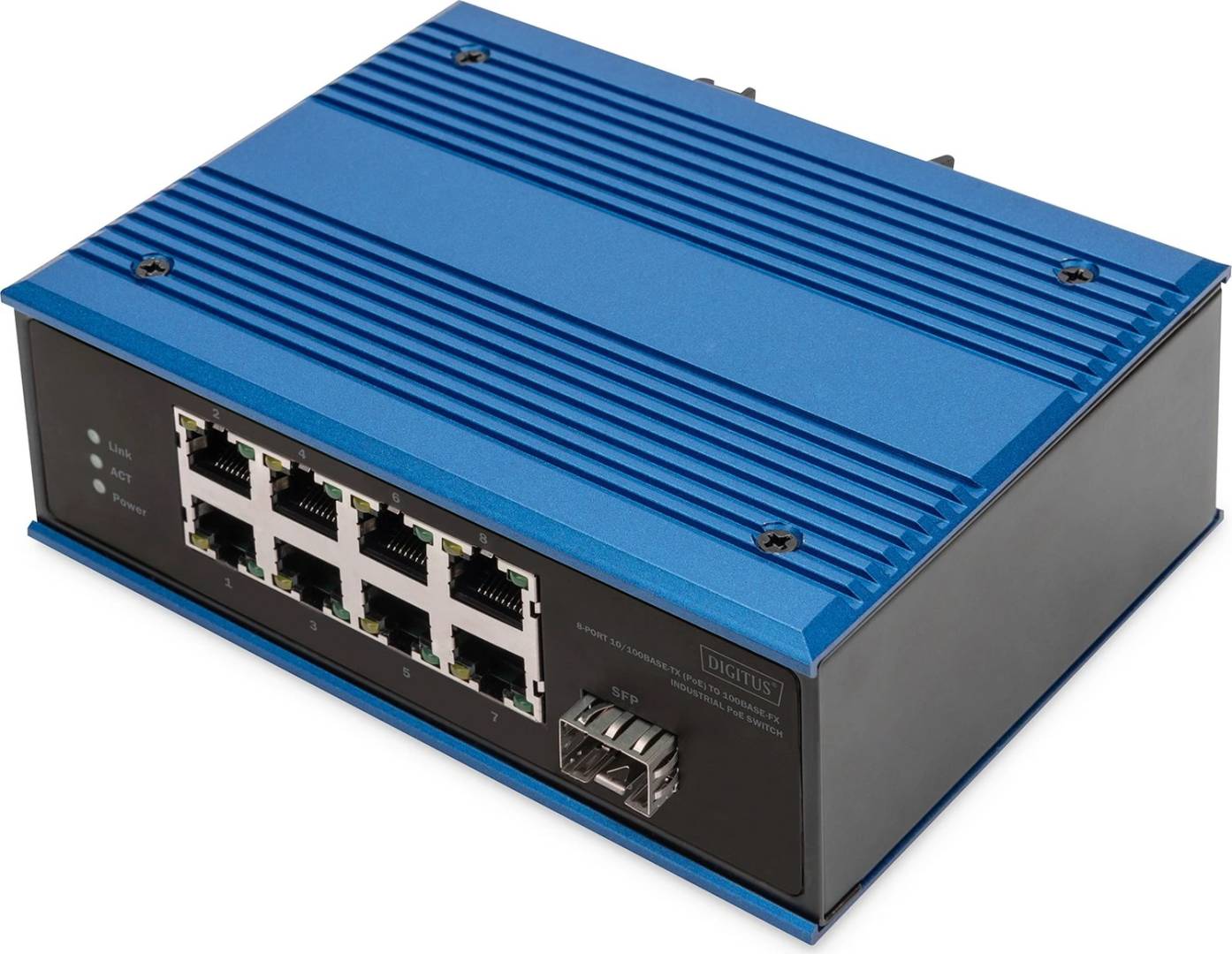

Digitus 8 Port Fast Ethernet Network Switch, Industrial, Unmanaged, 1 SFP Uplink. | DN-651133

Product Features

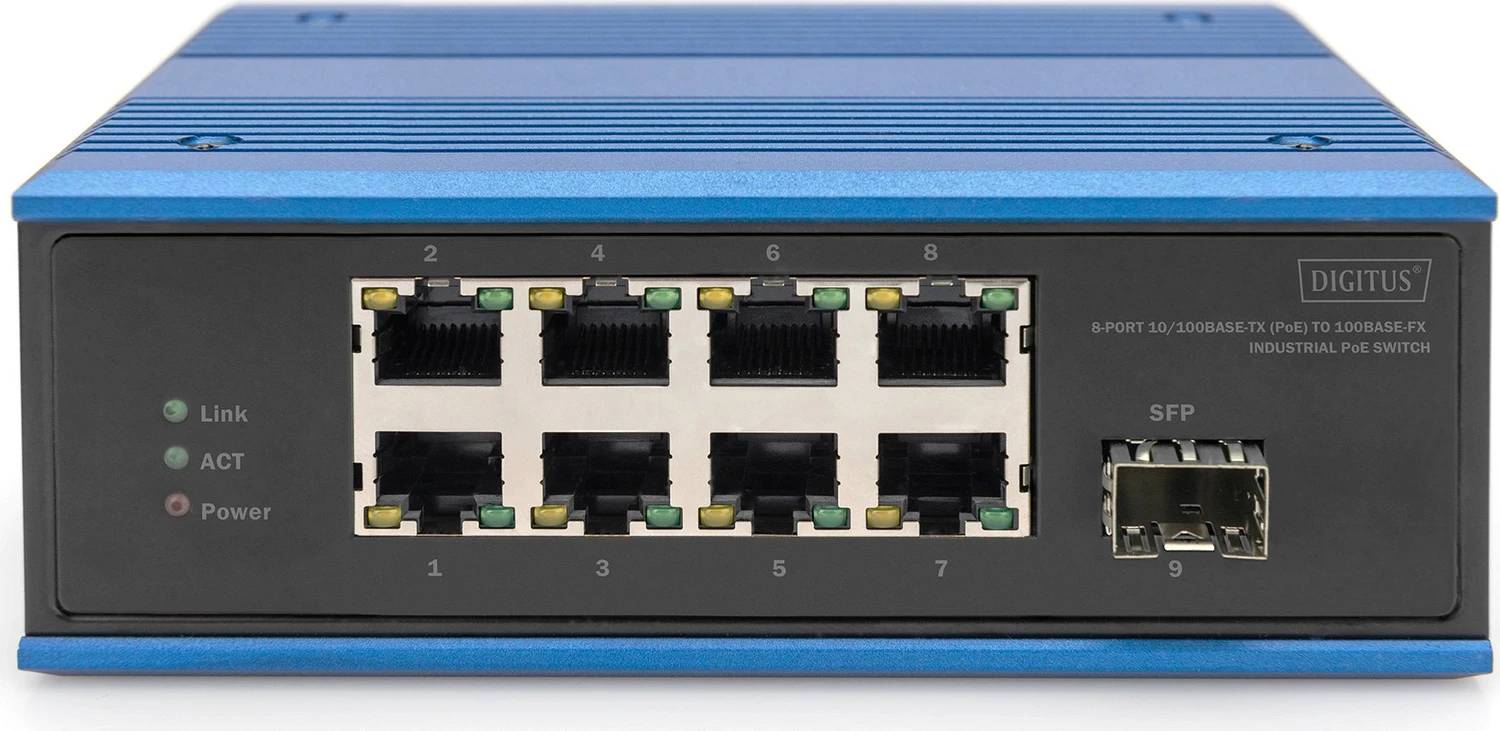

· 8-port 10/100Base-Tx RJ45 with autonegotiation and auto-MDI/ MDI-X function
· 1-port 100Base-Fx interface SFP
· 48V to 57V DC, redundant power input
· Enclosure: IP40 aluminum housing
· Supports 6KV DC Ethernet ESD protection
· Supports 6KV DC EFT protection for power line
· Free Fall, Shock and Vibration Stability

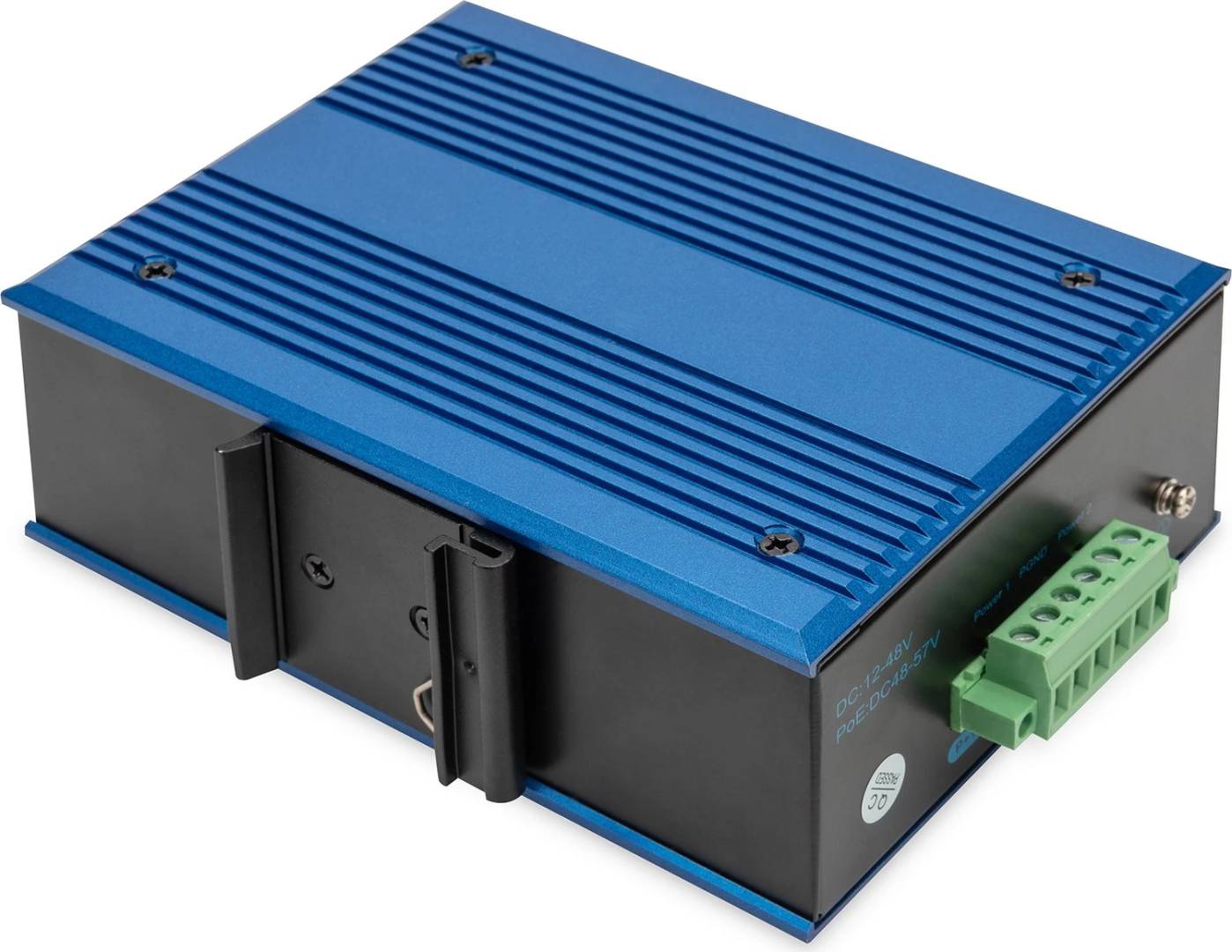

· DIN-rail Installation
· Performance Specification: Bandwidth: 1.8Gbps, Packet Buffer Memory:1,25Mbit, Packet Forwarding Rate:1.4Mpps, MAC Address Table: 2K
· Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
· LED Indicator: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow
· Power Input: 48 to 57V DC redundant power
· Power Consumption: <8 watts
· Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
· Network cables: 10BASE-T: Cat3,4,5 UTP(100 meter), 100BASE-TX: Cat5 or later UTP(100meter)
· Industry Standard: FCC CFR47 Part 15,EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz),
· Dimensions (W x D x H): 142.5 x 107.1 x 53.5 mm
· Weight: Product Weight: 0.70KG
· Working Environment: working temperature: -4080 ;Storage temperature: -4080
· Relative Humidity: 5%~95 %( no condensation)
· Relative humidity: 5% to max. 95% (non-condensing)

Special Features

· The use of high quality photoelectric integration module to provide good optical and electrical characteristics
· Ensure reliable data transmission and long working life
· Support full duplex or half duplex mode, with automatic negotiation capability
· Network port support automatic cross identification
· Internal storage and forwarding mechanism, support a variety of protocols
· In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
· Working power supply: DC 48-57V to provide reverse protection
· Lightning Surge Protection (Power): 5000A(8/20s)

Product Specification

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	8
Full duplex	Yes
MAC address table	4000 entries
Switching capacity	0.1 Gbit/s
Networking standards	IEEE 802.3af
DC input voltage	48 - 57 V

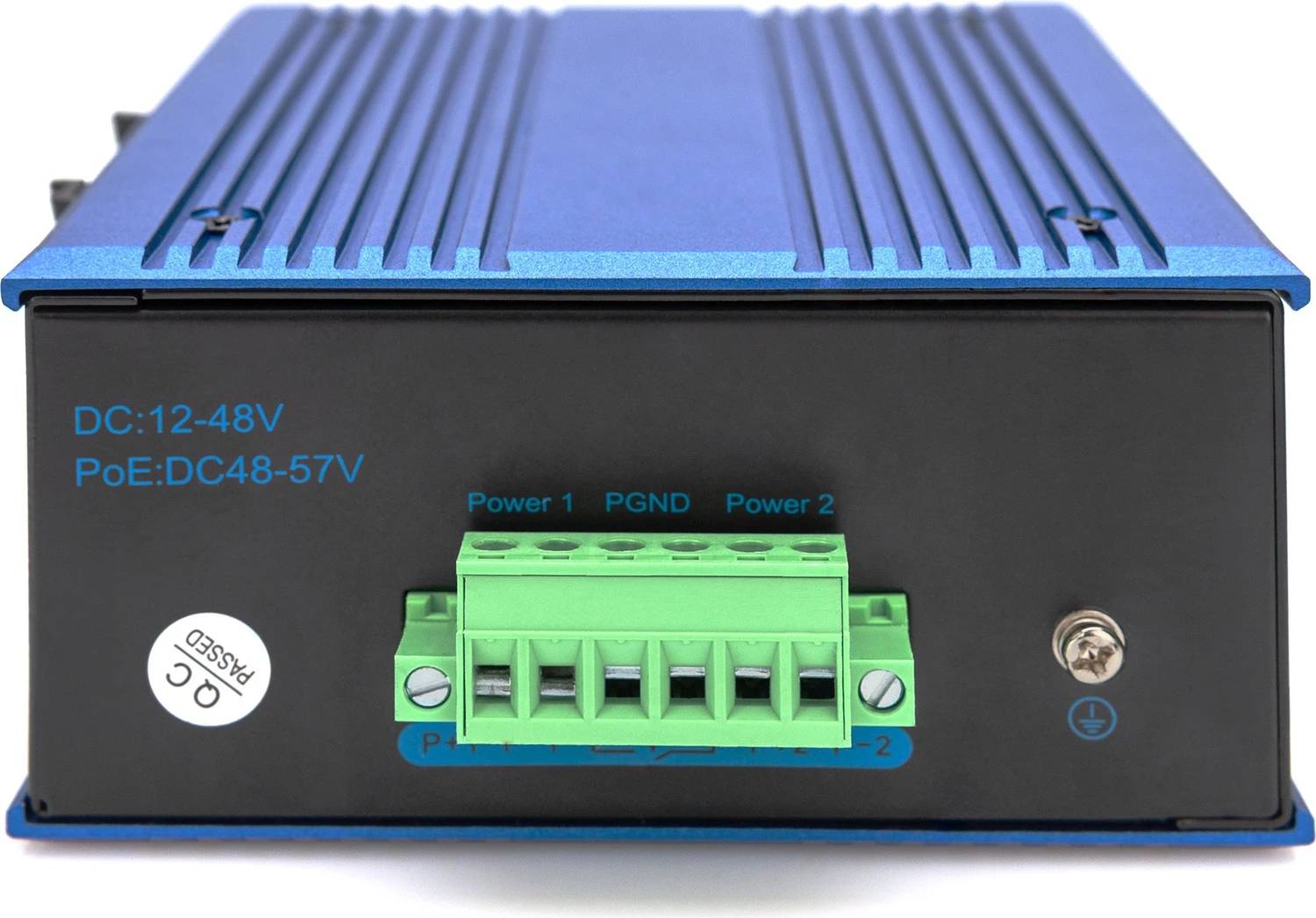

Power connector	Terminal block (6-pin)
Power over Ethernet (PoE)	Yes
