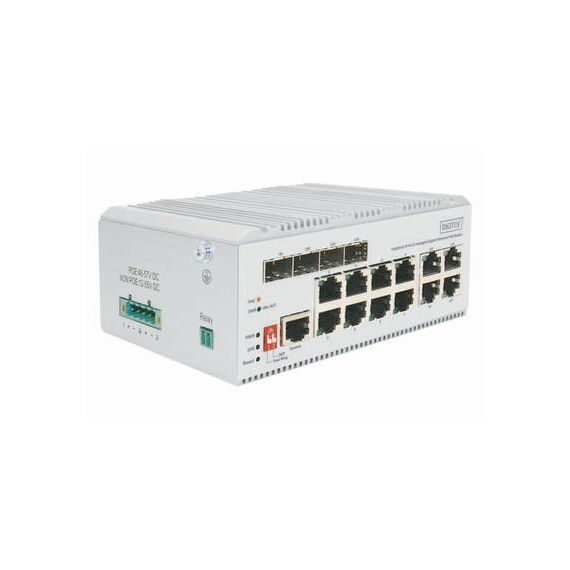

Digitus 8 port Gigabit Ethernet network PoE switch, industrial, L2 managed, 4 SFP uplink / Managed / L2 / Gigabit Ethernet (10/100/1000) / 8 / RJ-45 / Full duplex / 8000 entries / 24 Gbit/s / IEEE 802.1D / 48 - 57 V | DN-651139

Product Features

· Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1X,IEEE 802.1q,IEEE 802.1p,IEEE 802.1d,IEEE 802.1w,IEEE 802.3ad, IEEE802.3af,IEEE802.3at
· Interface: 8*10/100/1000Mbps RJ45 Ports, 4*10/100/1000Mbps Combo, 1 Console Port
· Indicator: PWR, LNK/ACT, PoE, SYS
· Network Media: 10BASE-T: UTP category 3,4,5 cable(100m), 100BASE-TX: UTP category 5, 5e cable(100m), 1000BASE-T: UTP category 5e, 5 cable(100m), 1000BASE-X: MMF, SMF
· MAC Address Table: 8K, Auto-learning, Auto-update
· Jumbo Frame: 9216Byte
· Packet Buffer: 4.1M bit
· Transfer Mode: Store-and-forward
· Packet Forward Speed: 17.86Mpps
· Switching Capacity: 24Gbps
· Dimensions(L*W*H): 145*109*62mm
· Fan Quantity: Fanless
· Power Supply: 200W
· PoE Power Budget: 185W
· PoE Port: Port1~8
· PoE Power On RJ45: Mode A 1/2(-),3/6(+)
· PoE Power Output: 30W(MAX)
· Green Energy Saving: IEEE 802.3az
· Input Power Supply: DC:48-57V
· Operating Temperature: -40°C ~ 75 °C
· Storage Temperature: -40°C ~ 80 °C
· Operating Humidity: 5% ~ 95% non-condensing
· Storage Humidity: 0% ~ 95% non-condensing
· Surge Protection: Differential mode ±2KV, Common mode ±6KV
· MTBF: >100000 hours
· Electrostatic Standard: Contact ±6KV , Air ±8KV
· Software Specification: spanning Tree, IEEE 802.1D -Spanning Tree, IEEE 802.1w -Rapid Spanning Tree, IEEE 802.1s -Multiple Spanning Tree, BPDU Guard, STP Root Guard, Loop Detection
· VLAN: Management: VLAN, Private VLAN, Voice VLAN, Surveillance-VLAN, Q-in-Q (Double Tag), 802.1v Protocol VLAN, MAC-Based VLAN, Port IEEE 802.3ad witch LACP(Dynamic), Static Trunk EEE, Jumbo Frame, Error-Disable, IGMP Snooping: IGMP Snooping v1/v2/v3, MLD Snooping v1/v2, MVR, QoS Features, Hardware Queues, Class Of Service, Port Based, 802.1p,CoS, DSCP, IP Precedence, TCP/UDP (IPv4/IPv6), Rate Limiting Ingress Egress, Priority Queue Scheduling, WRR, Strict Priority, DSCP & CS, IPv4 QoS (QCEs)
· IPv6 QoS (QCEs), Security, Port Security, Port Isolation, IEEE802.1x AAA, ACLs
· L2+/L3/L4, IPv6 Support, Management Access List, Management ACL/Management ACE, IP Source Guard (IP-MAC-Port-VALN Binding)
· IP Source Guard (IP-MAC-Port Binding), Dynamic ARP Inspection, Storm Control, RADIUS/TACACS+, RADIUS Authentication (RFC2138), DDoS Prevention, HTTPs and SSL (Secured Web), SSH v1.5/v2.0 (Secured Telnet Session)
· DHCP Snooping, DHCP Relay, Management, SNMP (v1, v2c, v3), RMON ( 1,2,3 & 9 groups), Software Upgrade, Configuration Export/Import
· Event/Error Log: Syslog, Management Access Filtering, Console, SNMP, HTTP/HTTPS, Telnet, Port Mirroring, LLDP (IEEE802.1AB), LLDP-MED, UDLD, DNS Client, Traceroute, Ping, Cable Test, DDMI, NTP/ SNTP (RFC2030)
· IPv6 Support: Dual IPv6/IPv4 stack, IPv6 Web/SSL, IPv6 SNTP (Simple Network Time Protocol), IPv6 Telnet / SSH, IPv6 Ping/Trace route, IPv6 TFTP, IPv6 RADIUS/TACACS+, IPv6 SNMP,
· PoE Management: Port Config, Alive Checking for PD

Special Fetures

· Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x standards
· PoE supports IEEE 802.3af/at standards and provides a maximum output of 30W for each port;
· Data transmission and power supply distance is 100 meters.
· Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control, Panel indicators monitor working status and assist in fault analysis.
· High energy aluminum alloy roof heat conduction groove design.
· Supports one-click ring network and one-click storm suppression, featuring redundancy and high reliability;
· High reliability design, supporting traditional STP/MSTP/RSTP 2-layer link protection technology.
· Support static convergence and dynamic convergence (LACP) 2 convergence modes, effectively increase the link bandwidth, improve the reliability of the link, and at the same time can achieve load balancing, link backup.
· Flexible and convenient management and maintenance Supports various management modes, such as Console, Telnet, and SSH.
· Supports WEB management, which is simple and efficient, and facilitates installation and debugging by engineering and maintenance personnel. Supports file upload and download management through TFTP

Product Specification

Switch type	Managed
Switch layer	L2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Console port	RJ-45
Full duplex	Yes
MAC address table	8000 entries
Switching capacity	24 Gbit/s
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
DC input voltage	48 - 57 V
