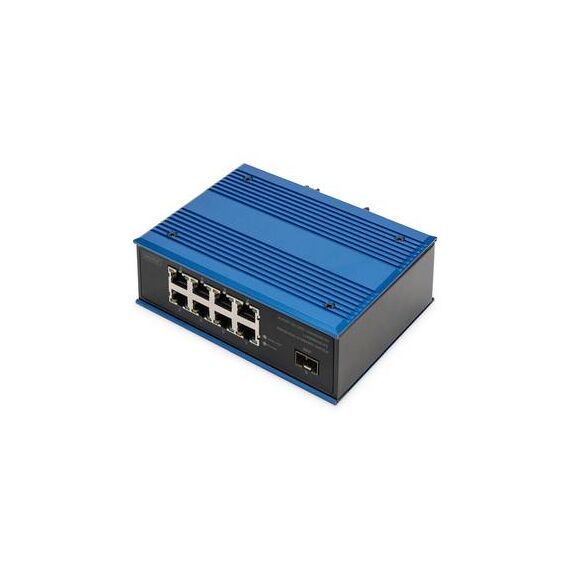

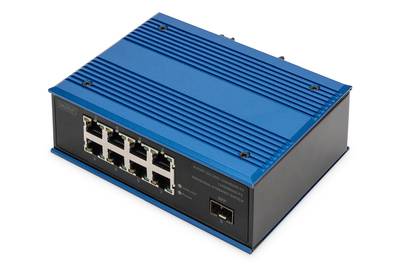

Digitus 8 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged, 1 SFP Uplink. | DN-651136

Product Features

· 8-port 10/100/1000 Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
· 1-port 1000 Base-Fx interface SFP
· -40 to 80 operating temperature
· Enclosure: IP40 aluminum housing
· Supports 6KV DC Ethernet ESD protection
· Supports 6KV DC EFT protection for power line
· Free Fall, Shock and Vibration Stability
· DIN-rail Installation
· Performance Specification: Bandwidth: 20Gbps, Packet Buffer Memory: 2Mbit, Packet Forwarding Rate: 15Mpps, MAC Address Table: 4K
· Flow Control: Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
· LED Indicator: Power: Red, Fiber: Link 2(Green), Ethernet: Yellow
· Power Input: 12 to 48V DC redundant power
· Power Consumption: <8 watts
· Network Protocols: IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX;
· Network cables: 10BASE-T: Cat3,4,5 UTP(100 meter), 100BASE-TX: Cat5 or later UTP(100meter)
· Industry Standard: FCC CFR47 Part 15,EN55022/CISPR22, Class A, IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air), IEC61000-4-3 (RS): 10V/m (80~1000MHz), IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV, IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV, IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz), IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)
· Dimensions (W x D x H): 142.5 x 107.1 x 53.5 mm
· Weight: Product Weight: 0.7KG
· Working Environment: working temperature: -4080 ;Storage temperature: -4080
· Relative Humidity: 5%~95 % ( no condensation)
· Relative humidity: 5% to max. 95% (non-condensing)

Special Features

· The use of high quality photoelectric integration module to provide good optical and electrical characteristics
· Ensure reliable data transmission and long working life
· Support full duplex or half duplex mode, with automatic negotiation capability
· Network port support automatic cross identification
· Internal storage and forwarding mechanism
· In line with industrial operating standards, the average trouble-free work in more than 300,000 hours
· Working power supply: DC 12-48V to provide reverse protection
· Lightning Surge Protection (Power): 5000A(8/20s)

Product Specification

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Full duplex	Yes
MAC address table	8000 entries
Switching capacity	1 Gbit/s
Networking standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
DC input voltage	12 - 52 V
Power connector	Terminal block (6-pin)
