Digitus Industrial 8 + 4 10G Uplink Port L3 managed Gigabit Ethernet PoE Switch / Managed / L2/L3 / Gigabit Ethernet (10/100/1000) / 8 / 4 / Full duplex / 32000 entries / 1 Gbit/s / IEEE 802.3af / 12 - 48 V / Power over Ethernet (PoE) | DN-651161

Product Features

· Supports IEEE802.3x flow control, and backpressure
· Supports store-and-forward technology for optimized data transmission
· Automatic speed and half/full duplex detection/adjustment
· Supports PoE according toIEEE802.3af/at standard (up to 30W)
· 1,2 Tbps
· 32 Mbps
· 32 K
· 10240 bytes
· 8 kV
· 8 kV
· Metal housing, IP40
· 4 kV lightning and overvoltage protection

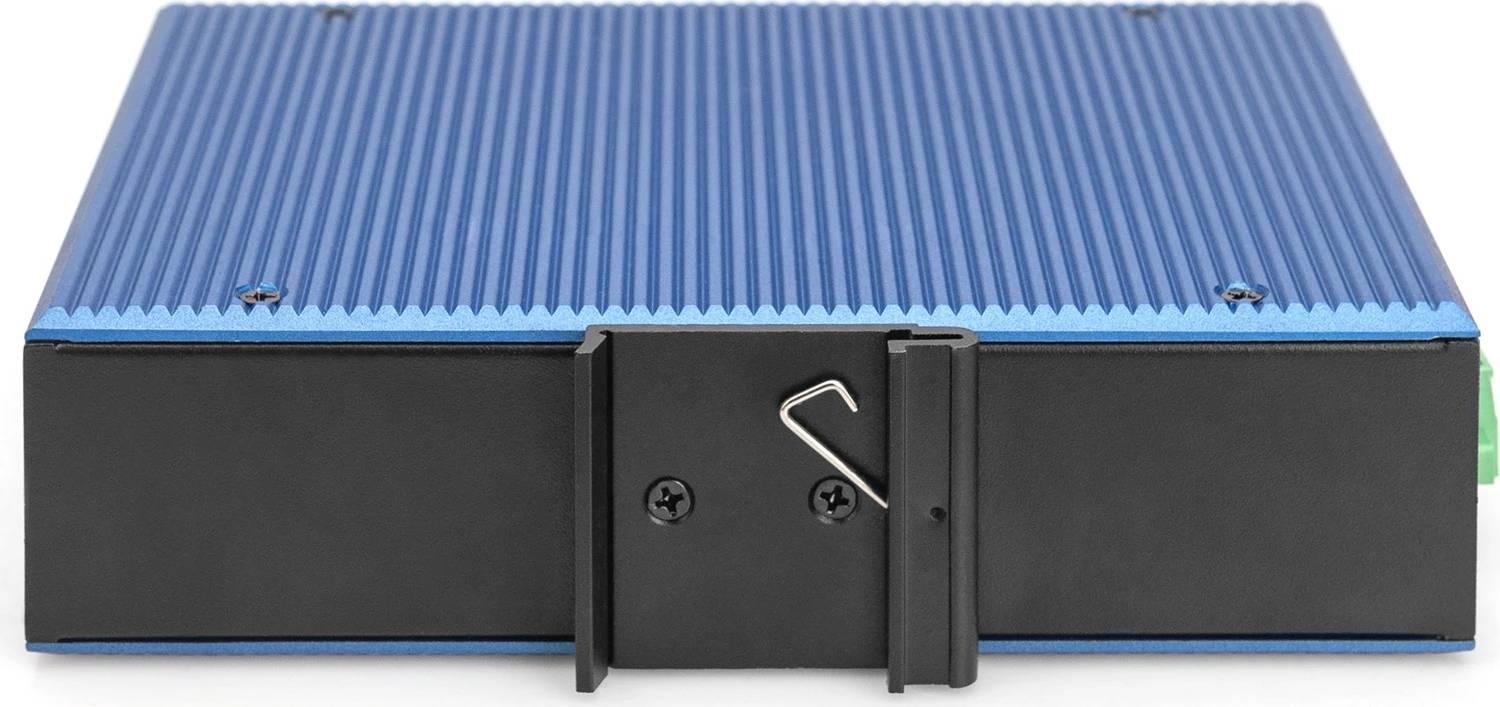

· Suitable for DIN rail mounting (top hat rail)
· Redundant power supply with reverse polarity protection function
· Power supply: 12 to 48 V (DC)
· Power consumption: < 18 W
· Removable terminal connection
· Protection class: IP40
· Dimensions: 175,6 x 135 x 45,5 mm
· Weight: 0.8 kg
· Operating temperature: -40 to 80 ° C
· Storage temperature: -40 to 80 ° C
· Humidity: 5% to 95% (non-condensing)
· MTBF: 300,000
· Port features: IEEE 802.3x flow control, interface counter, storm control, link aggregation, static aggregation, dynamic aggregation, LACP
· Data control: support 802.3X full-duplex flow control, support network storm suppression
· Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)
· Multicast management: support IGMP Snooping V1/V2/V3
· Redundancy backup: supports the virtual route redundancy protocol VRRP
· VLAN: Support IEEE 802.1Q VLAN, effectively isolate the broadcast domain
· Link aggregation: support link static/dynamic aggregation, providing perfect bandwidth utilization
· QOS: Support COS\DSCP, 4 queues, support WRR\SP scheduling mode
· System Information: Global Information, Statistics, Log,
· Port Management: Port Config, Port Isolate, Port Mirror, Port Limit, Storm Control, EEE(Enery-Efficient-Ethernet)
· Basic Layer 2 Management: MAC Table, VLAN, GVRP, Link aggregation, MSTP Configration, ERPS, Loop Protect, PTP, DHCP-snooping, 802.1X
· Layer 3 Config: Interface Config, Route Config, ARP, ND Config, DHCP Server, DHCP Relay, RIP, OSPF, RIPng, OSPFv3,
· Multicast Management: IGMP Snooping, MLD Snooping, IP Multicast, IGMP
· Advance Setup: QOS, ACL, SNMP, RMON, LLDP, NTP, Secure
· System Management: User Config, Network, Service Config, Configration management, Firmware Upgrade, Diagnostic, Restart
· Various other L2/ L3 features
· Maximum Power / Port (W): 240 W

Special Fetures

· Data control: support 802.3X full-duplex flow control, support network storm suppression
· Redundant network: support STP/RSTP/MSTP, support ERPS (self-healing time <20ms)
· Supports PoE according toIEEE802.3af/at standard (up to 30W)
· Multicast management: support IGMP Snooping V1/V2/V3
· Redundancy backup: supports the virtual route redundancy protocol VRRP
· VLAN: Support IEEE 802.1Q VLAN, effectively isolate the broadcast domain
· Link aggregation: support link static/dynamic aggregation, providing perfect bandwidth utilization
· QOS: Support COS\DSCP, 4 queues, support WRR\SP scheduling mode
· Security management: support ACL access control list, support 802.1X
· Management function: support WEB, CLI, SNMP management methods
· Monitoring and maintenance: support port mirroring, interface status monitoring, log management

Product Specification

Switch type	Managed
Switch layer	L2/L3
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Installed SFP+ modules quantity	4
Full duplex	Yes
MAC address table	32000 entries
Switching capacity	1 Gbit/s
Networking standards	IEEE 802.3af
DC input voltage	12 - 48 V
Power over Ethernet (PoE)	Yes
