Digitus Industrial 8+4 -Port Gigabit Ethernet PoE Switch / Unmanaged / Gigabit Ethernet (10/100/1000) / 8 / 2 / 2 / Full duplex / 8000 entries / 1 Gbit/s / IEEE 802.3af / 48 - 57 V / Power over Ethernet (PoE) | DN-651153

Product Features

· Supports IEEE802.3x flow control, and backpressure
· Supports store-and-forward technology for optimised data transmission
· Automatic speed and half/full duplex detection/setting
· 4 Port PoE mit bis zu 30 W
· Bandwidth: 52 Gbps
· Packet buffer size: 4.1 Mbit
· Packet forwarding size: 38.7 Mbps
· MAC address table size: 8K
· Jumbo frame rate: 9000 byte
· ESD protection: 6 kV (DC)
· EFT protection: 6 kV (DC)
· Metal housing, IP40
· 4 kV lightning and surge protection

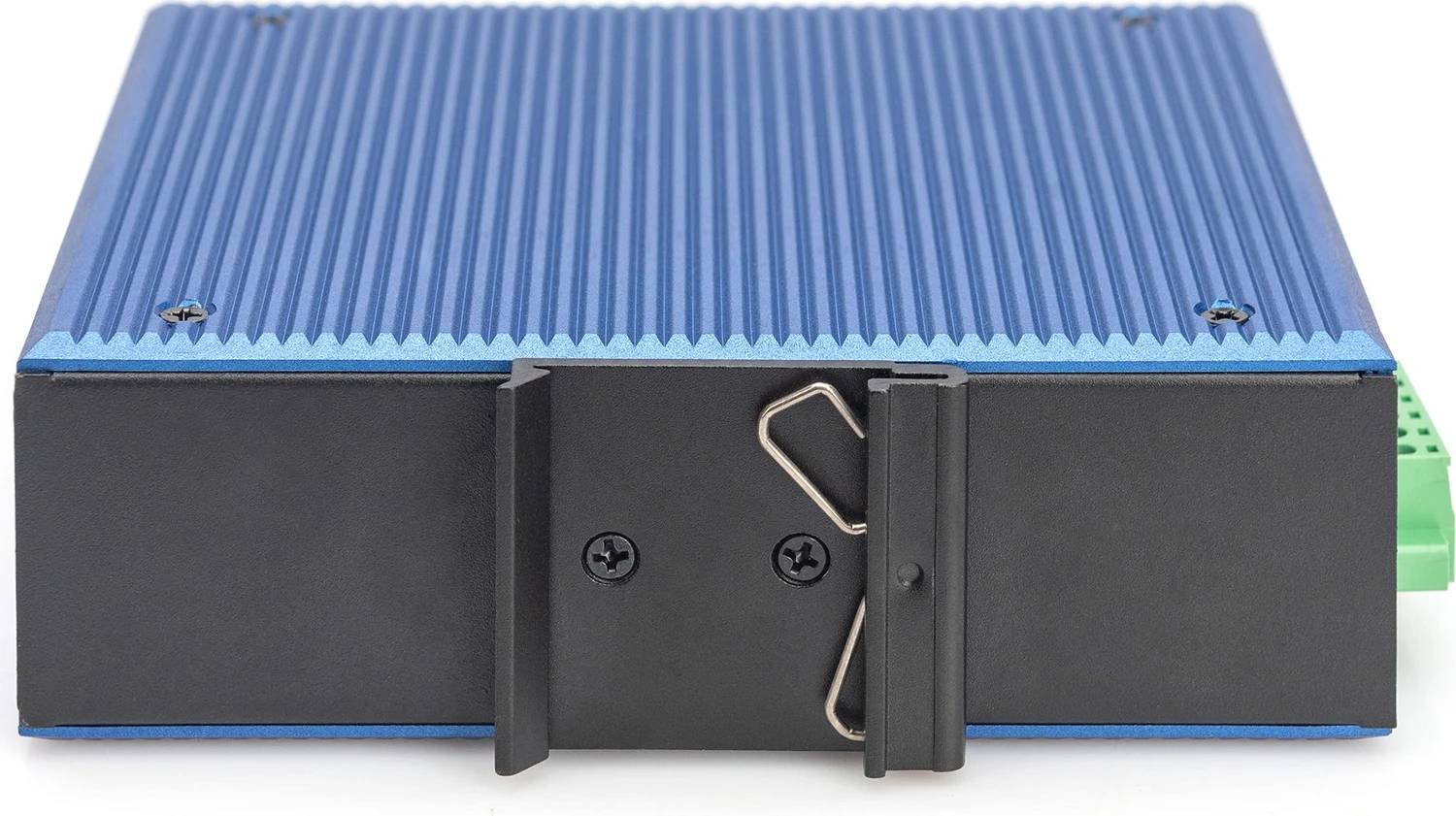

· Suitable for mounting on DIN rail (top-hat rail)

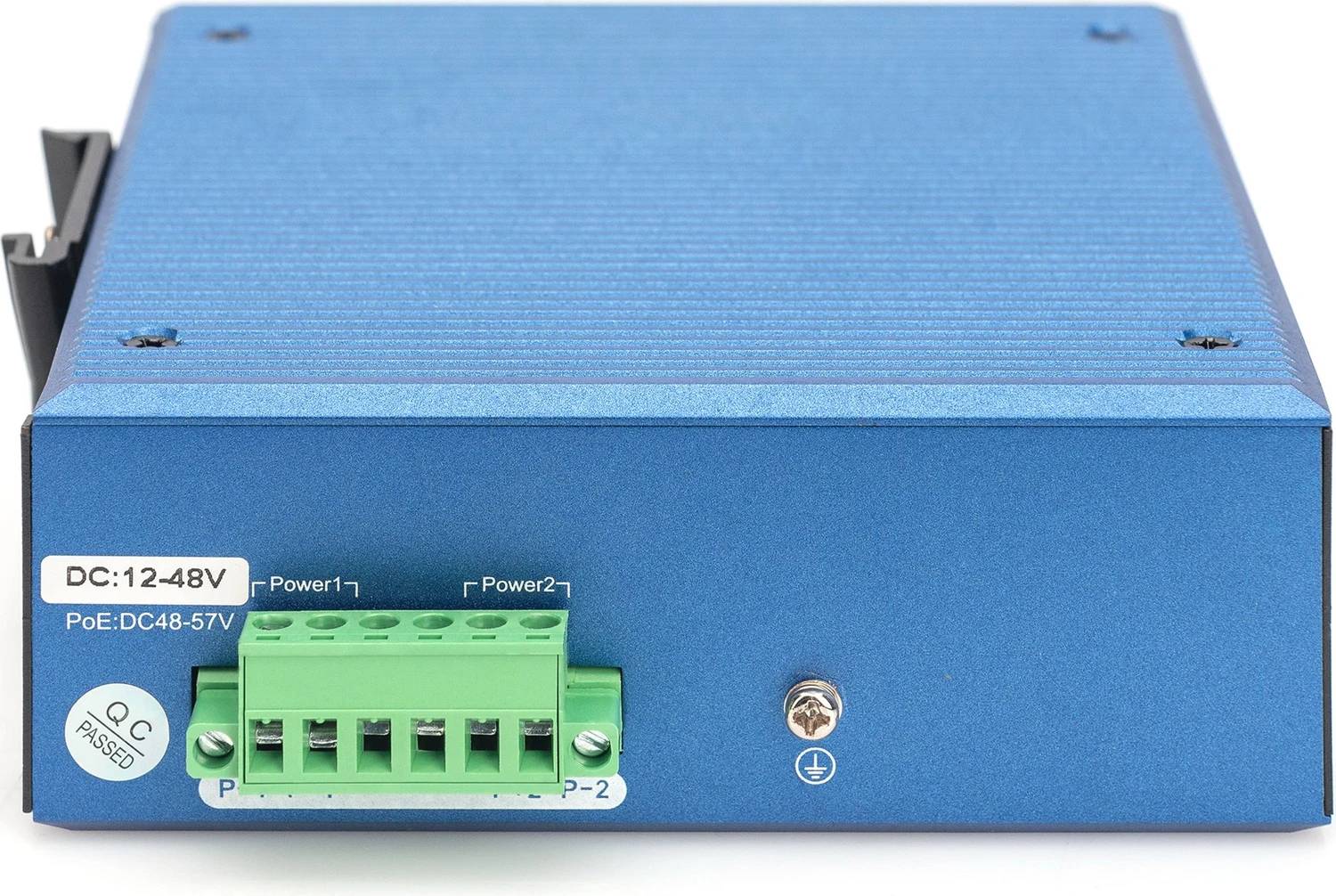

· Redundant power supply with reverse polarity protection function
· Power supply: 48 - 57 V
· Power consumption: < 10 W
· V-LAN: no
· Removable terminal connection
· Protection class: IP40
· Dimensions: 143,7 x 125 x 47,7 mm
· Weight: 0,76 kg
· Operating temperature: -40 to 80 ° C
· Storage temperature: -40 to 80 ° C
· Humidity: 5% to 95% (non-condensing)
· MTBF: 300,000 mm
· Maximum Power / Port (W): 240 W

Special Fetures

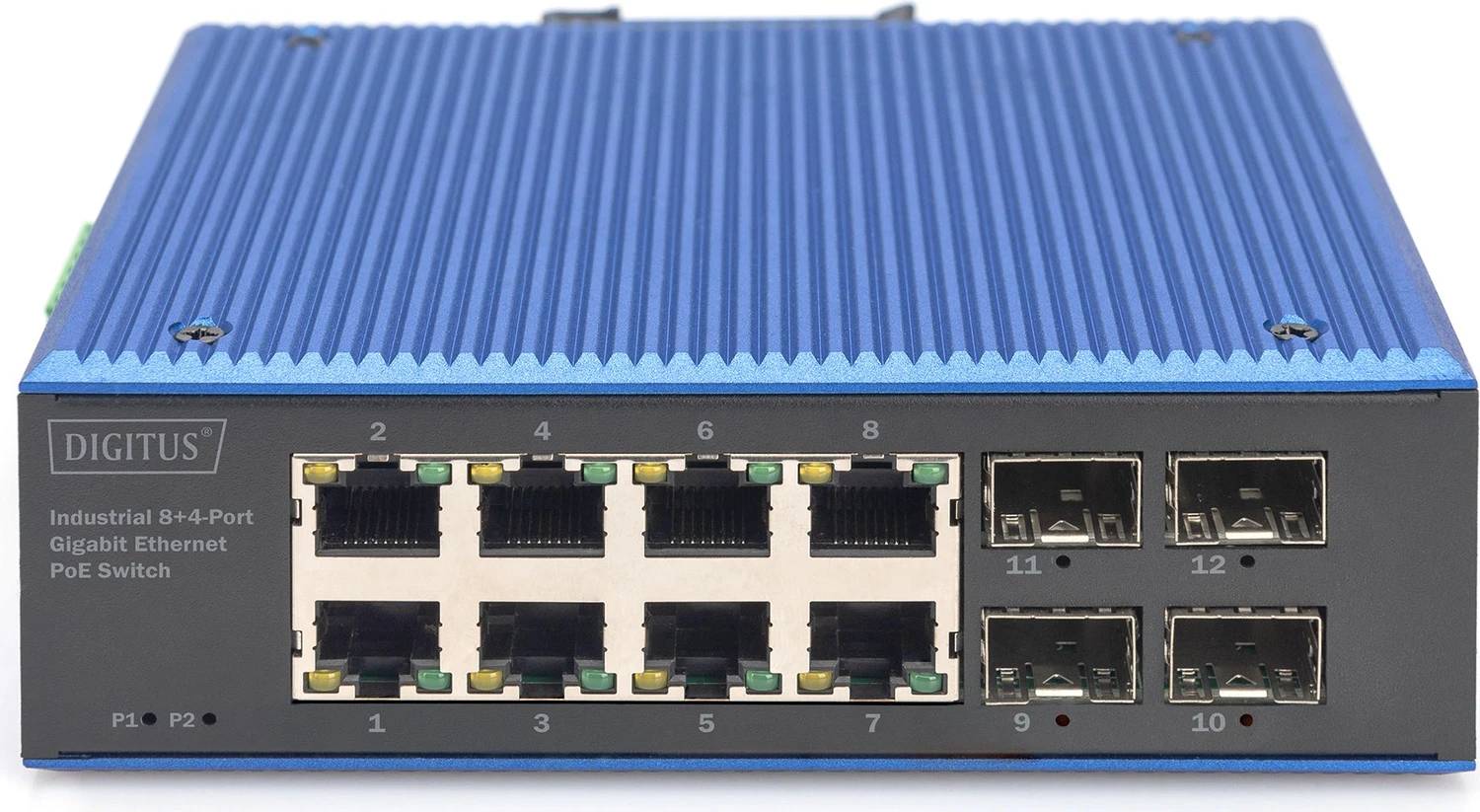

· 8 Port GE, 2 SFP GE Ports
· 8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
· 4 x 10/100/1000 Mbit (SFP)
· redundant power supply 48 - 57 V (DC)
· Metal enclosure to IP40 standard
· Simple mounting on a DINrail
· Operating temperature from - 40° up to 80° C
· Simple plug & play installation
· ESD & EFT protection up to 6 kV (DC)
· Optimal for the connection of camera systems

Product Specification

Switch type	Unmanaged
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Installed SFP modules quantity	2
Installed SFP+ modules quantity	2
Full duplex	Yes
MAC address table	8000 entries
Switching capacity	1 Gbit/s
Networking standards	IEEE 802.3af
DC input voltage	48 - 57 V
Power over Ethernet (PoE)	Yes
