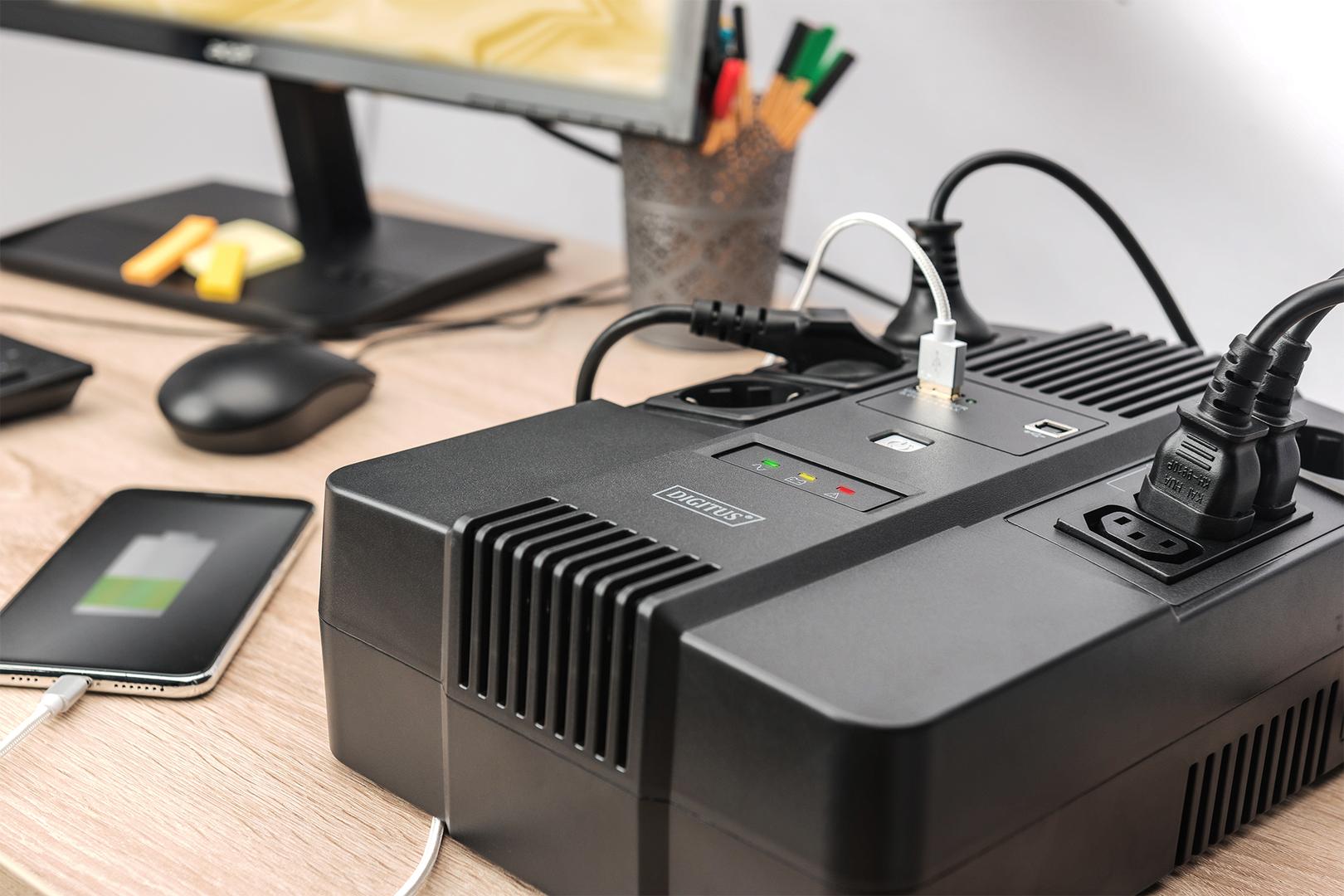

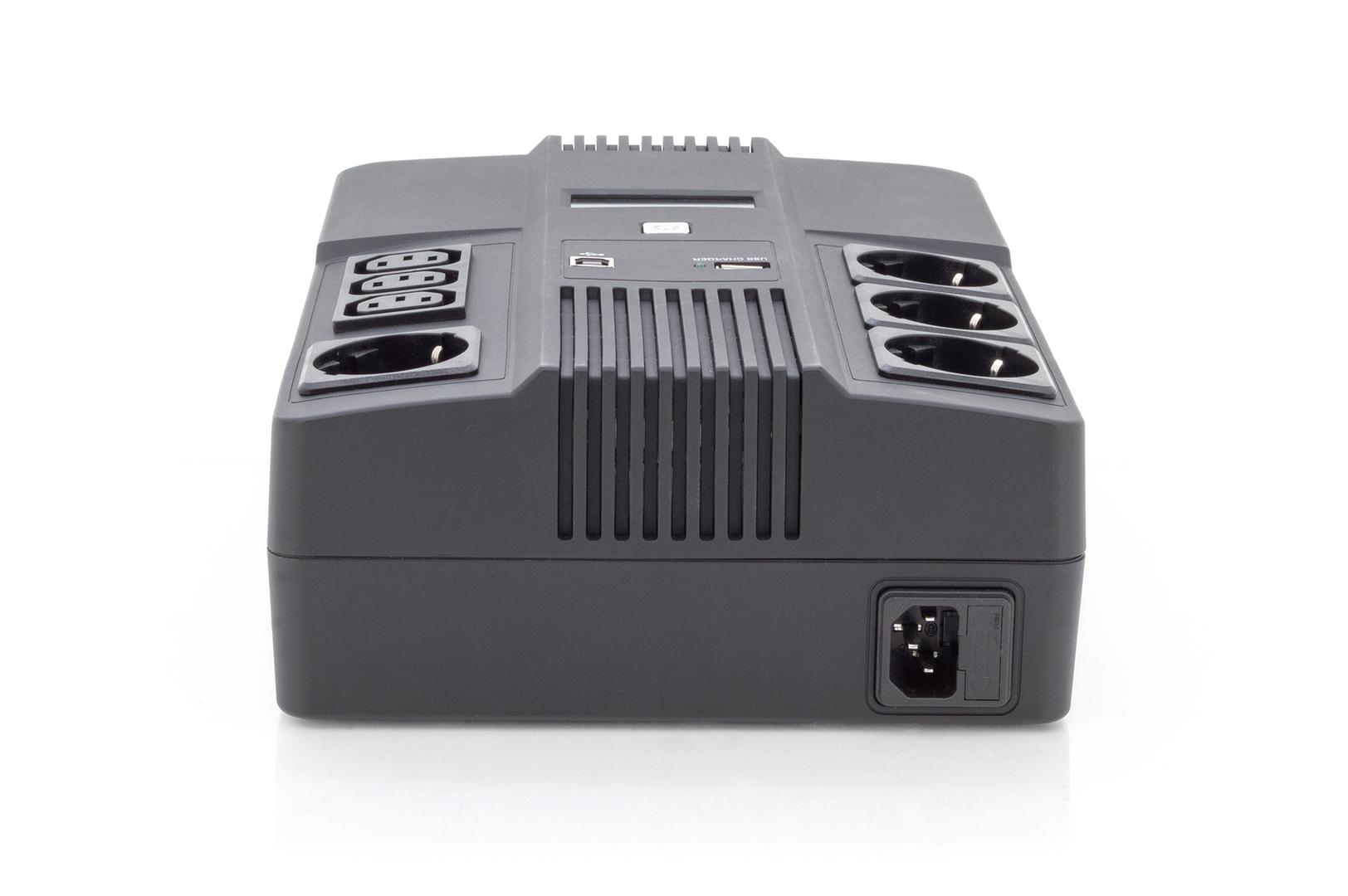

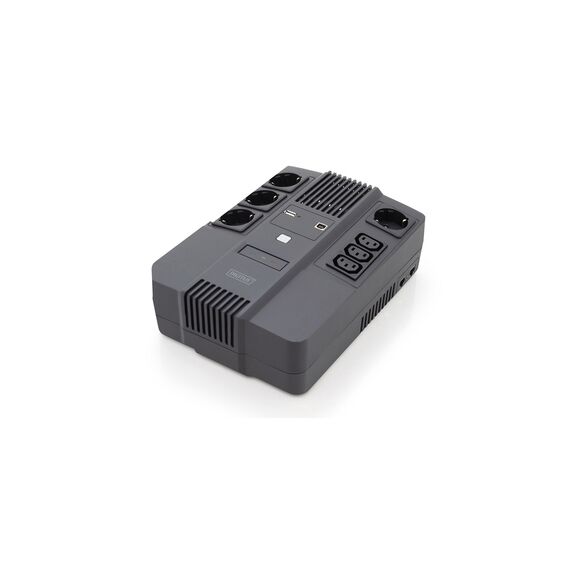

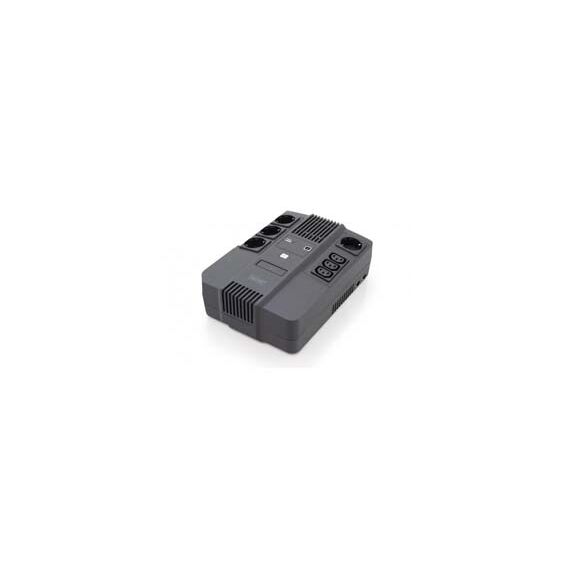

DIGITUS All-in-One UPS - UPS - AC 220-240 V - 480 Watt - 800 VA - 9 Ah - USB - output connectors: 7 | DN-170111

Product Features

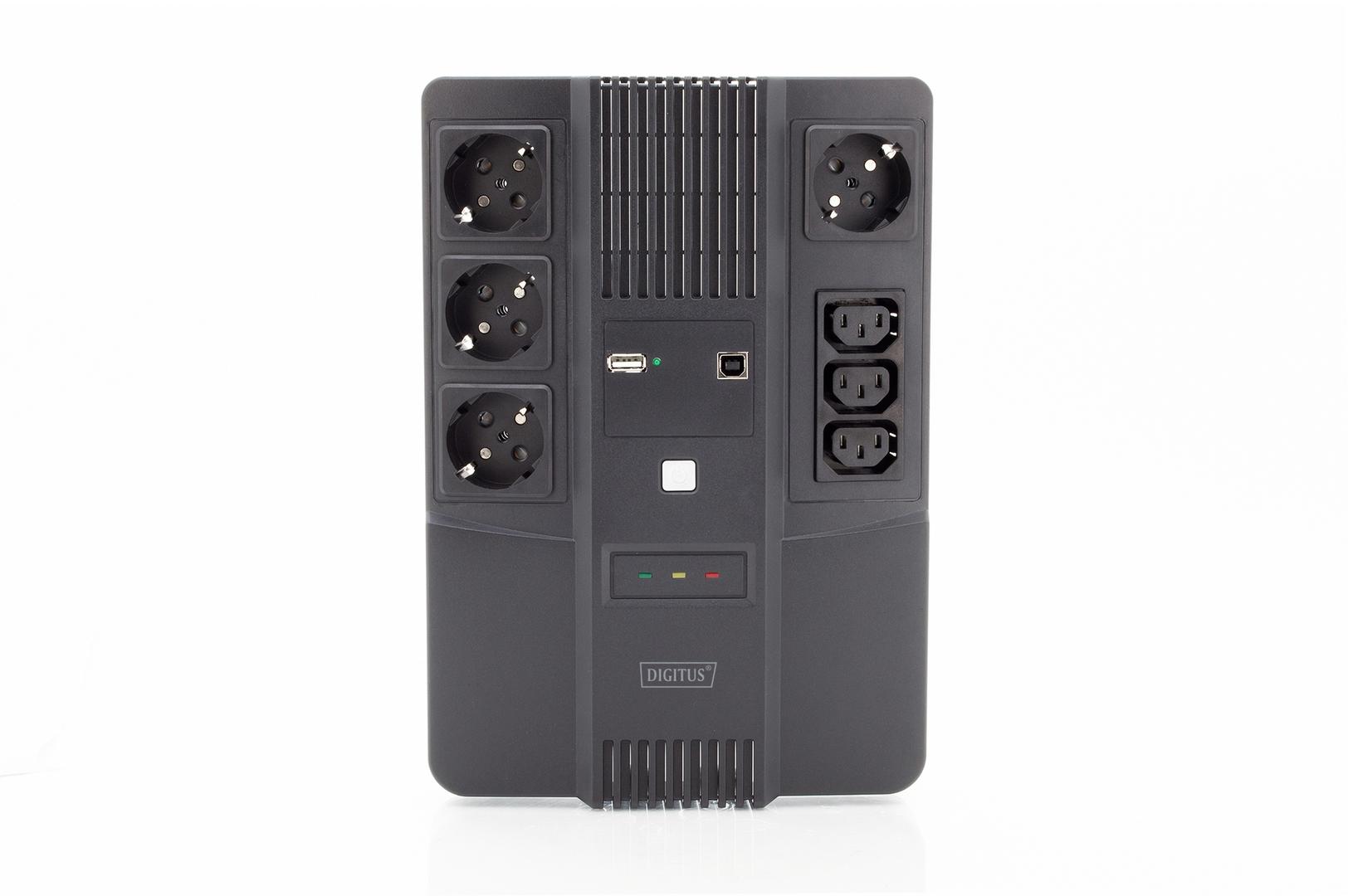

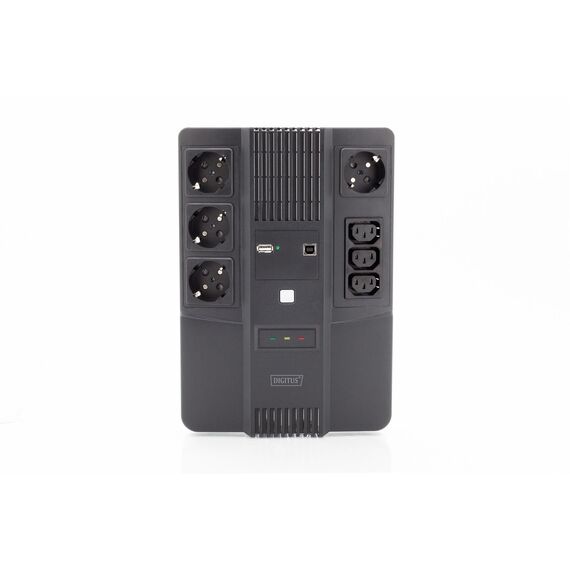

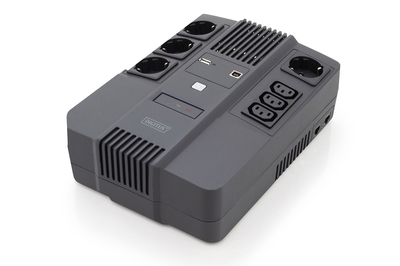

· 4x shockproof sockets to connect your devices
· 3x IEC C13 sockets to connect monitors, for example
· 1x USB Type-A socket to charge mobile devices with 5V/2A max.
· 1x USB Type-B socket for software communication

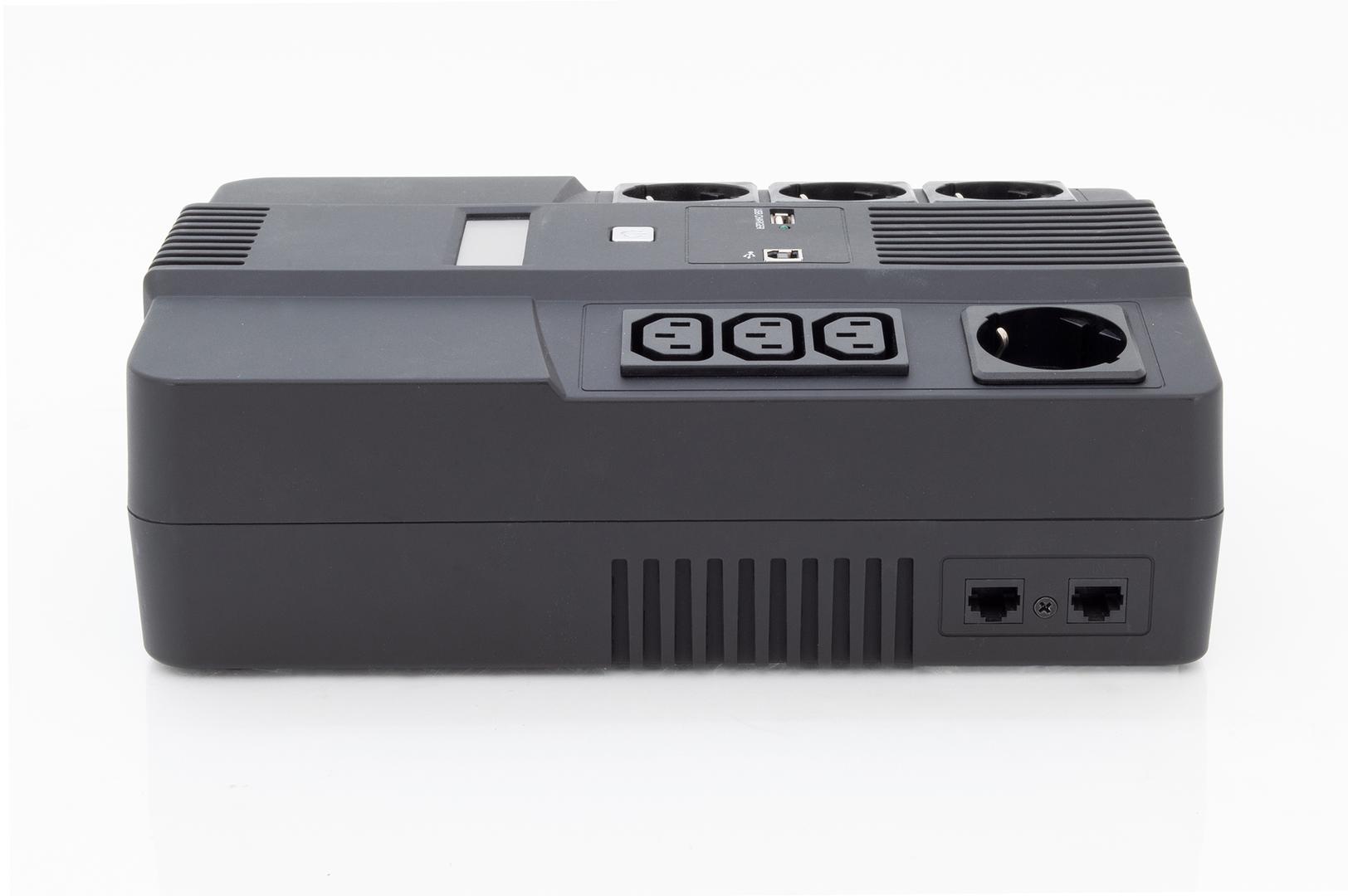

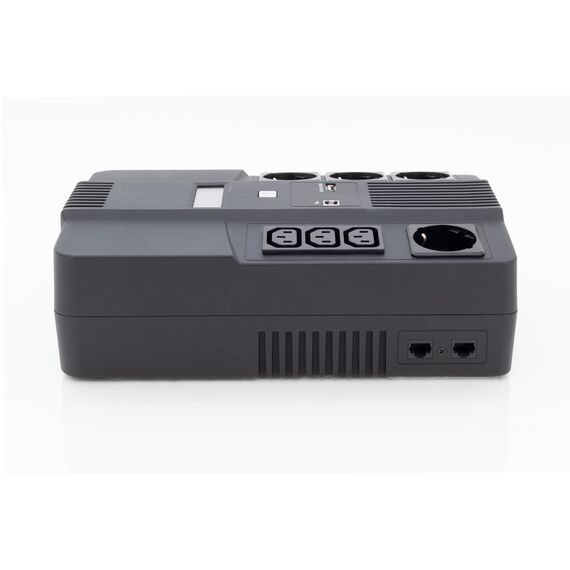

· 1x RJ45 input / output for surge protection for your Internet access + software communication
· LED indicator for the following functions: Supply via mains voltage / supply via battery voltage / error message
· Acoustic error message for the following events: Power failure (10 sec.) / Weak battery (1 sec.) / Overload (0.5 sec.) / Error (continuous tone)
· Protection functions: Discharge / overcharge / overload
· Changeover time if power fails: 2 6 ms
· Automatic restart while voltage is restored
· Software for controlling and monitoring connected devices / UPS functions
· Capacity: 800 VA / 480 W
· Input voltage: 220 240 V/AC
· Input voltage tolerance: 162 290 V/AC
· Output voltage regulation: +/- 10%
· Frequency range: 50 to 60 Hz (+/- 10%)
· Waveform: Simulated sine wave
· Battery type: 12 V / 9 Ah 1x
· Charging Time: 6 8 hours (0 90% charge)
· Noise level: <40 dB
· USB charging socket type A: 5V/2A max.
· Operation temperature: 0 ~ 40°C
· Operating humidity: 0 90 % (non-condensing)
· Dimensions (L x W x H): 9 x 20,2 x 28,5cm
· Weight: 5.2 kg

Special Fetures

· Microprocessor control unit guarantees high reliability
· Line interactive with AVR boost and buck automatic voltage regulation
· Saves space: Also suitable for wall mounting
· Integrated charger for mobile devices (USB)
· Auto restart: Automatically switches off when the battery has discharged, automatically switches on when the network connection is supplied with power again
· Auto charging: Automatic charging function when turned off

Product Specification

Device Type	UPS - external
Power Device
UPS Technology	Line interactive
Input Voltage	AC 220-240 V
Input Voltage Range (Adjustable)	AC 162 - 290 V
Frequency Provided	50/60 Hz ± 10%
Frequency Required	50/60 Hz
Power Output Connectors Details	4 x power CEE 7/7 ¦ 3 x power IEC 60320 C13 ¦ 1 x 4 pin USB Type A - 5 V 2 A
Output Voltage	AC 220-240 V ± 10% - 50/60 Hz
Power Capacity	480 Watt / 800 VA
Dataline Surge Protection	Network - RJ-45 - 1 input line / 1 output line
Output Waveform	Sinewave
Surge Suppression	Yes
Battery
Quantity	1
Voltage Provided	12 V
Capacity	9 Ah
Recharge Time	8 hours
Networking
Remote Management Interface	USB
Expansion / Connectivity
Interfaces	1 x USB
Miscellaneous
Features	Over voltage protection, overload protection, discharge protection
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 90% (non-condensing)
Sound Emission	40 dB
Dimensions & Weight
Width	20.2 cm
Depth	9 cm
Height	28.5 cm
Weight	5.2 kg
Dimensions & Weight (Shipping)
Shipping Width	14.5 cm
Shipping Depth	36 cm
Shipping Height	18 cm
Shipping Weight	5.93 kg
