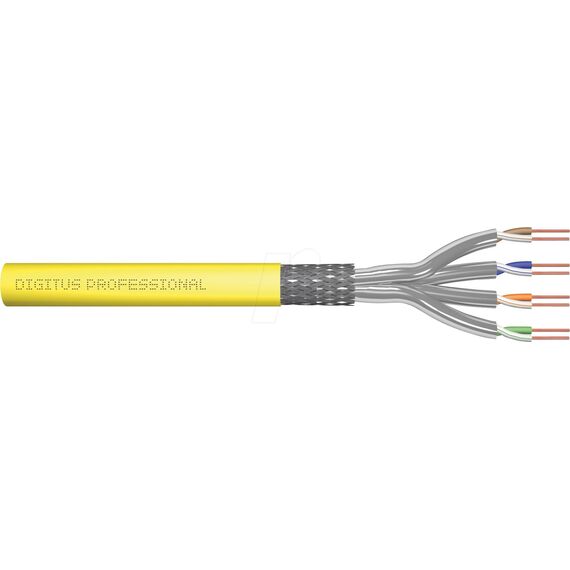

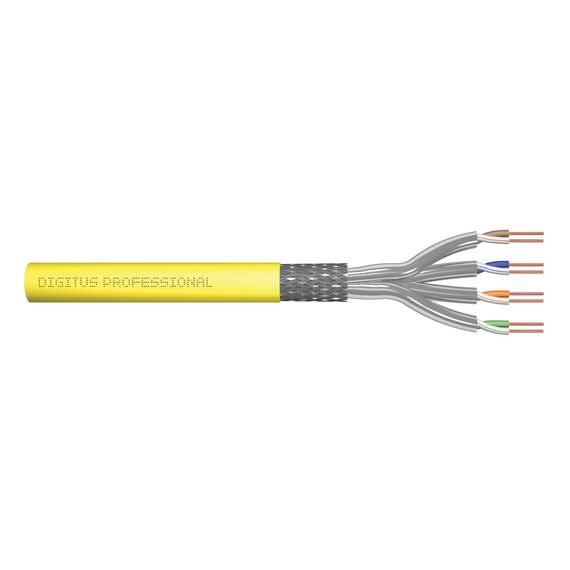

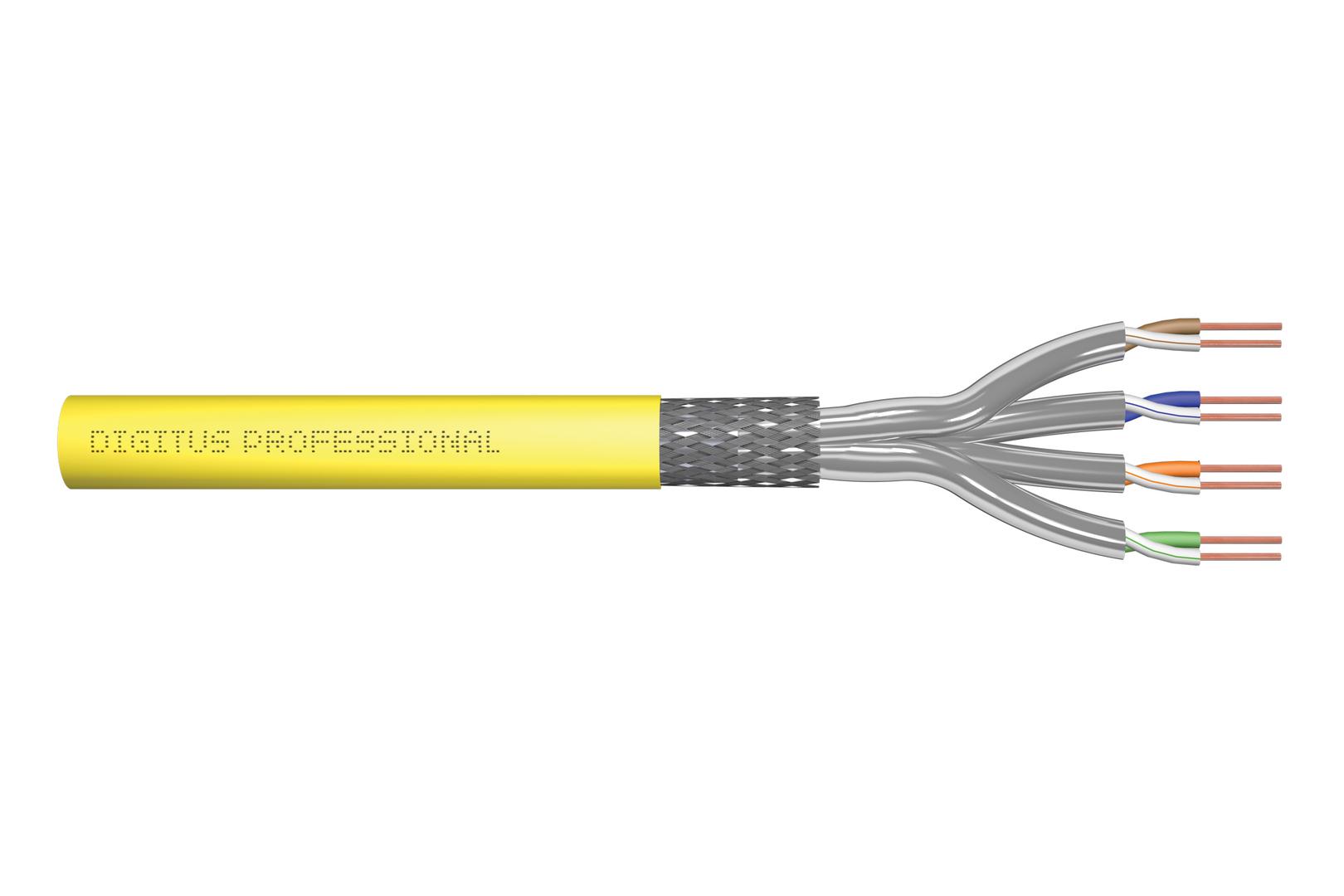

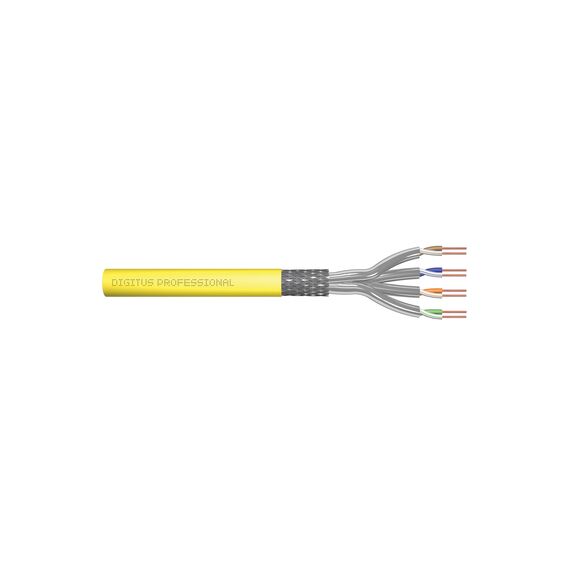

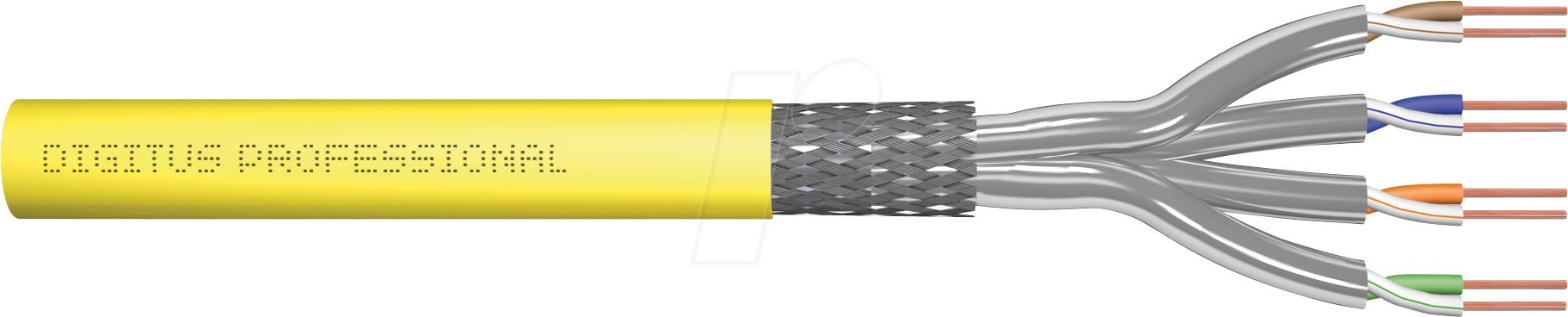

DIGITUS - Bulk cable - 1000 m - 7.5 mm - SFTP, PiMF - simplex - CAT 7a - halogen-free, solid - yellow | DK-1745-A-VH-10

Product Features

· Physical properties:
· Conductor: Bare annealed copper, solid AWG 22/1
· Insulation: SFS-PE (Foam-Skin Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shielding: Aluminum foil, providing 100 % coverage
· Overall shielding: Copper braid
· Outer sheath: Eca - B2ca acc. to EN 50575; LSZH
· Outer sheath diameter (nominal): 0.50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
· Color: orange (RAL 2000)
· Mechanical properties:
· Tensile loading: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +75 °C
· Operating temperature range: -20 °C bis +50 °C
· Installation temperature range: 0 °C to +50 °C
· Overall diameter Simplex (nominal): 7,0 mm (Eca); 7,2 mm (Dca); 7,5 mm (Cca); 7,5 mm (B2ca)
· Weight (kg/km): 49,5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca)
· Electrical properties:
· Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
· Capacitance: 45 pF/m nominal @ 1 KHz
· Capacitance unbalance (pair-ground): 1,6 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
· DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 1b
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 10 nS/100 m max.
· Separating class: d acc. to EN 50174-2
· NVP: 79%

Special Fetures

· 10 GBit Ethernet
· 1500 MHz transmission frequency
· Permanent link certified
· PoE Power over Ethernet support
· BauPVO category B2ca

Product Specification

Network Cable Type	Bulk cable - CAT 7a
Technology	Simplex SFTP, PiMF
Shielding Material	Aluminium foil with copper braid
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	22/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Impedance	100 Ohm
Features	Halogen-free, solid, PoE ready, bare annealed copper conductors, drum package, Foam-Skin Polyethylene (SFS-PE) insulation, permanent link certified
Length	1000 m
Diameter	7.5 mm
Colour	Yellow
Miscellaneous
Compliant Standards	ISO/IEC 11801, EN 50288-4-1, EN 50173, IEC 60332-3-24, EN 50575:2014, CPR B2ca - up to 1500 MHz
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	50 °C
