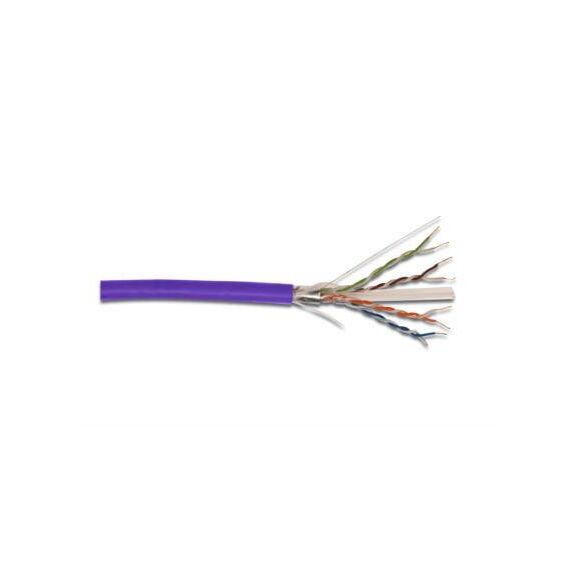

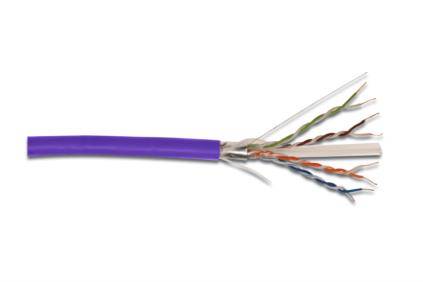

DIGITUS / Bulk cable / 100 m / foiled unshielded twisted pair (F/UTP) / CAT 6 / purple | DK-1623-VH-1
Description
DIGITUS category 6 F-UTP installation cables are manufactured to the ISO/IEC 11801, TIA/EIA 568B and EN 50173 category 6 specifications. Every cord consists of 8 color coded AWG 23 polyethylene insulated con-doctors. The conductors are twisted together to form 4 pairs with varying lay lengths. Printing details along the outer sheath includes the brand name and item code.
DIGITUS / Bulk cable | DK-1623-VH-1
Special Features
- Halogen free outer sheath
- Category 6 compliant, ISO/IEC 11801, TIA/EIA 586B, EN 50173
- AWG 23 conductor
- Individual pair shielding: aluminum foil, providing 100% coverage
Product Specification
| Network Cable Type | Bulk cable - CAT 6 |
| Technology | Foiled unshielded twisted pair (F/UTP) |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| American Wire Gauge (AWG) | 23/1 |
| Wires per Cable | 8 wires |
| Pairs per Cable | 4 pairs |
| Length | 100 m |
| Colour | Purple |
| Compliant Standards | IEC 60332-1, ISO/IEC 11801, TIA/EIA-568-C.2, IEC 60332-1-2 - up to 250 MHz |
| Service & Support | 25 years warranty |
Features - Digitus - DK-1623-VH-1
Length
>50m
More Details
Product Code
04:232152
EAN Code
4016032344056
Manufacturer
Digitus
