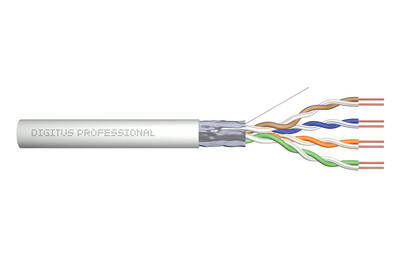

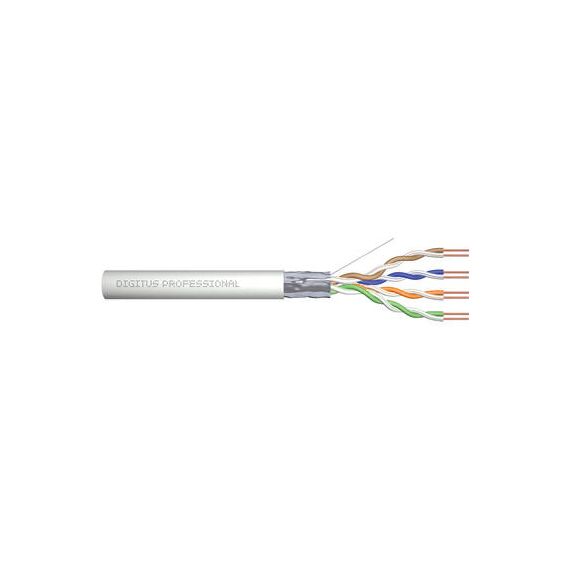

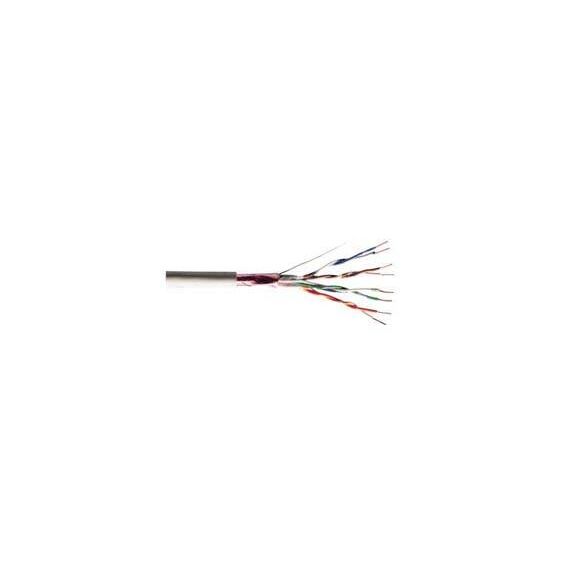

DIGITUS - Bulk cable - 305 m - foiled unshielded twisted pair (F/UTP) - CAT 5e - solid - grey | DK-1521-V-305

Product Features

· Physical properties:
· Conductor: Bare annealed copper, solid AWG 24/1
· System/s of AVCP: AVCP 3
· Insulation: PE (Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shielding: None
· Overall shielding: Foil shielded, drain wire
· Overall sheath: Eca acc. to EN 50575; PVC
· Outer sheath diameter (nominal): 0.55 mm nominal
· Outer sheath color: Grey (RAL 7035)
· Mechanical properties:
· Tensile loading: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +75 °C
· Operating temperature range: -20 °C up to +60 °C
· Installation temperature range: 0 °C up to +50 °C
· Overall diameter Simplex (nominal): 6.1 mm nominal
· Electrical properties:
· Impedance: 100±5 Ohm @ 1-100 MHz
· Capacitance: 40 pF/m nominal @ 800 Hz
· Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 3
· Signal propagation delay: 535 nS/100 m max.
· Propagation delay: 20 nS/100 m max.
· Separating class: ,,b" acc. to EN 50174-2
· NVP: 69%

Special Fetures

· 1GBit Ethernet
· 100 Mhz transmission frequency
· PoE Power over Ethernet support
· CPR class Eca

Product Specification

Network Cable Type	Bulk cable - CAT 5e
Technology	Foiled unshielded twisted pair (F/UTP)
Shielding Material	Aluminium foil
Jacket Material	PVC
American Wire Gauge (AWG)	24/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Impedance	100 Ohm
Features	Solid
Length	305 m
Colour	Grey
Miscellaneous
Compliant Standards	ISO/IEC 11801 - up to 100 MHz
