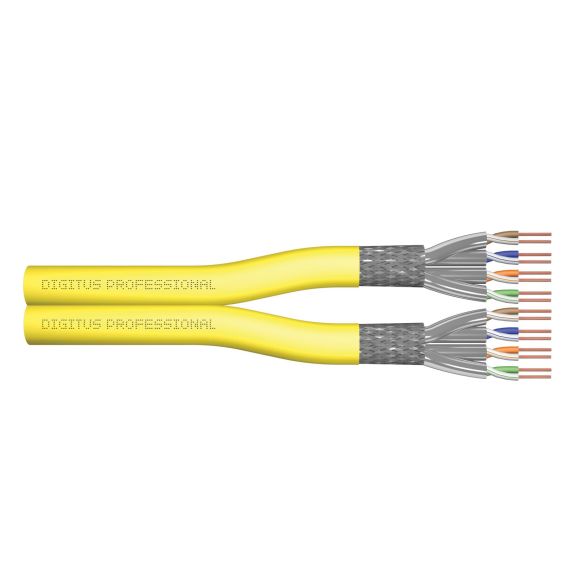

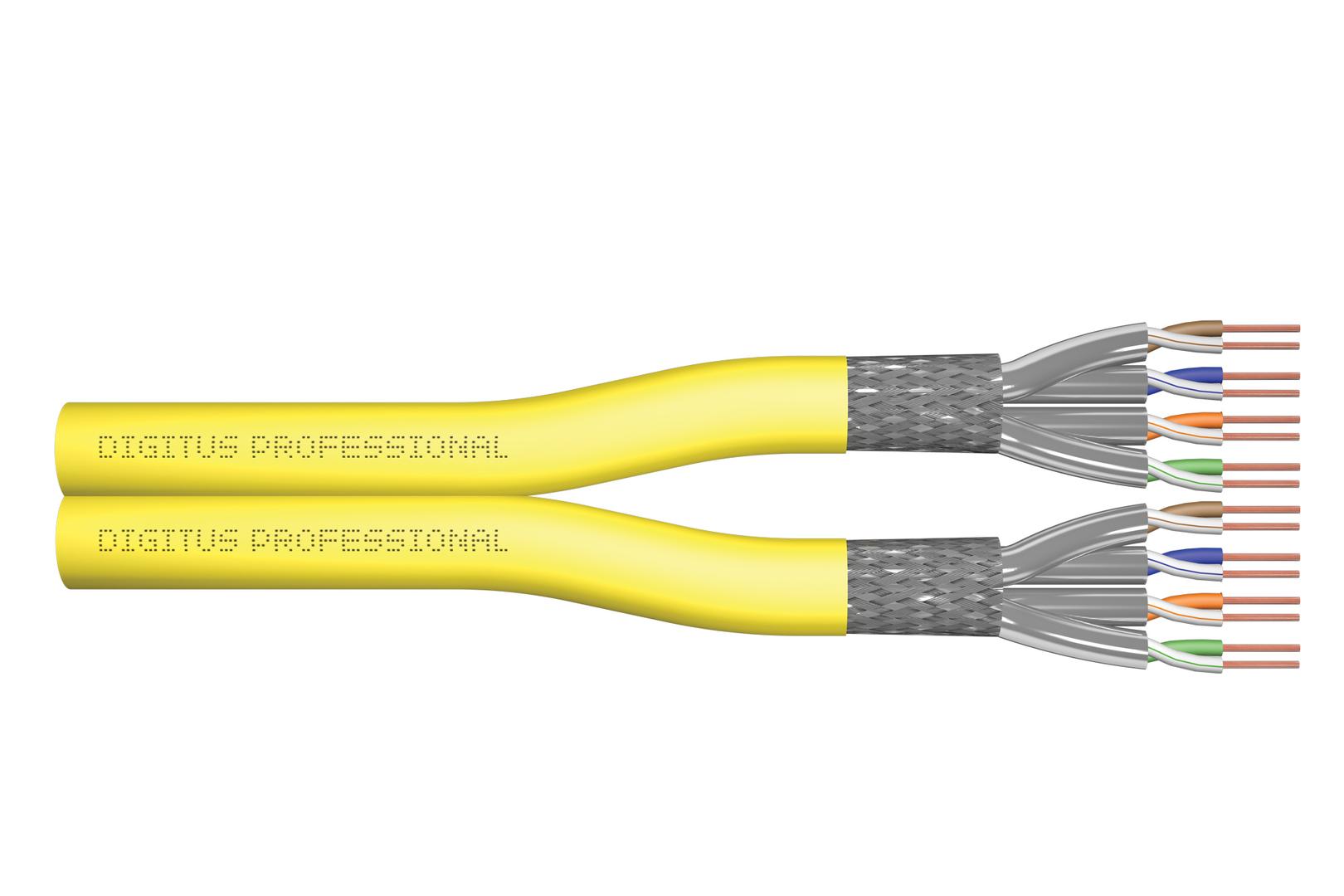

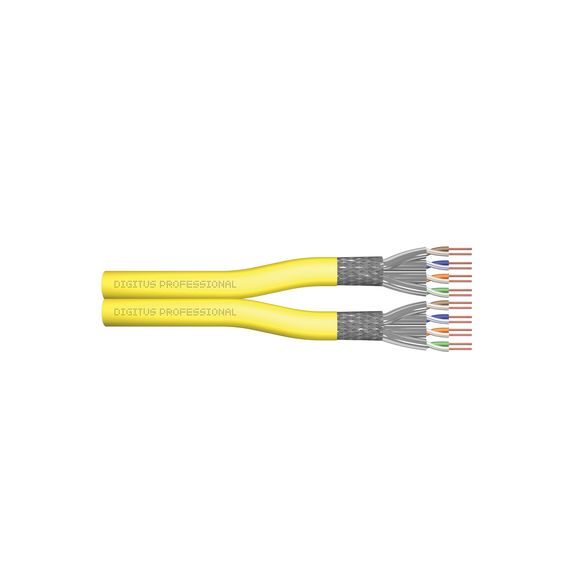

DIGITUS / Bulk cable / 500 m / 7.5 mm / S/FTP / duplex / CAT 7a / halogen-free, solid / yellow, RAL 1028 | DK-1745-A-VH-D-5

Product Features

· Physical properties:
· Conductor: Bare annealed copper, solid AWG 22/1
· Insulation: SFS-PE (Foam-Skin Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shielding: Aluminum foil, providing 100 % coverage
· Overall shielding: Copper braid
· Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
· Outer sheath diameter (nominal): 0,50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
· Color: yellow (RAL 1028)
· Mechanical properties:
· Tensile loading: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +75 °C
· Operating temperature range: -20 °C up to +50 °C
· Installation temperature range: 0 °C up to +50 °C
· Overall diameter Simplex (nominal): 7,0 mm (Eca); 7,2 mm (Dca); 7,5 mm (Cca); 7,5 mm (B2ca)
· Weight (kg/km): 49,5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca)
· Electrical properties:
· Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
· Capacitance: 45 pF/m nominal @ 1 KHz
· Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
· DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 1b
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 10 nS/100 m max.
· Separating class: d acc. to EN 50174-2
· NVP: 79%

Special Fetures

· 10GBit Ethernet
· 1500 MHz transmission frequency
· Permanent link certified
· PoE Power over Ethernet support
· BauPVO category B2ca

Product Specification

Network Cable Type	Bulk cable - CAT 7a
Technology	Duplex S/FTP
Shielding Material	Aluminium foil with copper braid
Jacket Material	LSOH
American Wire Gauge (AWG)	22/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Impedance	100 Ohm
Conductor Resistance (per km)	95 Ohm
Features	Halogen-free, solid, bare annealed copper, PoE ready, Foam-Skin Polyethylene (SFS-PE) insulation, up to 10 Gbps, 150N tensile strength
Length	500 m
Diameter	7.5 mm
Weight	53 kg
Colour	Yellow, RAL 1028
Miscellaneous
Compliant Standards	CENELEC EN 50575, ISO/IEC 11801-1:2017 (Ed. 1.0), DIN EN 50173-1: 2018, DIN EN 50288-4-1, GHMT, CPR B2ca, Euroclass B2ca - up to 1500 MHz
Package Details	Drum
Dimensions & Weight (Shipping)
Shipping Width	55 cm
Shipping Depth	55 cm
Shipping Height	47.5 cm
Shipping Weight	66.25 kg
Manufacturer Warranty
Service & Support	25 years warranty
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	50 °C
