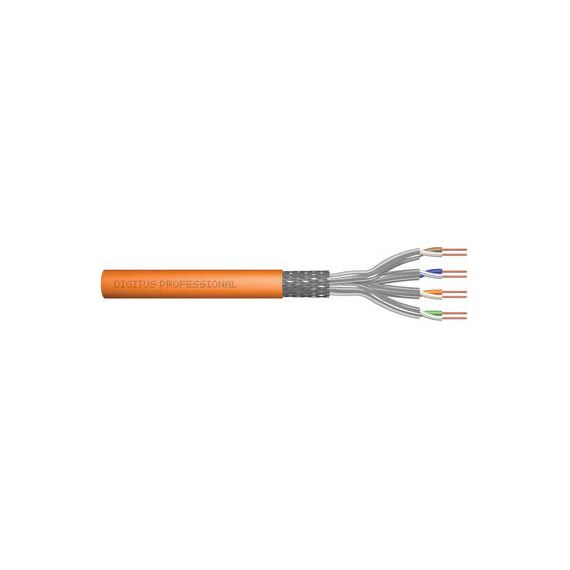

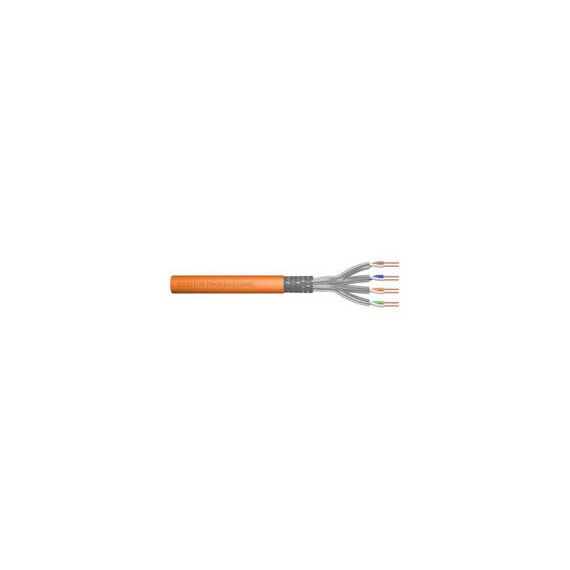

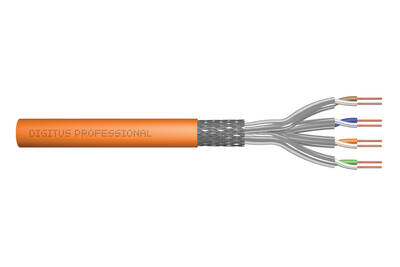

DIGITUS - Bulk cable - 500 m - SFTP, PiMF - CAT 7 - halogen-free, solid - orange, RAL 2000 | DK-1743-VH-5

Product Features

· Physical properties:
· Conductor: Bare annealed copper, solid AWG 23/1
· System/s of AVCP: AVCP 3
· Insulation: SFS-PE (Foam-Skin Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shielding: Aluminum foil, providing 100 % coverage
· Overall shielding: Copper braid
· Outer sheath: Dca-s1a d1 a1 acc. to EN 50575; LSZH
· Color: Orange (RAL 2008)
· Mechanical properties:
· Tensile loading: 135N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +60 °C
· Operating temperature range: -20 °C up to +50 °C
· Installation temperature range: 0 °C up to +50 °C
· Electrical properties:
· Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
· Capacitance: 45pF/m nom. at 1KHz
· Capacitance: 40 pF/m nominal @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
· Loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: Grade 1 (CA-Type 1b)
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 10 nS/100 m max.
· Separating class: d acc. to EN 50174-2
· NVP: 79%
· Flame spread: EN EN 60332-1-2 (LSOH-PVC)
· Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
· Smoke density EN 61034-2

Special Fetures

· 10GBit Ethernet
· 1200 MHz transmission frequency
· Permanent link certified
· PoE Power over Ethernet support
· CPR class Dca-s1a d1 a1

Product Specification

Network Cable Type	Bulk cable - CAT 7
Technology	SFTP, PiMF
Shielding Material	Aluminum foil with tinned copper braid
Jacket Material	Low Smoke Zero Halogen (LSZH)
American Wire Gauge (AWG)	23/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Features	Halogen-free, solid
Length	500 m
Colour	Orange, RAL 2000
Miscellaneous
Compliant Standards	IEC 61034 - up to 1.2 GHz
Manufacturer Warranty
Service & Support	2-year warranty
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	60 °C
