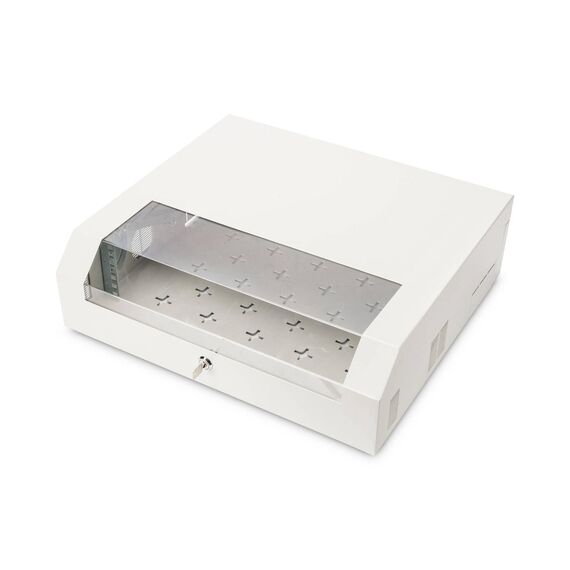

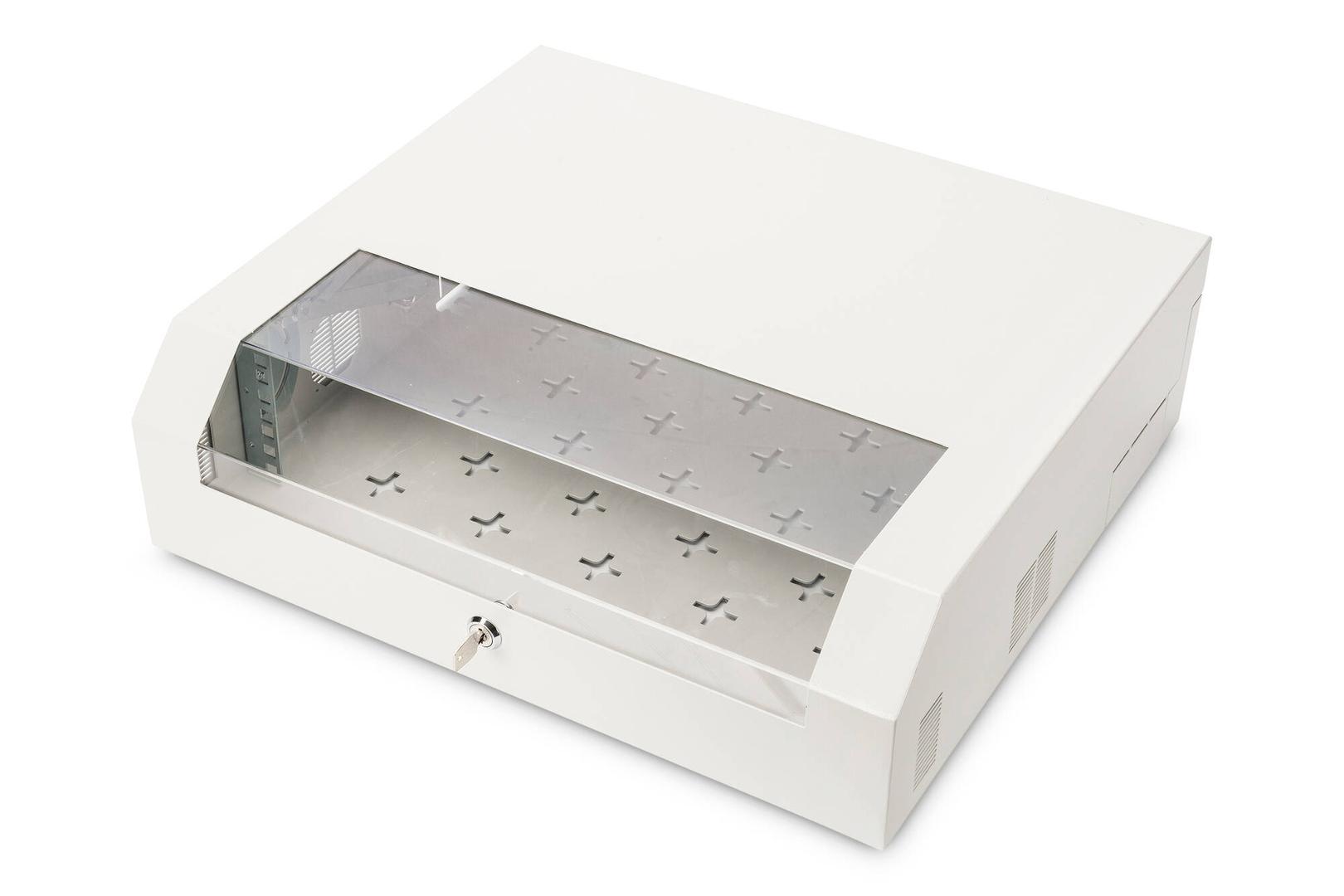

Digitus - Cabinet - wall mountable - grey - 5U - 19" | DN-19 04U-PB
DN-19 04U-PB
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Safety class rating IP20· Lockable housing with transparent polycarbonat window
· Upper part of housing can opened up to 80°
· Door stop mechanism of steel which keeps the door open
· 1-point-locking-mechanism
· 2 separate 483 mm (19) mounting options: 3U vertical (rotatable), 2U horizontal (fix)
· max. installation depth (from front vertical rail to rear horizontal rail): ca. 265 mm
· 2.0 mm strong sheet steel with a high loading capacity, powder coated
· Pre-punched knock-outs for cable management
· Ventilation slots for active and passive ventilation and exhausting
· Cable tire-up divisions
· Lower housing area with punched out mounting holes for the installation of equipment which is not suitable for 483 mm (19) mounting
· Mounting plate is optional available
· Dimensions ventilator mount: 57.5 x 57.5 mm
· Hole distances ventilator installation: 50 x 50 mm (3.5 mm diameter)
Special Fetures
· Very slim and elegant design· Easy and time saving installation
· Optimized air ventilation and exhaustion
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 5U |
| Width | 14 cm |
| Depth | 47.5 cm |
| Height | 49.7 cm |
| Colour | Grey |
| Miscellaneous | |
| Weight Limit | 80 kg |
| Features | Lockable front door, glass door |
Features - Digitus - DN-19 04U-PB
More Details
Product Code
03:501729
EAN Code
4016032200109
Manufacturer
Digitus
No posts found
