Digitus - Cabinet - wall mountable - grey, RAL 7035 - 16U - 19" | DN-19 16-U-3
Please sign in so that we can notify you about a reply
Product Features

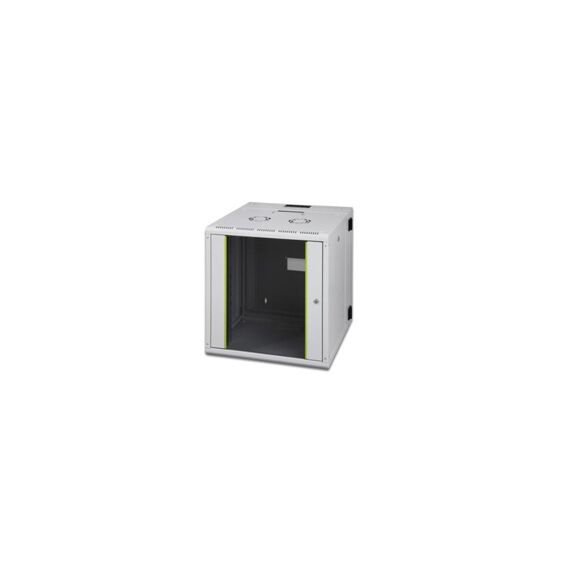

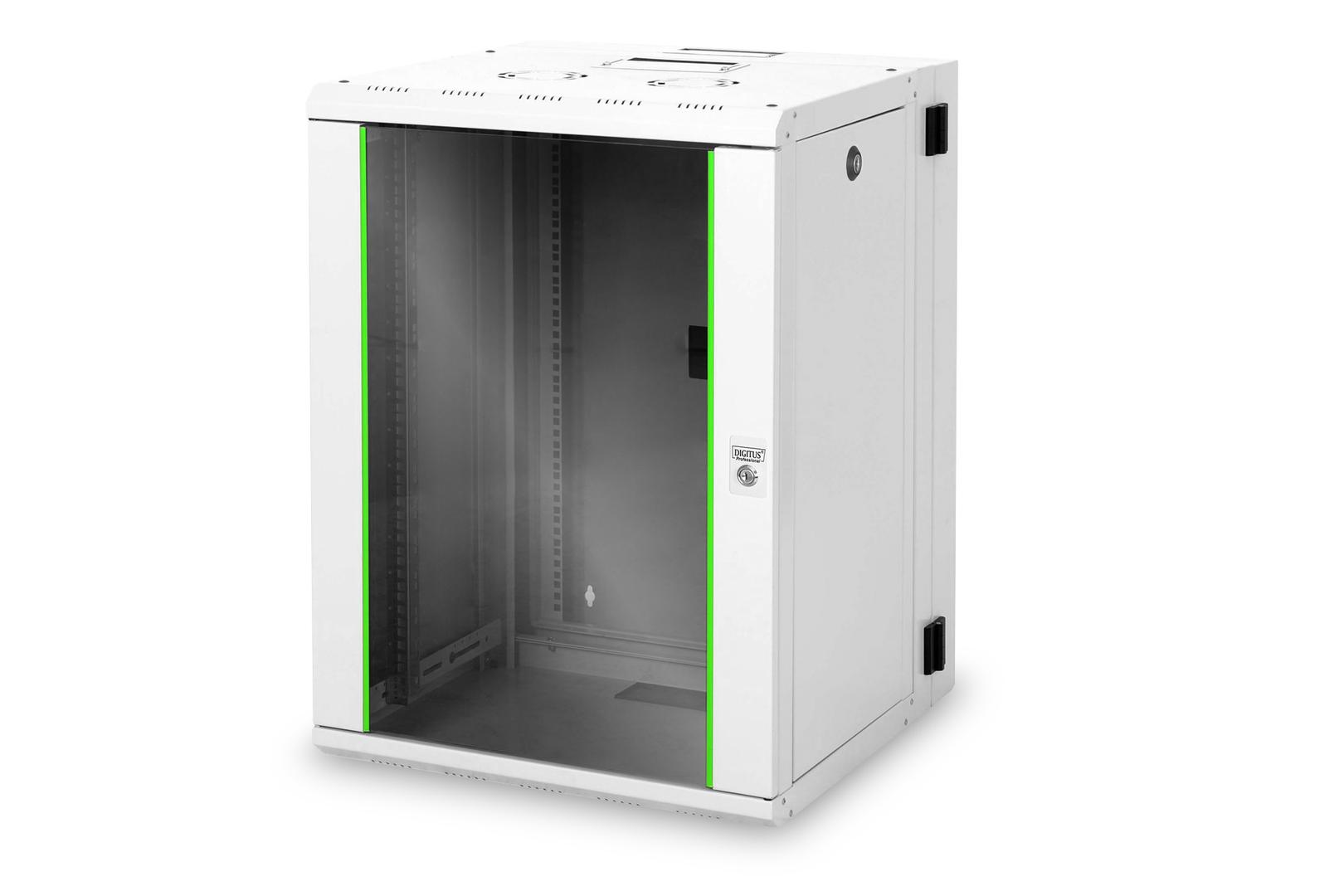

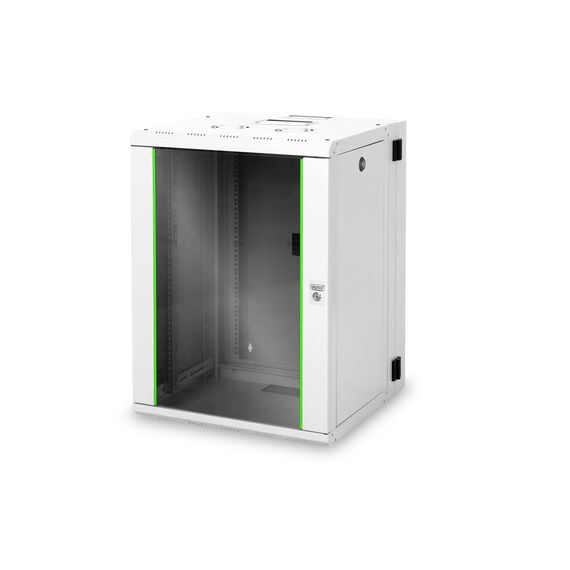

· Safety class rating IP20· Lockable safety-glass door with steel frame
· 210° door opening angle

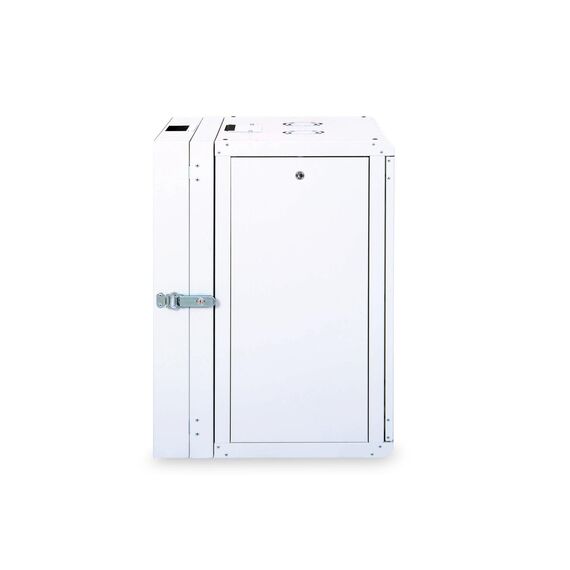

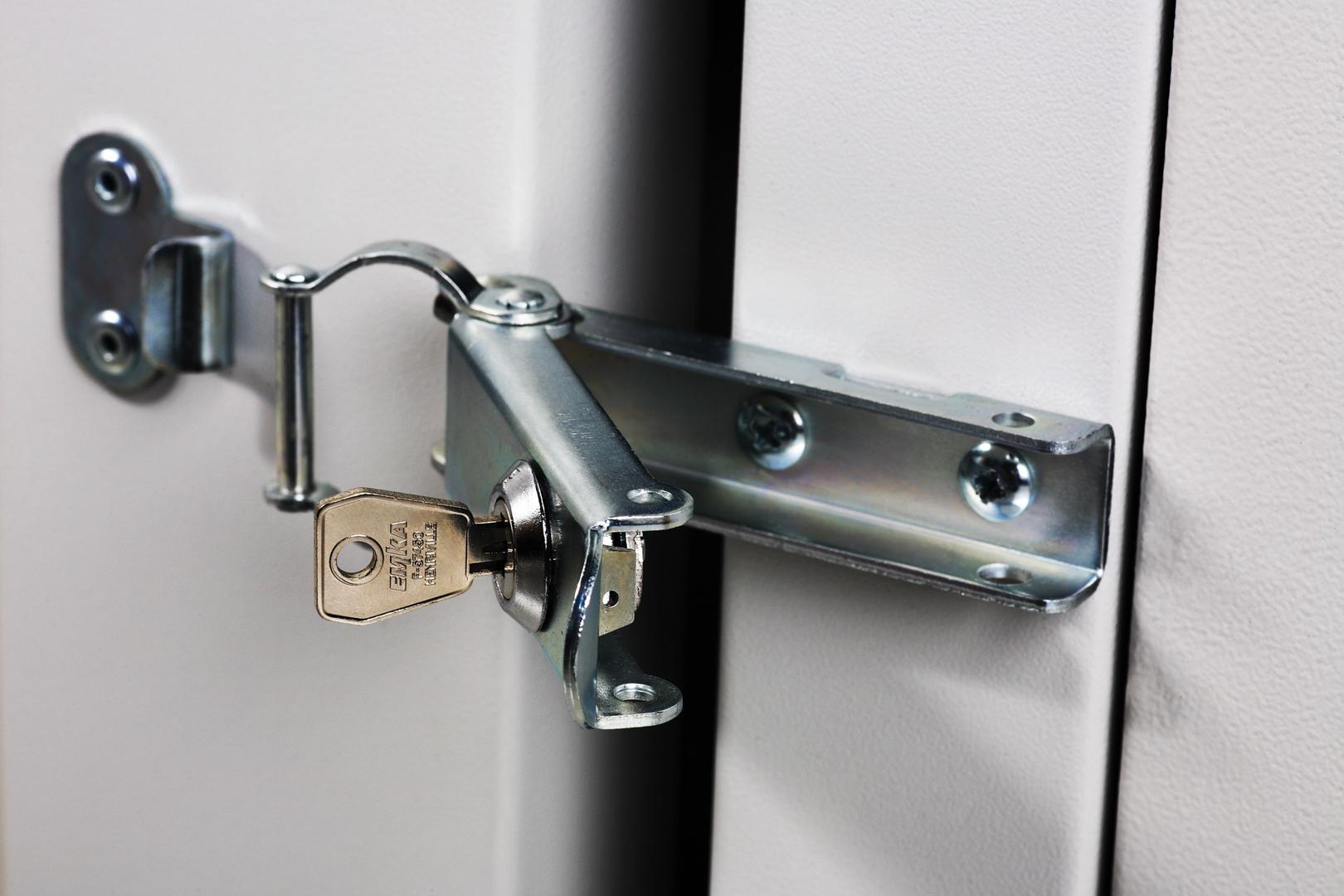

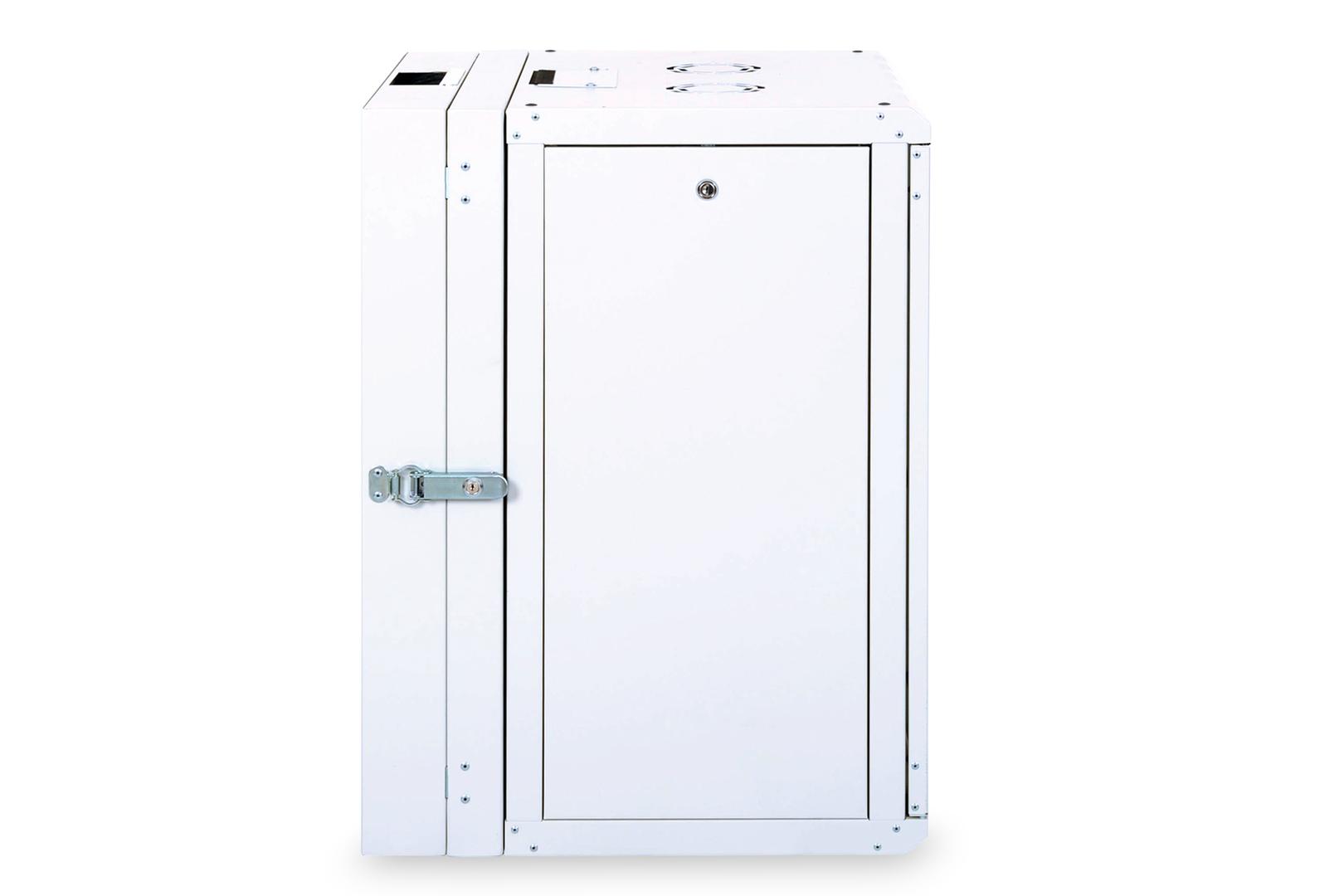

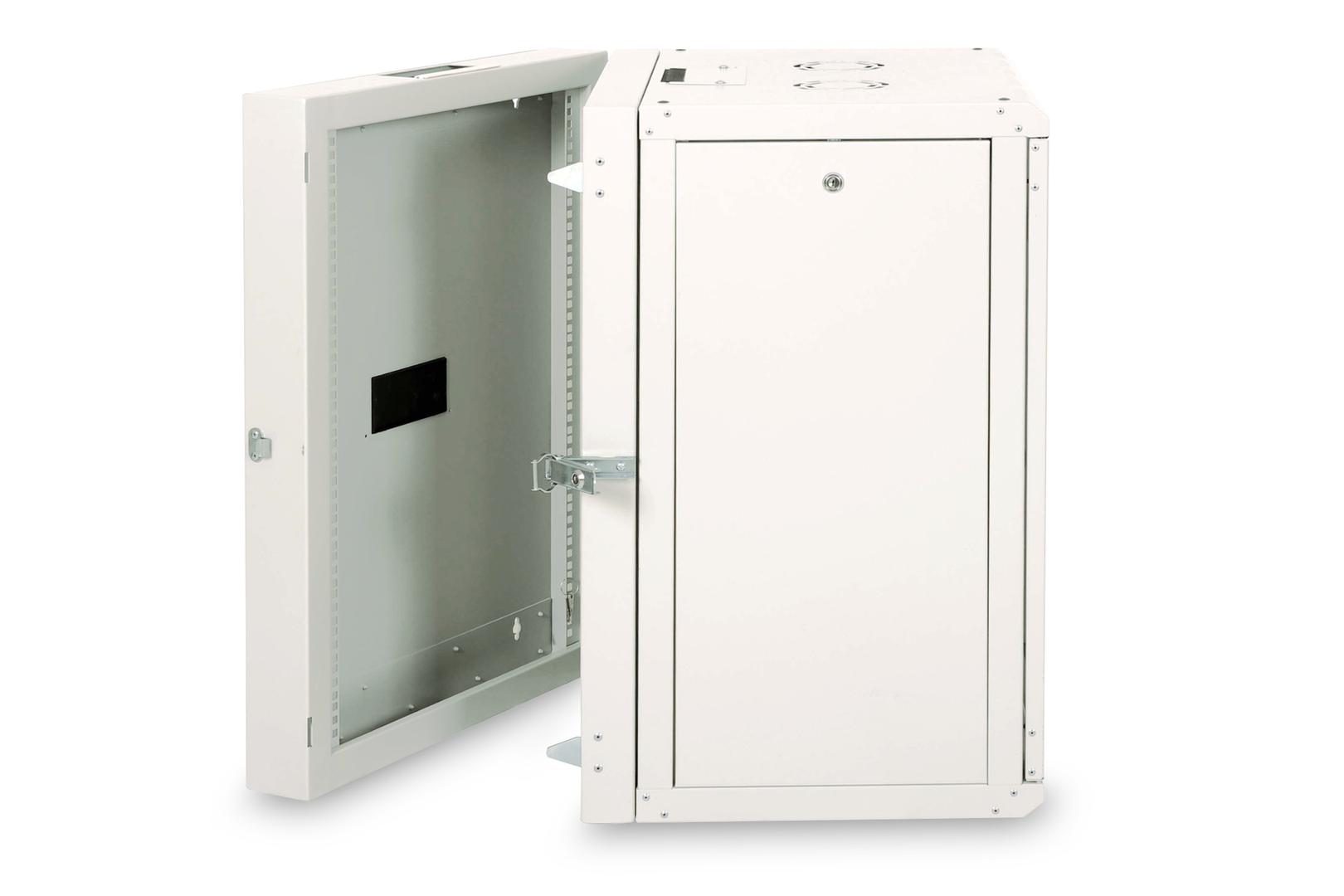

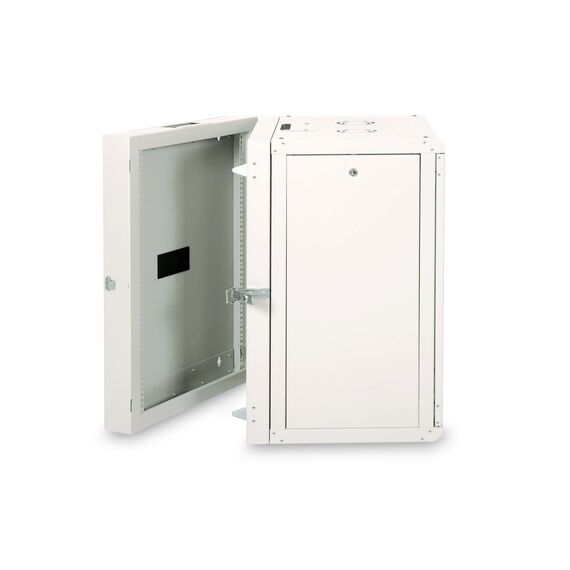

· Housing is connected to rear frame with separate locking mechanism (incl. individual key)

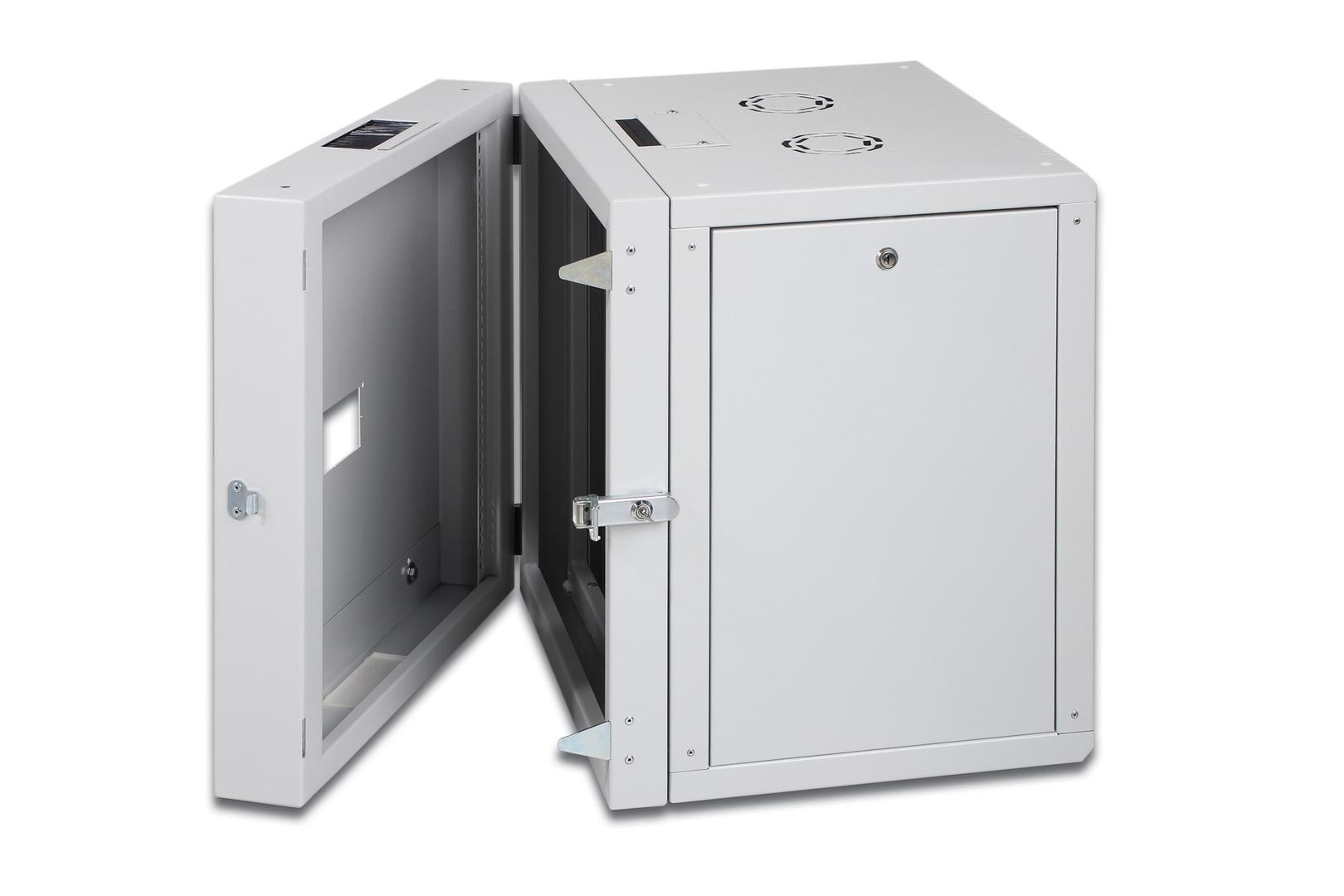

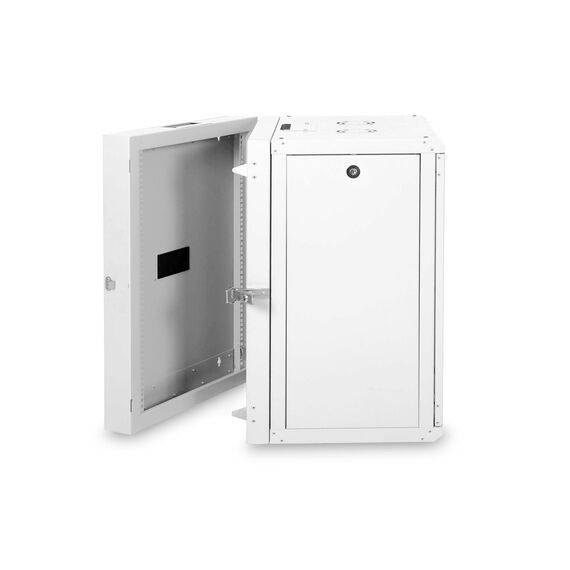

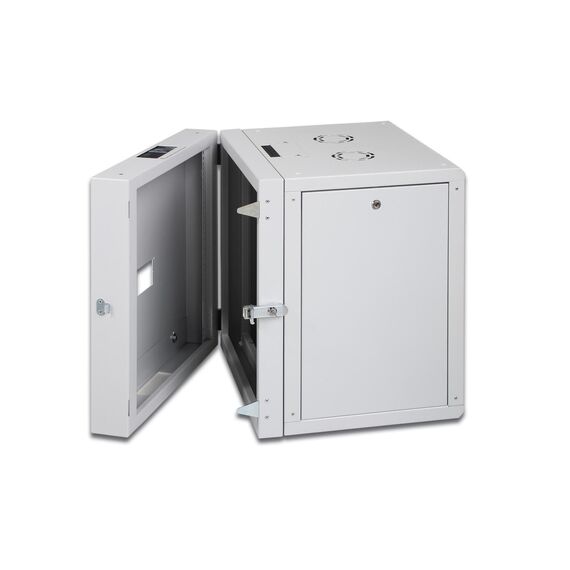

· 102° pivotable angle of the housing from the frame
· 1-point-locking-mechanism on the front door
· Side panels are lockable and removable
· 483 mm (19) profile rails mounted on the front side inside of the cabinet, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking

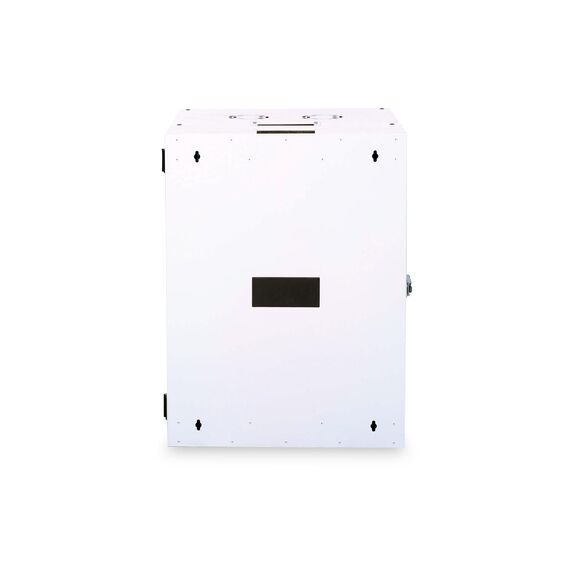

· Rear frame with 483 mm (19) punch outs
· Max. installation depth: 440 mm
· Cable entry on the rear side and base with plastic cover and top with sliding cover
· Rear frame with brush strip for cable entry on top and base
· Roof is prepared for fan units (punched out entries)
· Ventilation slots for active and passive ventilation and exhausting
· Several earthing points for rack components
· Incl. installation set (screws, cage nuts, washers)
· Rack is completely mounted
· Equipment mounting depth min.-max.: 375-440 mm
Special Fetures
· Robust steel construction for sturdy wall mounting· Lockable safety-glass door with steel frame
· Side panels are lockable and removable
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 16U |
| Width | 61 cm |
| Depth | 60 cm |
| Height | 80 cm |
| Colour | Grey, RAL 7035 |
| Miscellaneous | |
| Mounting Kit | Included |
| Features | Lockable front door, glass door |
Features - Digitus - DN-19 16-U-3
More Details
Product Code
03:161272
EAN Code
4016032186755
Manufacturer
Digitus
