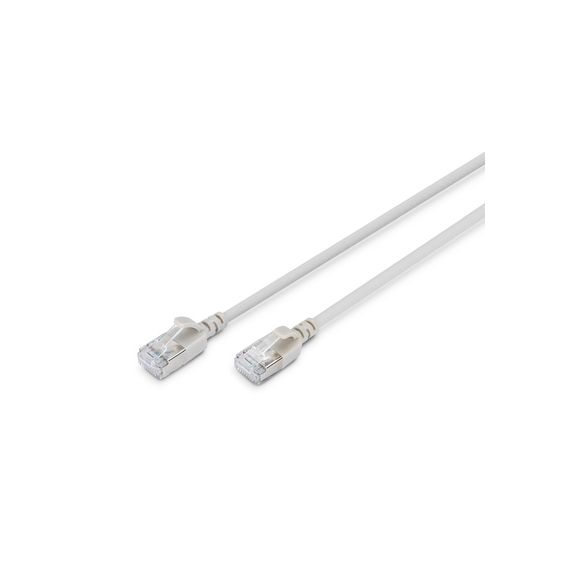

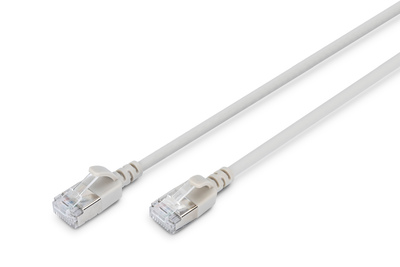

DIGITUS CAT 6A F-FTP Slim patch cable, AWG 32/7 - CAT 6a - FTP - 0,5 m - Grau | DK-1632-A-005S
DIGITUS CAT 6A F-FTP Slim patch cable, AWG 32/7 - CAT 6a - FTP - 0,5 m - Grau | DK-1632-A-005S
€3.32 inc. VAT
DK-1632-A-005S
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Outer casing: LSZH (Low Smoke Zero Halogen)· Total diameter: 3.8 mm ± 0.15 mm
· Conductor stranded: AWG 32/7 bare copper, 0.12 ± 0.005 mm
· Insulation: HD-PE (high-density polyethylene)
· Bending radius: 15x OD
· Plug: RJ45 plug
· Color code: Orange x white, green x white, blue x white, brown x white
· Wiring standard: EIA/TIA 568B
· PIN assignment: 1:1
· Contact resistance: 376.96/km maximum at 20 °C
· Imbalance of the resistance: maximum 3%
· Operating temperature: -20 °C up to +60 °
· Flame retardancy: IEC 60332-1
· Smoke emission: IEC 61034
· Typical applications: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
· Standards: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
· Dielectric strength: AC 500V for 1 minute without breakdown (TIA/EIA-364-21)
· Service life: 750 mating cycles
· Packaging: DIGITUS Polybag
Special Fetures
· Advantage: Slim and flexible design, the cable can be laid effortlessly in confined spaces· Features: Transmission speed 10 Gbit/s and frequency 500 MHz
· Application area: ideal for data centers, high-density solutions and home offices
· PoE+ ready
Product Specification
| Type | Cable |
| CAT class | CAT 6a |
| Cable type (i.e. twisted pair, ...) | FTP |
| Mark | IEC |
| Colour | Gray |
| Technical specifications | |
| Application | Network |
| Cable length | 0.5 m |
| Materia classification | low-smoke;zero-halogen |
| Cable medium | Copper Wire |
Features - Digitus - DK-1632-A-005S
Length
5m
More Details
Product Code
CN94983
EAN Code
4016032497813
Manufacturer
Digitus
