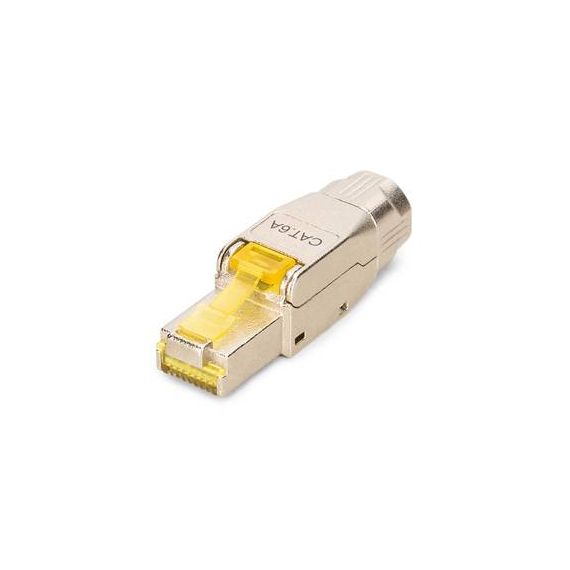

DIGITUS CAT 6A field connector, AWG 22-27, supports up to 4PPoE, IEEE802.3bt / CAT 6a | DN-93638

Product Features

· Transmission properties:
· Category 6A, 10GBase-T, 500 MHz
· ISO/IEC 11801 3rd Ed., EN 50173-1, IEC 60603-7-51
· Suitable for PoE/PoE/4PPoE (IEEE 802.3af, 3at, 3b)
· General properties:

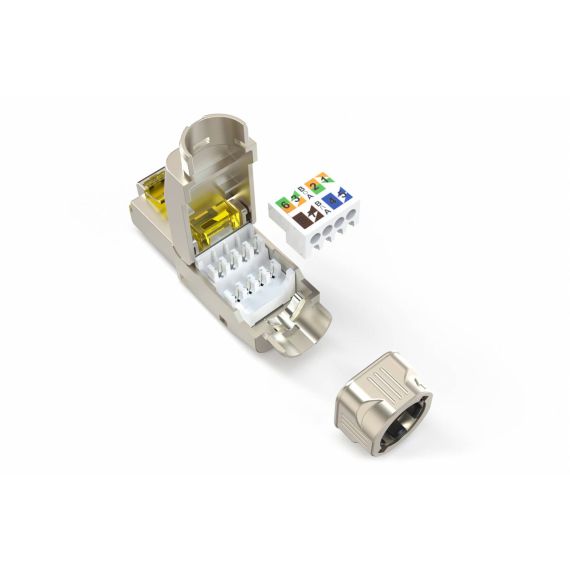

· Cable installation via IDC strips, color coded according to EIA/TIA 568 A & B
· Cable fixation by screwable strain relief
· RJ45 Plug, 8P8C
· Tool-free mounting connection
· 360° shield coverage
· Technical properties:
· Housing material: Zinc die-cast
· Contact material: Phosphor bronze
· Coating of the contacts: Nickel, gold-plated 0.5 µ
· Physical properties:
· Insertion force: 30N max. (IEC 60603-7-5)
· Operation temperature: -20°C bis zu +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
· Mating cycles female: > 1500 acc. to ISO/IEC 11801, IEC 60603-7-5
· IDC wire size: AWG (27/7 - 22/1), solid and stranded conductor
· Tested with AWG 22/1 solid conductor
· Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)

Special Features

· High-performance data transmission - Supports transmission rates of up to 10 Gbit/s for maximum network performance
· Optimal shielding - Shielded design reduces electromagnetic interference for stable signal quality
· Tool-free installation - Innovative design enables quick and easy installation without special tools
· Robust construction - Durable housing and high-quality materials ensure reliable performance, even in demanding environments

Product Specification

Connector(s)	RJ-45
Product colour	Silver, Yellow
Connector gender	Male
Quantity per pack	1 pc(s)
Package width	20 mm
Package depth	40 mm
