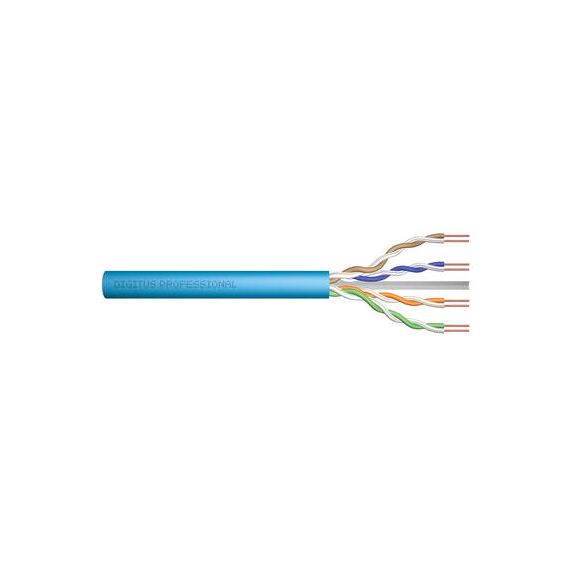

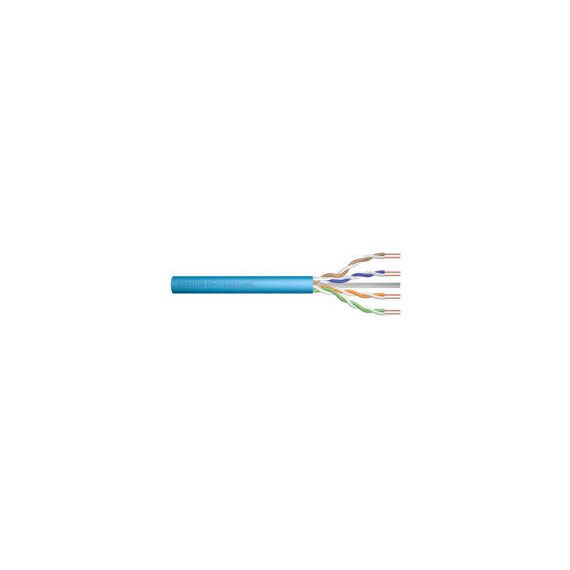

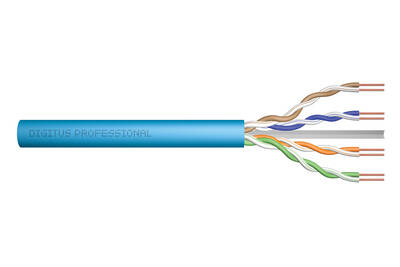

DIGITUS Professional Installation Cable - Bulk cable - 305 m - UTP - CAT 6a - IEEE 802.5/IEEE 802.3 - halogen-free, riser - light blue, RAL 5012 | DK-1613-A-VH-305

Product Features

· Physical properties:
· Conductor: Bare annealed copper, olid AWG 23/1
· System/s of AVCP: AVCP 3
· Insulation: HD-PE (High Density Polyethylene)
· Total number of insulated conductors: 8, twisted in 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Individual pair shield: None
· Overall shielding: None
· Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
· Outer sheath diameter (nominal): 0,5 mm (Eca); 0,6 mm (Dca); 1,2 mm (Cca); 1,4 mm (B2ca)
· Outer sheath color: Light blue (RAL 5012)
· Mechanical properties:
· Tensile loading: 150N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Shipping- and storage temperature range: -20 °C up to +60 °C
· Operating temperature range: -20 °C up to +75 °C
· Installation temperature range: 0 °C up to +50 °C
· Overall diameter Simplex (nominal): 7,1 mm (Eca); 7,3 mm (Dca); 7,4 mm (Cca); 7,6 mm (B2ca)
· Weight (kg/km): 53 kg (Eca); 54 kg (Dca); 55 kg (Cca); 56 kg (B2ca)
· Electrical properties:
· Impedance: 100±5Ohm @ 1 - 600MHz
· Capacitance: 40 pF/m nominal @ 1 KHz
· Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
· Voltage resistance: 72 Vdc max.
· Coupling attenuation: CA-Type 2
· Signal propagation delay: 450 nS/100 m max.
· Propagation delay: 10 nS/100 m max.
· Separating class: c acc. to EN 50174-2
· NVP: 70%

Special Fetures

· 10GBit Ethernet
· 500 MHz transmission frequency
· PoE Power over Ethernet support
· CPR class Eca

Product Specification

Network Cable Type	Bulk cable - CAT 6a - IEEE 802.5/IEEE 802.3
Technology	Unshielded twisted pair (UTP)
Jacket Material	Low Smoke Zero Halogen (LSZH)/flame-retardant halogen-free PVC (FRNC)
American Wire Gauge (AWG)	23/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Features	Halogen-free, riser
Length	305 m
Colour	Light blue, RAL 5012
Miscellaneous
Compliant Standards	IEC 60332-1, IEC 61034, EN 50173, ANSI/TIA-568-C, ISO/IEC 11801 Ed. 2, IEC 60754, EN 50288-11-1 - up to 500 MHz
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	75 °C
