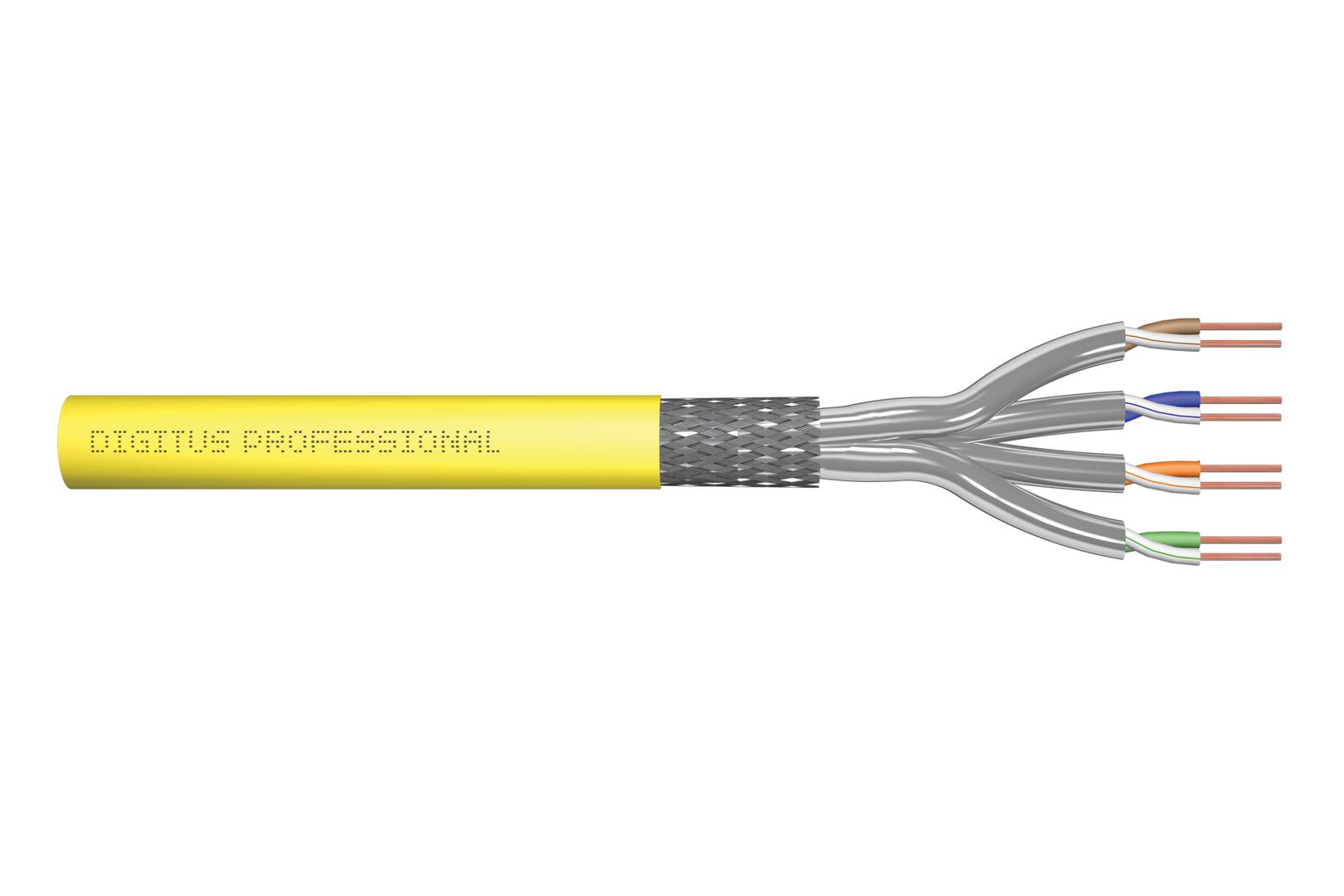

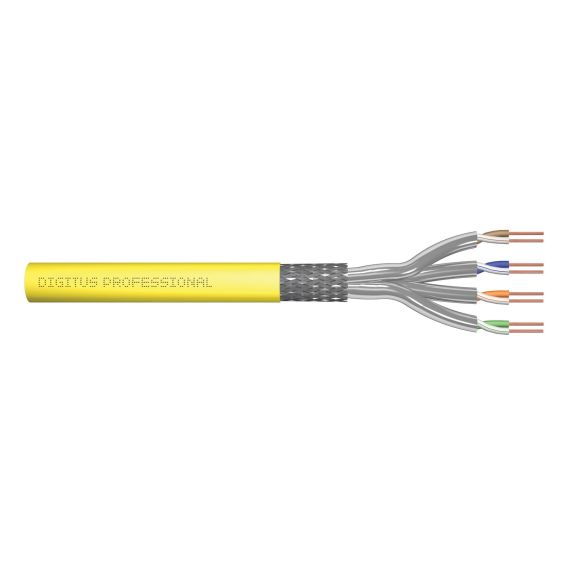

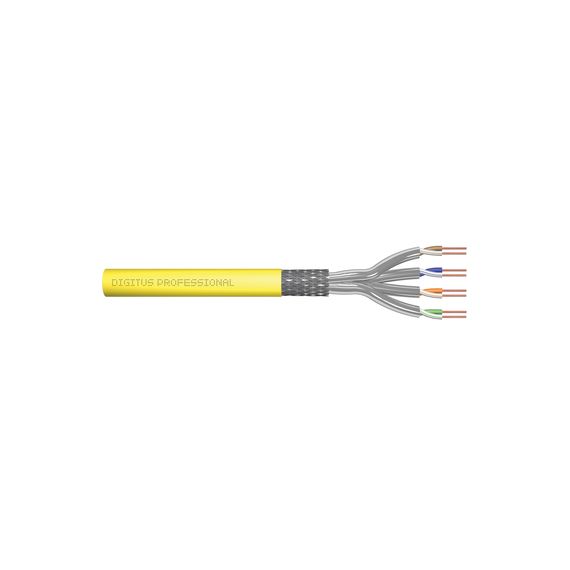

DIGITUS / Installation cable / 500 m / 7.8 mm / S/FTP / simplex / CAT 7a / IEEE 802.5/IEEE 802.3 / solid, halogen-free, 10 Gigabit ethernet / RAL 1028, yellow | DK-1744-A-VH-5

Product Features

· Physical properties:
· Conductor: Bare copper wire, AWG 22/1
· System(s) for the assessment and verification of constancy of performance: System 3
· Insulation: SFS-PE (foamed polyethylene jacket)
· Total number of insulated conductors: 8, twisted into 4 pairs
· Color code: Blue-white, orange-white, green-white, brown-white
· Shielding of the individual pairs: aluminum-laminated polyester film, covers 100%
· Overall shielding: tinned copper braiding
· Outer sheath: Cca acc. to EN 50575; LSZH
· Outer sheath thickness (nominal): 0.60 mm (Cca)
· Outer sheath color: Yellow (RAL 1028)
· Mechanical properties:
· Strain relief: 150 N max.
· Dynamic bending radius: 8x AD mm min.
· Static bending radius: 4x AD mm min.
· Transport and storage temperature range: -20 °C to +60 °C
· Operating temperature range: -20 °C to +60 °C
· Installation temperature range: 0 °C to +50 °C
· Outer diameter (nominal): 7.8 mm (Cca)
· Weight (kg/km): 65 kg (Cca)
· Electrical properties:
· Impedance: 100±5 Ohm @ 1-1000 MHz
· Capacitance: 40 pF/m nominal @ 1 KHz
· Capacitance unbalance (pair-earth): 1.6 pF/m max. @ 1 KHz
· Insulation resistance: 5 GOhm x km min.
· Loop resistance: 147 Ohm/Km max. (2% max. unbalanced resistance)
· Operating voltage: 72 Vdc max.
· Coupling attenuation: CA-Type 1b
· Phase delay: 450 nS/100 m max.
· Time delay: 10 nS/100 m max.
· Separation class: "d" according to EN 50174-2
· NVP: 79%
· Flame spread: EN 60332-1-2 (LSOH-PVC)
· Halogen-free, corrosiveness: EN 60754-1/2 (LSOH)
· Smoke density: EN 61034-2

Special Fetures

· 10GBit Ethernet
· 1500 MHz transmission frequency
· Permanent Link certified
· PoE, PoE+, Power over Ethernet support
· BauPVO Class Cca

Product Specification

Network Cable Type	Installation cable - CAT 7a - IEEE 802.5/IEEE 802.3
Technology	Simplex S/FTP
Shielding Material	Aluminium-laminated polyester film with tinned copper braid
Jacket Material	Low Smoke Zero Halogen (LSZH)/polyethylene
American Wire Gauge (AWG)	22/1
Wires per Cable	8 wires
Pairs per Cable	4 pairs
Impedance	100 Ohm
Features	Solid, halogen-free, 10 Gigabit Ethernet, tension strength 150N, PoE ready, PoE+ Ready, 72 V max operating voltage, permanent link certified
Length	500 m
Diameter	7.8 mm
Colour	RAL 1028, yellow
Miscellaneous
Compliant Standards	DIN EN 50288-4-1, IEC 11801, DIN EN 50173, IEC 61156-7, EN 50288-9-1, CPR Cca, EN 60332-1-2, EN 60754-1/2, EN 61034-2 - up to 1500 MHz
Environmental Parameters
Min Operating Temperature	-20 °C
Max Operating Temperature	60 °C
