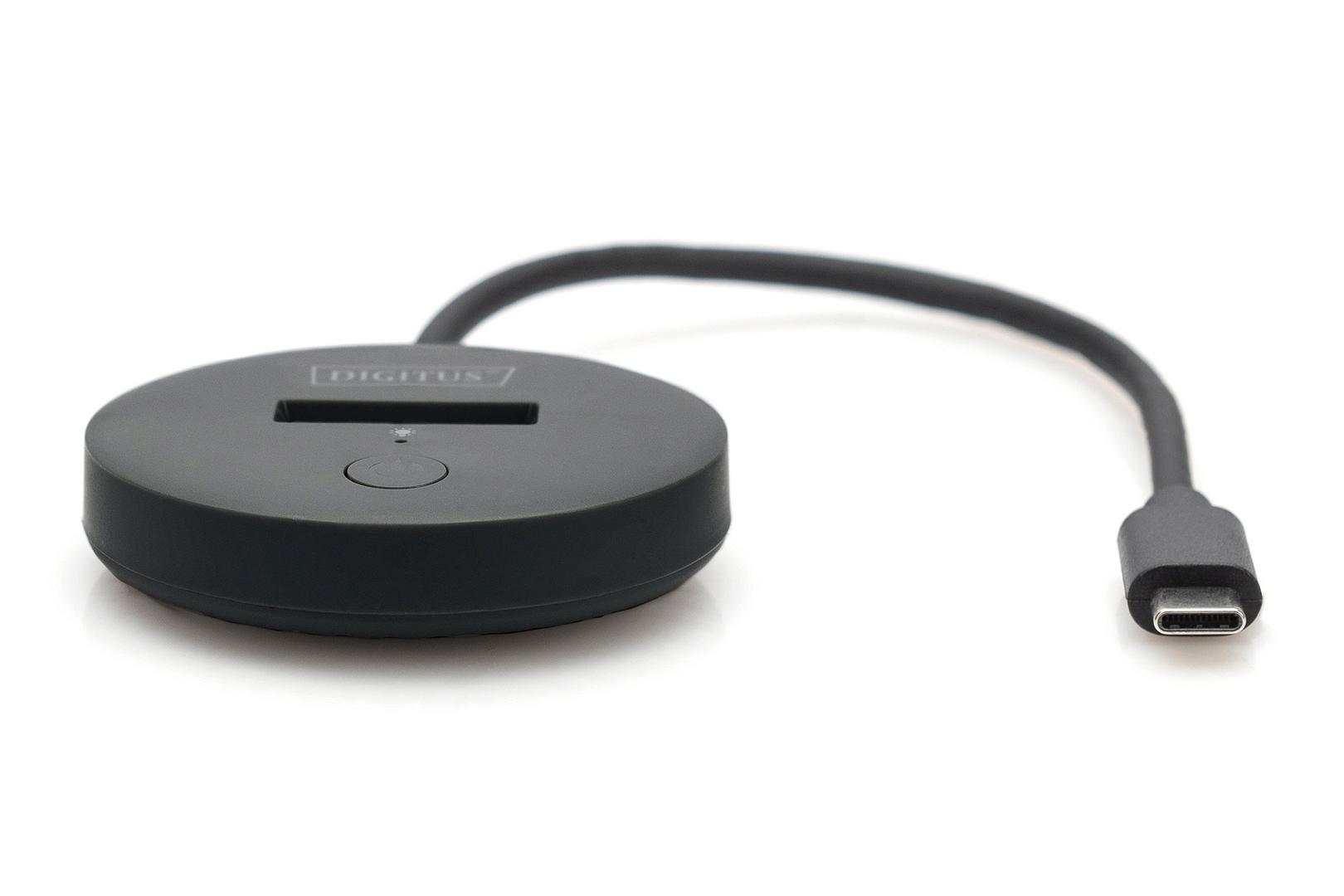

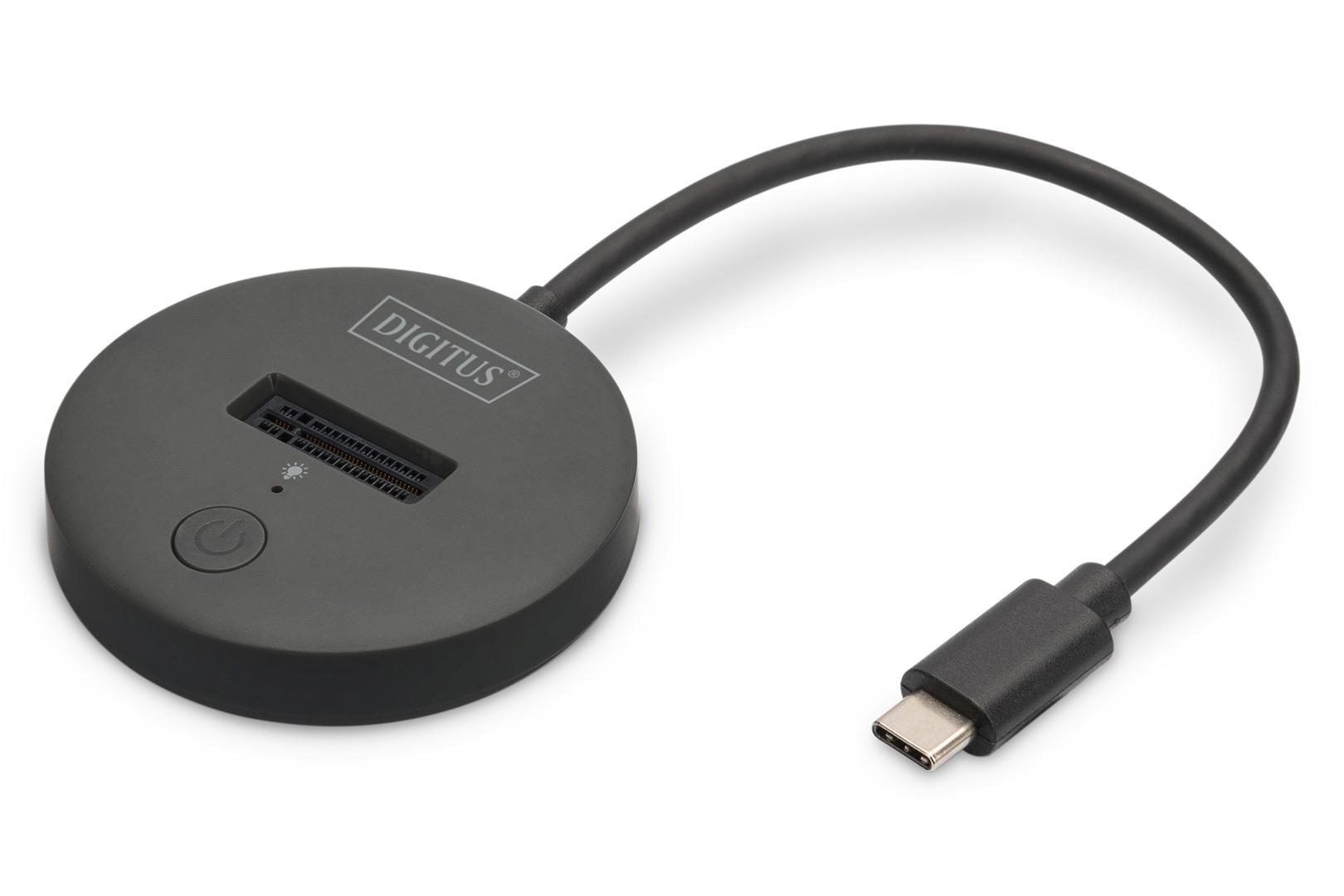

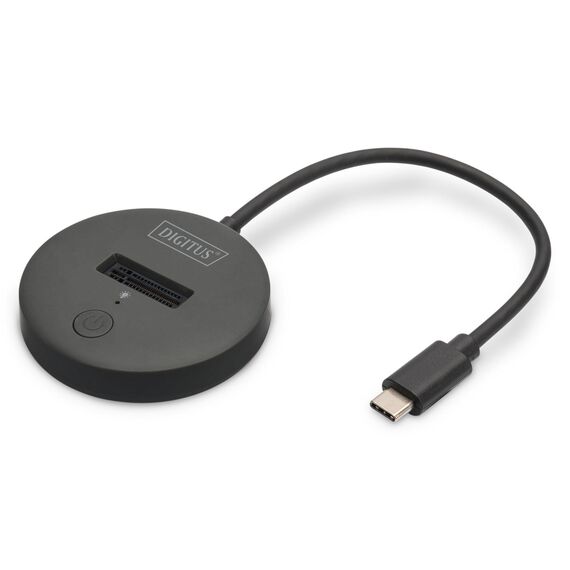

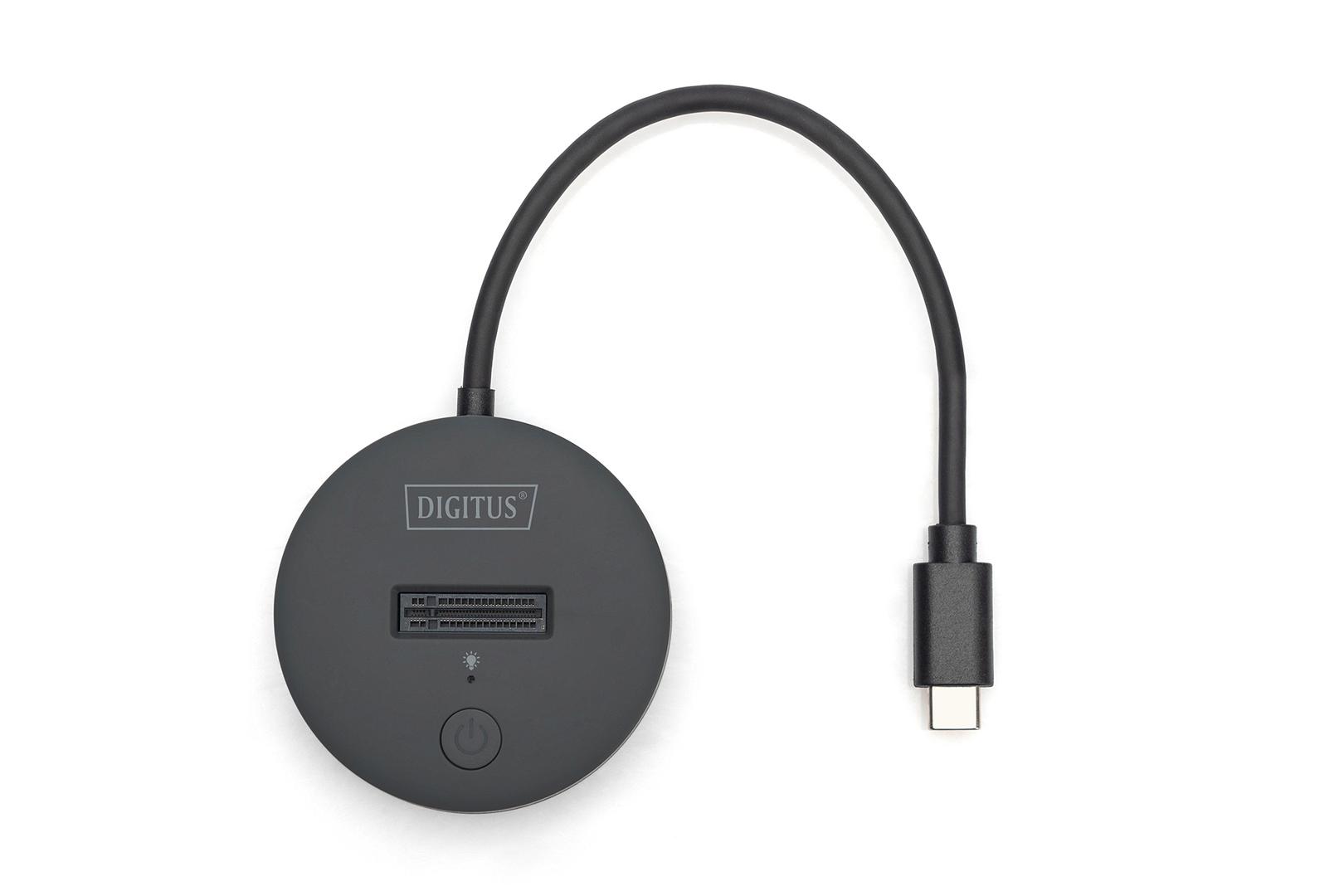

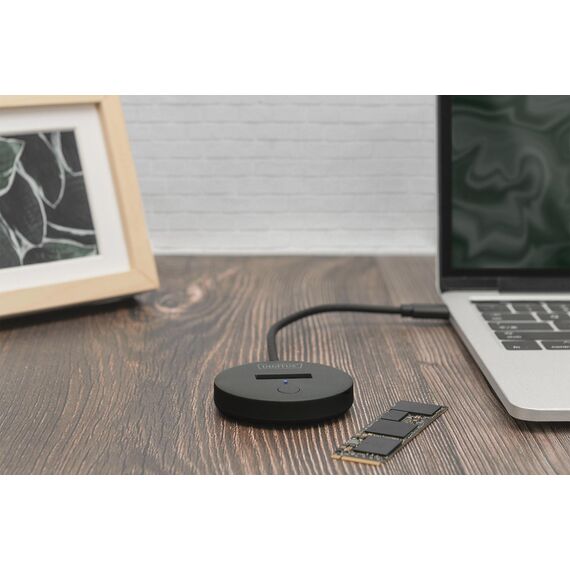

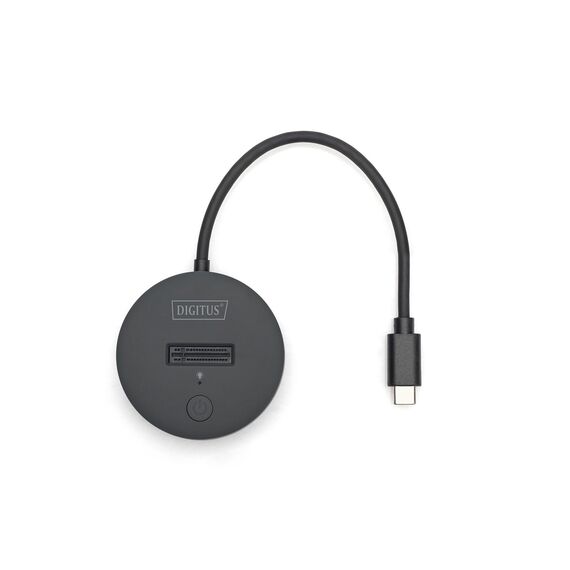

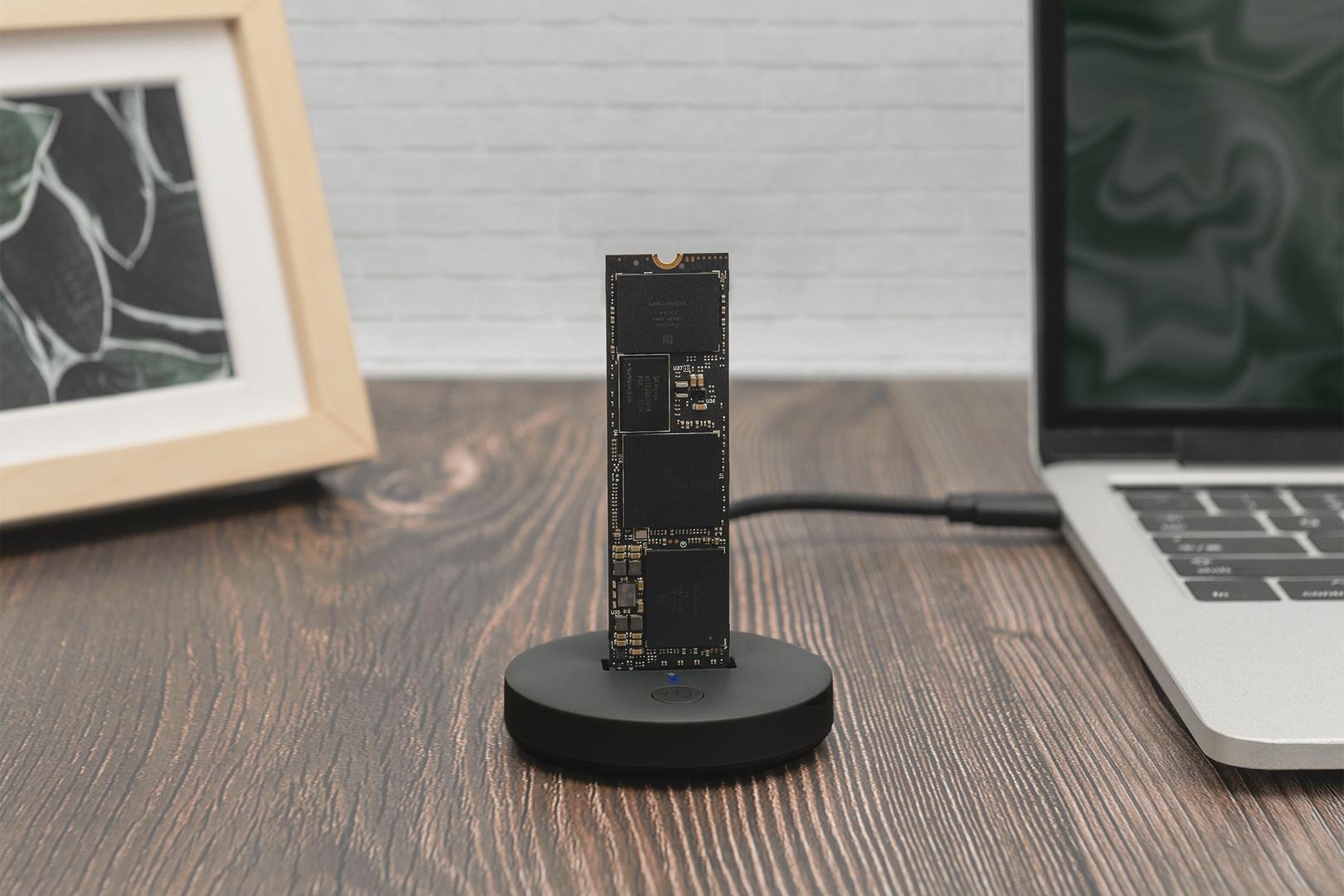

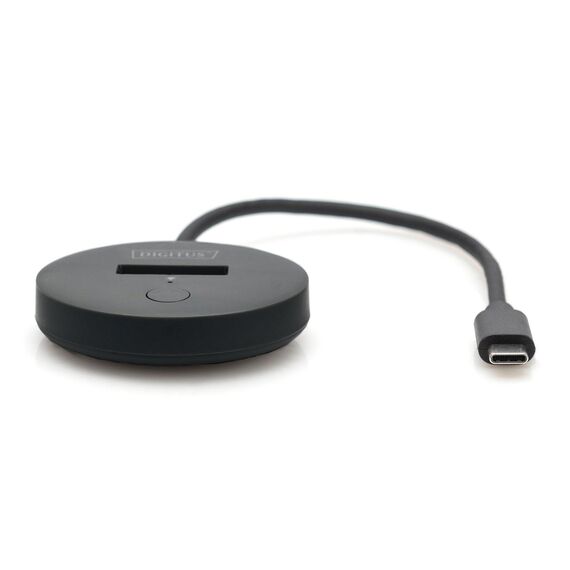

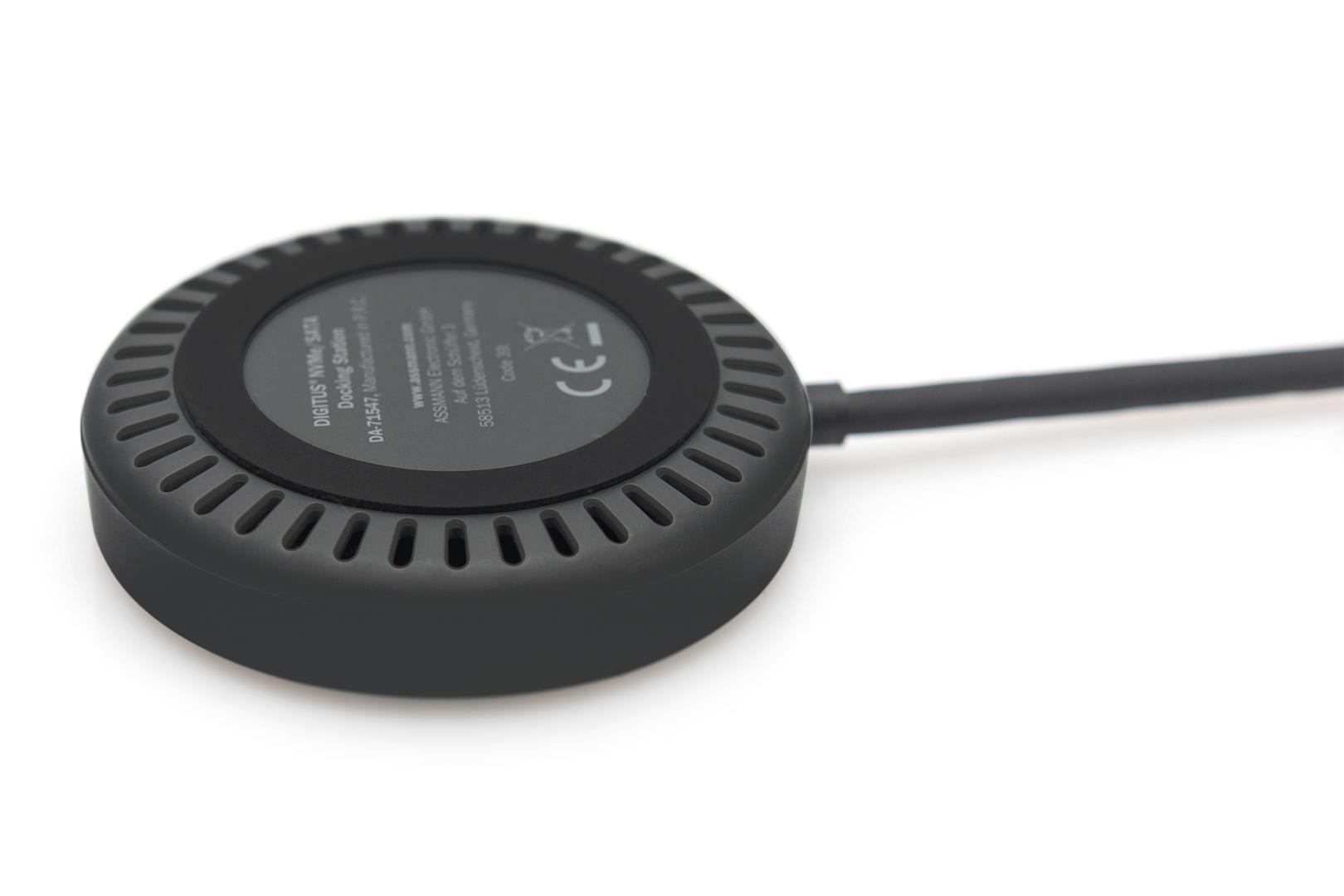

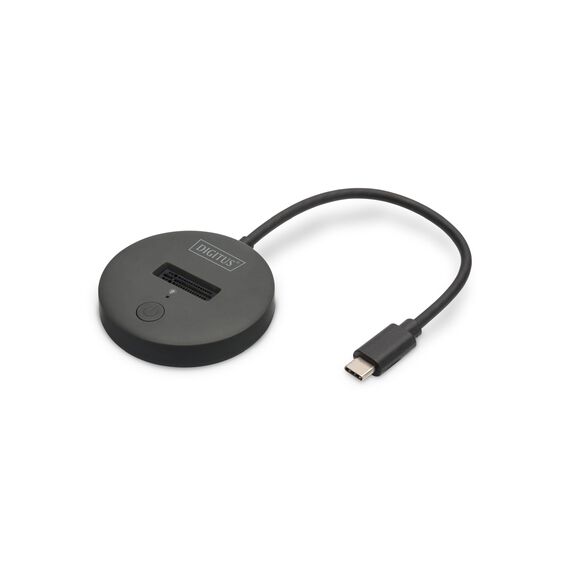

DIGITUS DA-71547 / SSD docking station / bays: 1 / M.2 / M.2 NVMe Card / USB-C 3.2 (Gen 2) / black | DA-71547
Please sign in so that we can notify you about a reply
Product Features
· 1 x M.2 bay for NVMe / SATA SSDs (B+M-Key / M-Key)· Supported formats: 2242, 2260, 2280 & 22110
· Capacity: max. 4 TB
· USB-C connections: 1 x data USB-C 3.2 Gen2, 1 x power supply USB-C socket
· Downwards compatible with USB 3.0 / USB 2.0
· Maximum transfer rate USB-C: 10 Gbps
· Supports U.A.S.P. and T.R.I.M.
· Supports hot swap (insertion and ejection during operation)
· LED indicators for hard disk transfer (blue) & power (blue)
· Areas of application: PC, notebook, TV, router or game consoles (with USB-C connection)
· Storage formats: NTFS, FAT, FAT32
· Systems: Windows 11/10/8/8.1/7/XP, macOS 10.0 or higher
· Length of the connection cable: 18 cm
· Dimensions: W: 6 x D: 6 x H: 1.45 cm
· Weight: 40 g
· Housing: Aluminum + ABS
· Color: Black
· Operating temperature: -40°C ~ 80°C
Special Features
· Supports SATA M.2 B+M Key SSD and NVMe M Key SSD· Supported formats: 2242, 2260, 2280 & 22110
· Supports NVMe & SATA SSDs up to 4 TB capacity
· High data transfer rate of up to 10 Gbps (U.A.S.P + T.R.I.M support)
· USB-C connection: USB 3.2 Gen2
· Ideal memory expansion for notebooks, PCs, games consoles, TVs, NAS or routers (USB-C)
· Plug and play, no drivers required
Product Specification
| Device Type | SSD docking station - external |
| Bays | 1 |
| Hard Drive Form Factor Compatibility | M.2 |
| Host Bus | USB-C 3.2 (Gen 2) |
| Product Material | Aluminium, ABS plastic |
| Colour | Black |
| Storage Controller | Storage Controller |
| Interface | M.2 NVMe Card |
| Data Transfer Rate | 10 GBps |
| Supported Devices | Solid state drive |
| Max Storage Devices Qty | 1 |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 x top accessible - M.2 2242/2260/2280/22110 |
| Interfaces | 1 x M.2 Card - M.2 M+B/M Key (external) |
| Connections | 1 x USB 3.2 (Gen 2) - 24 pin USB-C |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C cable - integrated - 18 cm |
| Features | LED indicator, hot-swappable, TRIM support, UASP transfer protocol, hot plug |
| Compliant Standards | Plug and Play |
| Power | Power |
| Power Source | USB bus |
| Software / System Requirements | Software / System Requirements |
| OS Required | Apple MacOS X 10.0 or later, Microsoft Windows XP / 7 / 8 / 8.1 / 10 / 11 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6 cm |
| Depth | 6 cm |
| Height | 1.45 cm |
| Weight | 40 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 80 °C |
Features - Digitus - DA-71547
More Details
Product Code
04:458043
EAN Code
4016032490388
Manufacturer
Digitus
