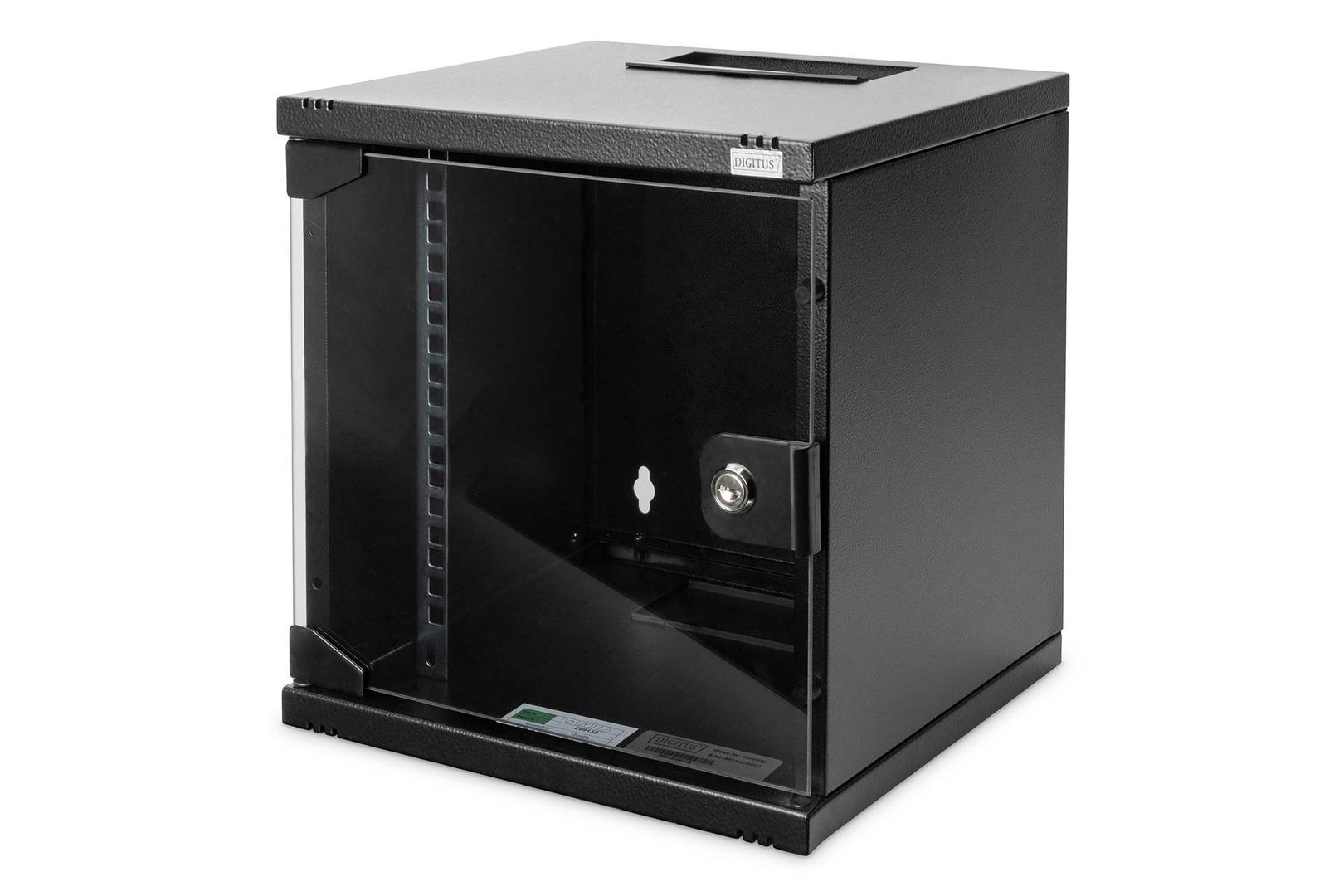

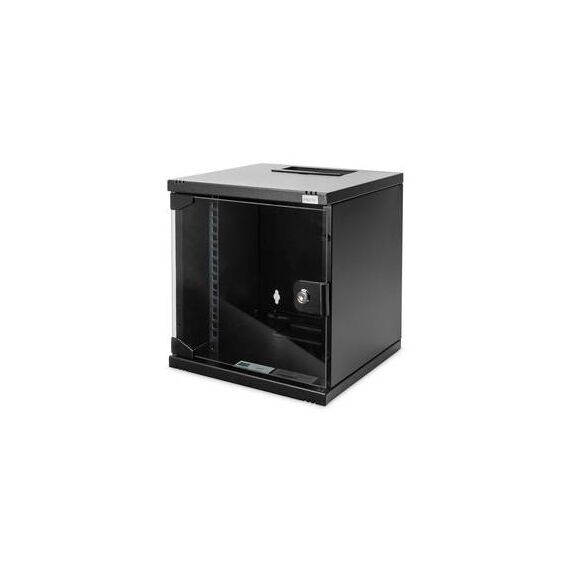

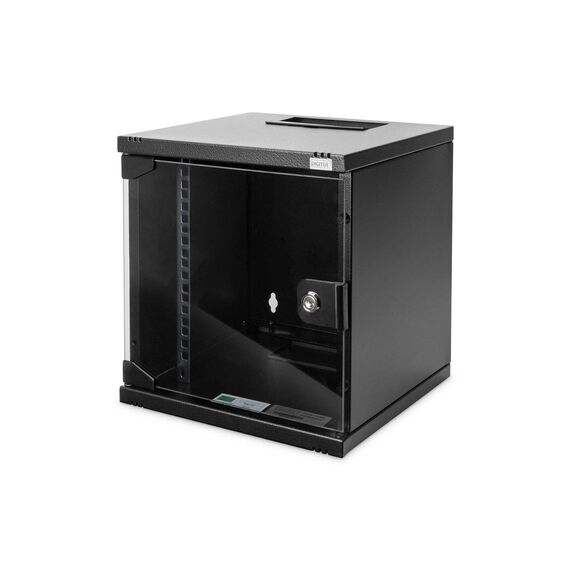

Digitus DN-10-06U-B / Cabinet / wall mountable / black, RAL 9005 / 6U / 10" | DN-10-06U-B
Please sign in so that we can notify you about a reply
Product Features
· Protection class IP20· Lockable safety glass door
· 200° door opening angle
· 1-point locking on the front door
· 254 mm (10") profile rails mounted at the front inside the cabinet, galvanized
· 254 mm (10") profile rails are adjustable in depth
· 1.1 - 1.5 strong sheet steel with a high load capacity, powder-coated
· Cable entry with brush strip in the roof and with plastic cover in the floor
· Ventilation slots for active and passive ventilation
· Installation depth for components max.: 240 mm
Special Features
· Very compact housing· Easy to install in your office building
· Offers proper cable management
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Glass, steel |
| Rack Size | 10" |
| Height (Rack Units) | 6U |
| Width | 31.2 cm |
| Depth | 30 cm |
| Height | 33 cm |
| Weight | 5.5 kg |
| Shipping Dimensions (WxDxH) / Weight | 35 cm x 36 cm x 40 cm / 6.5 kg |
| Colour | Black, RAL 9005 |
| Finish | Powder coat |
| Miscellaneous | Miscellaneous |
| Weight Limit | 30 kg |
| Features | Lockable front door, glass door, cable entry, galvanised, ventilation channel, 200° door opening |
Features - Digitus - DN-10-06U-B
More Details
Product Code
03:161294
EAN Code
4016032466253
Manufacturer
Digitus
