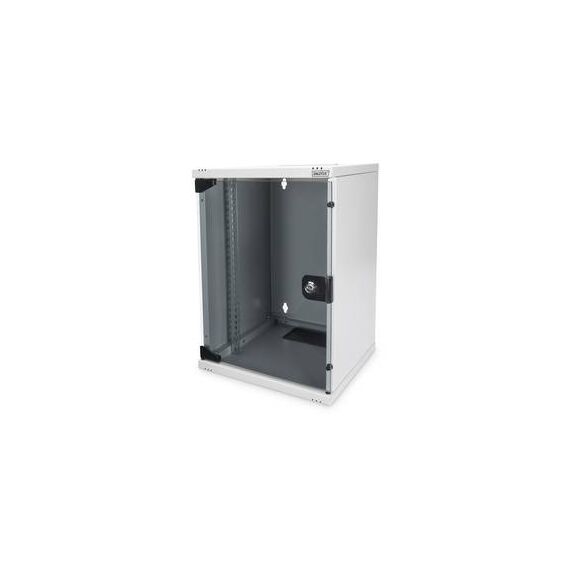

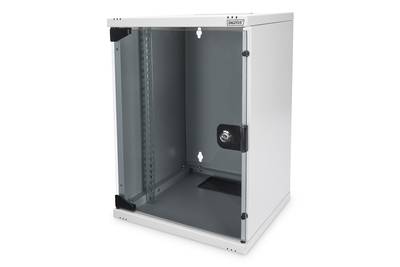

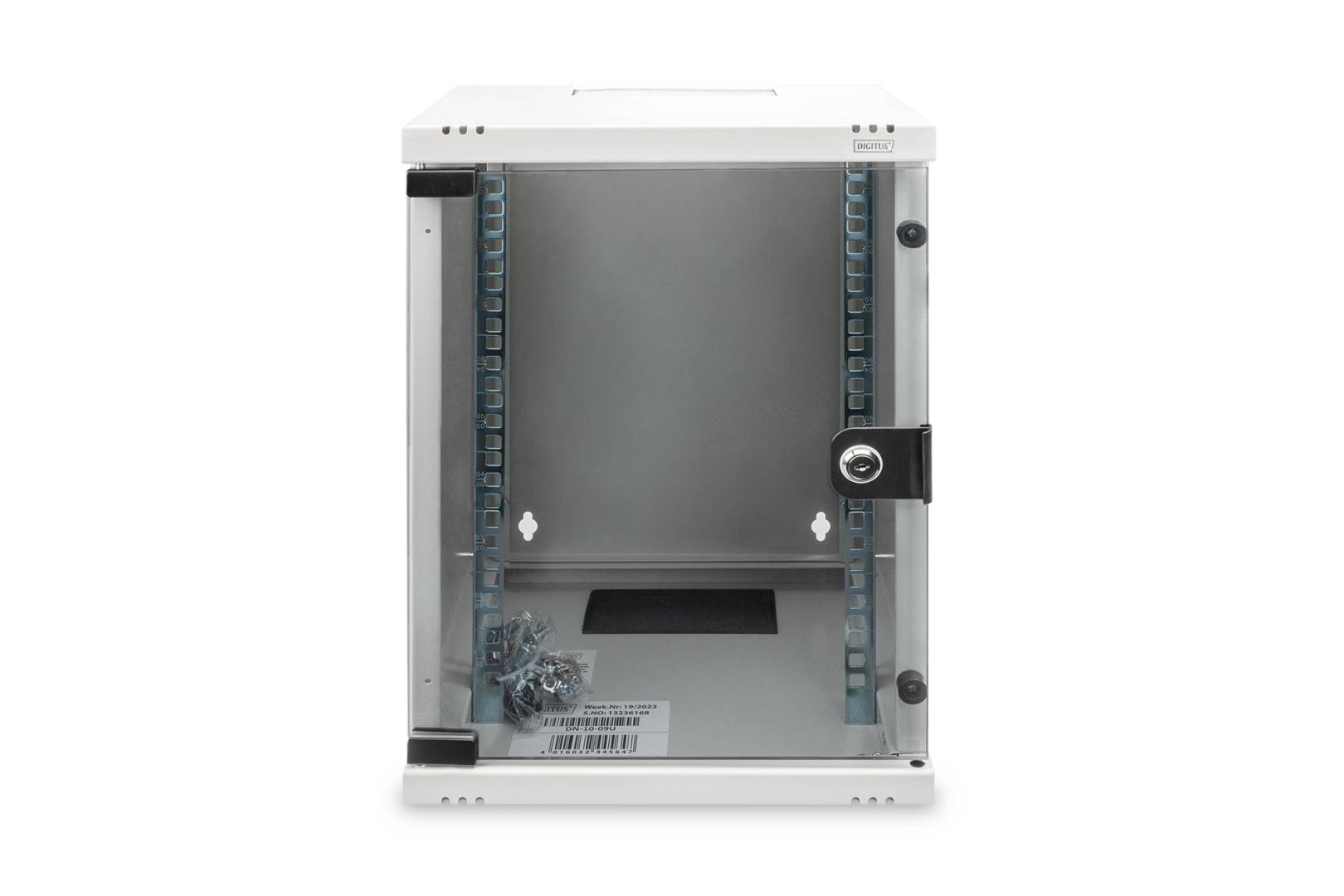

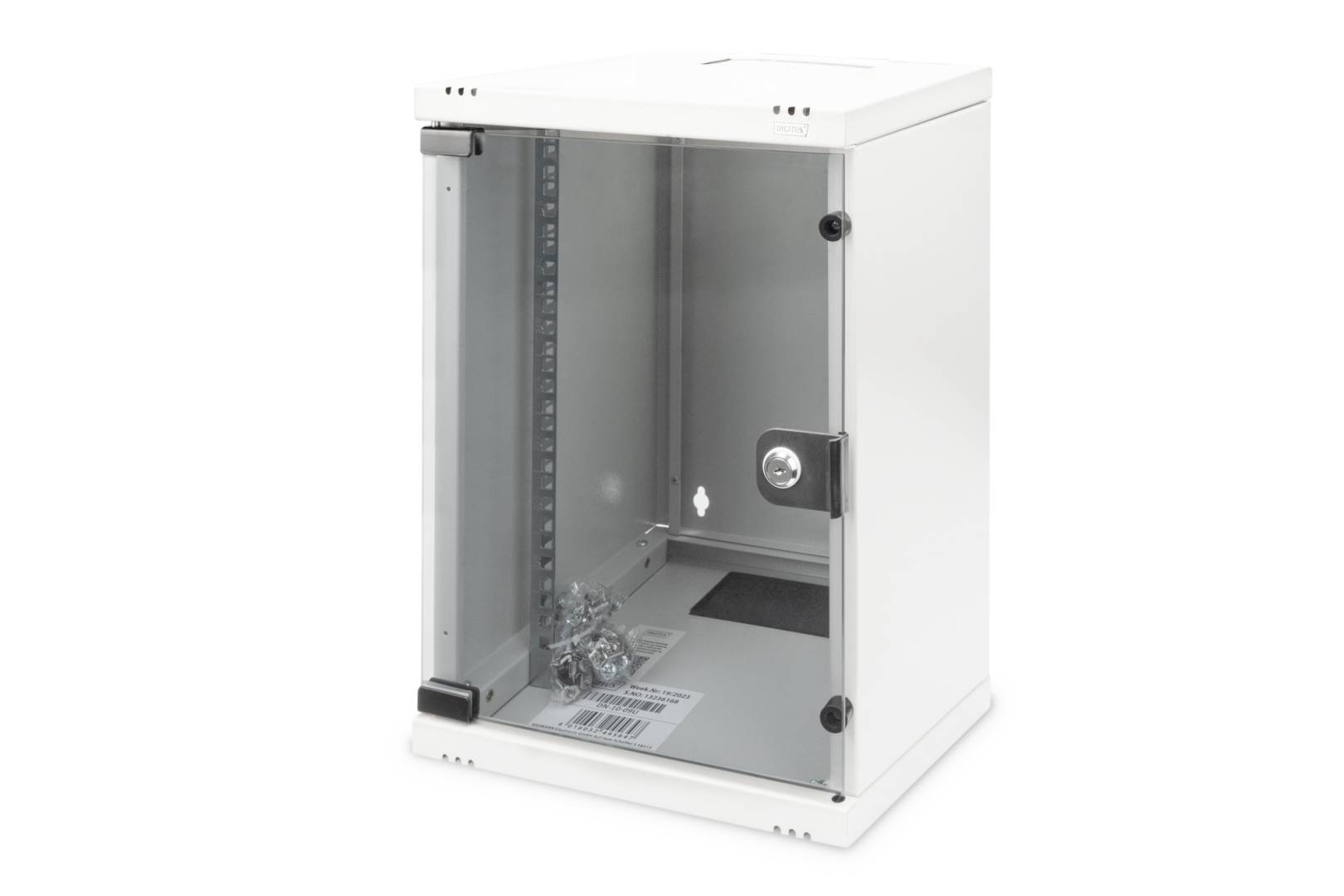

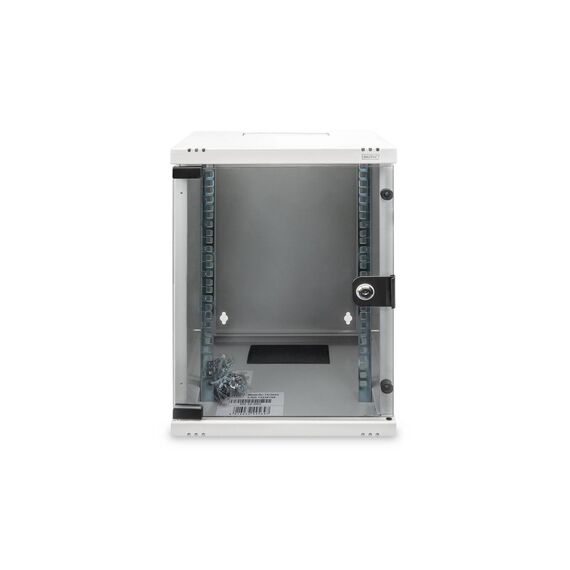

Digitus DN-10-09U / Cabinet / wall mountable / light grey, RAL 7035 / 9U / 10" | DN-10-09U
Please sign in so that we can notify you about a reply
Product Features

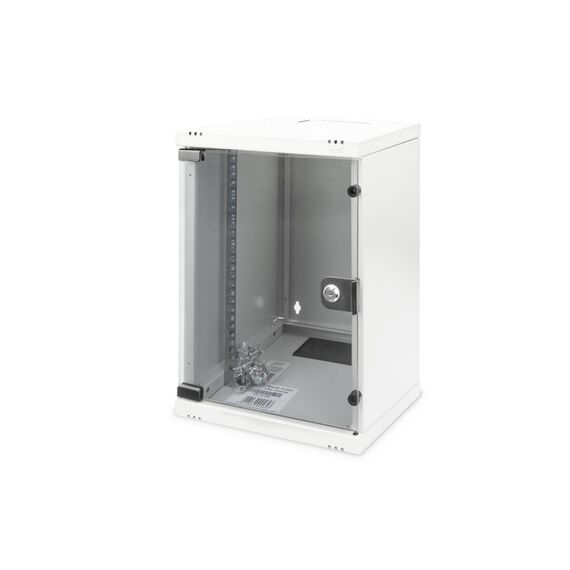

· Safety class rating IP20· Lockable safety-glass door

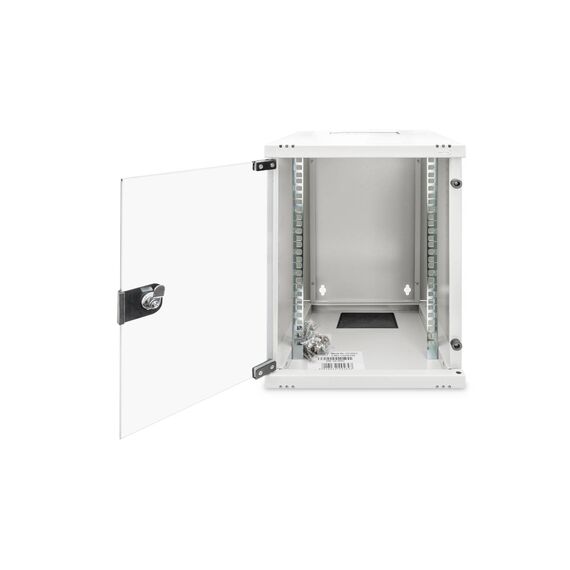

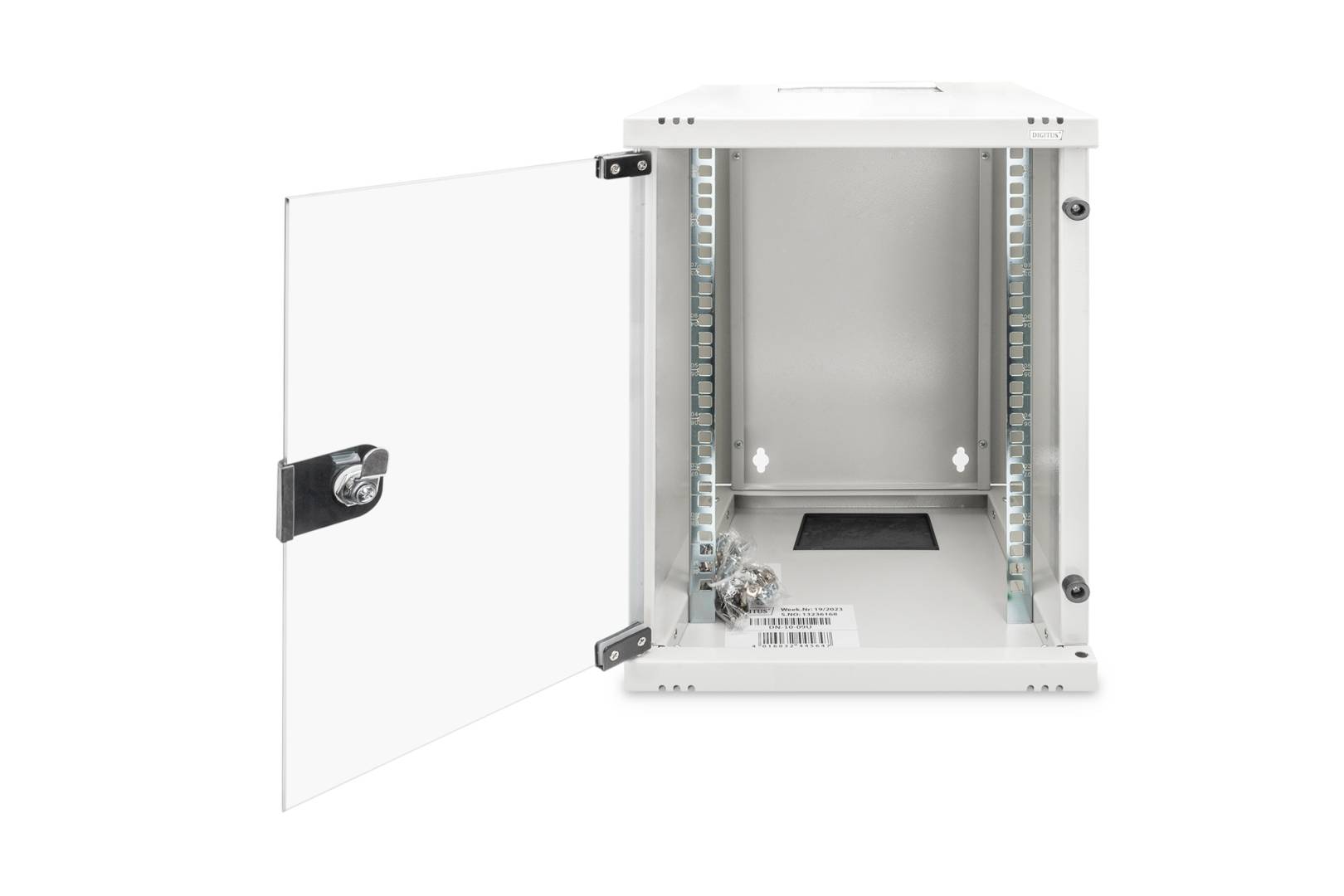

· 200° door opening angle
· 1-point-locking-mechanism on the front door

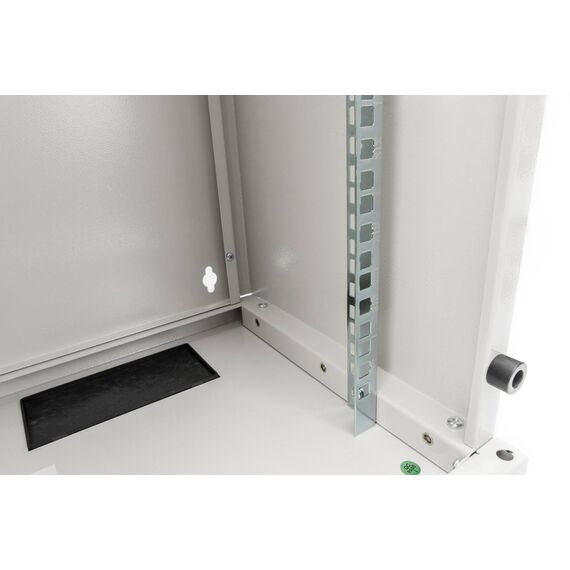

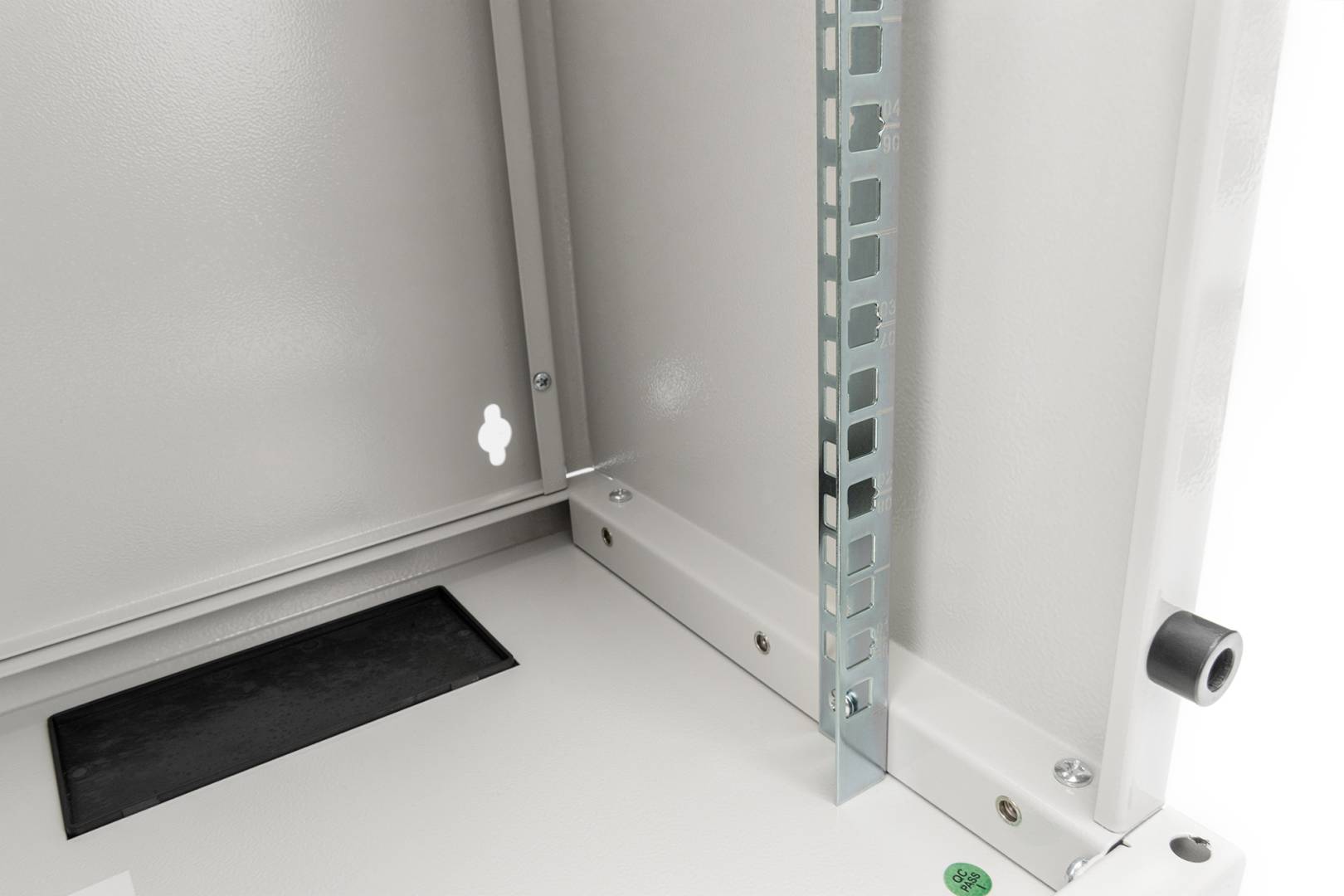

· 254 mm (10") profile rails mounted on the front side inside of the cabinet, galvanized
· 254 mm (10") profile rails are adjustable in depth
· 1.1 - 1.5 strong sheet steel with a high loading capacity, powder coated
· Cable entry with brush strip on the top and with plastic cover on the base
· Ventilation slots for active and passive ventilation and exhausting
· Equipment mounting depth max.: 240 mm
Special Features
· Very compact enclosure· Easy to assemble in your office building
· Provides a neat cable management
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |

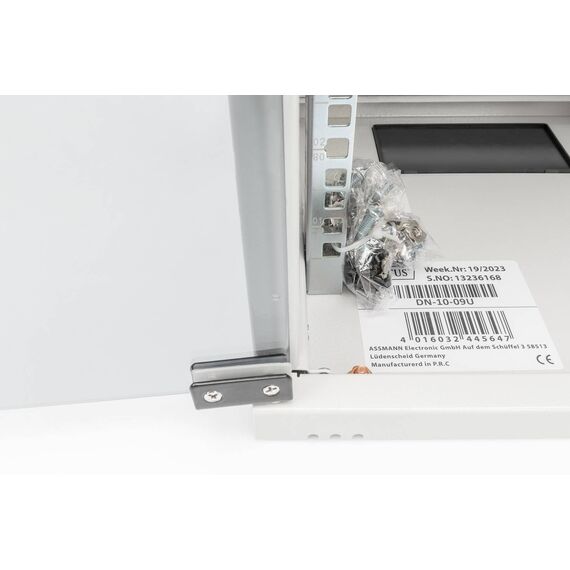

| Package Content | Screws |
| Rack Size | 10" |
| Height (Rack Units) | 9U |
| Width | 31.2 cm |
| Depth | 30 cm |
| Height | 46.4 cm |
| Weight | 7 kg |
| Colour | Light grey, RAL 7035 |
| Miscellaneous | Miscellaneous |
| Weight Limit | 30 kg |
| Features | Glass door, IP20 protection |
Features - Digitus - DN-10-09U
More Details
Product Code
03:149166
EAN Code
4016032445647
Manufacturer
Digitus
