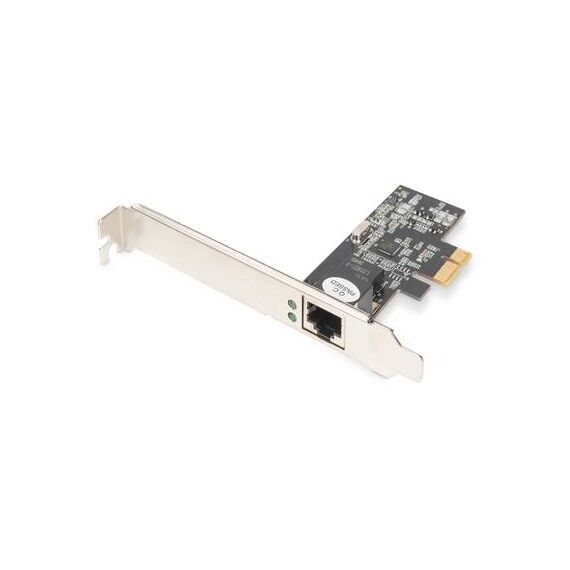

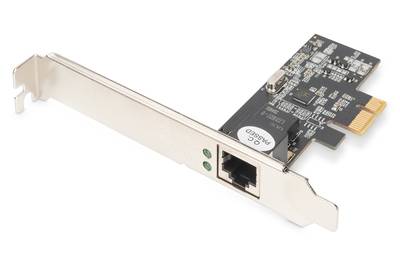

DIGITUS DN-10135 / Network adapter / PCIe 2.1 low profile / 10M/100M/1G/2.5 Gigabit Ethernet x 1 | DN-10135
Please sign in so that we can notify you about a reply
Product Features
· Connection: 1 x Gigabit LAN (RJ45)· Supports 10/100/1000/2500 Mbps networks with automatic recognition
· Conforms with IEEE802.3, IEEE802.3u & IEEE802.3ab specification
· Supports IEEE802.3x full-duplex flow control
· Chipset: Realtek RTL8125B - 2500Base-T Ethernet Controller
· Supports auto MDI/MDIX crossover
· Supports auto MDI/MDIX crossover
· Compatible with PCI Express Specification 2.1
· Supports Wake-on-LAN (WOL)
· Supports IEEE802.1q VLAN tagging
· LED operating display: Active / data traffic / 2.5G data traffic
· Supported operating systems: Windows 7/8/10 (32/64Bit), Windows Server 2008 R2/2012 R2/2016, Linux 4 and higher
· Operating temperature: 5 °C to +50 °C
· Operating humidity: 20% - 80%
· Dimensions (WxDxH): 12 x 9.8 x 2.2 cm
· Weight: 35.2 g
Special Features
· Gigabit data transmission with up to 2500 Mbps (2.5G)· Supported network standards: IEEE802.3, IEEE802.3u & IEEE802.3ab
· Ideal for streaming and gaming applications with high data rates
· Supports IEEE802.3x full-duplex flow control
· Supports IEEE802.1q VLAN tagging
· Supports Wake-on-LAN
· Additional low-profile slot bracket for use in narrow housings
Product Specification
| Device Type | Network adapter |
| Form Factor | Plug-in card - low profile |
| Interface (Bus) Type | PCI Express 2.1 |
| PCI Specification Revision | PCIe 2.1 |
| Networking | Networking |
| Ports | 10M/100M/1G/2.5 Gigabit Ethernet x 1 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T, Ethernet 2.5GBase-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Data Transfer Rate | 2.5 Gbps |
| Features | Flow control, wake on LAN (WOL), auto-uplink (auto MDI/MDI-X), full duplex mode, VLAN Tagging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x |
| Processor / Memory | Processor / Memory |
| Processor | Realtek Semiconductor RTL8125B |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1/2.5GBase-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Low-profile bracket |
| Software / System Requirements | Software / System Requirements |
| OS Required | Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows 7 / 8 / 10 (32/64 bits), Linux 4.x |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12 cm |
| Depth | 9.8 cm |
| Height | 2.2 cm |
| Weight | 35.2 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 19 cm |
| Shipping Depth | 14.8 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 100 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 20 - 80% (non-condensing) |
Features - Digitus - DN-10135
More Details
Product Code
04:384230
EAN Code
4016032473978
Manufacturer
Digitus
