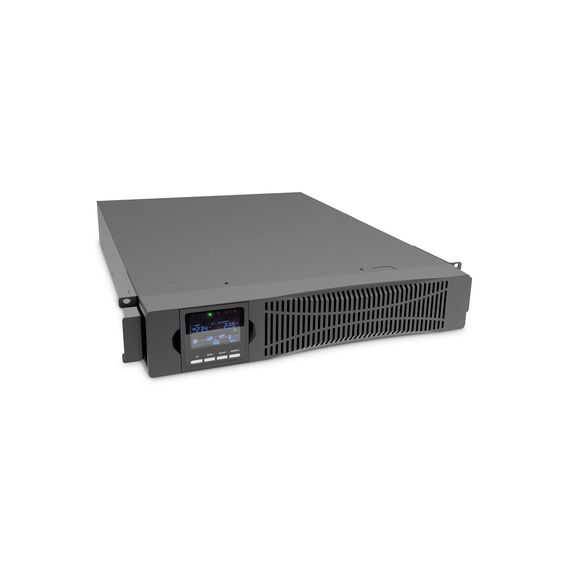

DIGITUS DN-170093 - UPS (rack-mountable / external) - online - AC 208/220/230/240 V - 1000 Watt - 1000 VA - 1-phase - 2 x battery - 9 Ah - 9 Ah - RS-232, USB - output connectors: 8 - 2U - 19" | DN-170093

Product Features

· Online double conversion system (VFI-SS-111)
· Input: socket IEC60320 C14, 208/220/230/240 Vac
· Output: 8 x IEC60320 C13, max. 10A per socket
· System power rating: 1000 VA / 1000 W, power factor 1.0
· AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
· Replaceable internal battery pack during operation.
· Battery: valve-regulated, non-spillable lead-acid battery.
· Battery capacity: 2 x 12V x 9.0 Ah
· Charge: 4 hours to 90% capacity after fully discharged
· Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
· Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
· Emergency power-off (EPO) contact for UPS shutdown in case of emergency
· Maximum operating temperature: 0 - 40 °C
· Storage temperature: -25 - 55 °C
· Relative humidity: 20 - 90% non-condensing
· Operating altitude: < 1500 m
· Product dimensions WxDxH (mm): 440 (19") x 325 x 86.5 (2U)
· Product weight: 11,3 kg
· Shipping dimensions WxDxH (mm): 560 x 455 x 200
· Shipping weight: 15,5 kg
· Safety standards: IEC/EN62040-1,IEC/EN60950-1
· EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
· Optional available: 19" UPS mounting kit (profile rails), part number DN-170109

Special Fetures

· High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
· High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.

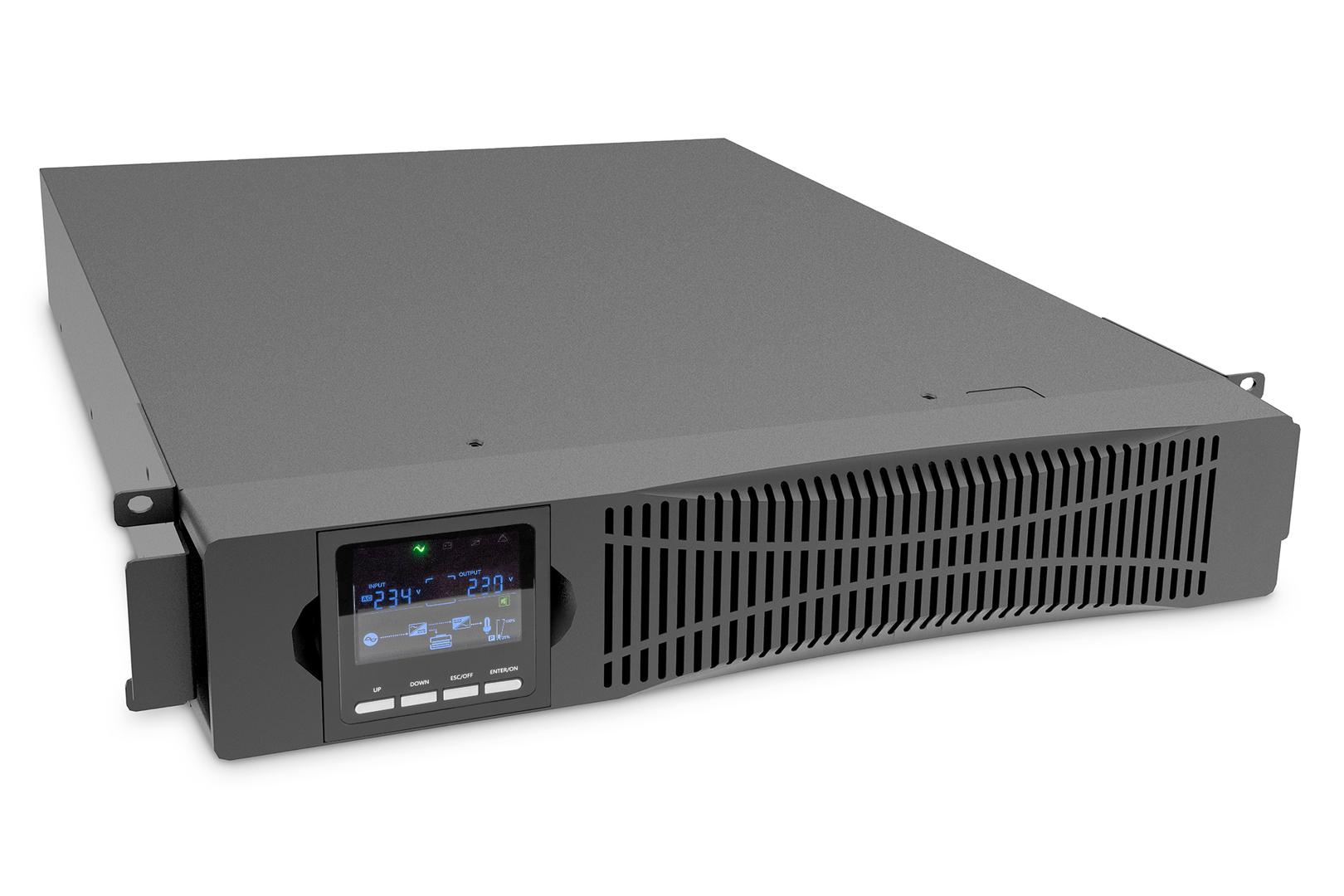

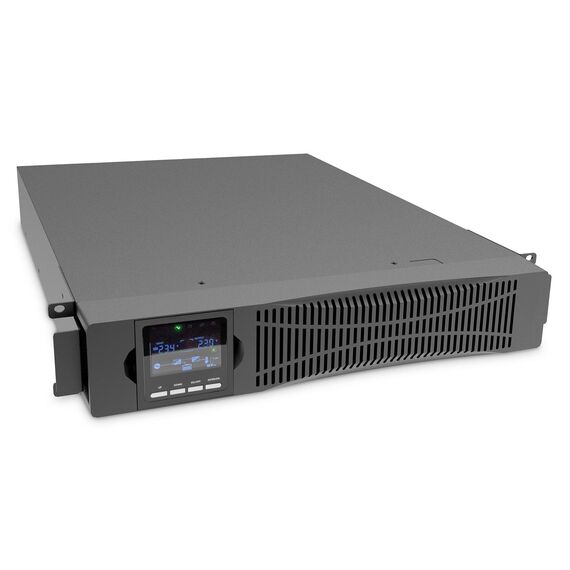

· User-friendly LCD screen provides insight into the UPS status for easy installation, configuration and operation.

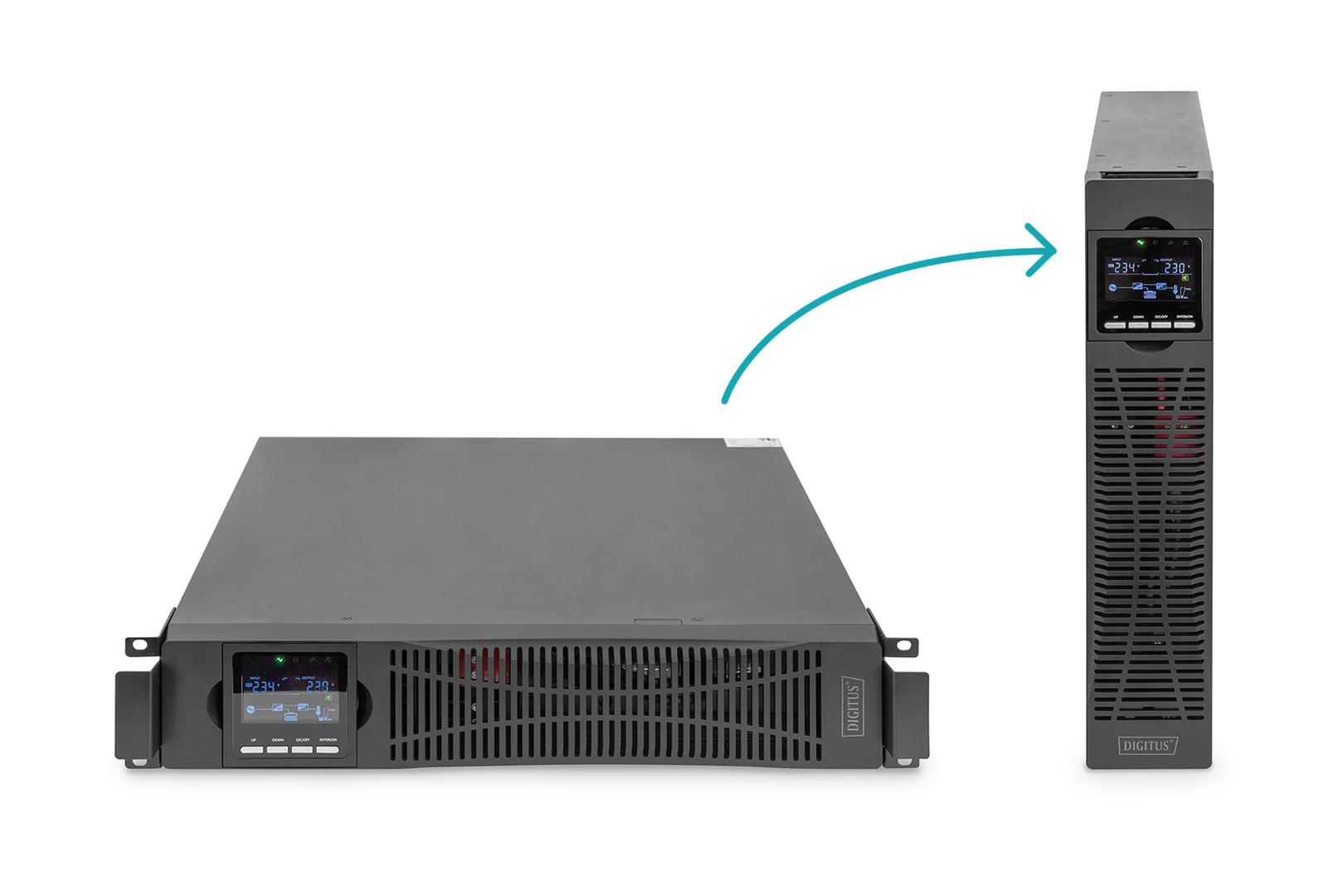

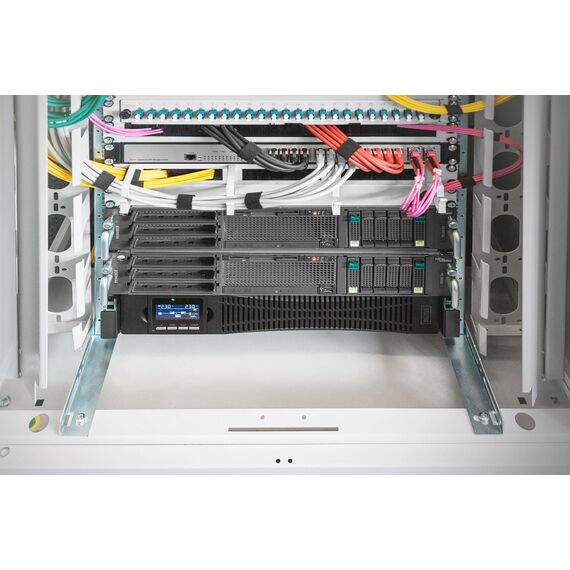

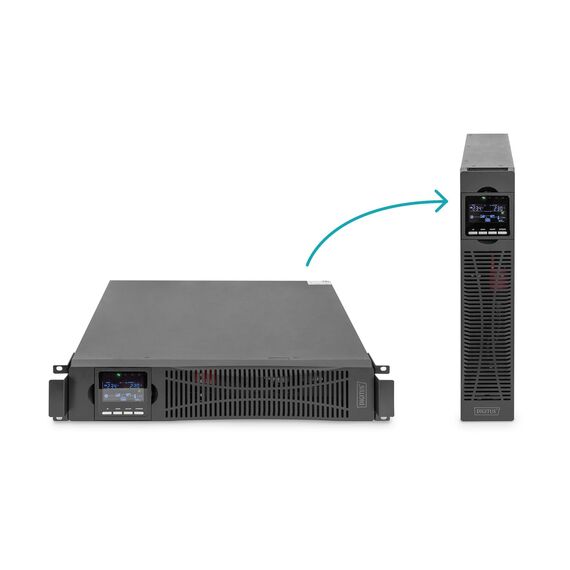

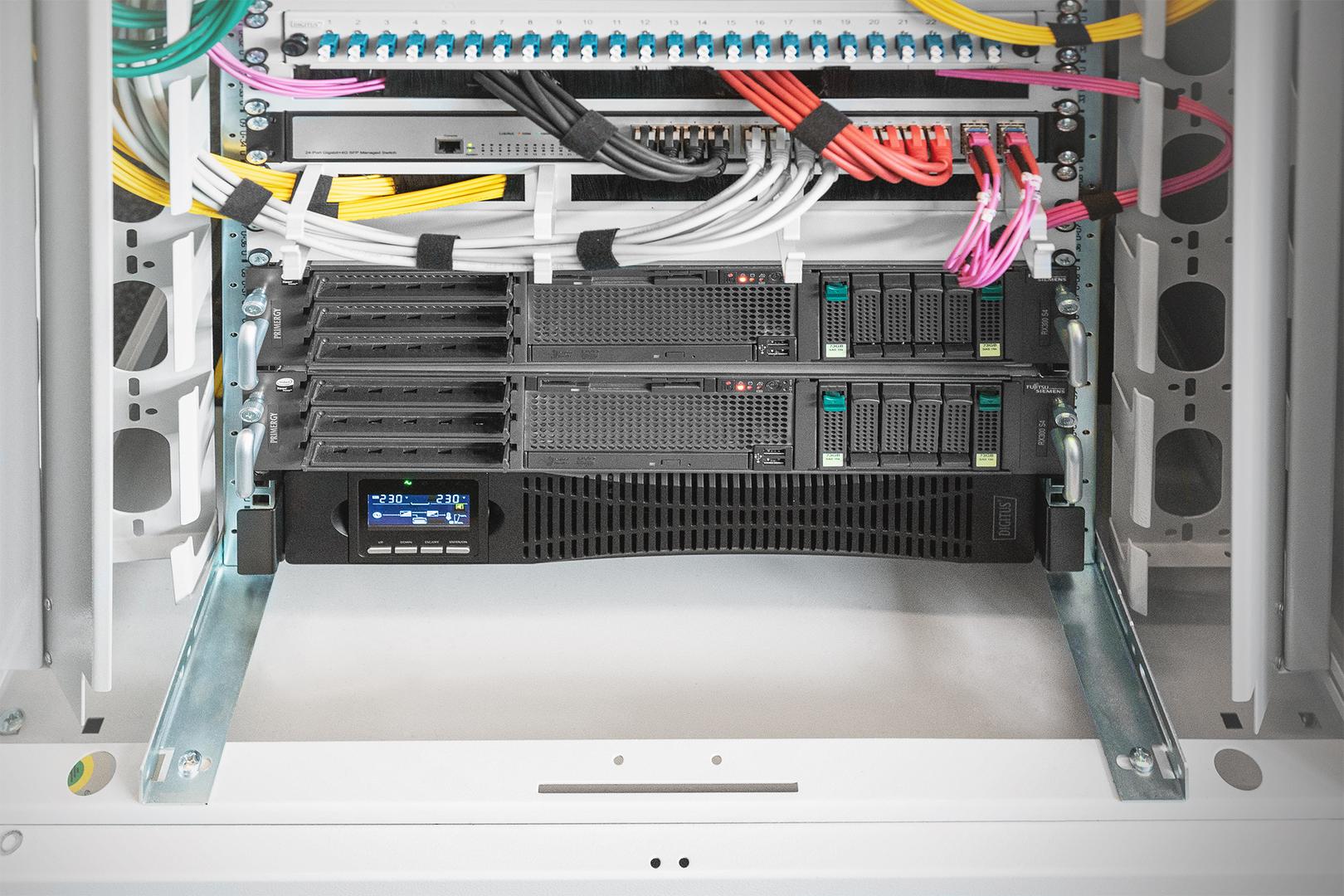

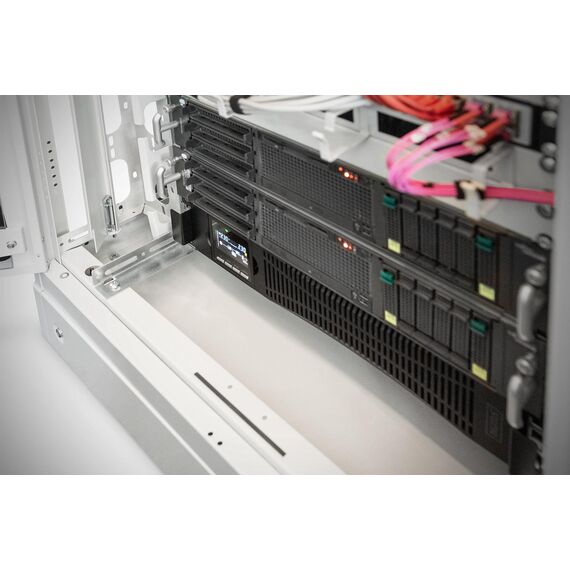

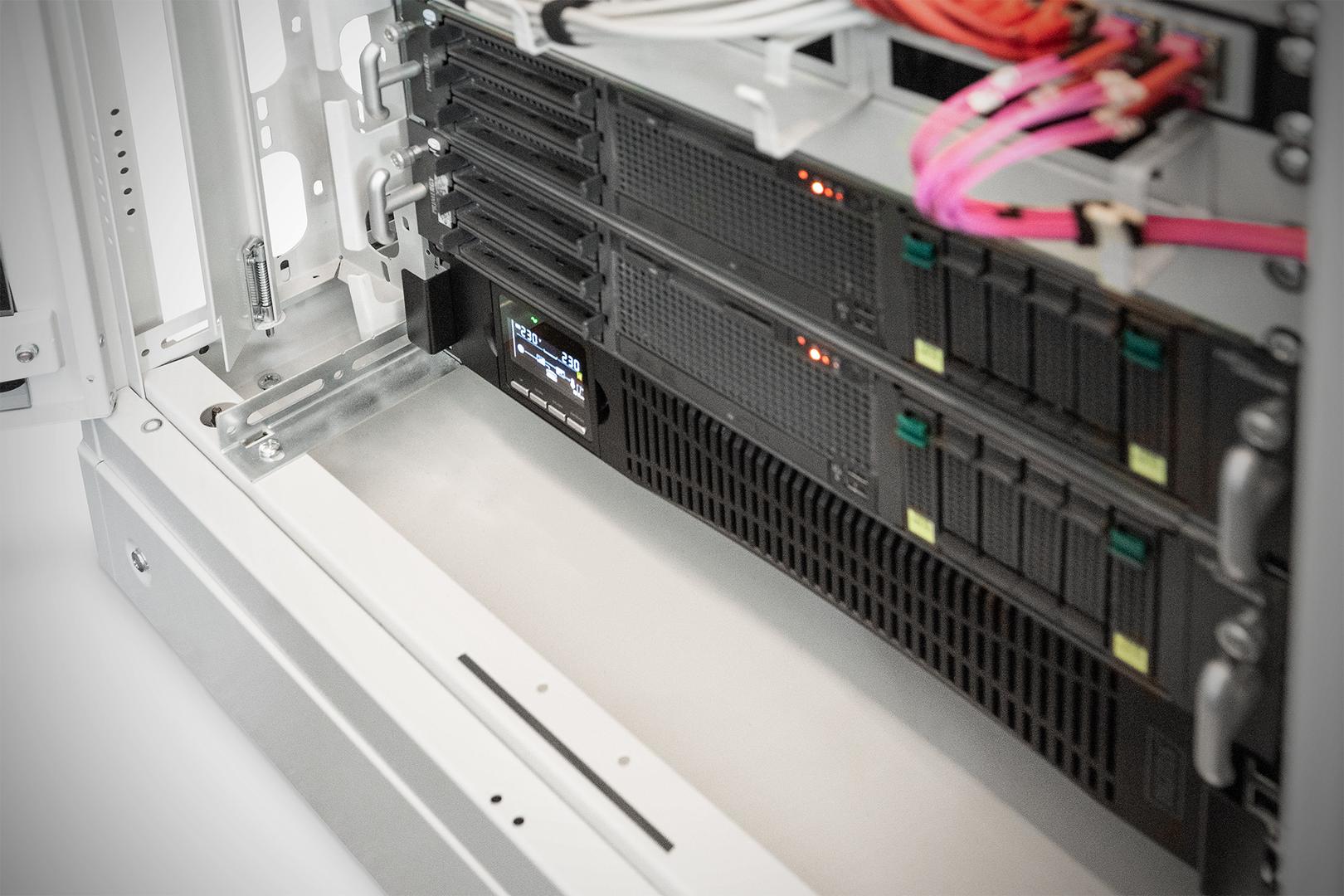

· Compact rack/tower design optimizes the installation space in the rack and enables flexible installation.
· Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
· External battery modules allow the runtime to be extended.

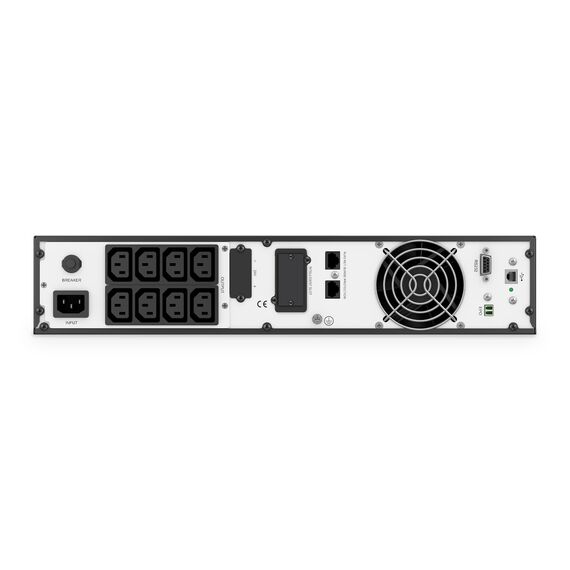

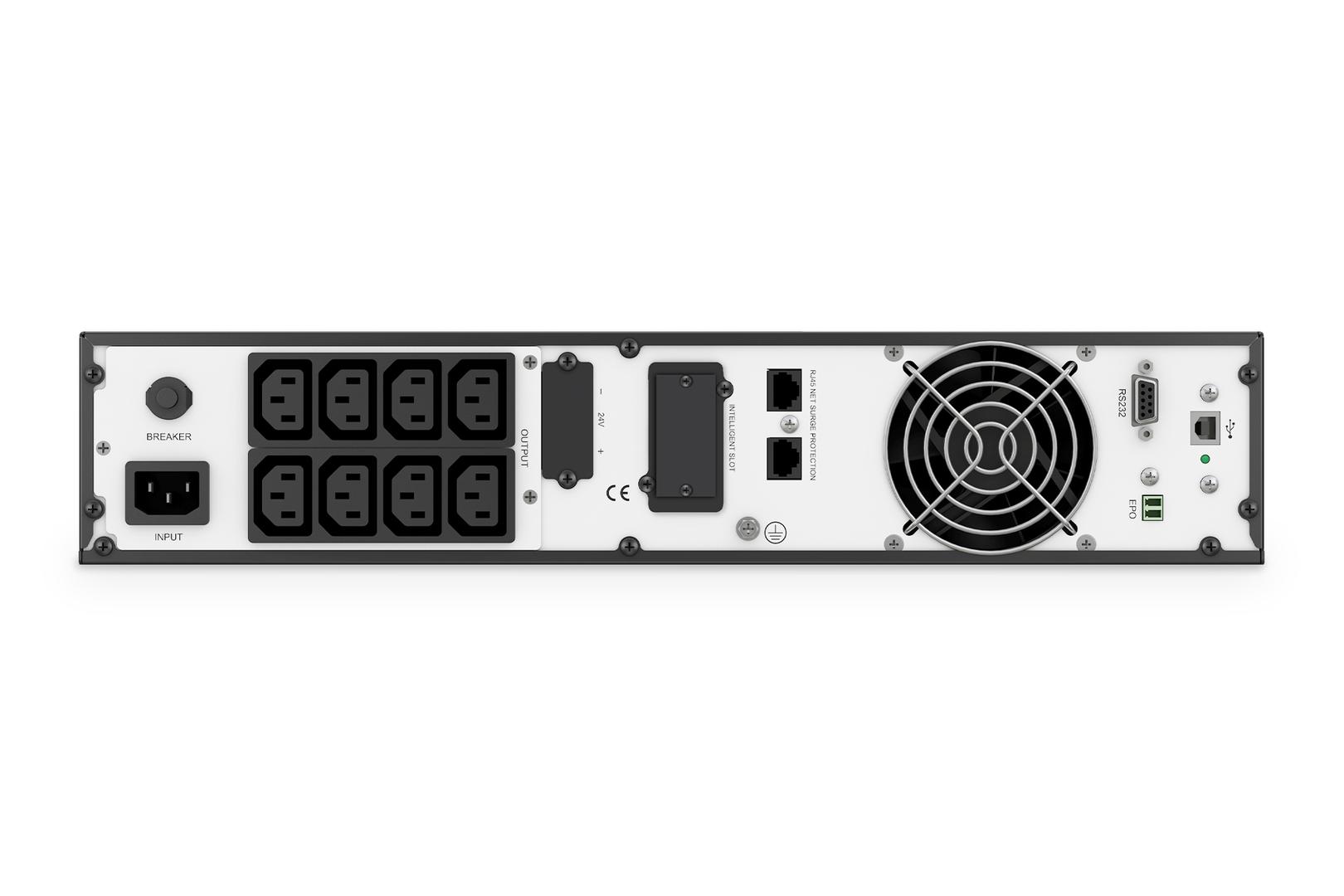

· High number of outlets (8 x C13) for optimum power distribution to the consumers.
· Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
· Automatic battery self-test and fan speed control increase the service life of the components.
· The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.

Product Specification

Device Type	UPS - rack-mountable / external
Height (Rack Units)	2U
Rack Size	19"
Power Device
UPS Technology	On-line
Input Voltage	AC 208/220/230/240 V
Input Wiring	1-phase
Frequency Required	40 - 70 Hz
Input Connectors	1 x power IEC 60320 C14
Power Output Connectors Details	8 x power IEC 60320 C13 10 A
Output Voltage	AC 208/220/230/240 V
Power Capacity	1000 Watt / 1000 VA
Efficiency	93% AC mode, 98% Eco mode
Power Factor (PF)	1.0
Battery
Quantity	2 2
Technology	Lead Acid
Voltage Provided	12 V
Capacity	9 Ah 9 Ah
Run Time (Up To)	2.3 min at full load <br /> 14.3 min at 40% load
Recharge Time	4 hours
Features	Valve-regulated, hot-swappable
Networking
Remote Management Interface	RS-232, USB
Remote Management Protocol	SNMP
Expansion / Connectivity
Interfaces	1 x RS-232 - 9 pin D-Sub (DB-9) <br /> 1 x USB - 4 pin USB Type B <br /> 1 x parallel - 25 pin D-Sub (DB-25) <br /> EPO (emergency power off)
Miscellaneous
Included Accessories	Tower stand
Cables Included	USB cable - external - 1.2 m <br /> Power cable - external - 1.8 m <br /> RS-232 cable - external
Rack Mounting Kit	Included
Features	LCD display, automatic self-test, Remote Emergency Power Off (REPO), fan speed control, double conversion, pure sinewave output
Compliant Standards	IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, WEEE, REACH, RoHS2, IEC/EN 60950-1, IEC/EN 62040-1, IEC/EN 62040-2
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	20 - 90% RH (non-condensing)
Dimensions & Weight
Width	44 cm
Depth	32.5 cm
Height	8.65 cm
Weight	11.3 g
Dimensions & Weight (Shipping)
Shipping Width	46.7 cm
Shipping Depth	55.5 cm
Shipping Height	20.2 cm
Shipping Weight	14.3 kg
