DIGITUS DN-170106 - UPS (rack-mountable / external) - AC 120-276 V - 6000 Watt - 6000 VA - no battery - RS-232, USB, parallel | DN-170106

Product Features

· Online double conversion system (VFI-SS-111)
· Input: Input terminals / hard wiring
· Output: Output terminals / hard wiring
· System power rating: 6 kVA / 6 kW, power factor 1.0
· AC-AC (online VFI) efficiency: 94 %, ECO mode efficiency: 97 %.
· No internal battery. External battery module: DN-170108. Up to 4 ECB can be connected.
· Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
· Optional relay card (part number DN-xxxxx) with potential free inputs and outputs (Bypass, UPS ON, AC error, Batt low, UPS alarm)
· Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
· Emergency power-off (EPO) contact for UPS shutdown in case of emergency
· Maximum operating temperature: 0 - 40 °C
· Storage temperature: -25 - 55 °C
· Relative humidity: 20 - 90% non-condensing
· Operating altitude: < 1500 m
· Product dimensions WxDxH (mm): 440 (19") x 620 x 86.5 (2U)
· Product weight: 13,8 kg
· Shipping dimensions WxDxH (mm): 615 x 765 x 214
· Shipping weight: 18,9 kg
· Safety standards: IEC/EN62040-1,IEC/EN60950-1
· EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
· Approval: CE declaration
· Scope of delivery: UPS unit (with out internal battery), feet for tower installation, UPS manual, UPS QSG, UPS software license, USB cable, 19" installation brackets
· Optional available: 19" UPS mounting kit (profile rails), part number DN-170109

Special Fetures

· High power factor (1.0), higher active power allows more connected loads, this saves space and reduces cost.
· High efficiency in online mode, higher efficiency means optimized power management and lower heat dissipation, resulting in energy savings and improved reliability.

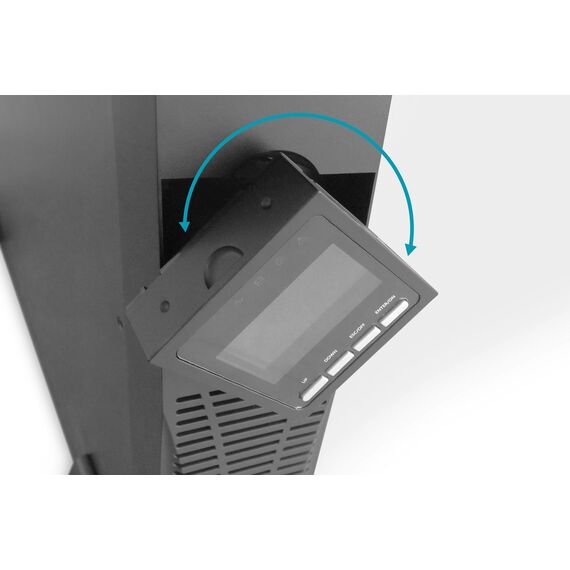

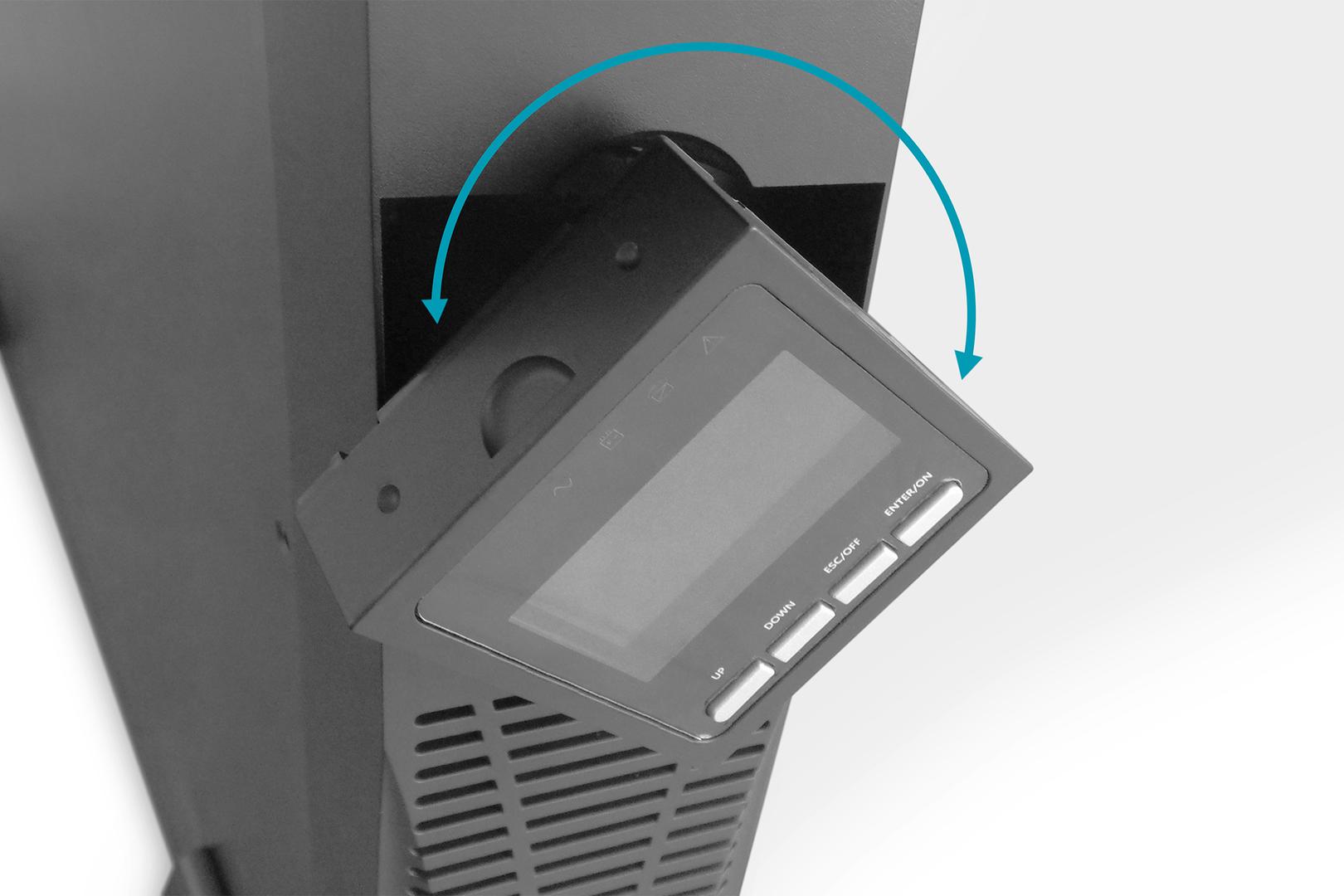

· User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

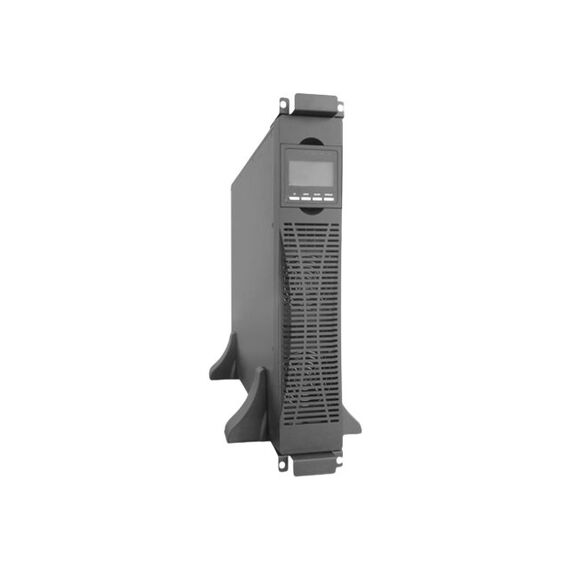

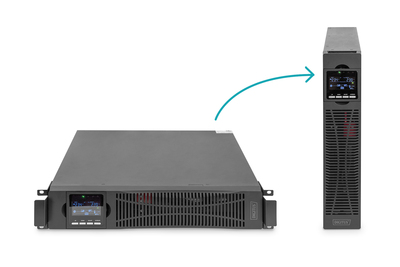

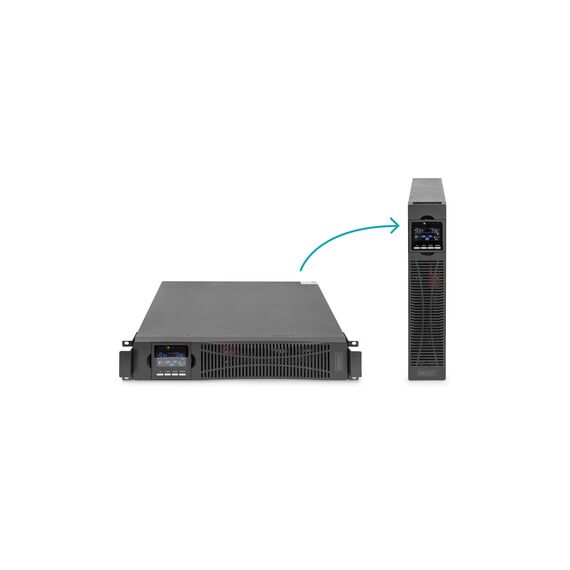

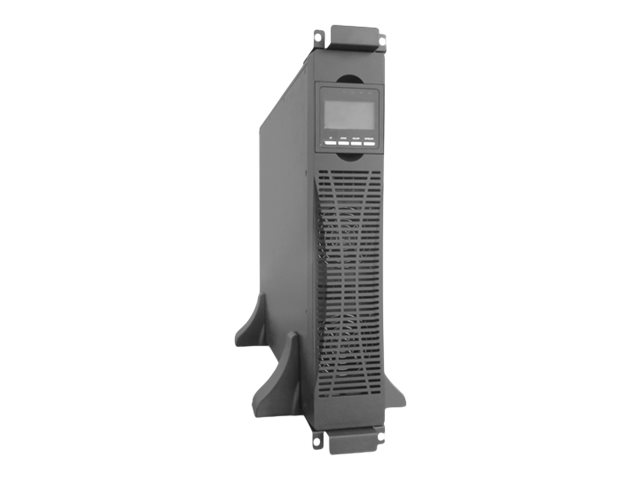

· Compact rack/tower design optimizes rack space and allows for flexible installation.
· Various communication interfaces (RS232/USB, parallel port, SNMP slot) allow remote monitoring of the system
· Automatic battery self-test and fan speed control increase component life.
· Remote Emergency Power Off (REPO) function turns off the UPS during emergencies. When an emergency occurs, the REPO switch turns off the rectifier and inverter and immediately stops power to the load. The UPS stops charging and discharging the battery.
· Parallel / redundant operation possible (up to 4 devices in parallel), this supports maximum availability and enables growth as load demand increases.
· External battery modules allow the runtime to be extended.
· The UPS requires only 2 height units in the rack, this allows easy installation and saves space in the rack for other components.

Product Specification

Device Type	UPS - rack-mountable / external
Power Device
UPS Technology	On-line
Input Voltage	AC 120-276 V
Frequency Required	45 - 66 Hz
Output Voltage	AC 208/220/230/240 V
Power Capacity	6000 Watt / 6000 VA
Output Waveform	Sinewave
Efficiency	93.5%
Power Factor (PF)	0.99
Total Harmonic Distortion (THD)	5 %
Battery
Type	No battery
Networking
Remote Management Interface	RS-232, USB, parallel
Expansion / Connectivity

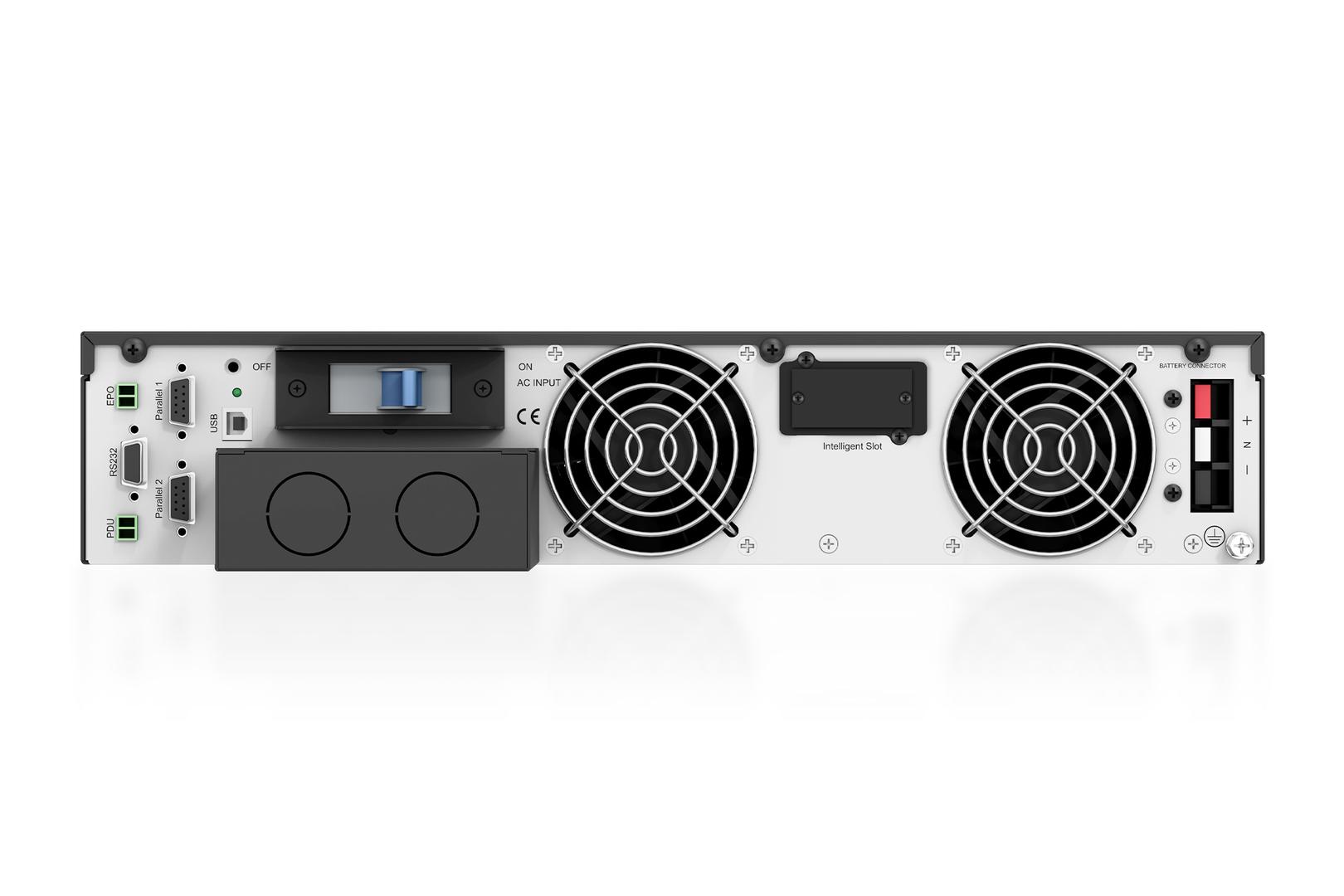

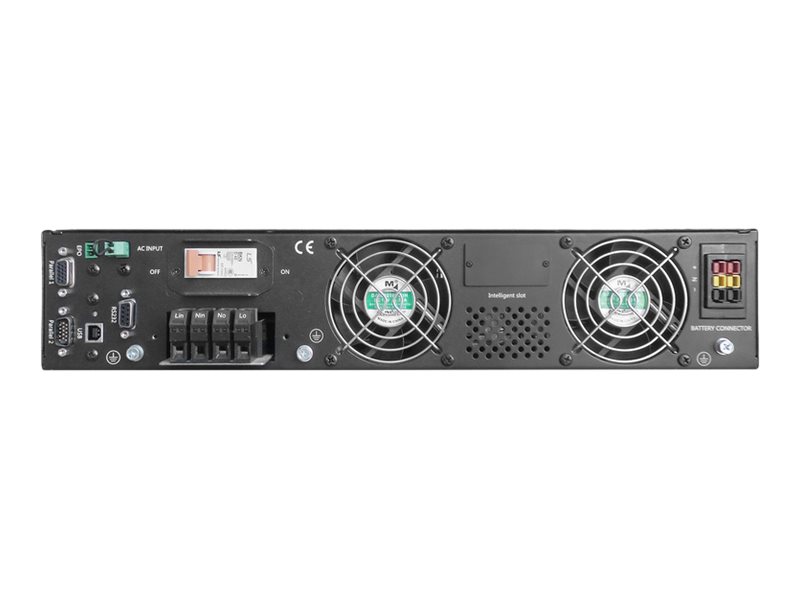

Interfaces	1 x USB - 4 pin USB Type B ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ EPO (emergency power off) ¦ 2 x parallel
Miscellaneous
Features	Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, cold-start function, Redundant Parallel Architecture
Compliant Standards	IP20
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Dimensions & Weight
Width	44 cm
Depth	62 cm
Height	8.65 cm
Weight	14 kg
Dimensions & Weight (Shipping)
Shipping Width	61.5 cm
Shipping Depth	76.5 cm
Shipping Height	21.4 cm
Shipping Weight	18.9 kg
