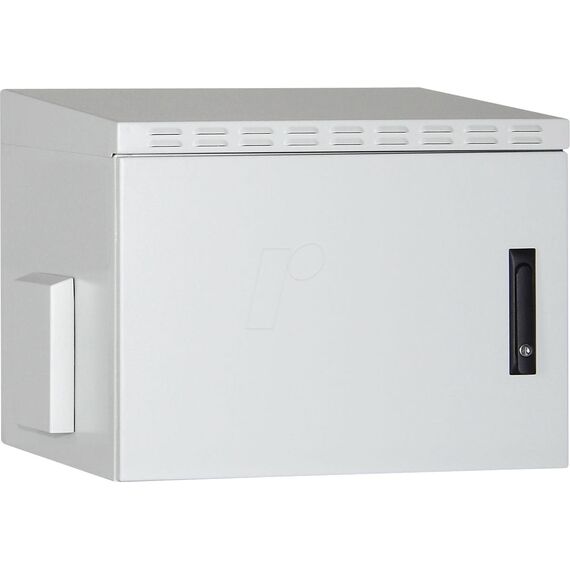

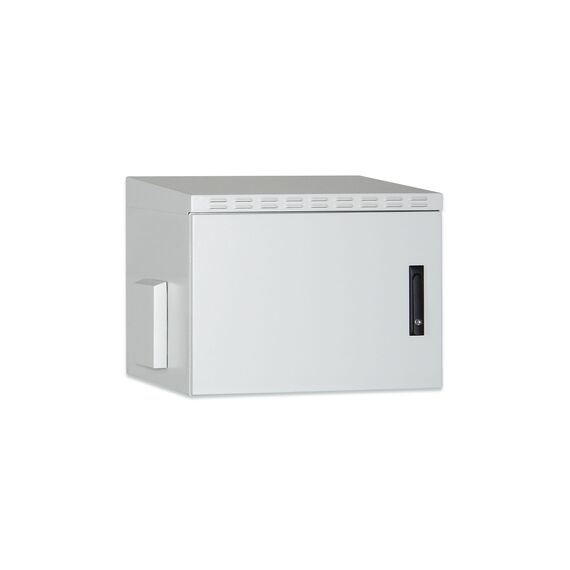

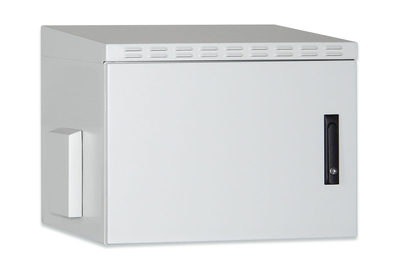

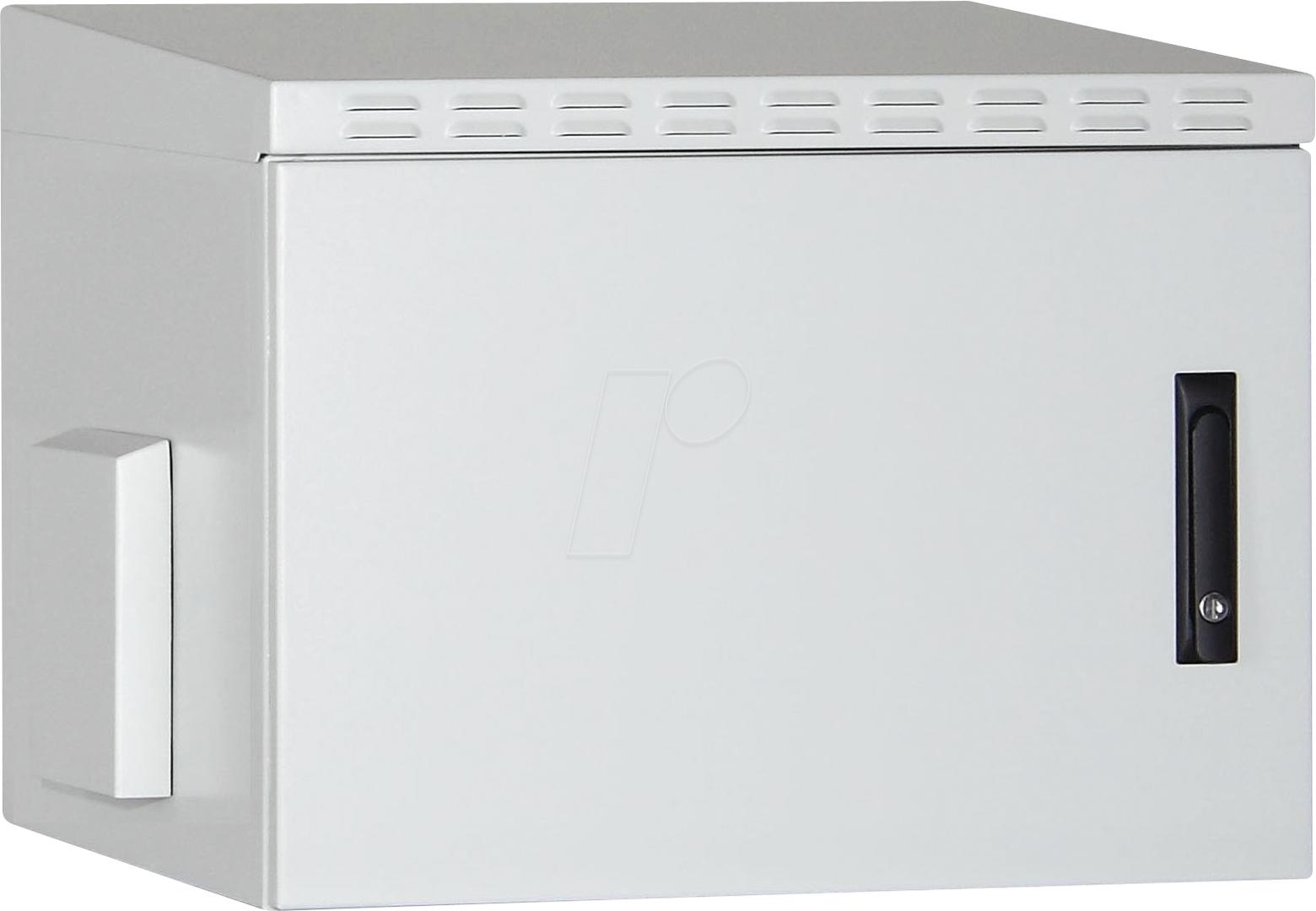

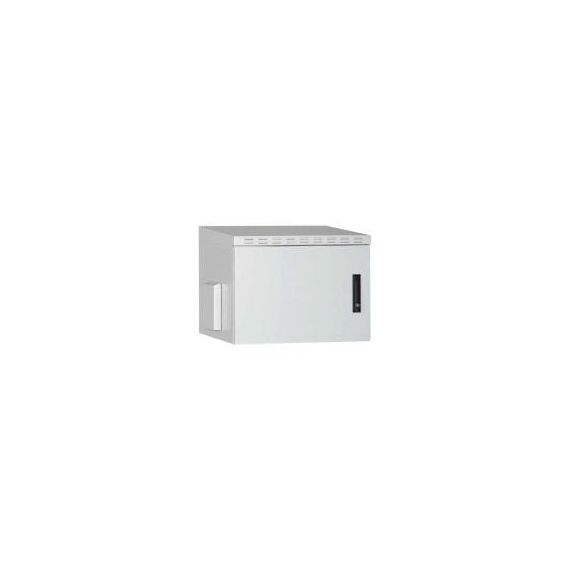

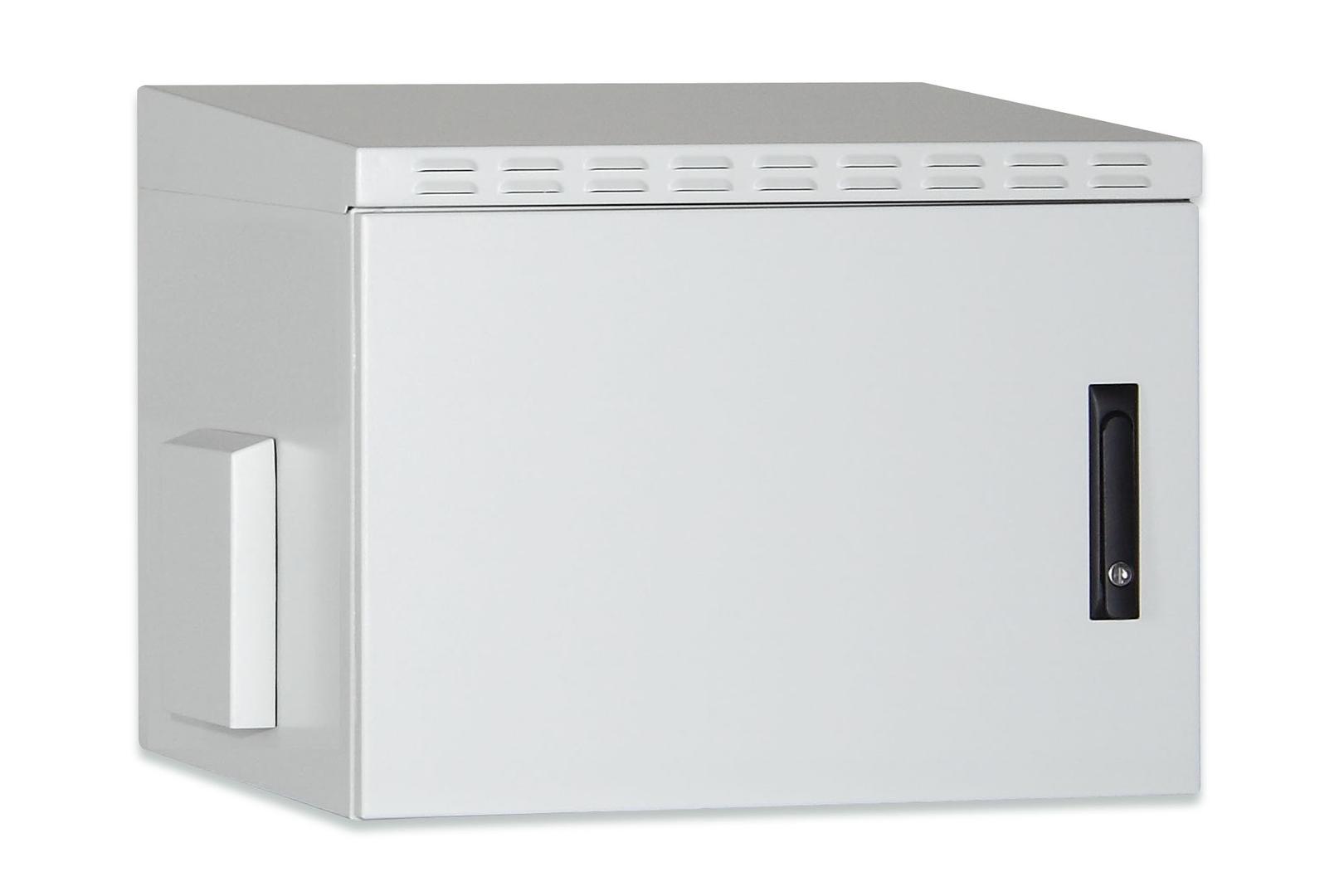

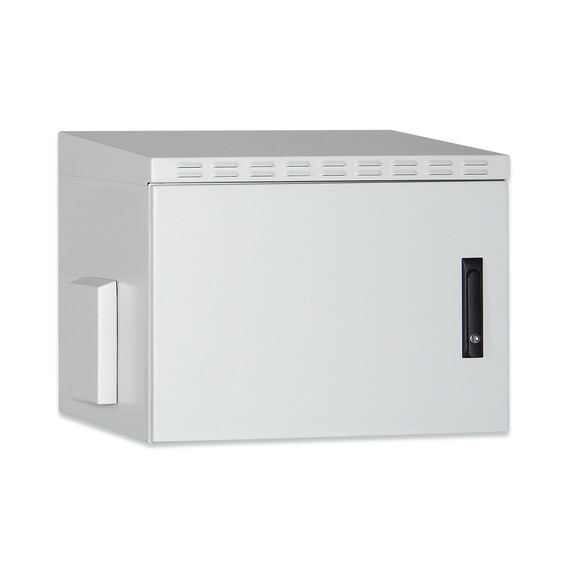

Digitus DN-19 12U-6/6-I-OD - Cabinet - wall mountable - grey, RAL 7035, powder coat - 12U - 19" | DN-19 12U-6/6-I-OD
Please sign in so that we can notify you about a reply
Product Features
· Safety class rating IP 55· Lockable steel front door with pivot lever
· 140° door opening angle
· 3-point-locking-mechanism on the front door

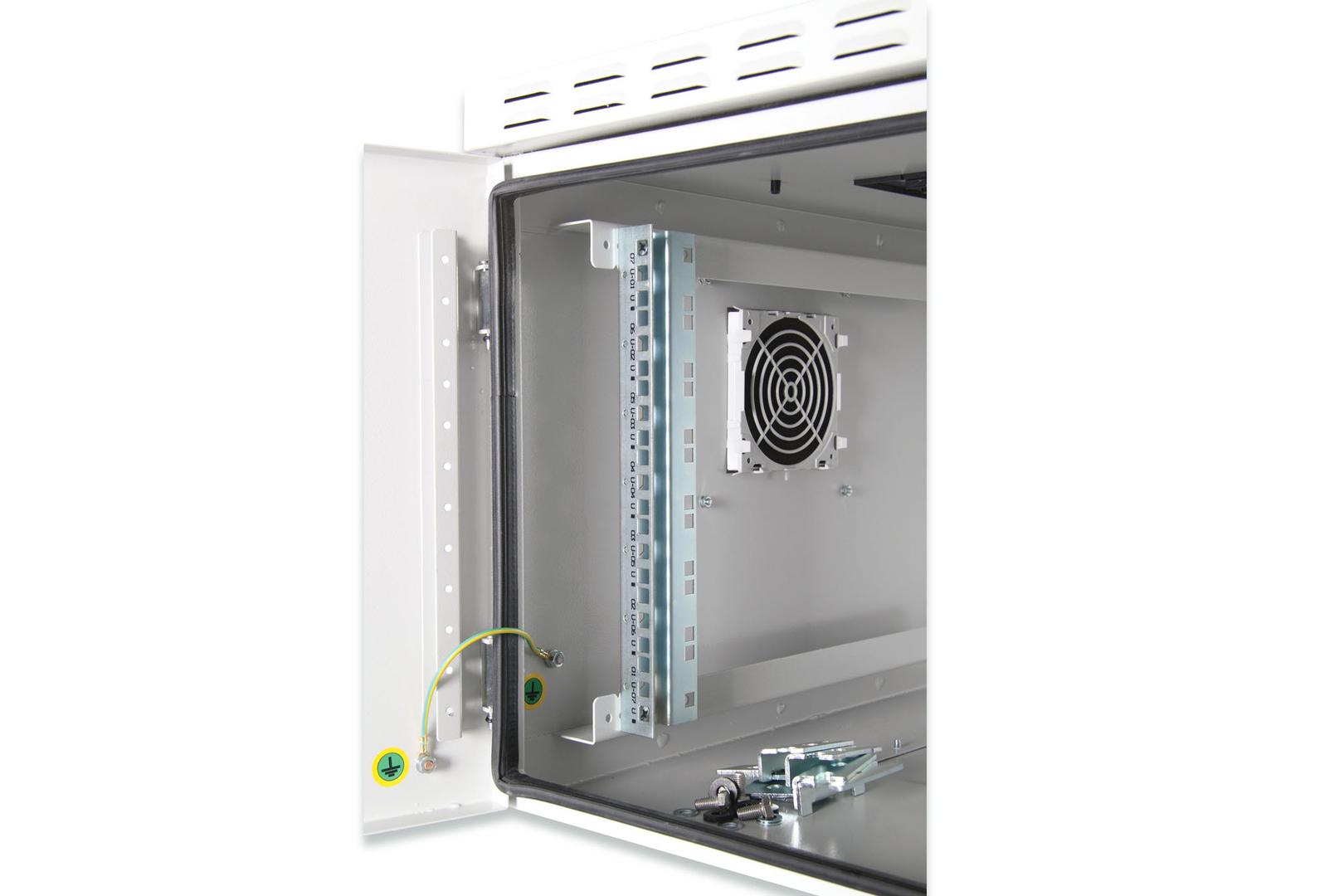

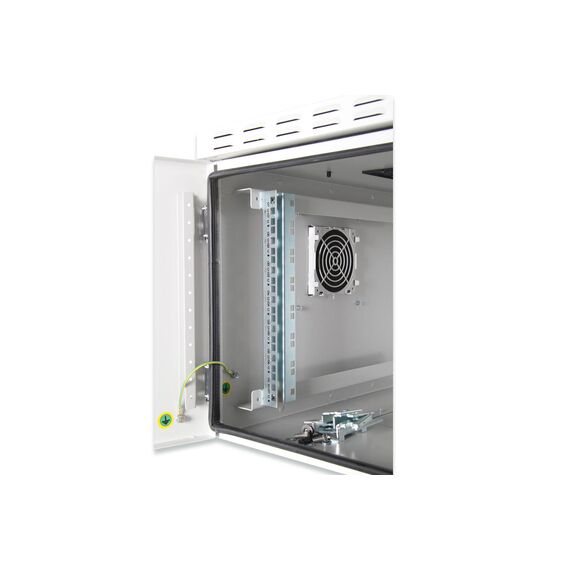

· Front door with earthing lead and two welded, strengthening bars in U-shape as well as gasketting system
· 483 mm (19) profile rails mounted on the front side inside of the cabinet, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· 1.5 mm strong sheet steel with a high loading capacity, powder coated
· Single welded housing for more strength

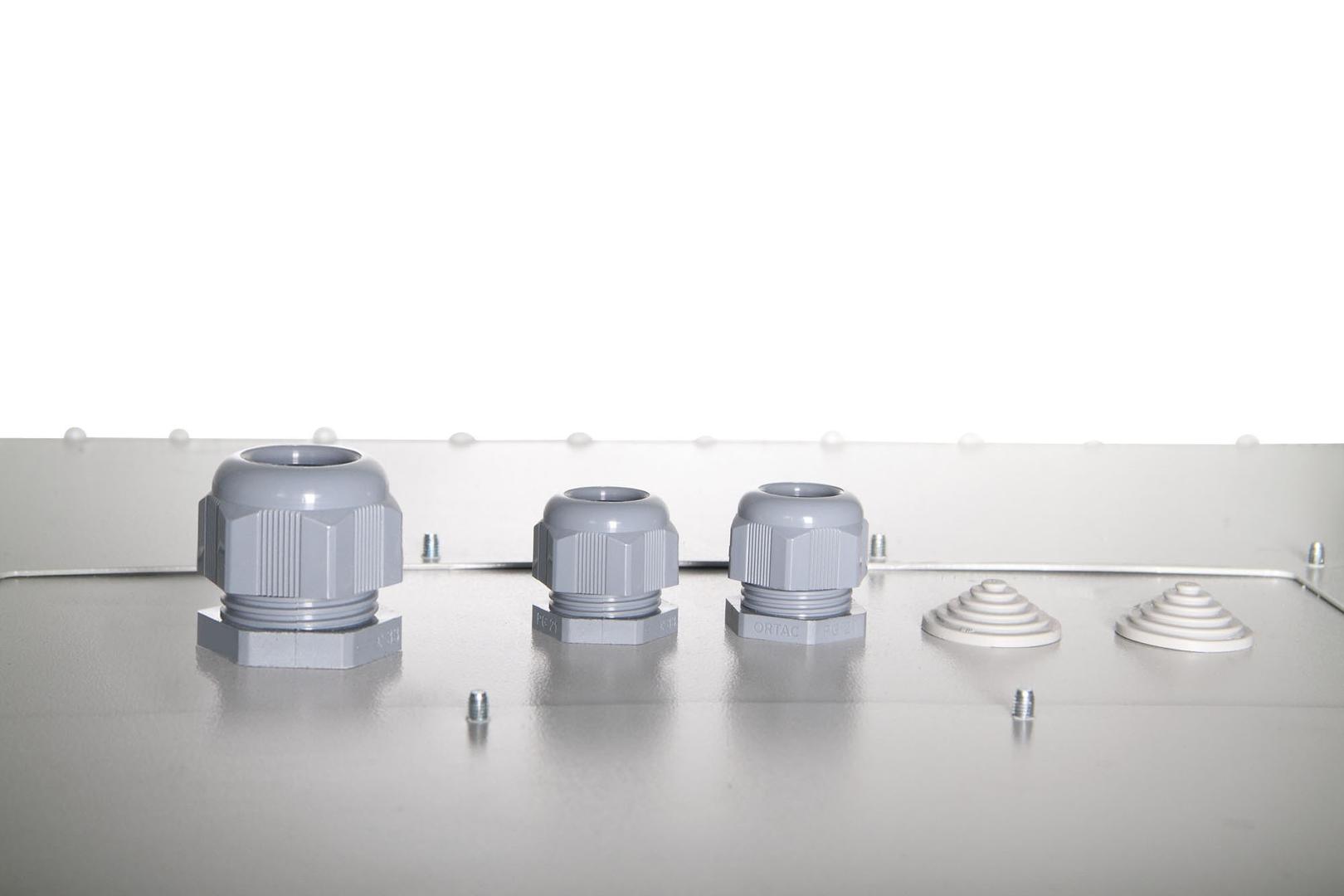

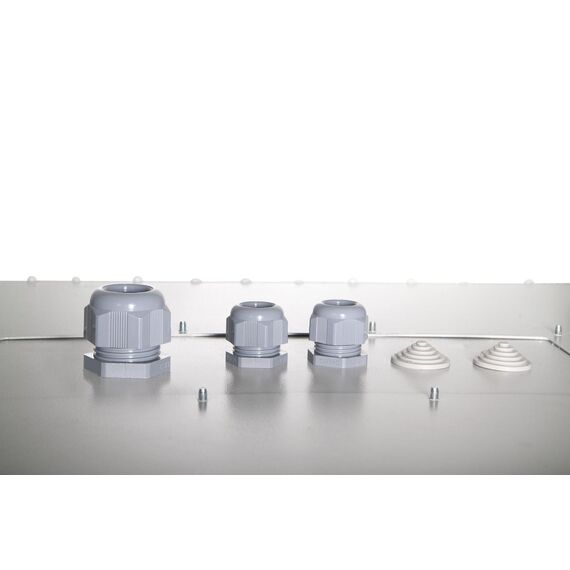

· Cable entries in base: 2x M32, 1x M63, 2x PVC blind cap (with diameter of 28 mm)
· Roof canopy offers protection for suitable fan units and takes care of deaeration and hot air

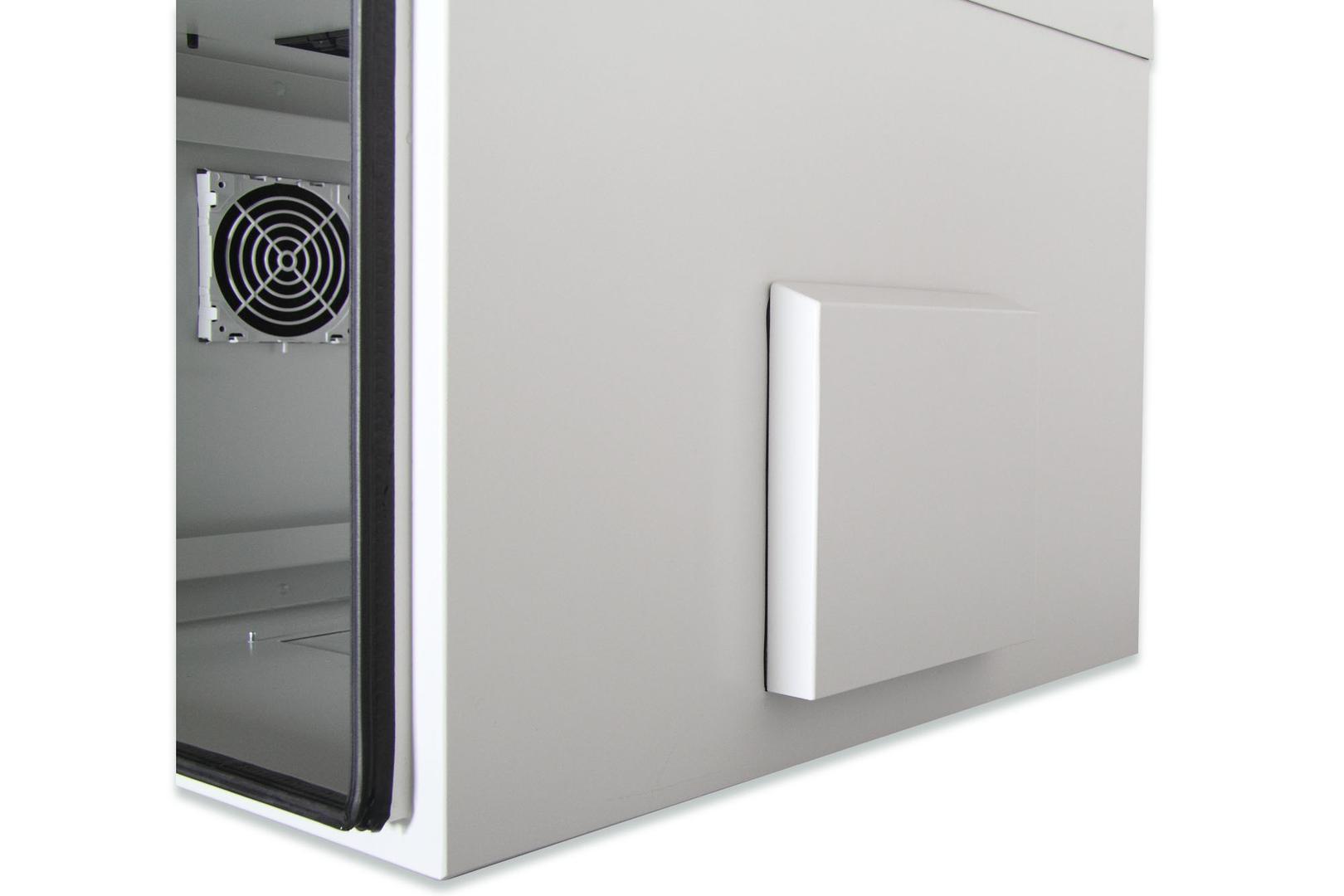

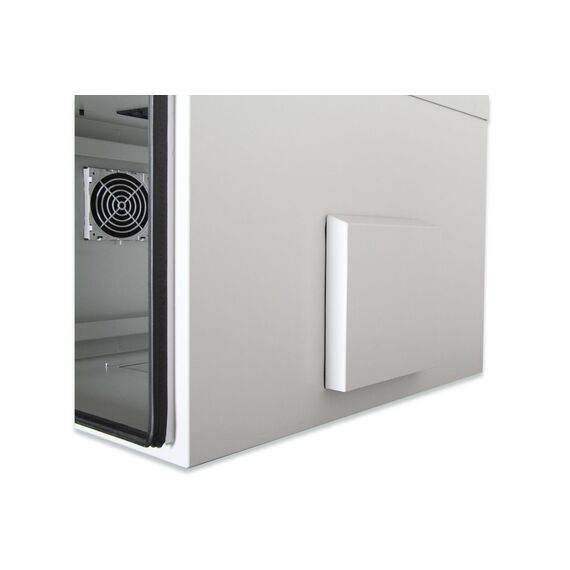

· Integrated air ventilation inlets ensure the entry of fresh air
· incl. 4 pcs. mounting brackets, 3 mm strong, as well as suitable screws and washers, for wall mounting
· Equipment mounting depth min.-max.: 142-500 mm
· Distance of installation holes to wall mount (H x W) in mm: 520 x 550
Special Fetures
· Protected against dust and water jets (IP 55)· Steel front door with lockable pivot lever and 3-point-locking mechanism
· Front door with earthing lead and two welded, strengthening bars in U-shape as well as gasketting system
· Free standing usage with additional plinth possible
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 12U |
| Width | 60 cm |
| Depth | 45 cm |
| Height | 71.3 cm |
| Colour | Grey, RAL 7035, powder coat |
| Miscellaneous | |
| Weight Limit | 100 kg |
| Mounting Kit | Included |
| Features | Lockable front door, lockable side panel, for outdoor use |
| Compliant Standards | RoHS, IEC 60529 IP55, IEC 297-2, EN 60950-1:2006, EN 61587-1:2012, IEC 297-1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
Features - Digitus - DN-19 12U-6/6-I-OD
More Details
Product Code
03:161274
EAN Code
4016032362159
Manufacturer
Digitus
