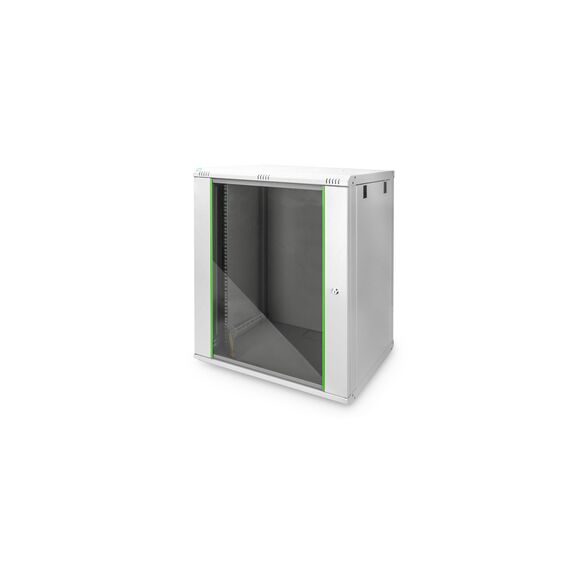

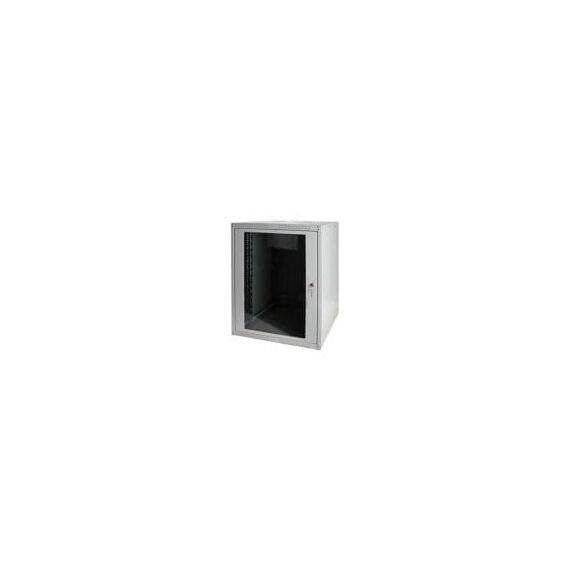

Digitus DN-19 16-U-EC - Cabinet - wall mountable - grey, RAL 7035 - 16U - 19" | DN-19 16-U-EC
Please sign in so that we can notify you about a reply
Product Features

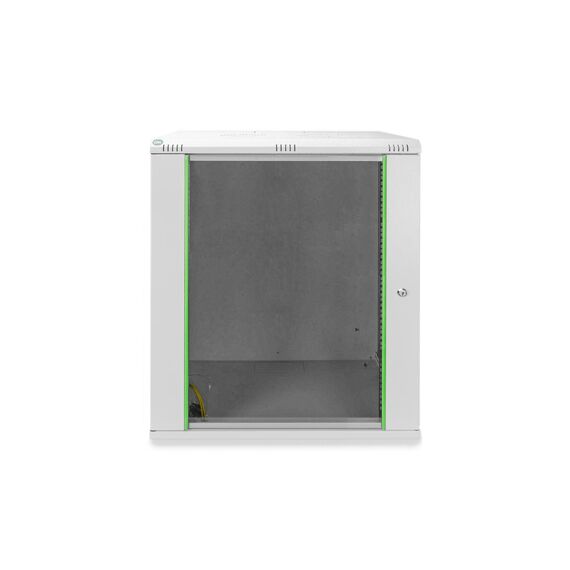

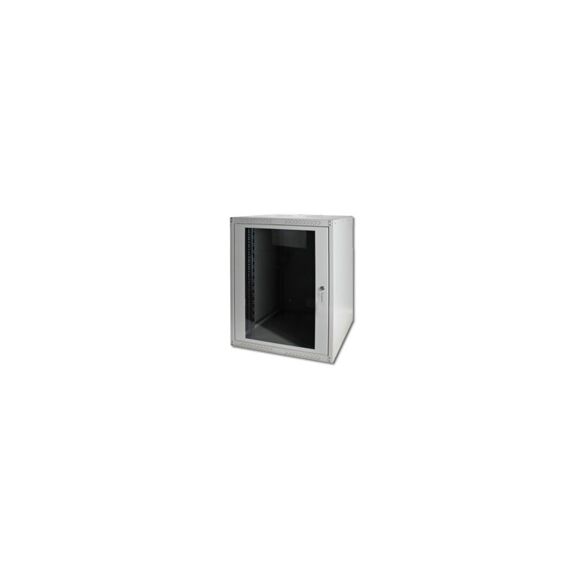

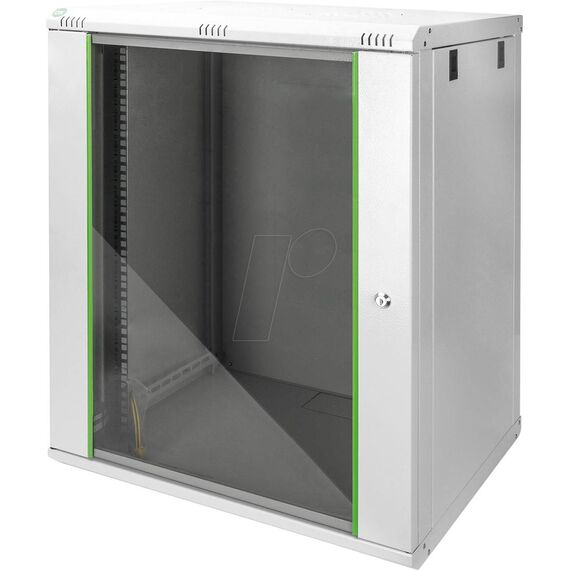

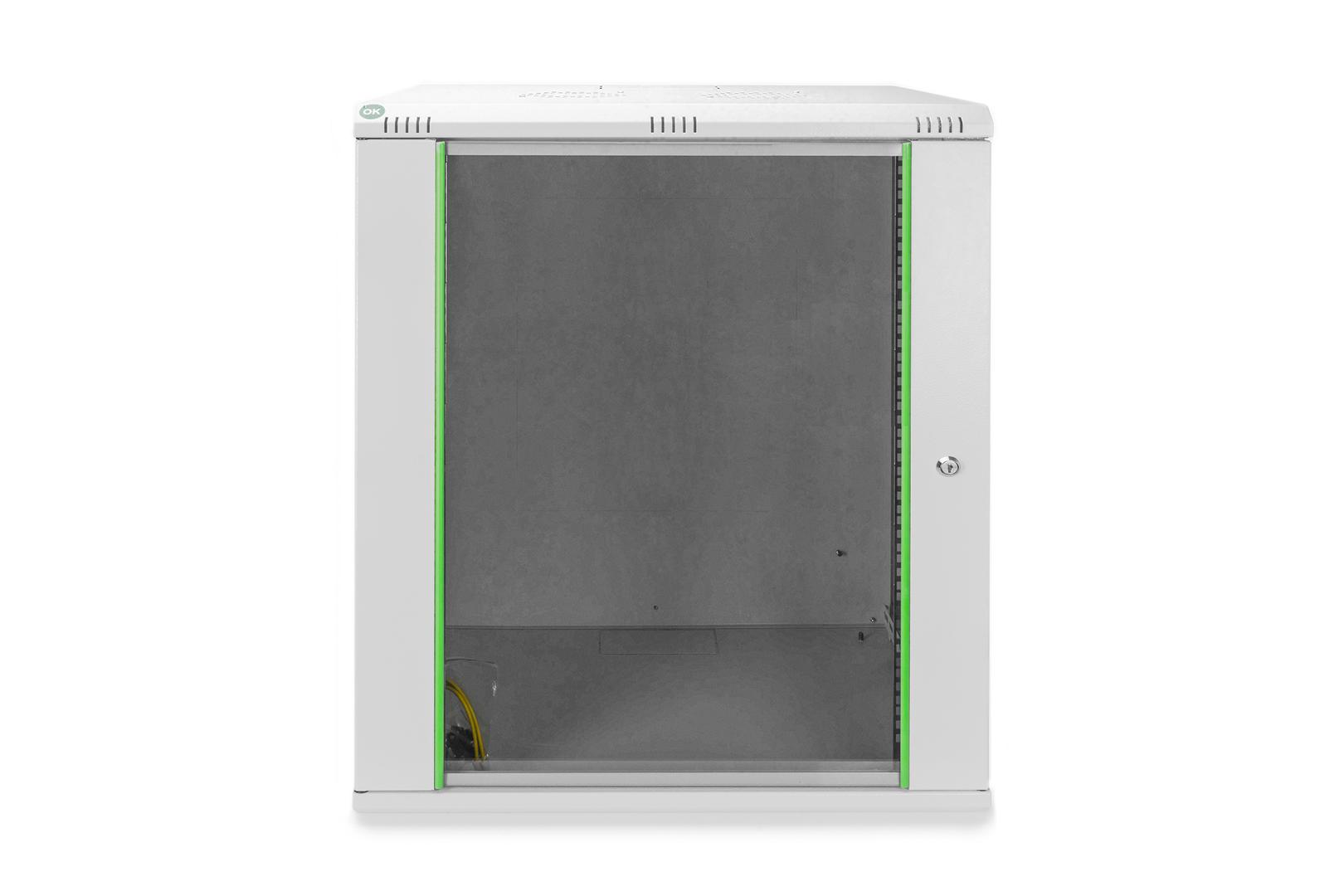

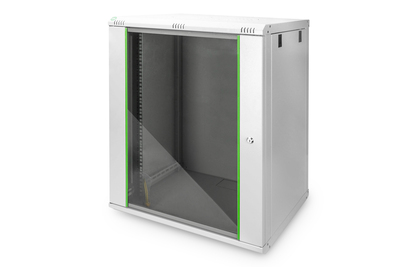

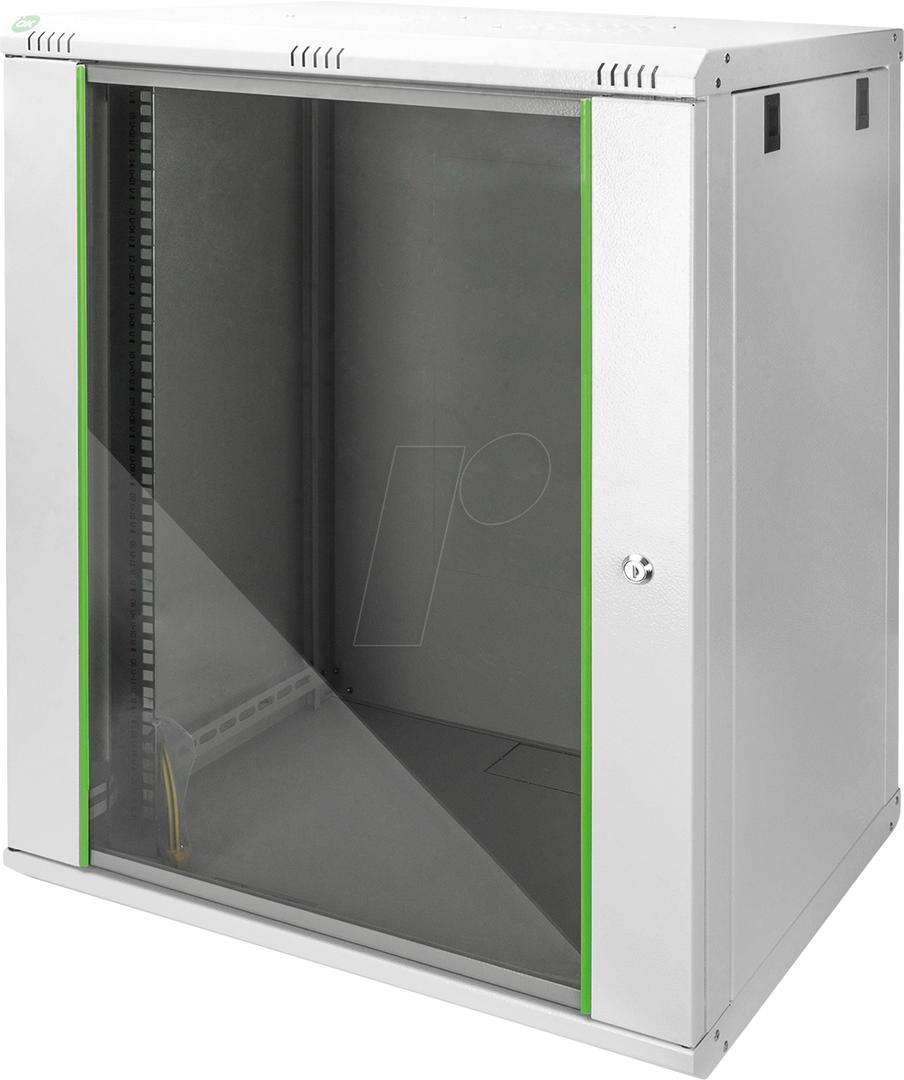

· Safety class rating IP20· Lockable safety-glass door with steel frame

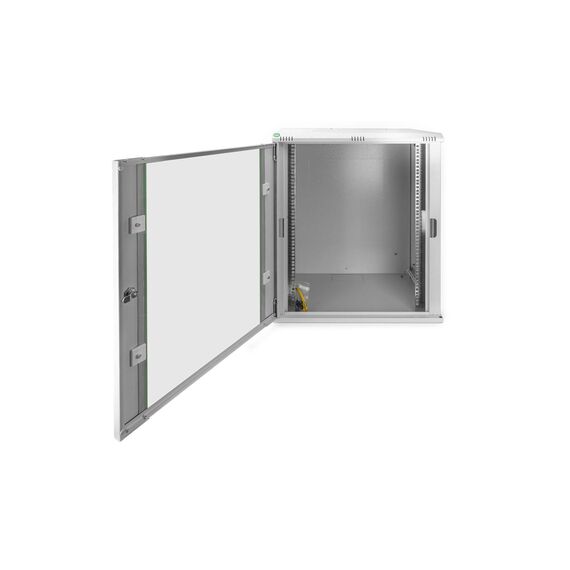

· 235° door opening angle

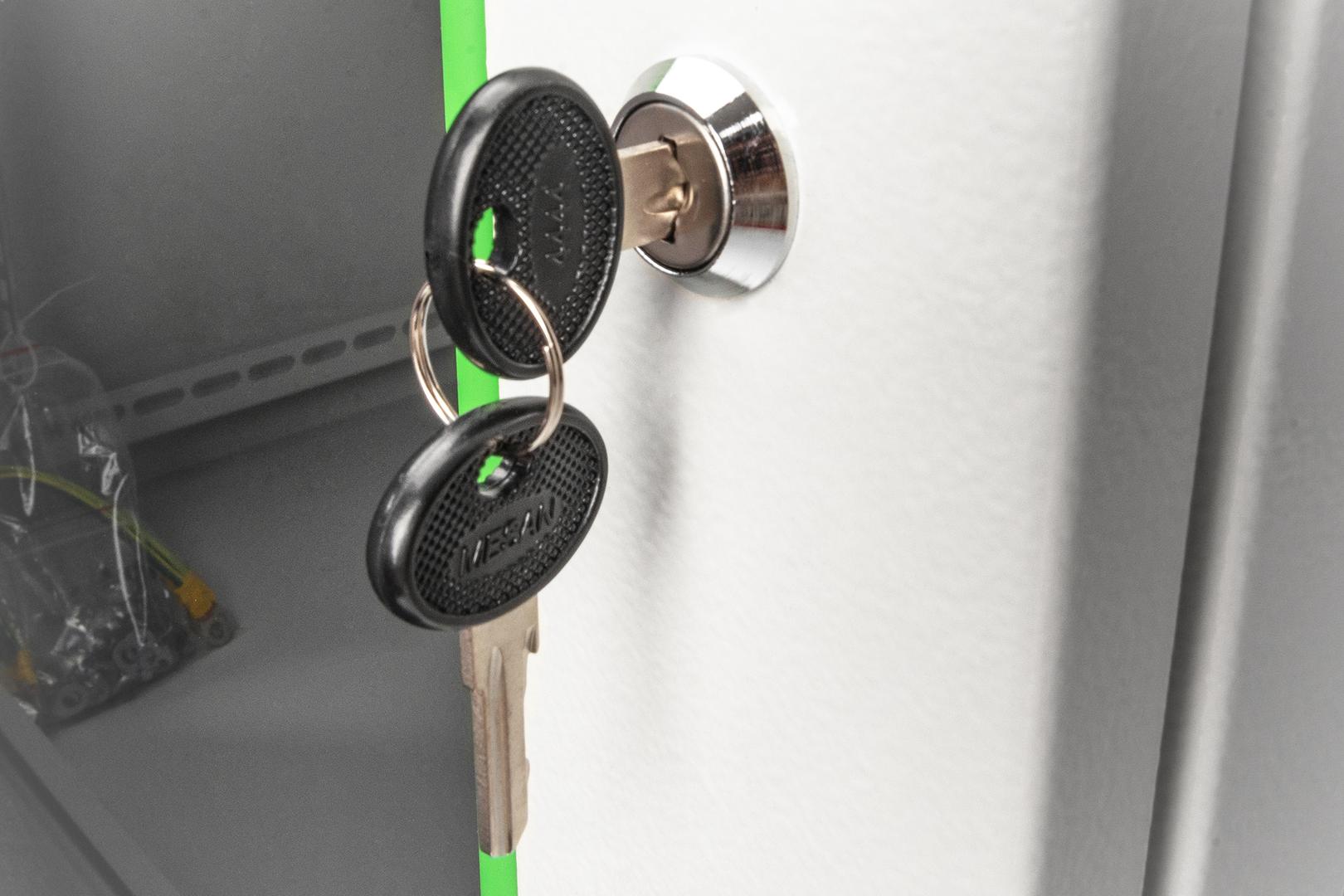

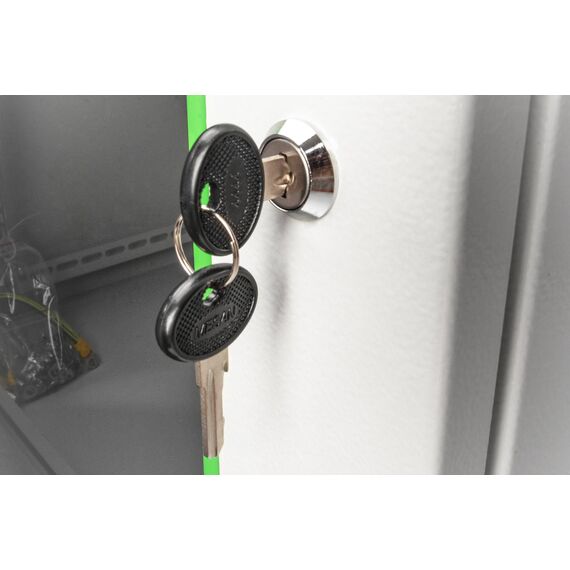

· 1-point-locking-mechanism on the front door
· 483 mm (19) profile rails mounted on the front- and rear side inside of the rack, galvanized
· 483 mm (19) profile rails are adjustable in depth and with height unit marking
· 0.8 - 1.2 mm strong sheet steel with high load capacity, powder coated

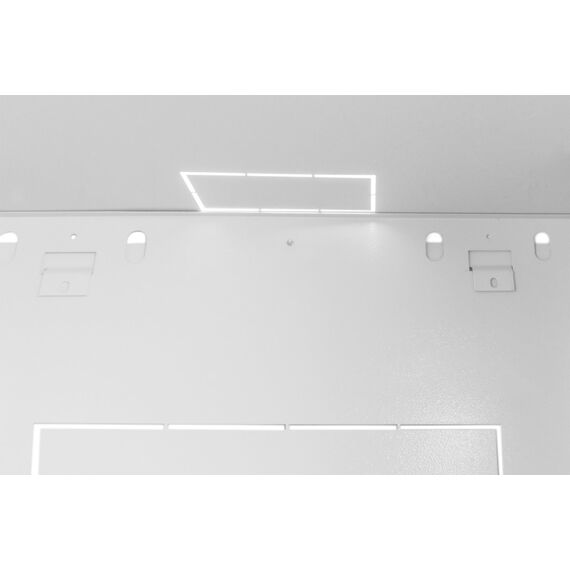

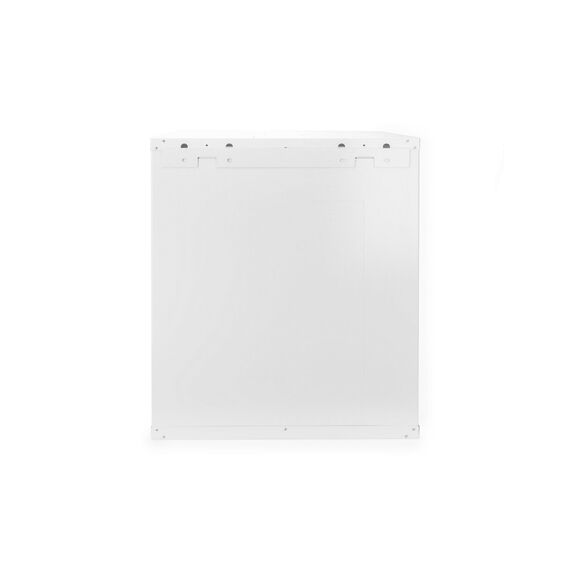

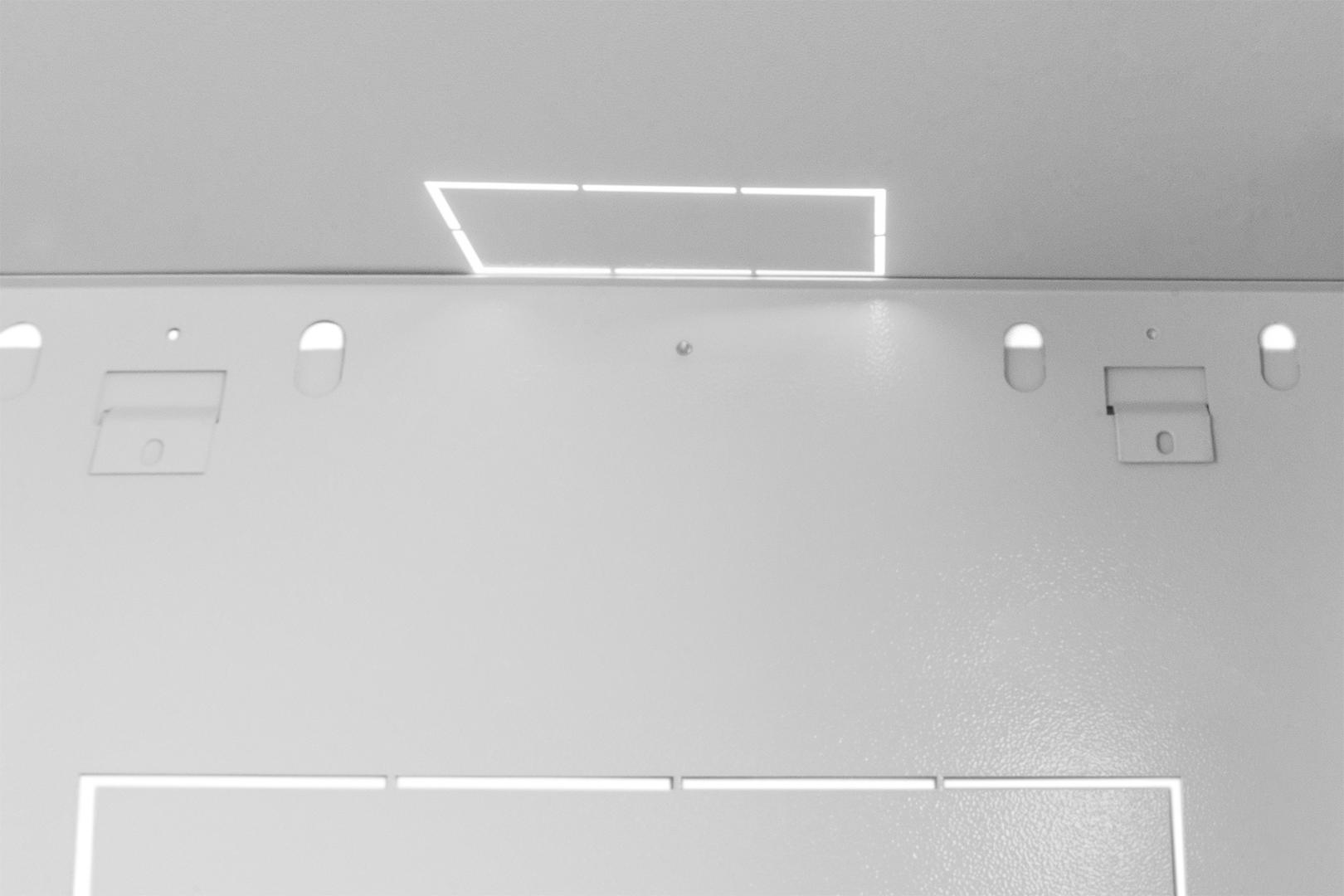

· Cable entry on the rear side, roof and base (pre-punched break-outs)
· Roof is prepared for fan units (punched out entries)

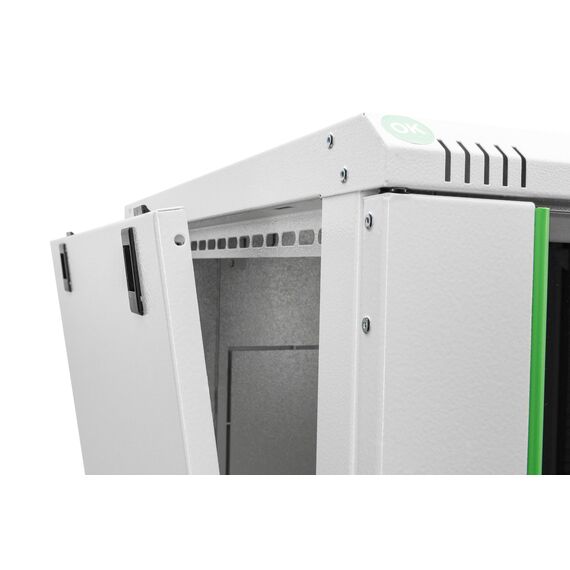

· Ventilation slots for active and passive ventilation and exhausting

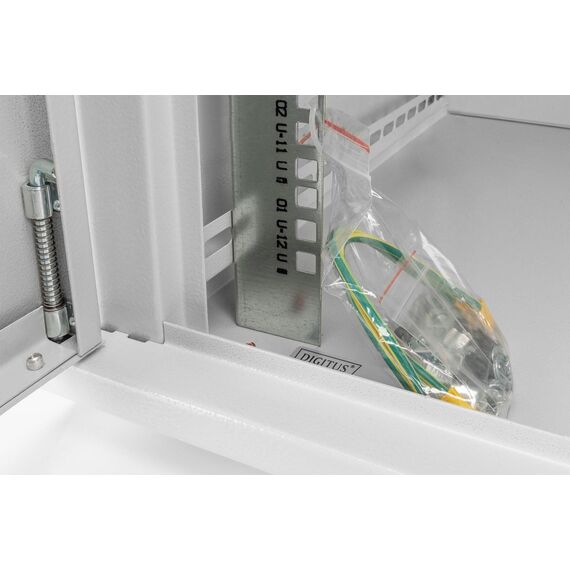

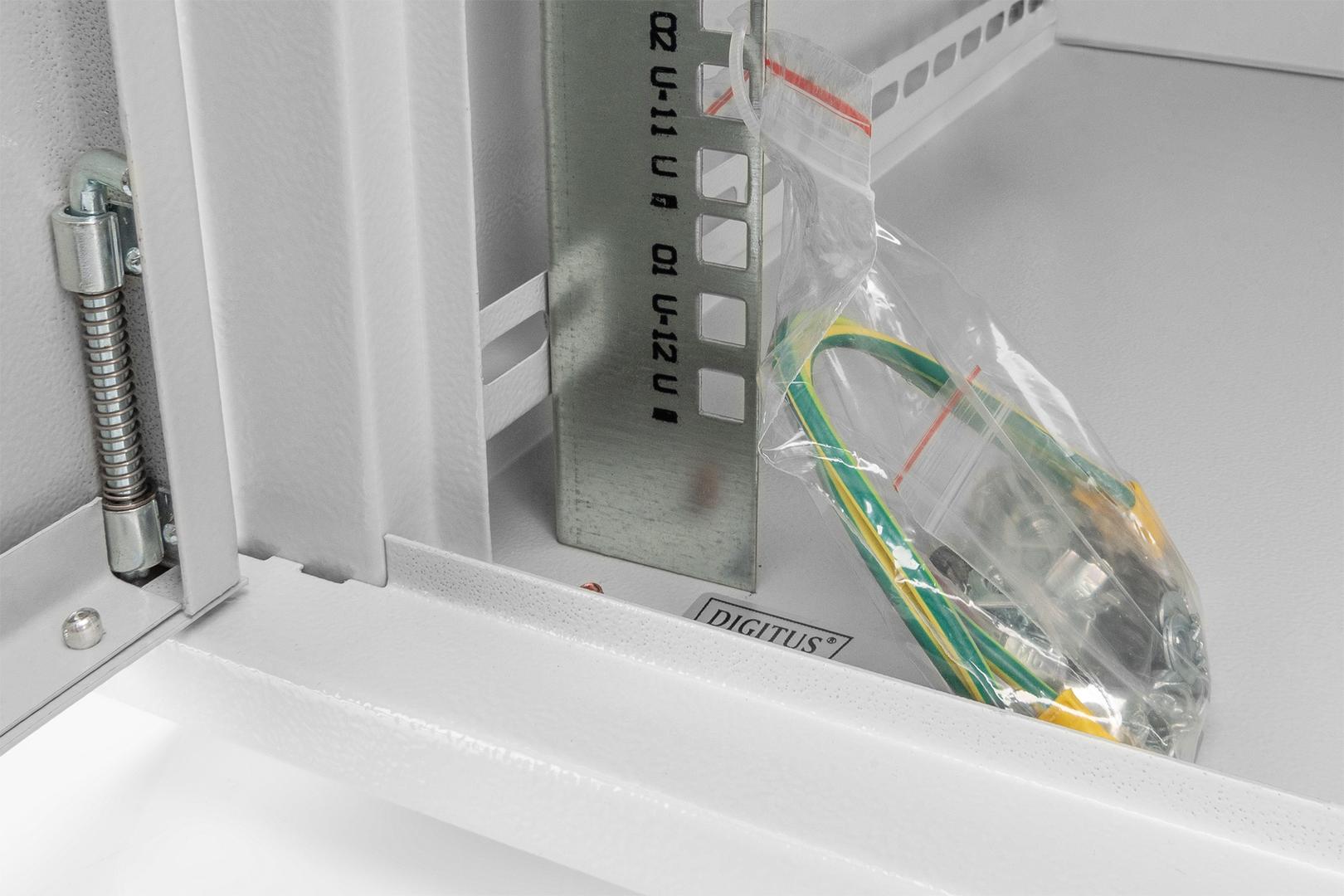

· 4 earthing points (base, side panel and front door) with protection cap
· Equipment mounting depth min.-max.: 335 -380 mm
Special Fetures
· 450 mm depth provides a space saving installation· Optimized air ventilation and exhaustion
· Lockable safety-glass door with steel frame
Product Specification
| Product Type | Cabinet |
| Placing / Mounting | Wall mountable |
| Product Material | Steel |
| Rack Size | 19" |
| Height (Rack Units) | 16U |
| Width | 45 cm |
| Depth | 60 cm |
| Height | 80.2 cm |
| Colour | Grey, RAL 7035 |
| Miscellaneous | |
| Features | Powder coated, lockable, glass door |
| Compliant Standards | IEC 60529 IP20 |
Features - Digitus - DN-19 16-U-EC
More Details
Product Code
03:525368
EAN Code
4016032221722
Manufacturer
Digitus
