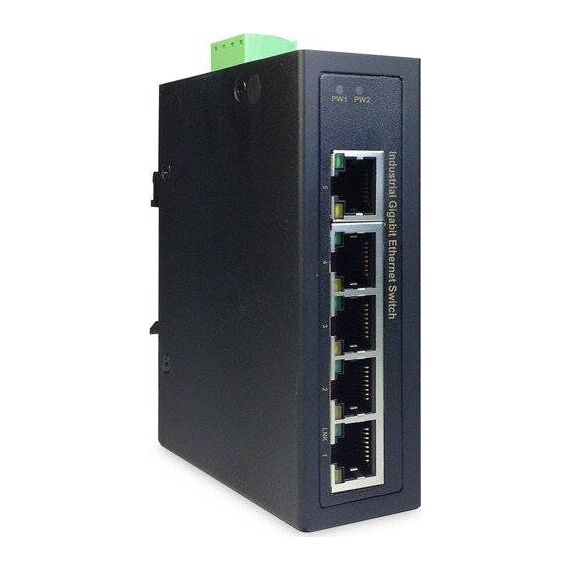

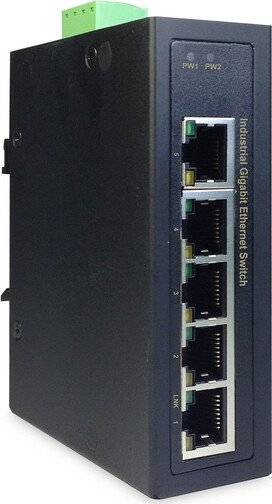

DIGITUS DN-651107 / Switch / industrial, gigabit / unmanaged / 5 x 10/100/1000 / DIN rail mountable | DN-651107
Please sign in so that we can notify you about a reply
Product Features
· 5 x 10/100/1000Base-TX Ethernet Ports· Automatic cable detection - Auto MDI / MDI-X function
· Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab Gigabit Ethernet
· IEEE802.3x Flow Control und Back Pressure
· Store and forward technology for optimized data transfer
· Automatic speed and half/full duplex recognition/adjustment
· Backplane with 10Gbps
· Supports up to 8K MAC addresses
· Compact, robust metal housing
· Excellent short circuit protection
· Lightning and overvoltage protection
· Suitable for DIN rail (top-hat rail) mounting
· Redundant power supply: 12~56 V DC / 18~36V AC, redundant power supply with reverse polarity protection function
· Extended operating temperature range, -40 °C ~ +85 °C
· Removable terminal connection
· Power supply: 2.76 W
· MTBF: 500,000 hrs.
· EN 50155 (EN 60068-2-6) Vibration
· EN 50155 (EN 60068-2-27) Shock
· EN 50155 (EN 60068-2-32) Free Fall
Special Features
· Industrial 5-Port Gigabit Switch· 5 x 10/100/1000Base-TX Ethernet Ports
· Extended operating temperature range, -40 °C ~ +85 °C
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| MAC Address Table Size | 8K entries |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Stand by | 2.76 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -45 °C |
| Max Operating Temperature | 85 °C |
Features - Digitus - DN-651107
General
5-Port
More Details
Product Code
03:149302
EAN Code
4016032454472
Manufacturer
Digitus
