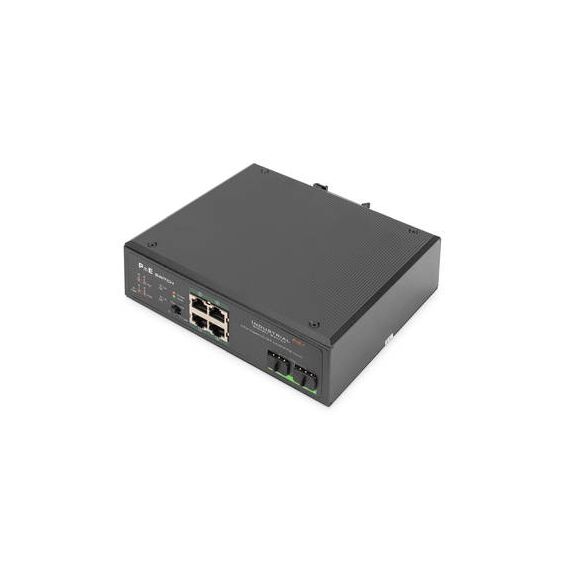

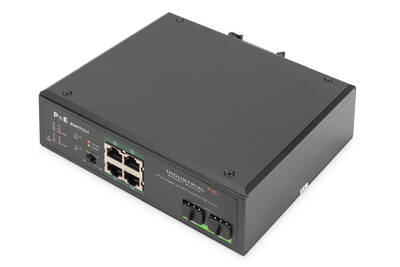

DIGITUS DN-651109 - Switch - unmanaged - 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) - DIN rail mountable - PoE+ - DC power | DN-651109
Please sign in so that we can notify you about a reply
Product Features
· 4x 10/100/1000Base-TX Ethernet PoE ports· Supports IEEE802.3af/at
· Automatic Cable detection - Auto MDI / MDI-X function
· Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet
· Backplane 12G
· MAC address memory 1K
· Compact, sturdy metal enclosure
· Excellent short-circuit protection
· Lightning protection and overvoltage protection

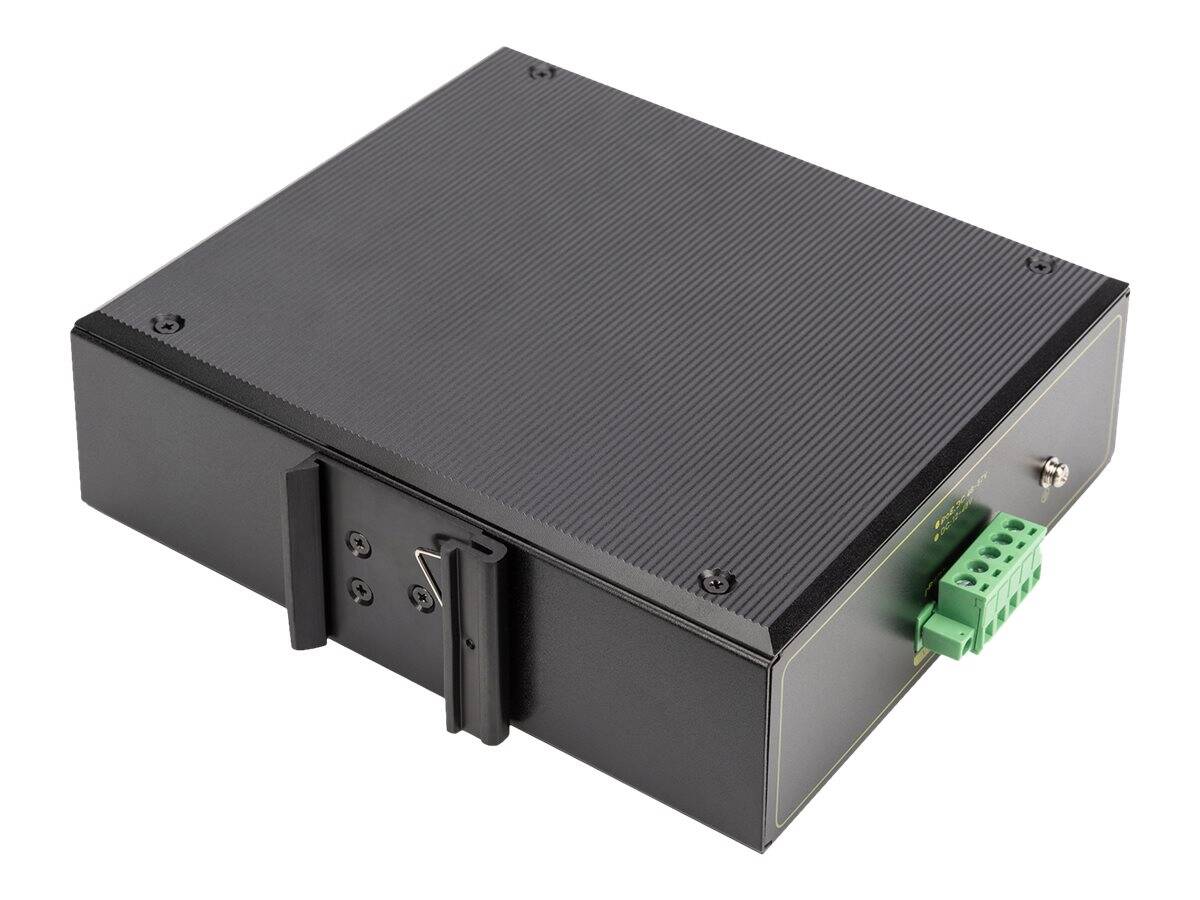

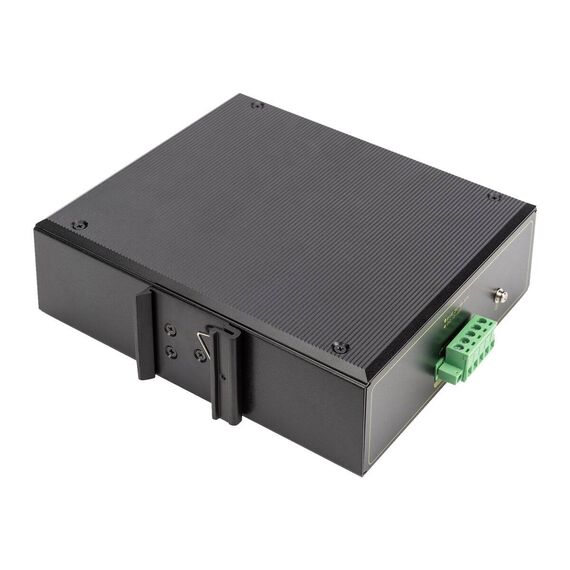

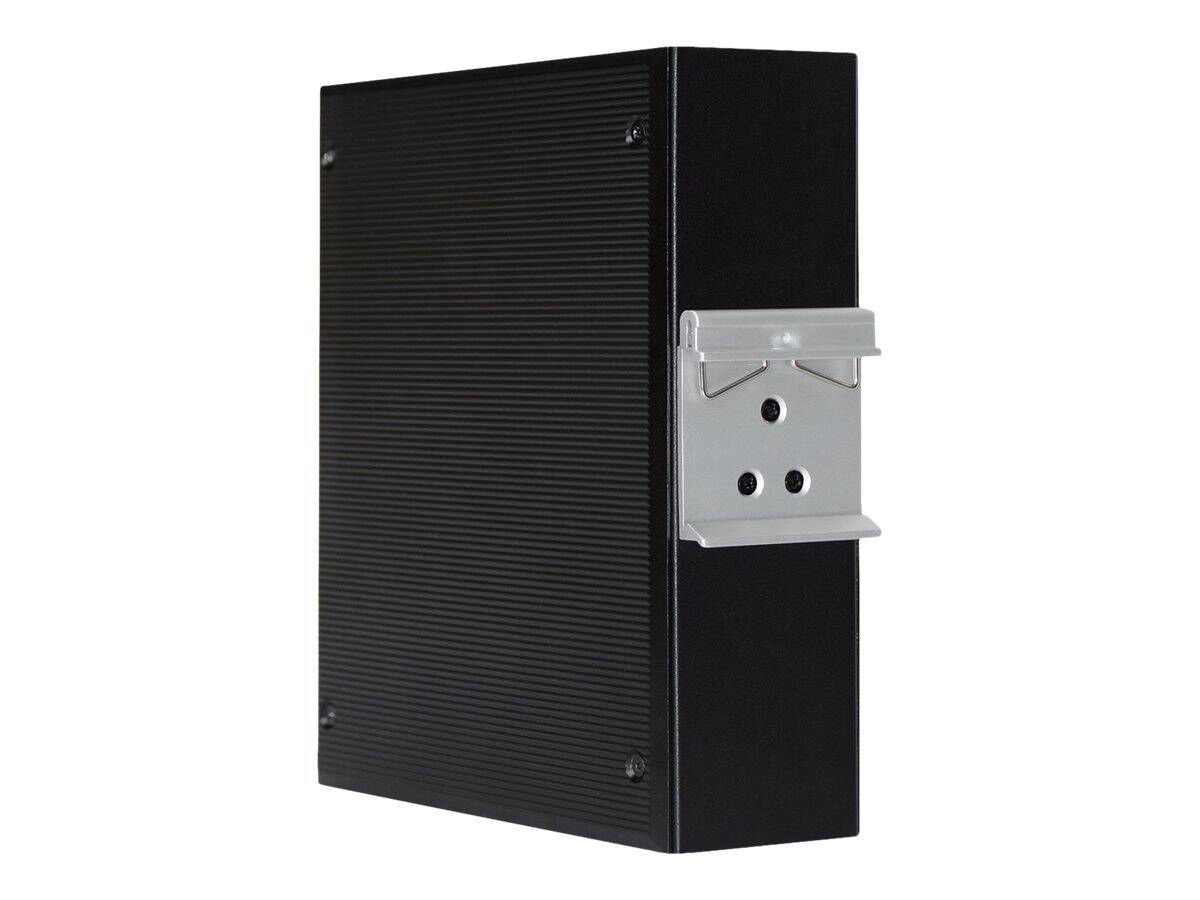

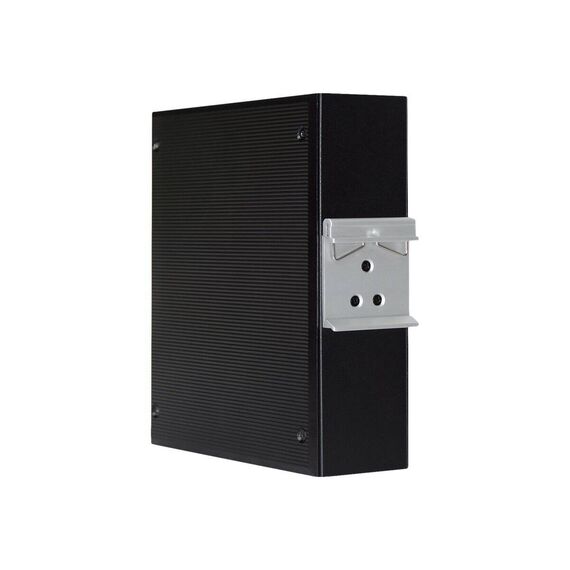

· Suitable for DIN rail (top-hat rail) mounting

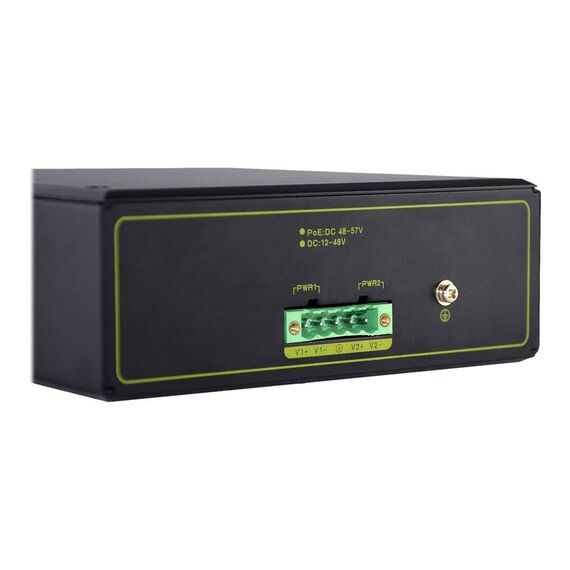

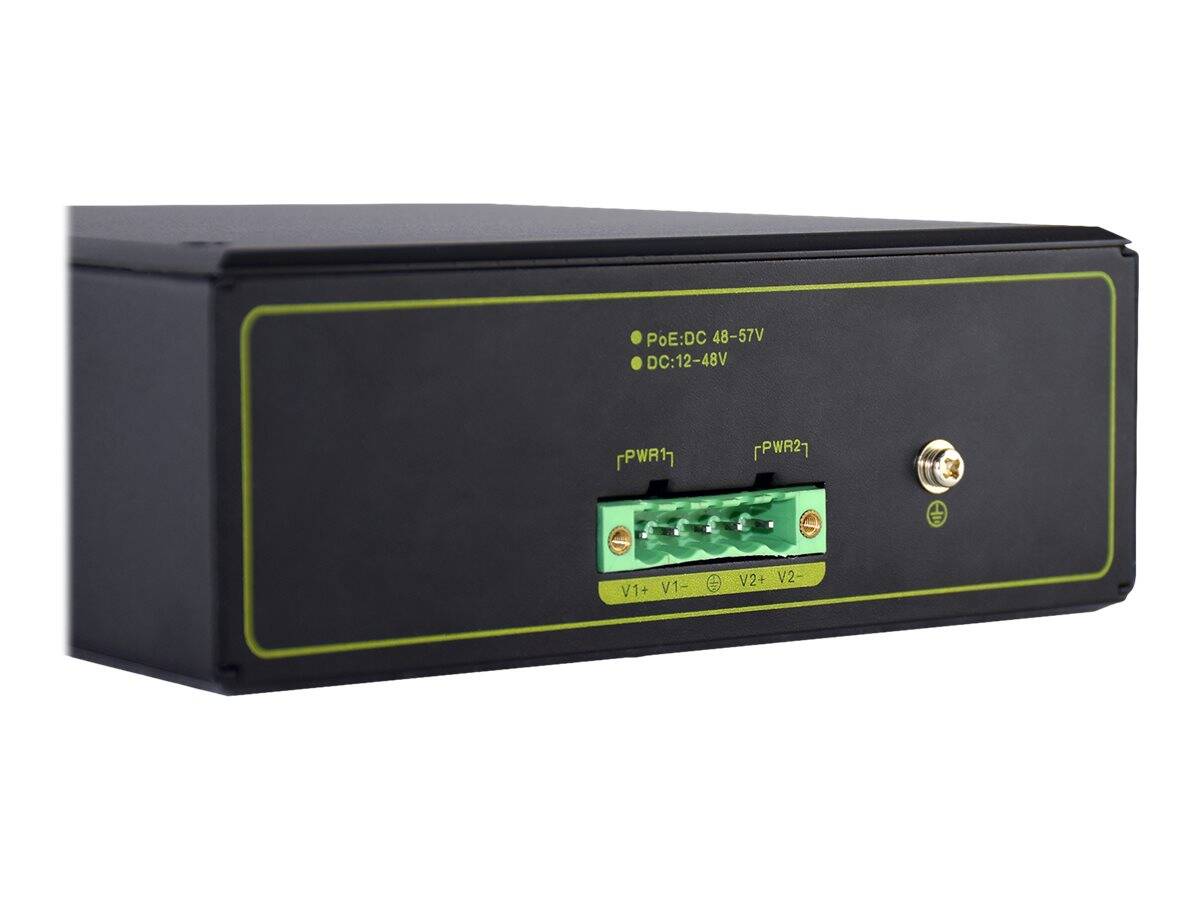

· Redundant power supply: 48-57 V/DC, redundant power supply with polarity reversal protection function
· Extended operating temperature range, -40 °C ~ +75 °C
· Removable terminal connection
Special Fetures

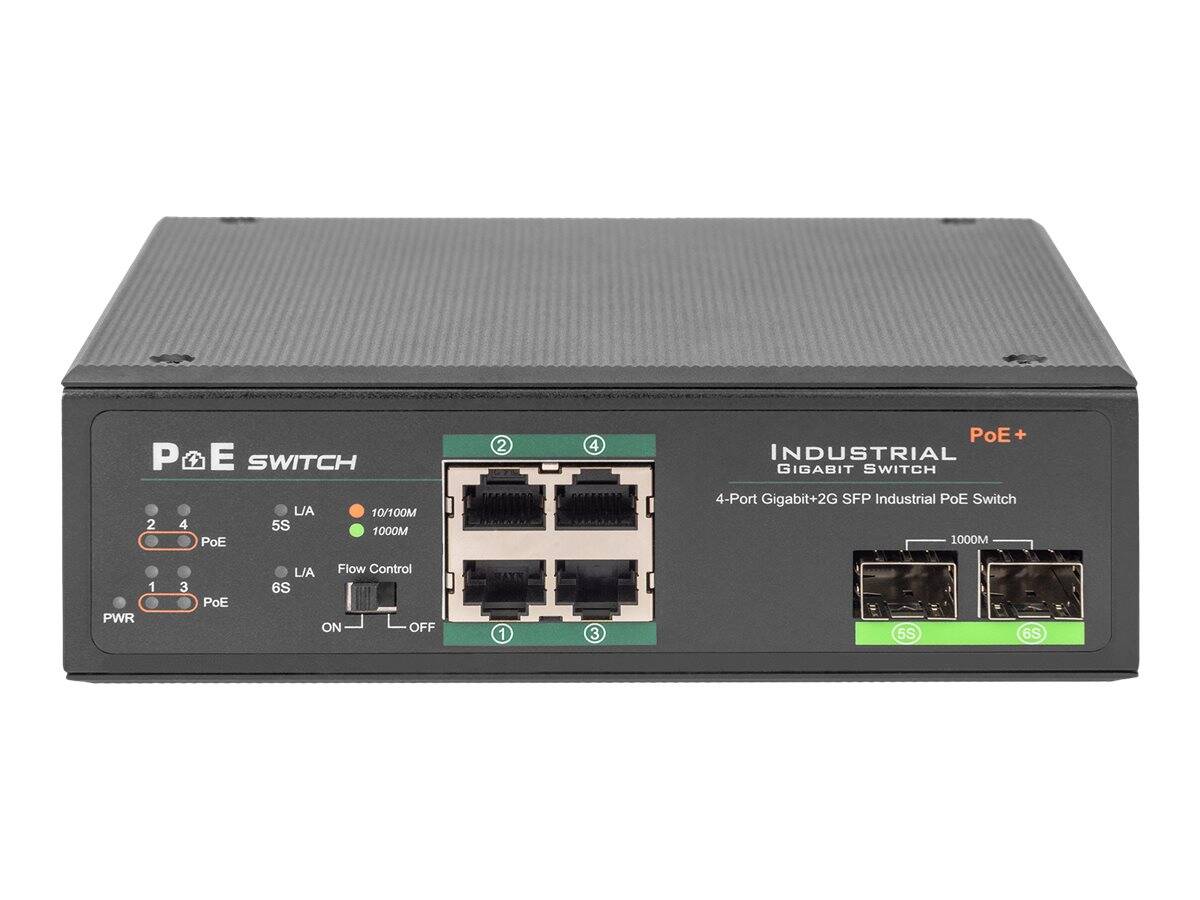

· 4x 10/100/1000Base-TX Ethernet PoE ports· 2x 1000Base-X SFP uplink ports
· DIN rail mounting possible
Product Specification
| Device Type | Switch - 4 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 (PoE+) + 2 x Gigabit SFP (uplink) |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Backplane speed: 12 Gbps |
| MAC Address Table Size | 1K entries |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), over-voltage protection, short circuit protection, metal housing, lightning protection, reverse polarity protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
| Status Indicators | Power |
| Expansion / Connectivity | |
| Interfaces | 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-X SFP uplink |
| Power | |
| Voltage Required | DC 48 - 57 V |
| Dimensions & Weight | |
| Width | 23.1 cm |
| Depth | 18.6 cm |
| Height | 8.4 cm |
| Weight | 760 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
Features - Digitus - DN-651109
More Details
Product Code
03:165900
EAN Code
4016032457923
Manufacturer
Digitus
