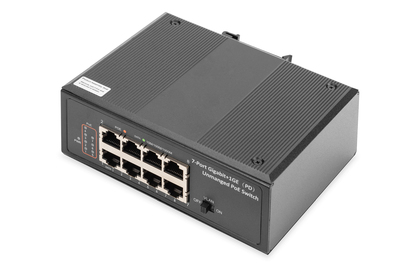

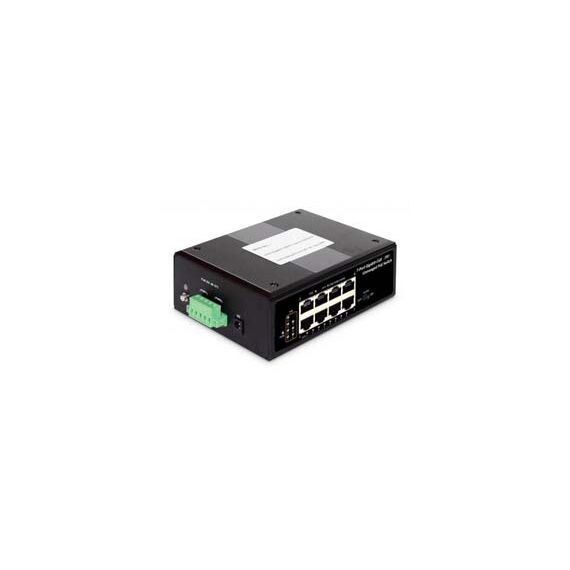

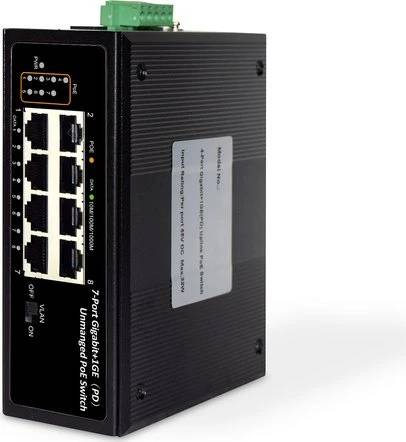

DIGITUS DN-651113 - Switch - unmanaged - 7 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) - DIN rail mountable - PoE++ - DC power | DN-651113
DIGITUS DN-651113 - Switch - unmanaged - 7 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) - DIN rail mountable - PoE++ - DC power | DN-651113
€210.61 inc. VAT
DN-651113
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features

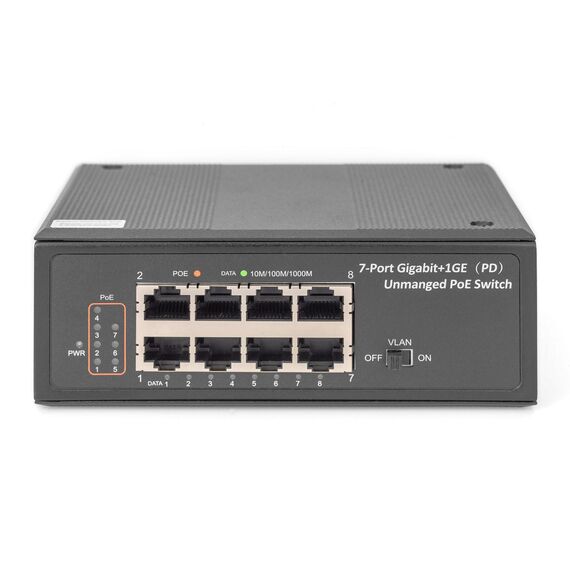

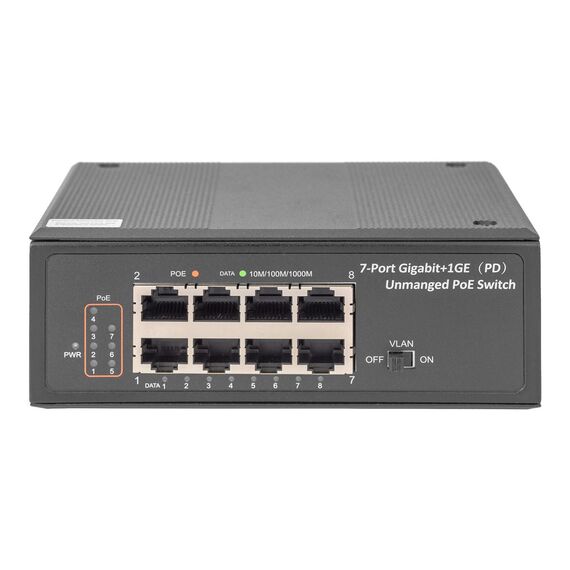

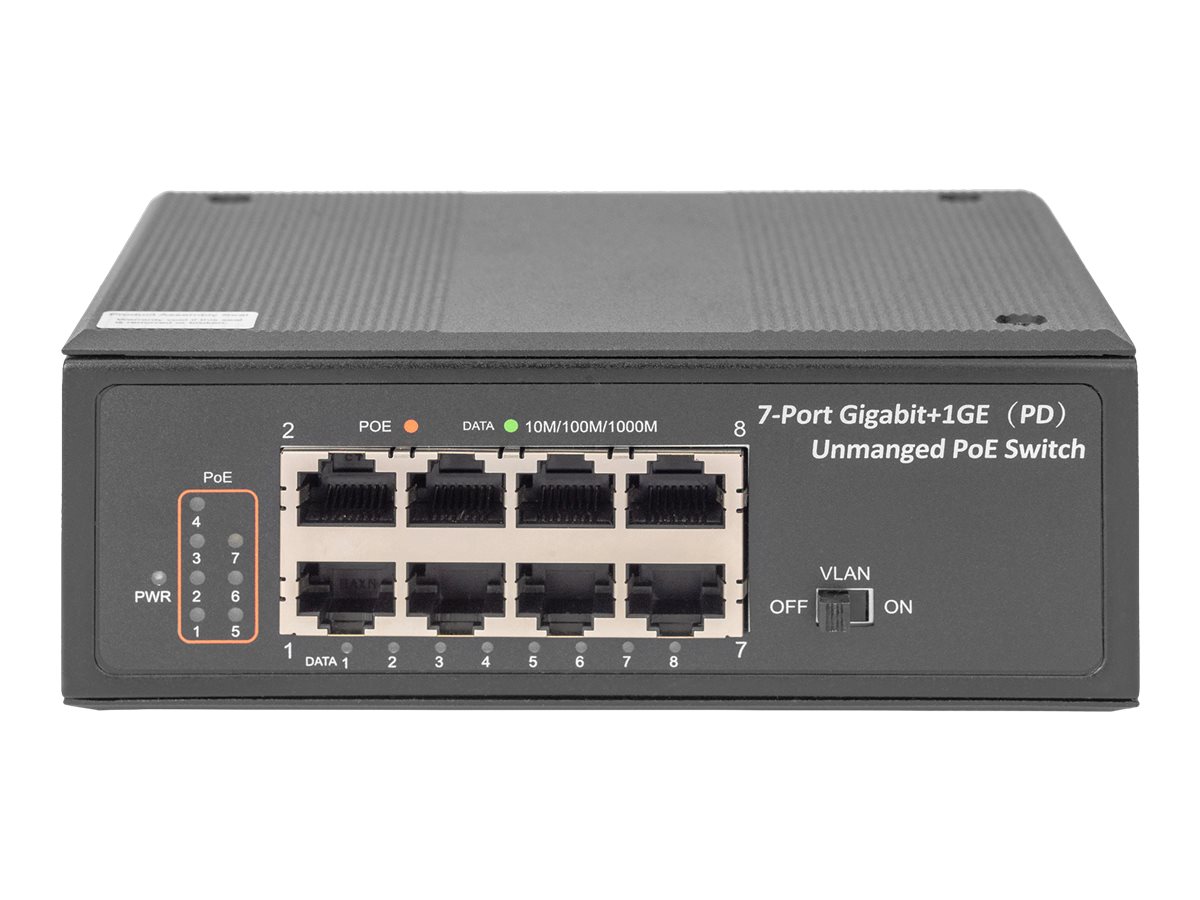

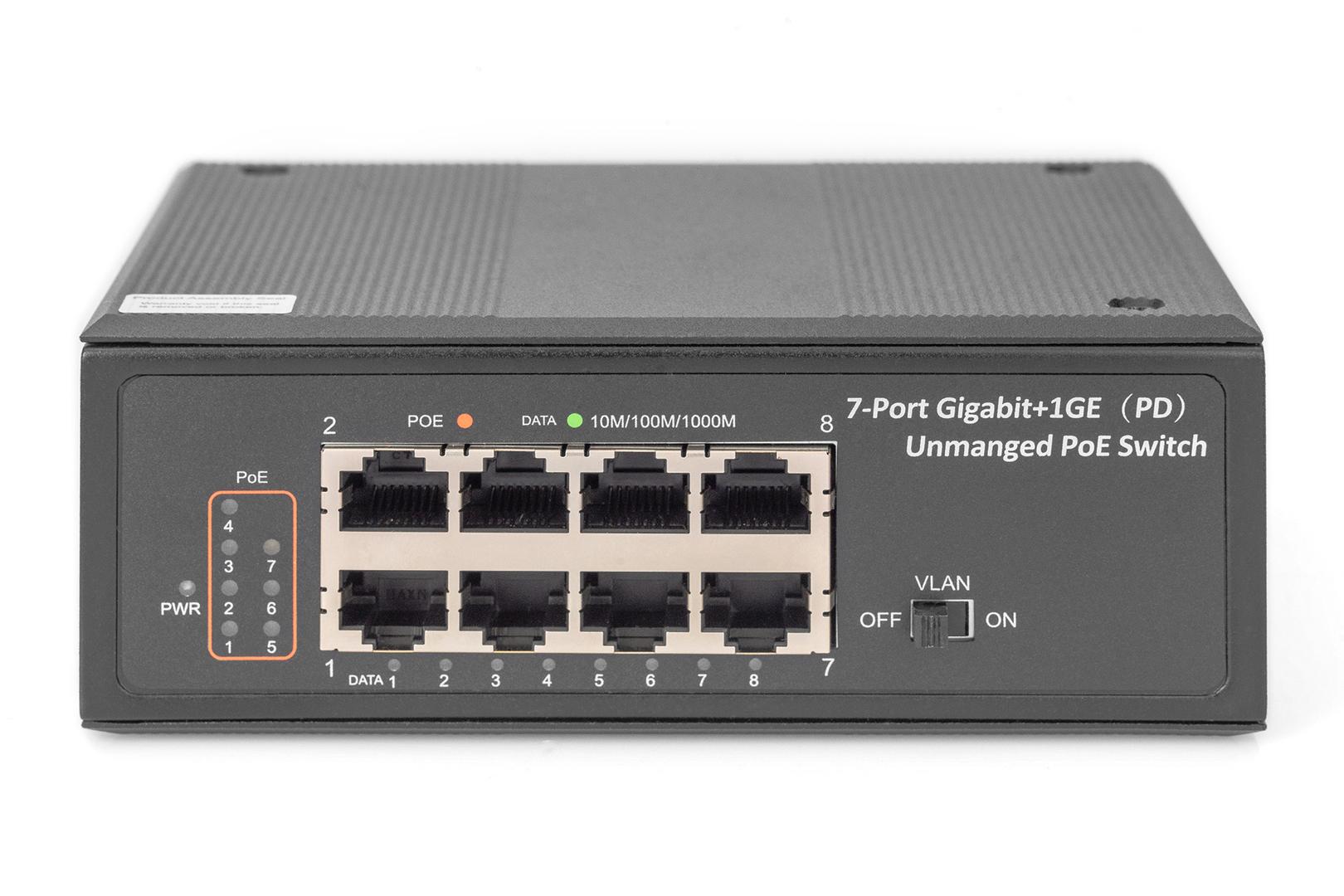

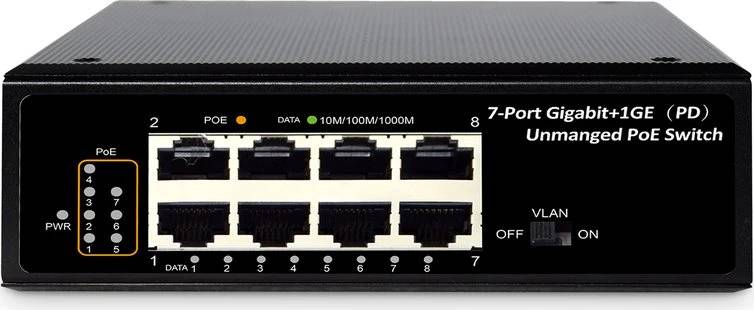

· 7x 10/100/1000Base-TX Ethernet PoE ports· 1x 10/100/1000Base-TX Ethernet PD (Power Delivery) port
· Supports IEEE802.3af/at/bt as PD input power supply up to 95 W
· Automatic Cable detection - Auto MDI / MDI-X function
· Supported standards: IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3z Gigabit Ethernet
· Backplane 16G
· MAC address memory 4K
· Compact, sturdy metal enclosure
· Excellent short-circuit protection
· Lightning protection and overvoltage protection

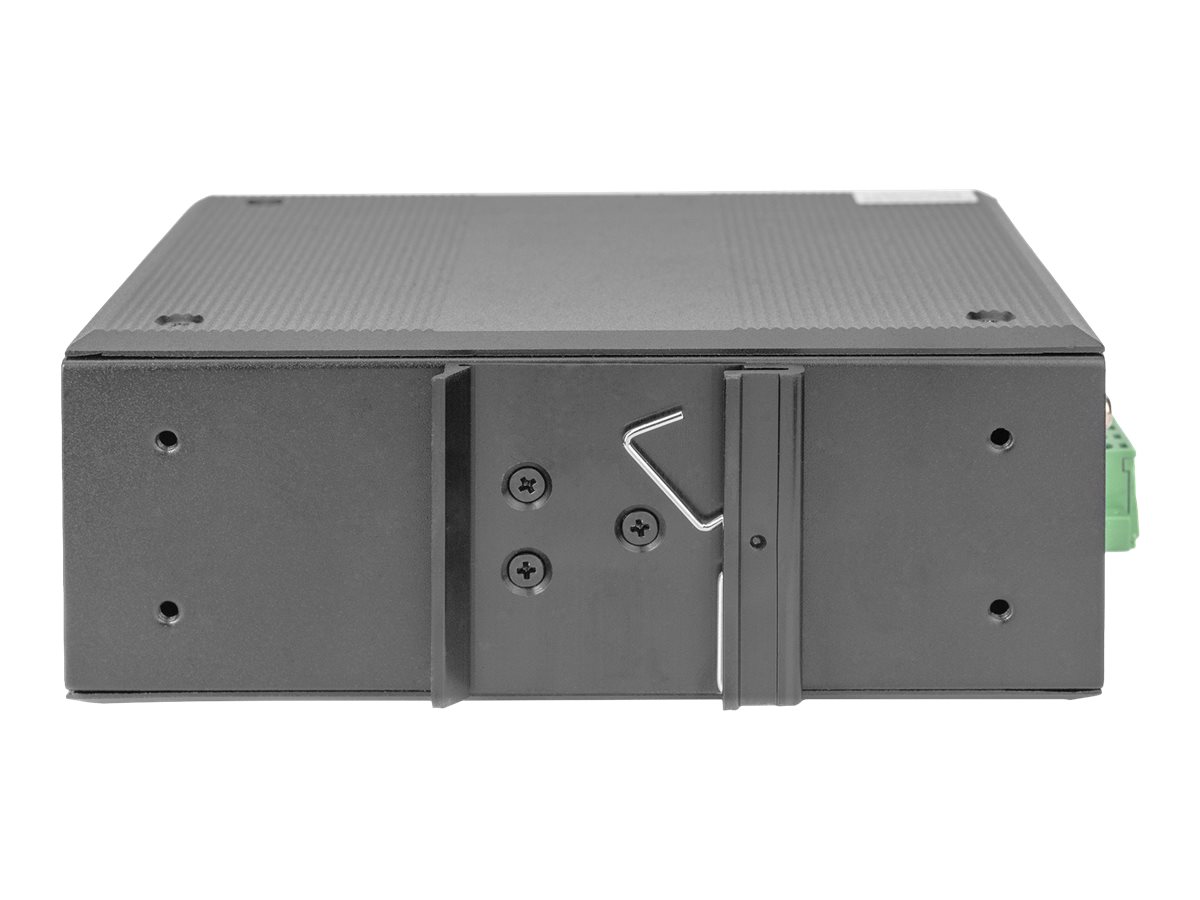

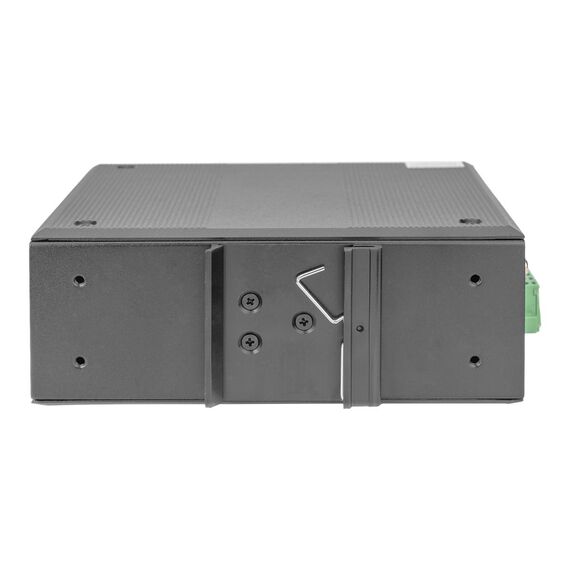

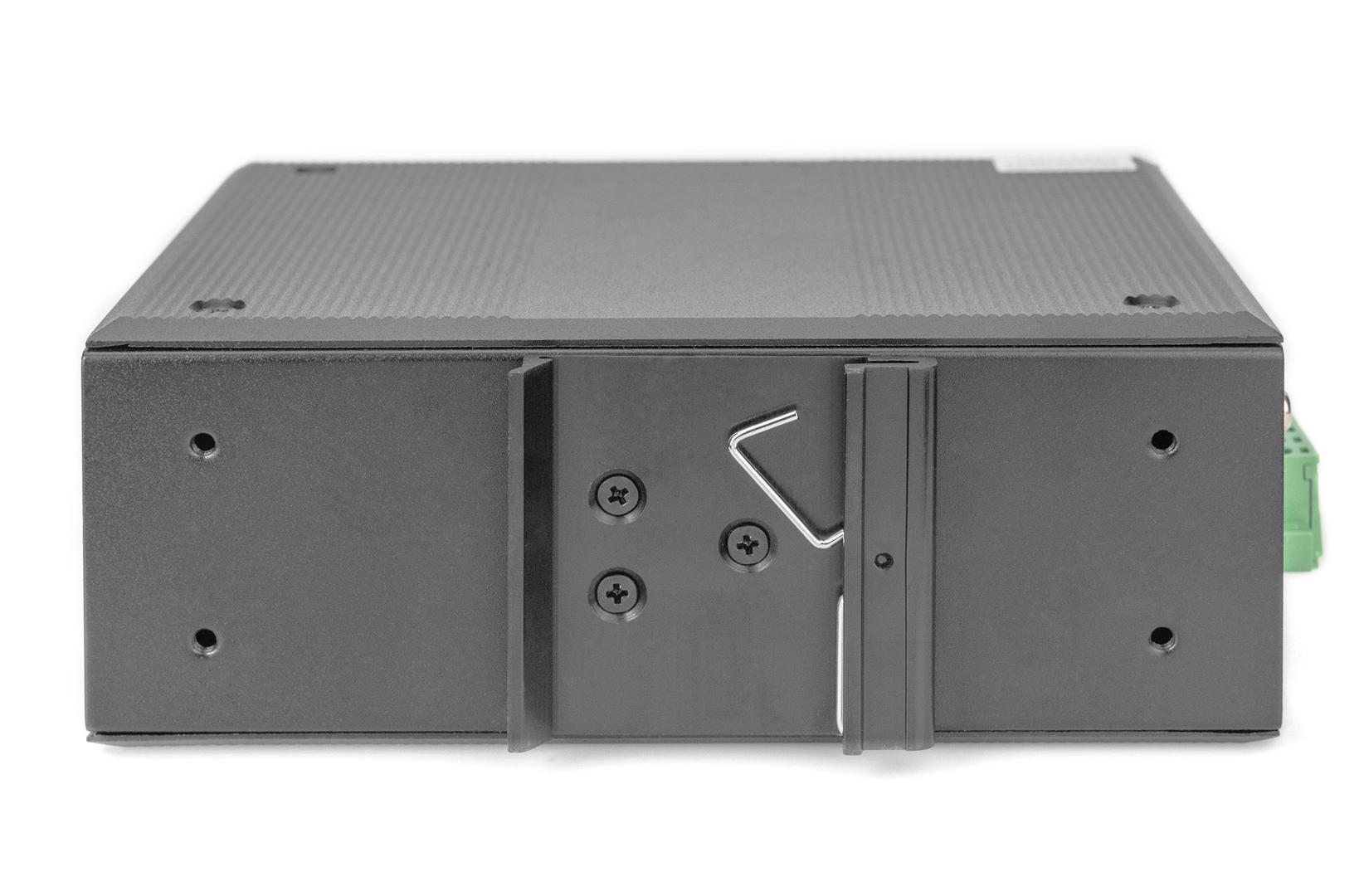

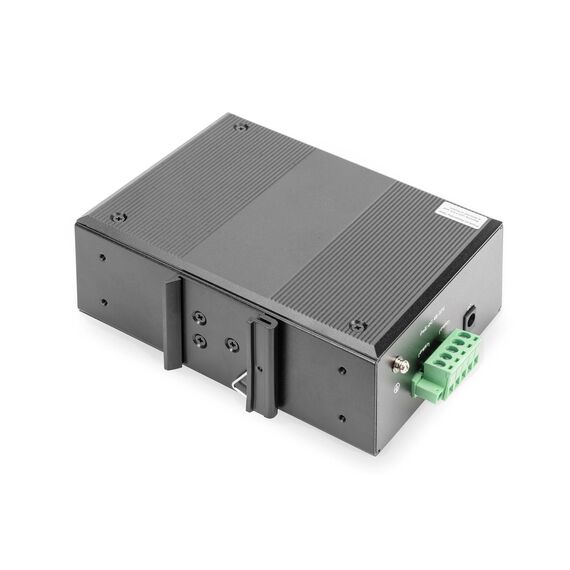

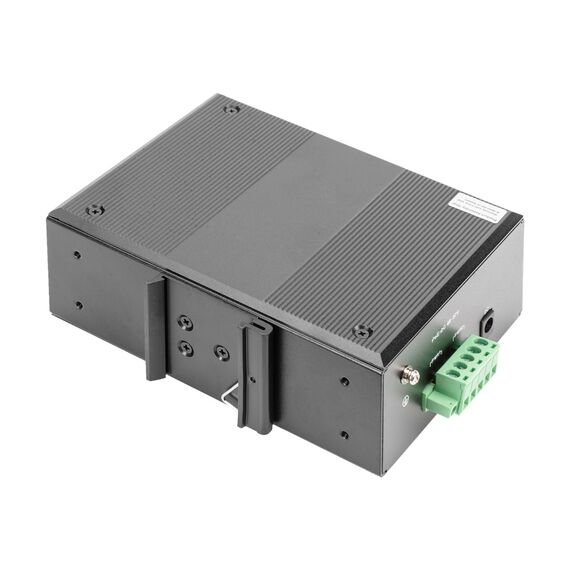

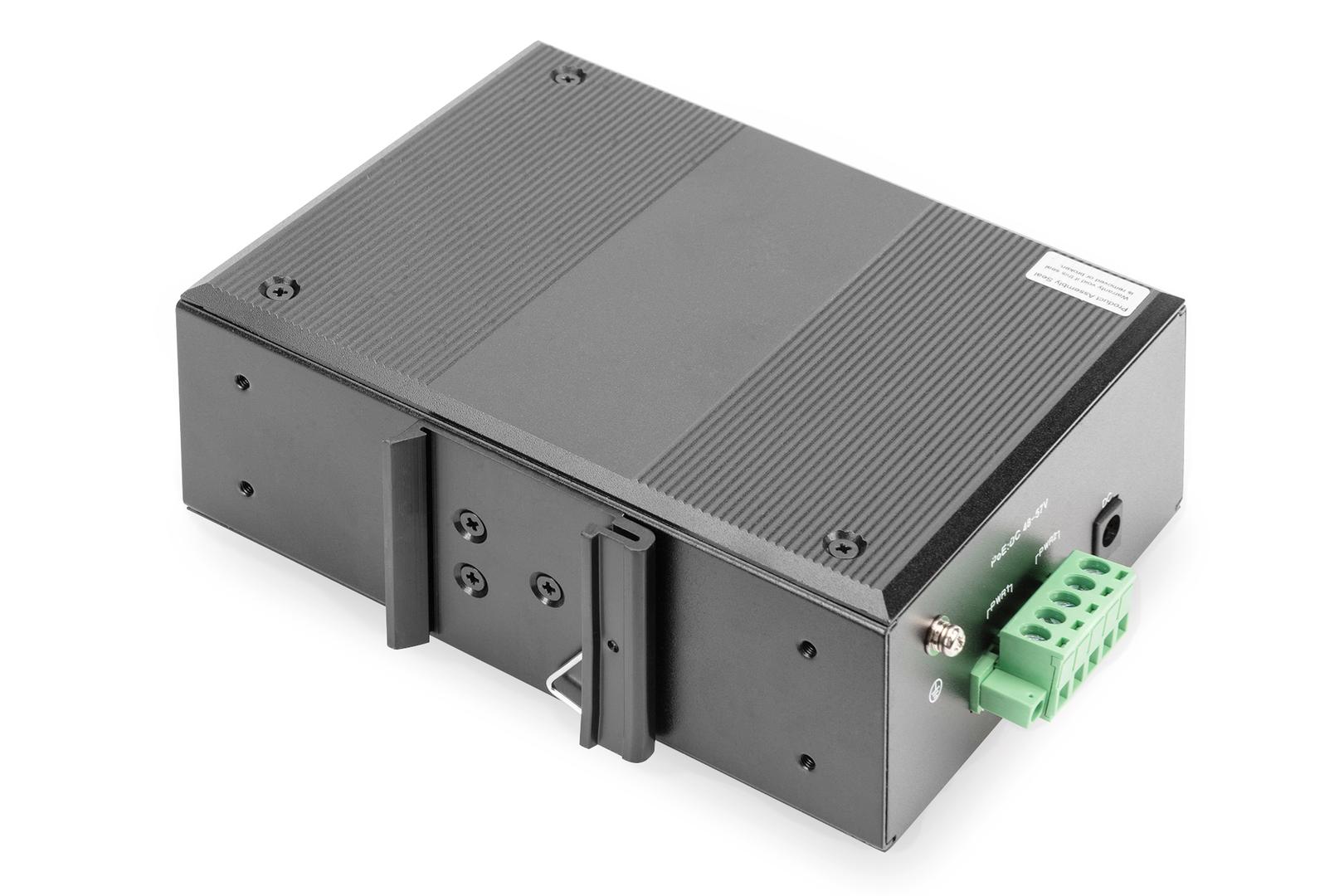

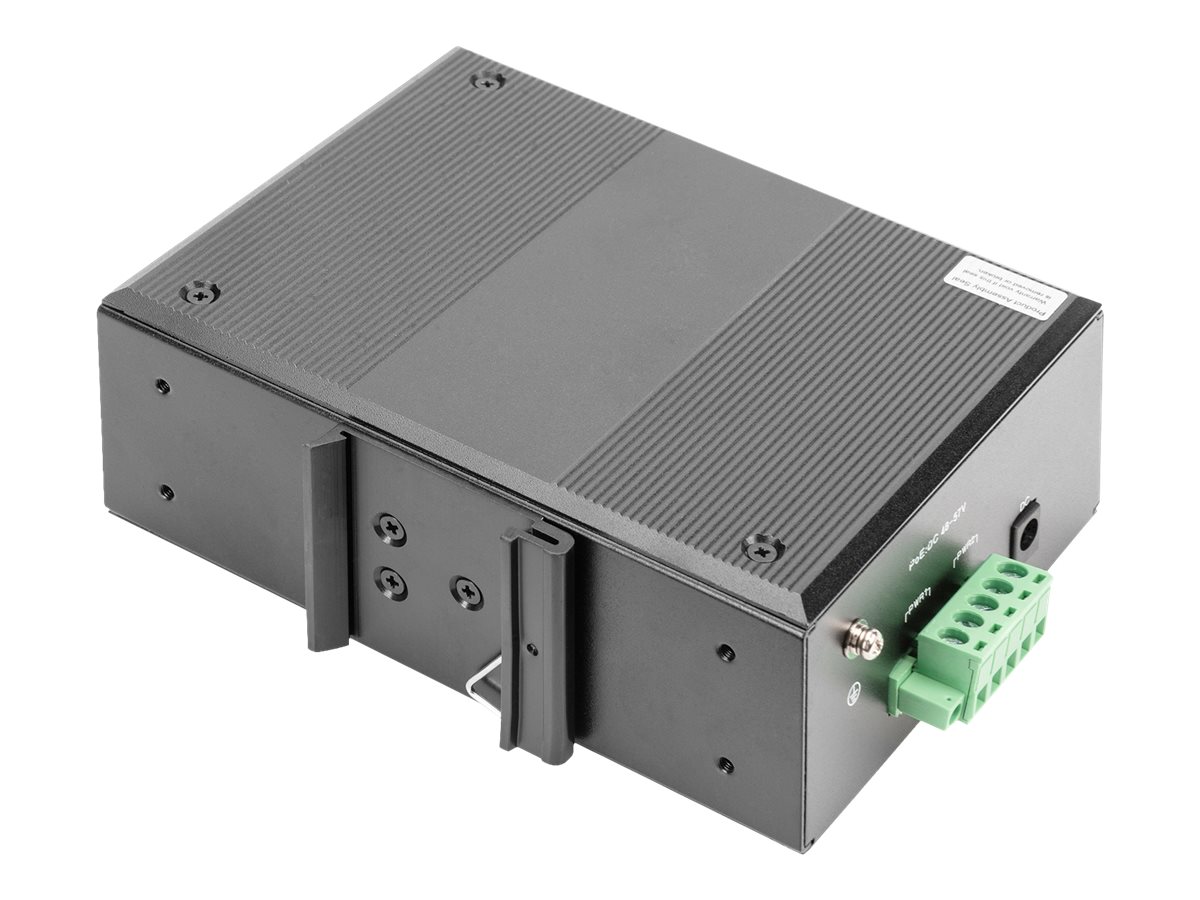

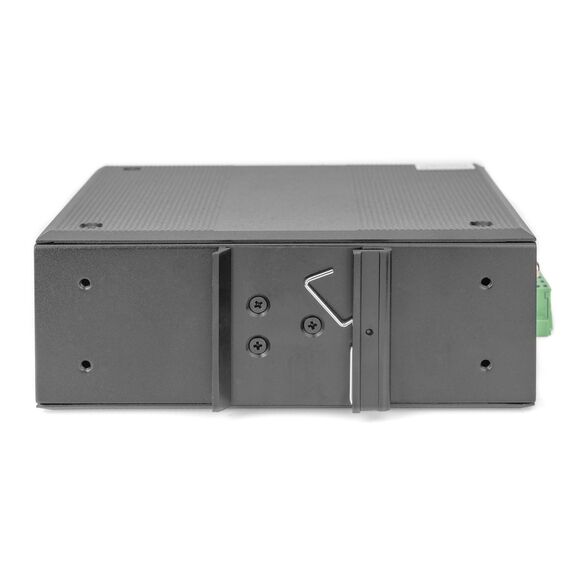

· Suitable for DIN rail (top-hat rail) mounting

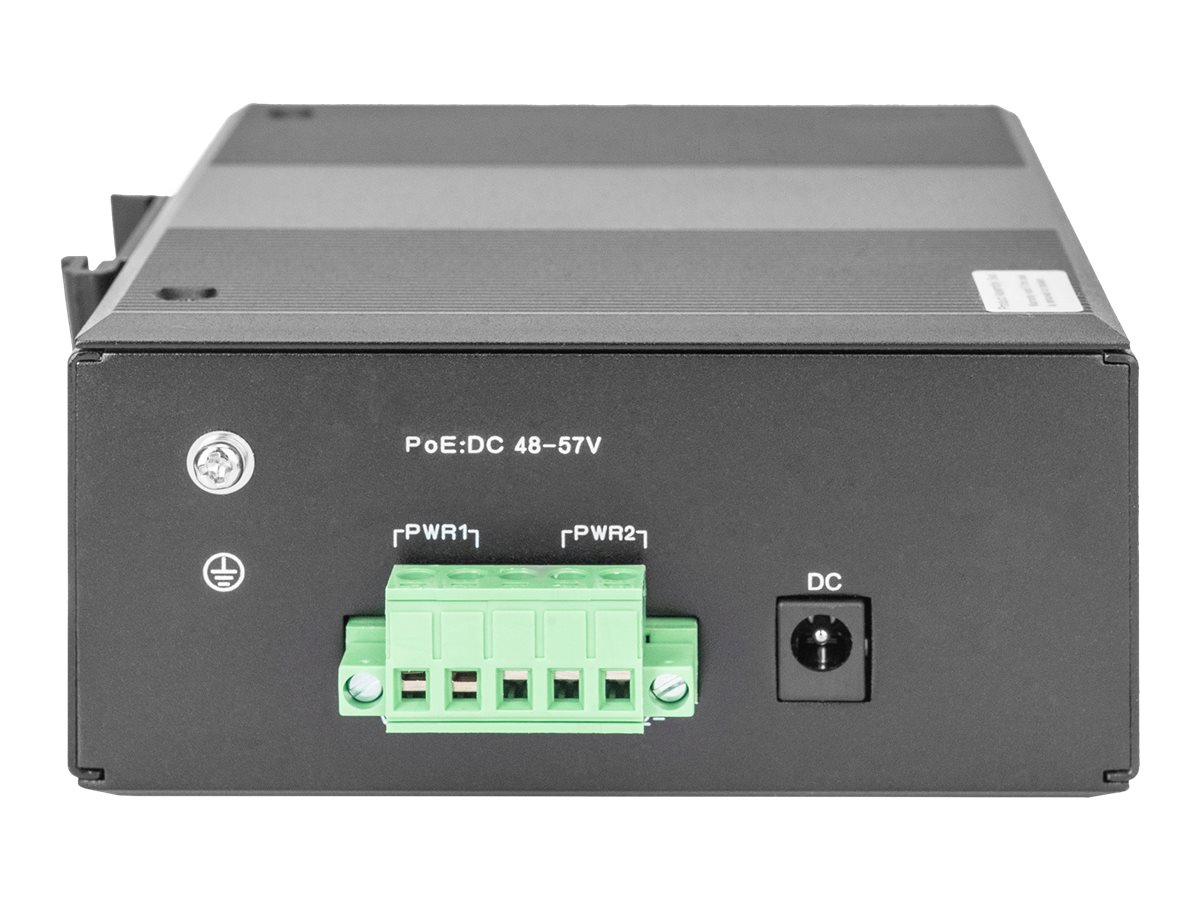

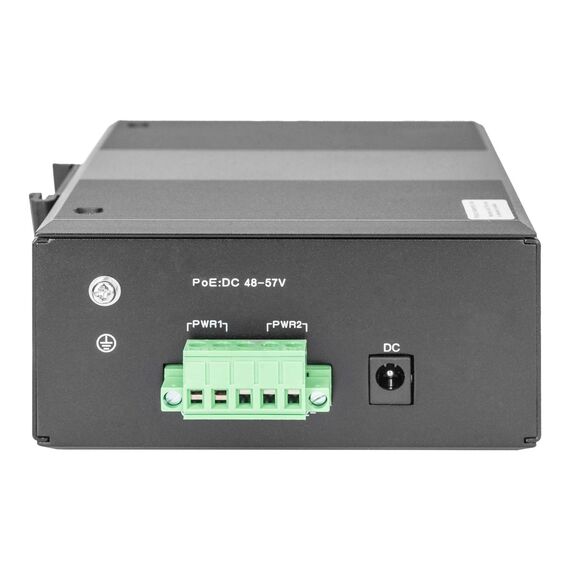

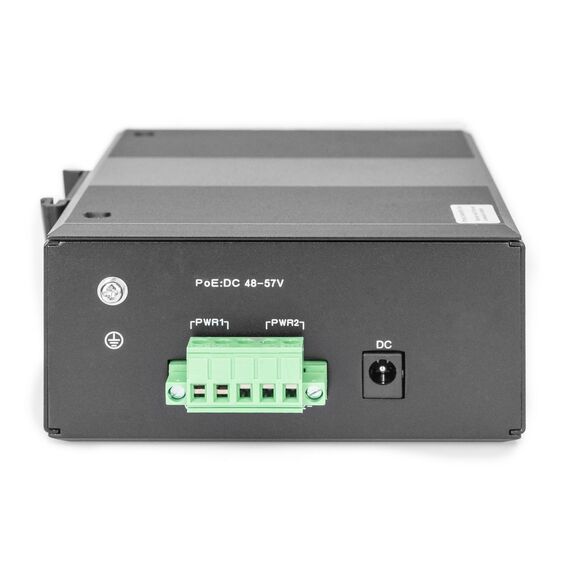

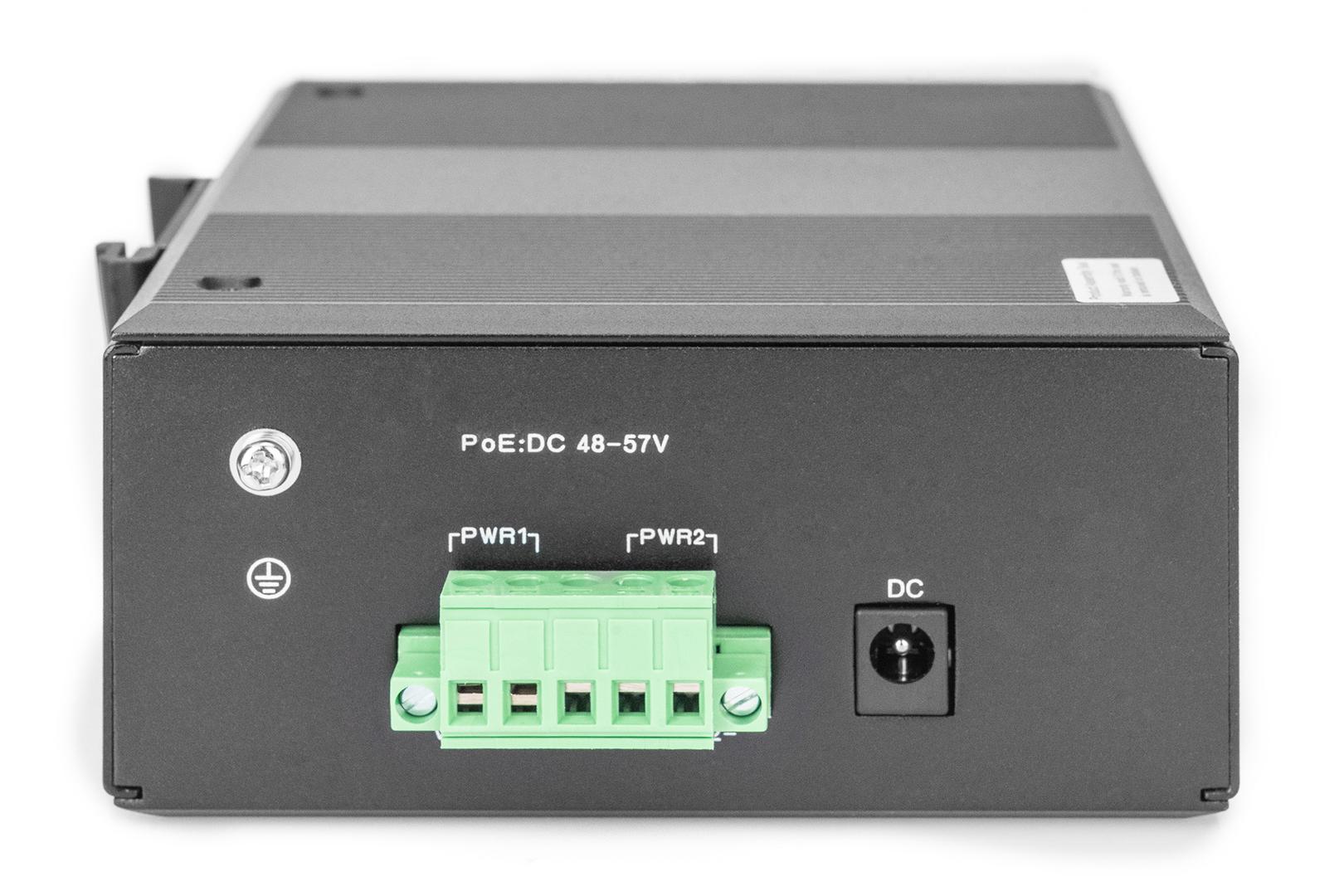

· Redundant power supply: 48-57 V/DC, redundant power supply with polarity reversal protection function
· Extended operating temperature range, -20 °C to +70 °C
· Removable terminal connection
Special Fetures
· 7x 10/100/1000Base-TX Ethernet PoE ports· 1x 10/100/1000Base-TX Ethernet PD (Power Delivery) port
· DIN rail mounting possible
Product Specification
| Device Type | Switch - 7 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 7 x 10/100/1000 (PoE+) + 1 x 10/100/1000 (PoE++) |
| Power Over Ethernet (PoE) | PoE++ |
| Performance | Backplane speed: 16 Gbps |
| MAC Address Table Size | 4K entries |
| Features | Flow control, auto-uplink (auto MDI/MDI-X), over-voltage protection, short circuit protection, metal housing, lightning protection, reverse polarity protection |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Status Indicators | Power |
| Expansion / Connectivity | |
| Interfaces | 7 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45 PoE++ |
| Power | |
| Voltage Required | DC 48 - 57 V |
| Dimensions & Weight | |
| Width | 23.1 cm |
| Depth | 18.6 cm |
| Height | 8.4 cm |
| Weight | 59 g |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
Features - Digitus - DN-651113
More Details
Product Code
04:310156
EAN Code
4016032457947
Manufacturer
Digitus
