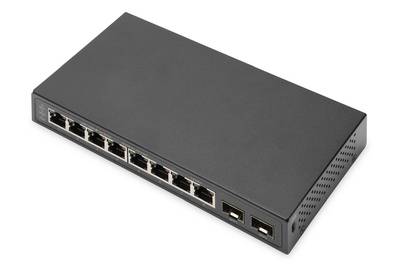

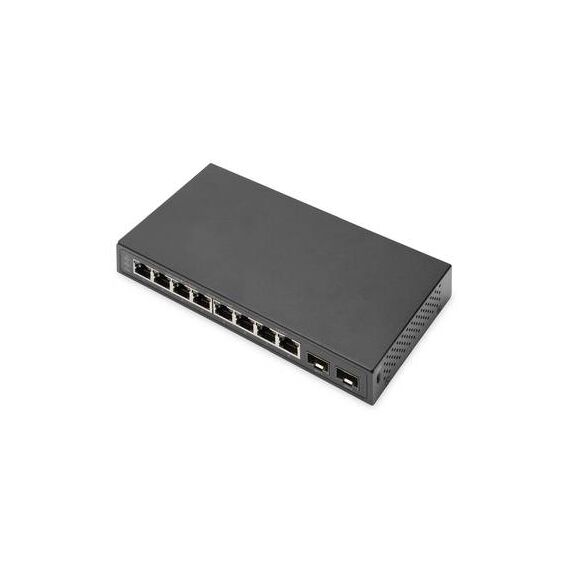

DIGITUS DN-80067 / Switch / unmanaged / 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) / desktop, wall-mountable | DN-80067
Please sign in so that we can notify you about a reply
Product Features
· 8 ports 10/100/1000 Mbps· 2 ports 1000Mbps SFP
· Network standards: IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab standards
· Auto-negotiation: Auto MDI/MDIX
· IEEE802.3x full-duplex flow control
· Transfer Method : Store and forward
· Backplane bandwidth: 20 Gbps
· 4K entry MAC address table of the switch with auto-learning and auto-aging
· Buffer 1.5Mbit
· Packet Forwarding Rate: 14.88Mbps
· Jumbo Frame 9216Bytes
· LED indicators: link, active , speed
· Operating voltage: 12V DC / 1A
· Power consumption: 5.78W max.
· Power supply: 100 - 240 V AC, 50/60 Hz
· Power Plug : DC plug 5.5 mm/2.1 mm
· Operating temperature: 0°C to 45°C
· Storage humidity: 5%~90% non-condensing
· Dimensions: 190x100x28 mm
· Weight: 378 g
· Chipset: RTL8370MB+RTL8231
Special Features
· 8 x RJ45 ports 10/100/1000 Mbps· 2 ports 1000Mbps SFP Slots
· Support desktop and Wall mount installation
· Switching Capacity 20Gbps
· Network standards: IEEE 802.3, IEEE 802.3u, IEEE802.3x, IEEE802.3ab
· Durable metal enclosure
· Fanless design (air flow cooling)
· LED indicators for Link/ Activity / Speed
Product Specification
| Device Type | Switch - 8 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) |
| Performance | Backplane speed: 20 Gbps ¦ Buffer memory: 1.5 Mbit ¦ Packet forwarding rate: 14.88 Mbps |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9216 bytes |
| Features | Auto-uplink (auto MDI/MDI-X), store and forward, full duplex mode, RTL8370MB+RTL8231 chipset |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Status Indicators | Active, speed, link |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-T (uplink) SFP |
| Power | Power |
| Voltage Required | DC 12 V |
| Power Consumption Operational | 5.78 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 19 cm |
| Depth | 10 cm |
| Height | 2.8 cm |
| Weight | 378 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 25.6 cm |
| Shipping Depth | 15.8 cm |
| Shipping Height | 7.9 cm |
| Shipping Weight | 810 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - Digitus - DN-80067
General
8-Port
More Details
Product Code
04:419504
EAN Code
4016032478706
Manufacturer
Digitus
