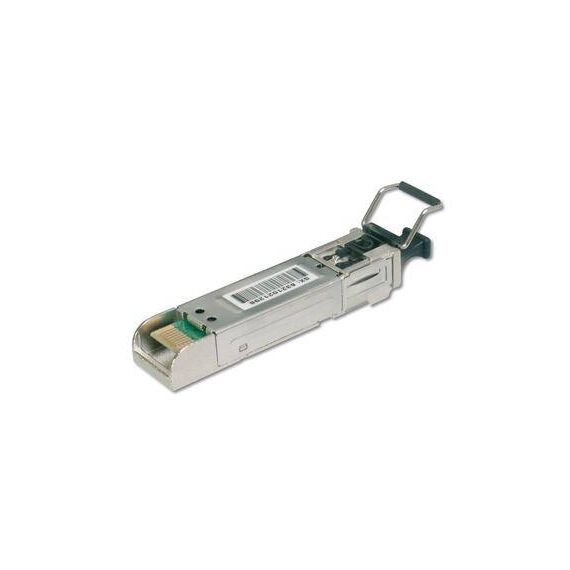

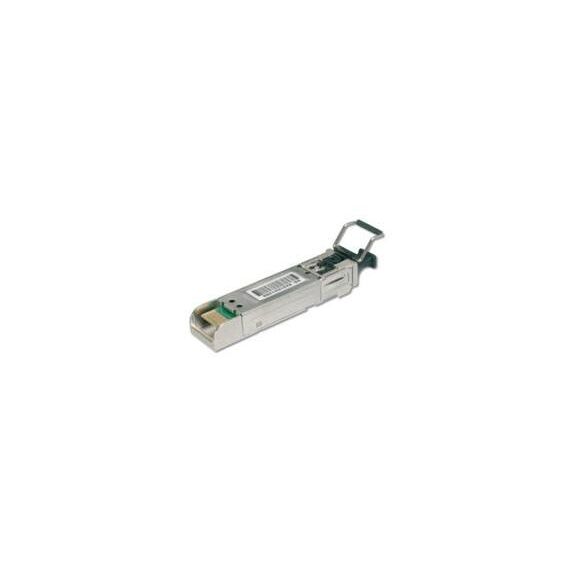

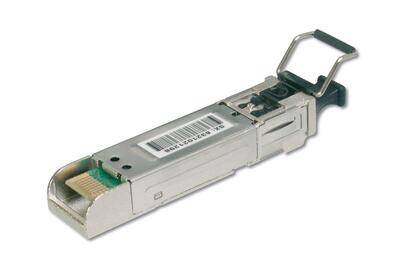

DIGITUS DN-81001-01 / SFP (mini-GBIC) transceiver module / GigE / 1000Base-LX / LC single-mode / up to 20 km / 1310 nm | DN-81001-01

Product Features

· HP compatible
· HP-Aruba compatible
· Mini GBIC SFP (Small Form Factor Pluggable) module
· High quality and excellent reliability
· 1.25 Gbps Maximum Data Rate
· Compliant to IEEE 802.3z Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable
· Connector: 1x LC Duplex
· 1000Base-LX - For Long Haul
· Wavelength: 1310nm
· Transmission power: minimum -8 dBm, maximum -3 dBm
· Sensitivity receiving power: minimum -24 dBm
· For a Distance of up to 20km
· Suitable for 09/125µm Singlemode Fiber Cables
· Safe fast-locking mechanism
· 3.3V power supply
· Operating temperature: 0 °C ~ 70 °C
· Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet,  Mikrotik , ENTERASYS, RIVERSTONE ,  Unifi, Ubiquiti, ZyXEL, ZTE

Special Features

· The Plug & Play fiber optic link enables quick installation
· Sends data in high quality and additionally provides excellent reliability
· Distance up to 20 km at a maximum data rate of 1.25Gbps
· Operating temperature: 0 °C ~ 70 °C

Product Specification

Device Type	SFP (mini-GBIC) transceiver module
Form Factor	Plug-in module
Networking	Networking
Connectivity Technology	Wired
Cabling Type	1000Base-LX
Data Link Protocol	GigE
Data Transfer Rate	1.25 Gbps
Optical Wave Length	1310 nm
Max Transfer Distance	20 km
Compliant Standards	IEEE 802.3z
Expansion / Connectivity	Expansion / Connectivity
Interfaces	1 x Ethernet 1000Base-LX - LC single-mode x 2
Miscellaneous	Miscellaneous
Compliant Standards	Plug and Play, Laser Class 1, EN 60825-1, MSA
