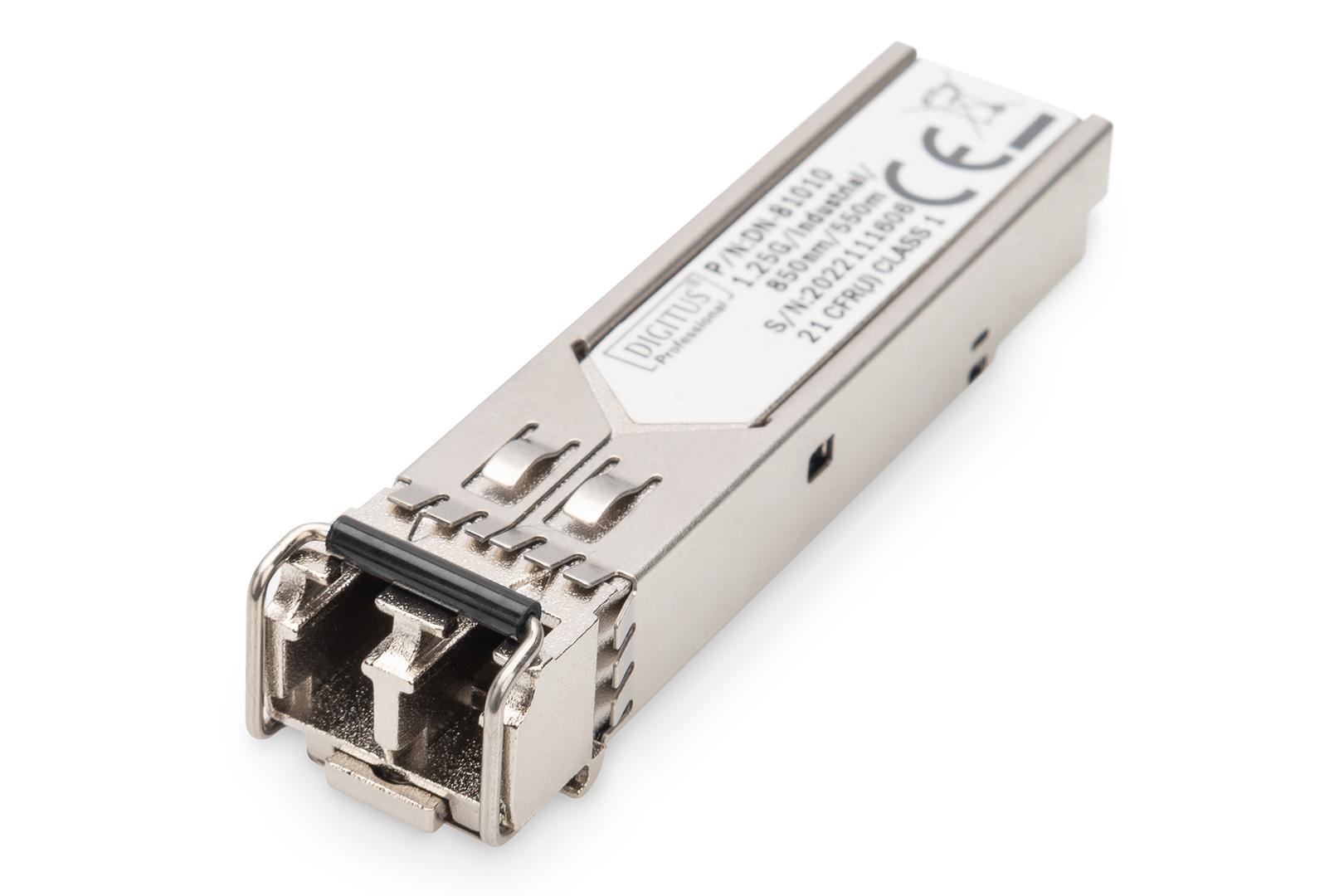

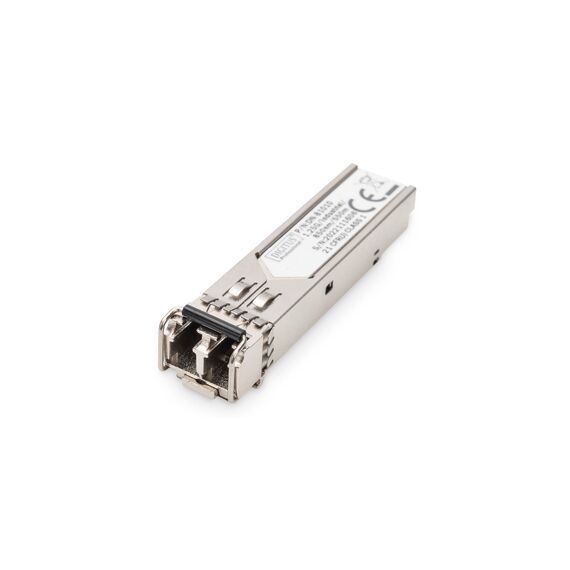

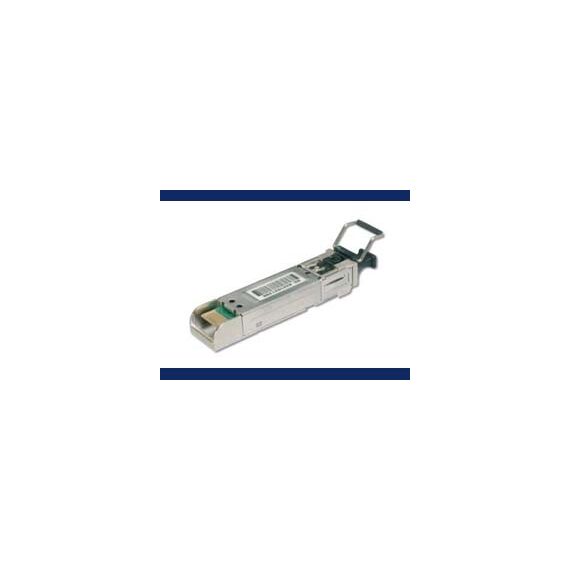

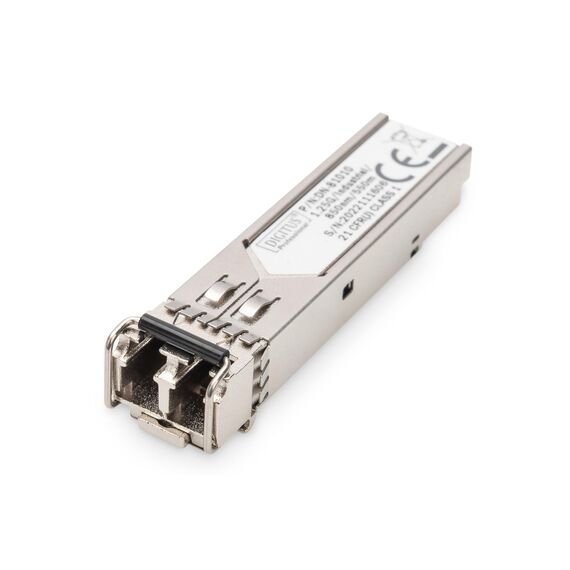

DIGITUS DN-81010 - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX - LC multi-mode - up to 550 m - 850 nm | DN-81010
DIGITUS DN-81010 - SFP (mini-GBIC) transceiver module - 1GbE - 1000Base-SX - LC multi-mode - up to 550 m - 850 nm | DN-81010
€28.23 inc. VAT
DN-81010
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· Mini GBIC SFP (Small Form Factor Pluggable) module· Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
· High quality and excellent reliability
· 1.25 Gbps Maximum Data Rate
· Compliant to IEEE 802.3z Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable

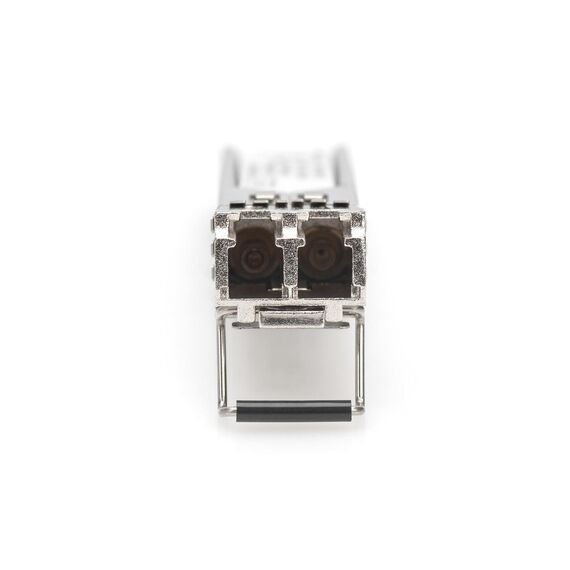

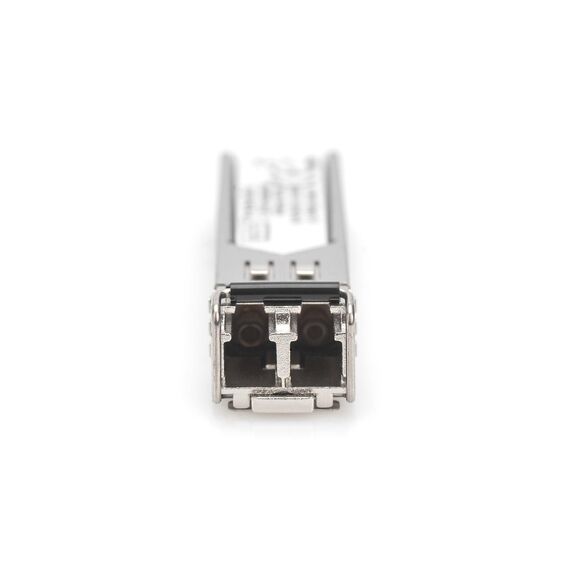

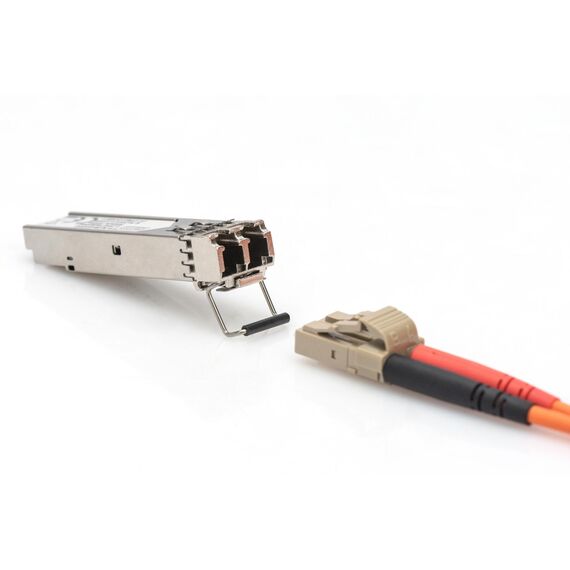

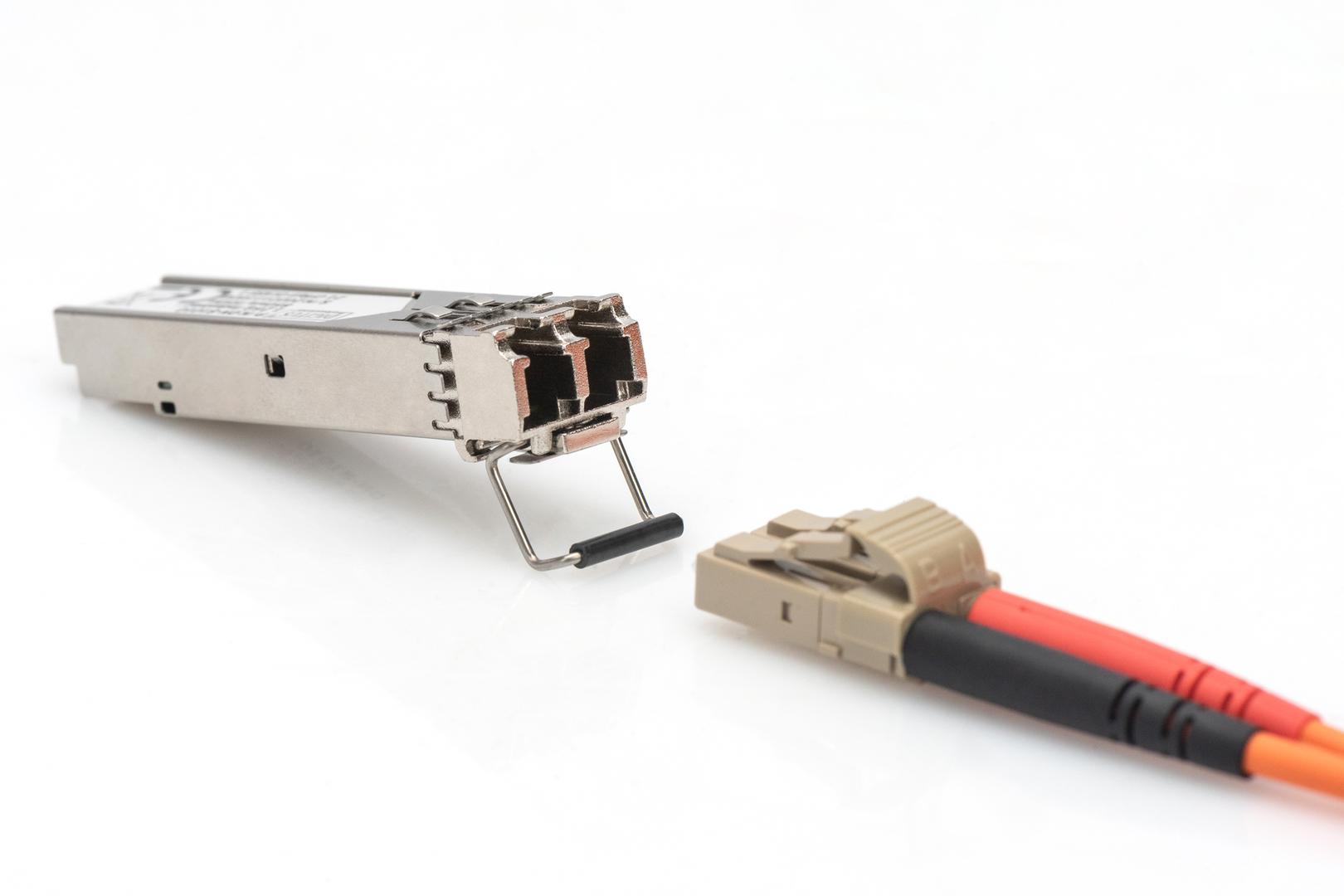

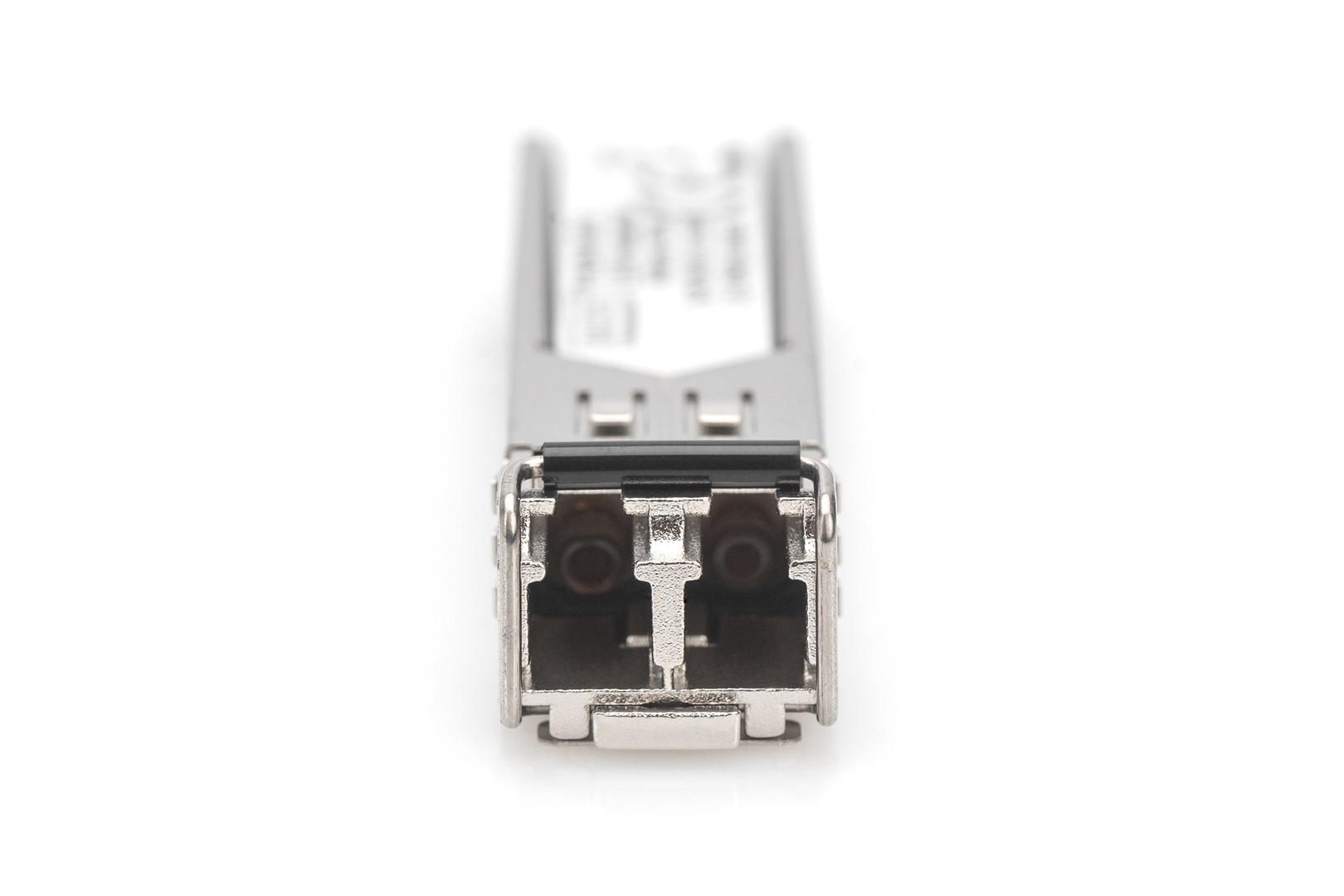

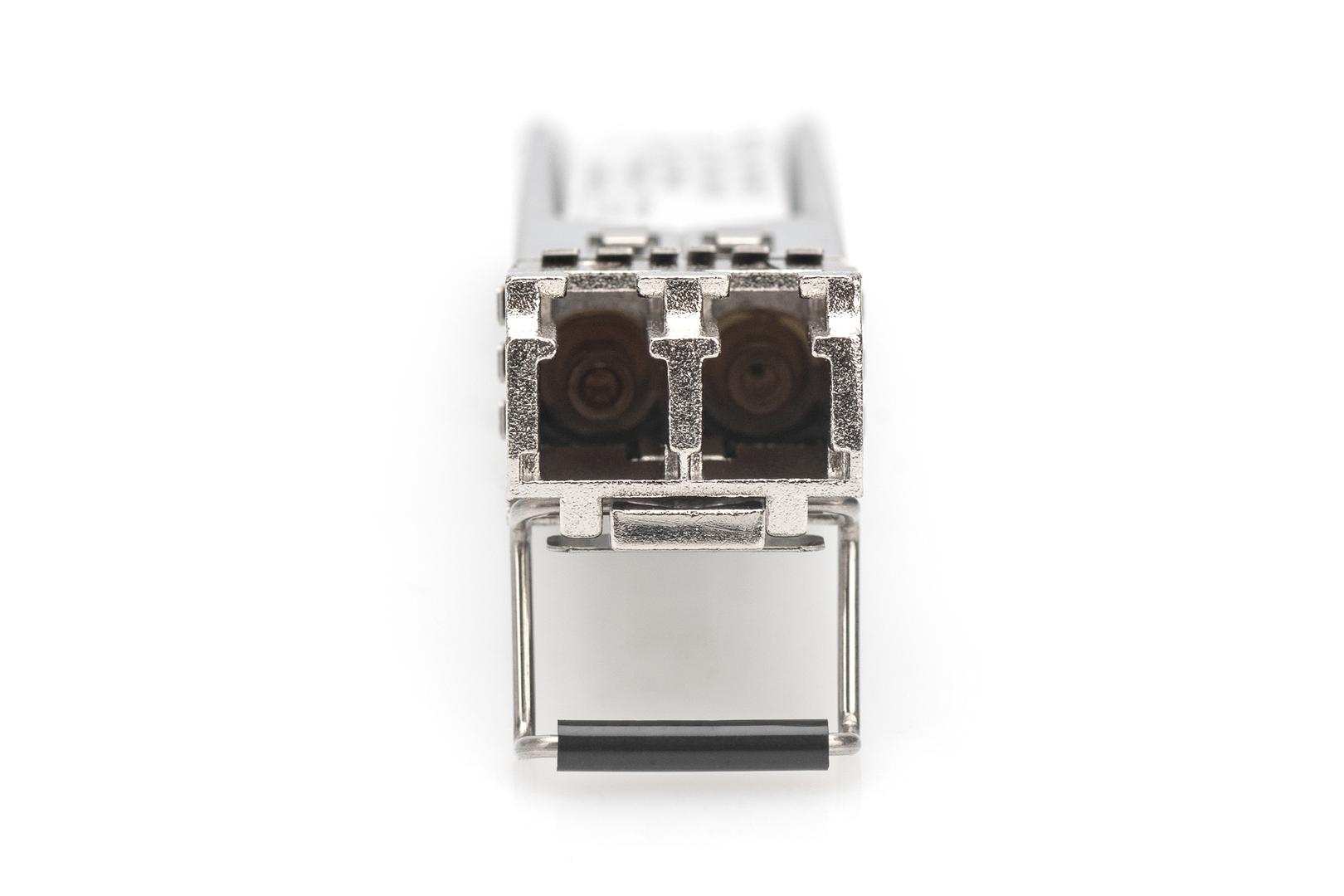

· Connector: 1x LC Duplex
· 1000Base-SX - For Short Haul
· Wavelength: 850nm
· Transmission power: minimum -8 dBm, maximum -3 dBm
· Sensitivity Receiving Power: Minimum -20 dBm
· For a Distance of up to 0.55km
· Suitable for 50/125µm and 62.5/125µm multimode fiber cables
· Safe fast-locking mechanism
· 3.3V power supply
· Operating temperature: -40 °C - +85 °C
Special Fetures
· The Plug & Play fiber optic link enables quick installation· Sends data in high quality and additionally provides excellent reliability
· Distance up to 0,55km at a maximum data rate of 1.25Gbps
· Operating temperature: -40 °C - +85 °C
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000Base-SX |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1.25 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 550 m |
| Compliant Standards | IEEE 802.3z |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-SX - LC multi-mode x 2 |
| Compatible Slots | 1 x SFP (mini-GBIC) |
| Miscellaneous | |
| Compliant Standards | Laser Class 1, EN 60825-1, MSA |
Features - Digitus - DN-81010
More Details
Product Code
03:149320
EAN Code
4016032307570
Manufacturer
Digitus
