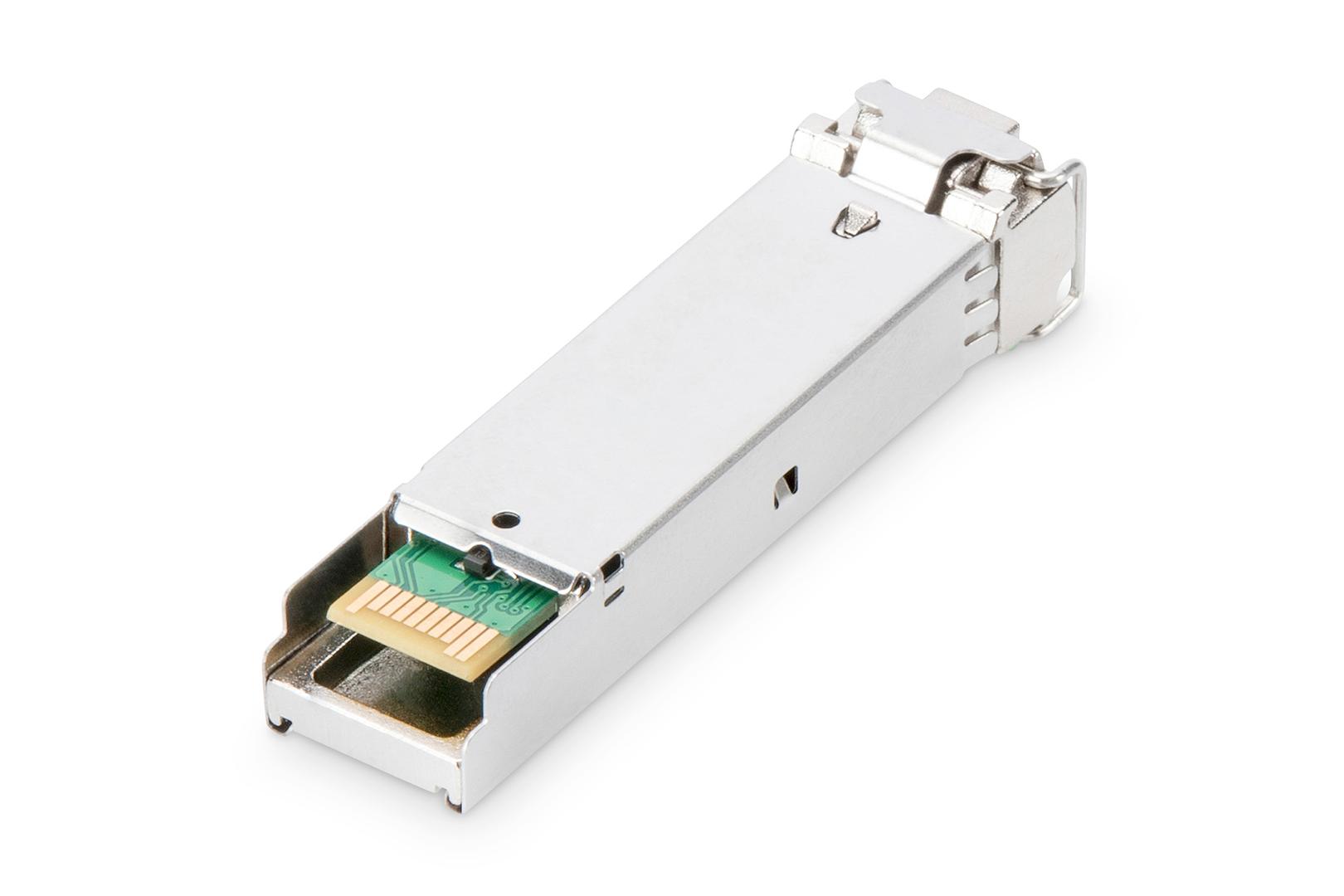

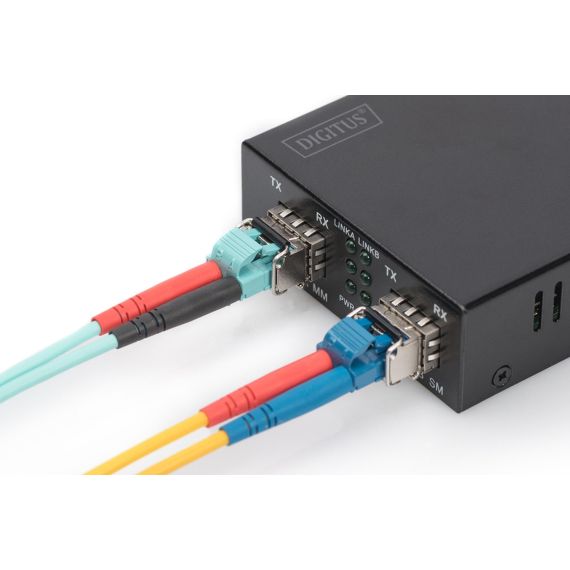

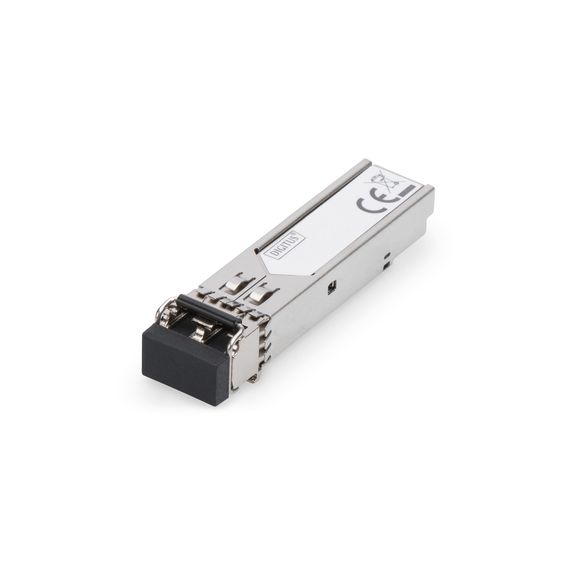

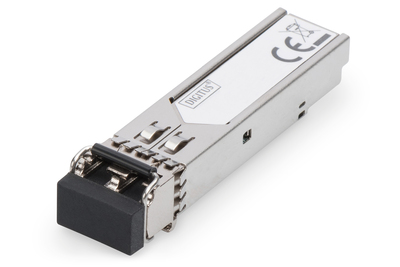

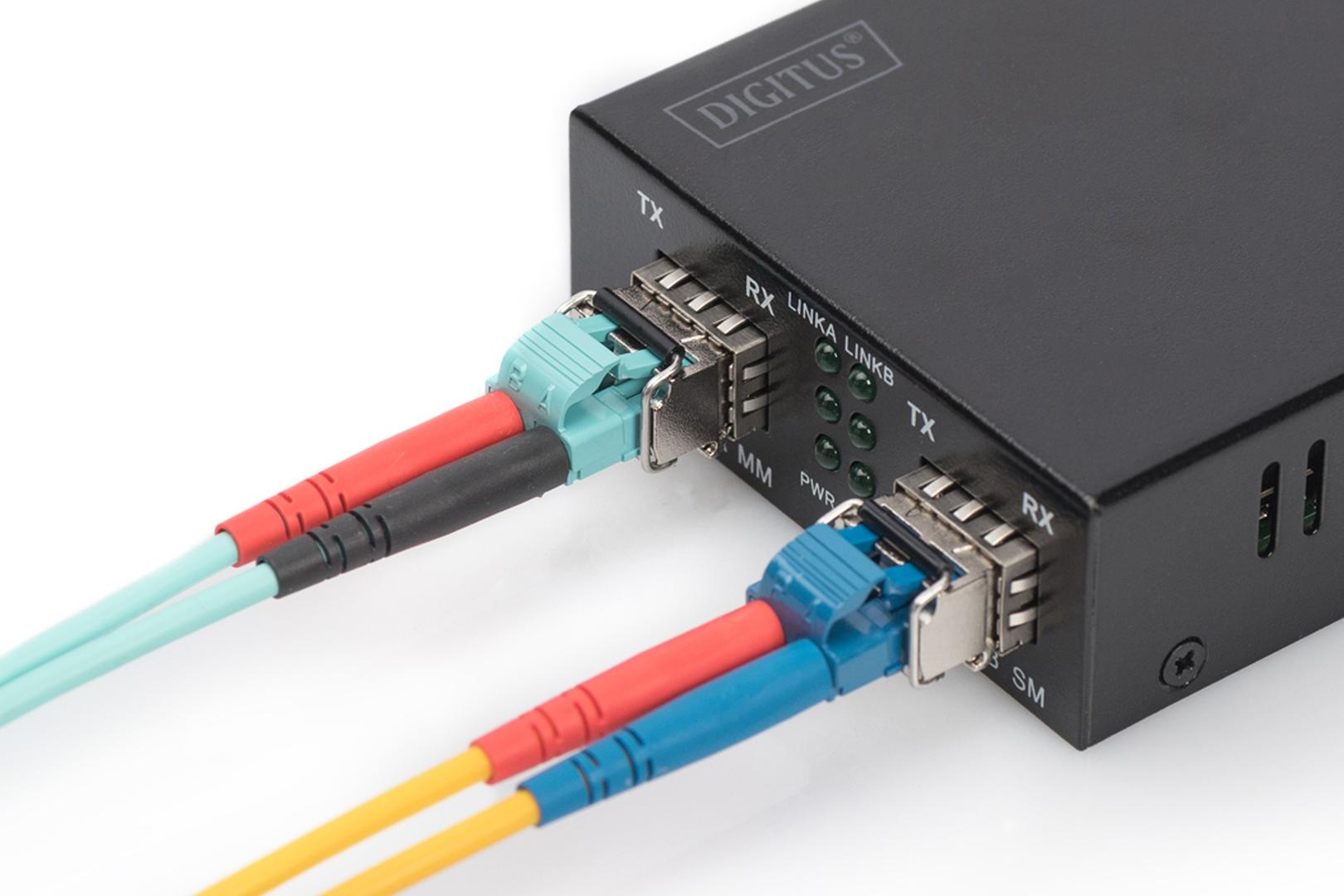

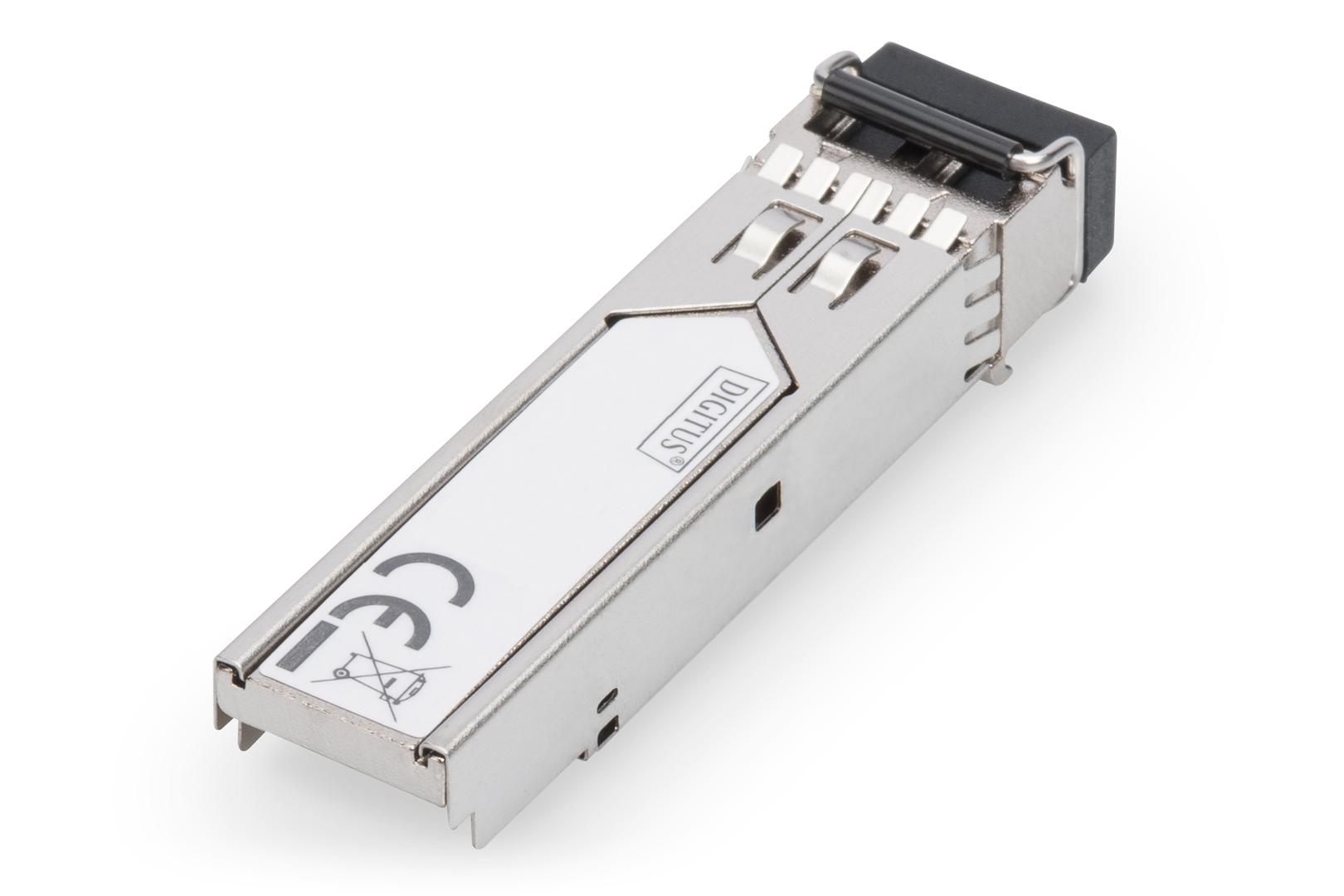

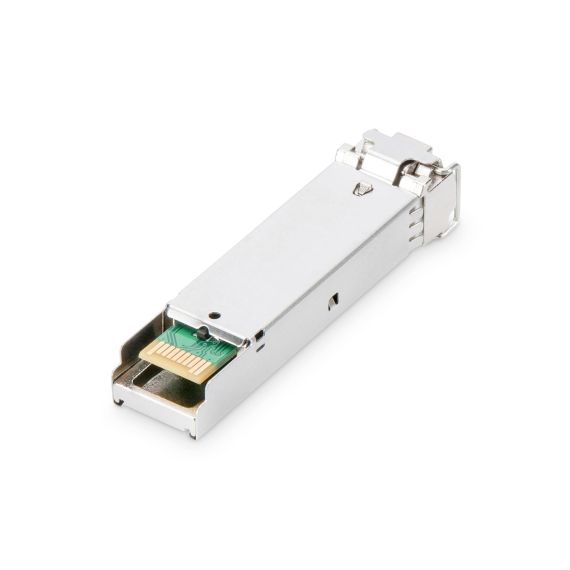

DIGITUS DN-81212 - SFP+ transceiver module - 10GbE - 10GBase-SR - LC multi-mode - up to 300 m - 850 nm | DN-81212
DIGITUS DN-81212 - SFP+ transceiver module - 10GbE - 10GBase-SR - LC multi-mode - up to 300 m - 850 nm | DN-81212
€31.31 inc. VAT
DN-81212
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· SFP+ package with LC connector· 850nm VCSEL Laser and PIN photo detector
· Up to 300m transmission on 2000MHz-km MMF
· Up to 11.3Gbps Data Links
· Power dissipation < 1W
· LVPECL compatible data input/output interface
· Low EMI and excellent ESD protection
· laser safety standard IEC-60825 compliant
· Compatible with SFF8472
· Operating temperature: -40 ~ 85 ° C
· Compatible with the following manufacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE
Special Fetures
· SFP+ package with LC connector· 850nm VCSEL Laser and PIN photo detector
· Up to 300m transmission on 2000MHz-km MMF
· Up to 11.3Gbps Data Links
· Power dissipation < 1W
· LVPECL compatible data input/output interface
· Low EMI and excellent ESD protection
· laser safety standard IEC-60825 compliant
· Compatible with SFF8472
· Operating temperature: -40 ~ 85 ° C
Product Specification
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-SR |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 850 nm |
| Max Transfer Distance | 300 m |
| Features | Digital Diagnostics Monitoring (DDM) |
Features - Digitus - DN-81212
More Details
Product Code
CG57913
EAN Code
4016032476948
Manufacturer
Digitus
