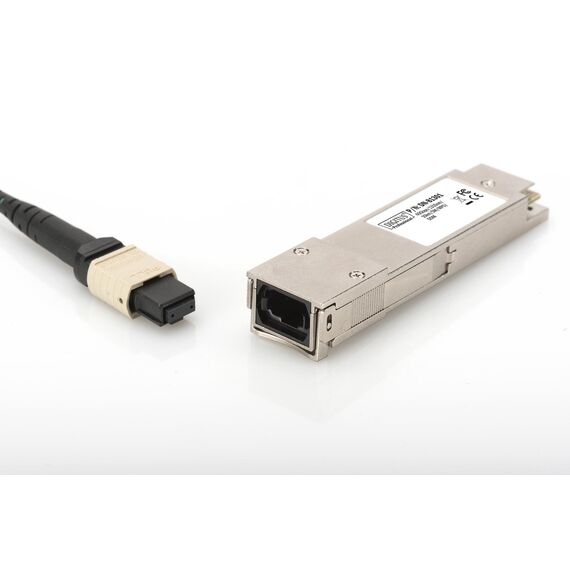

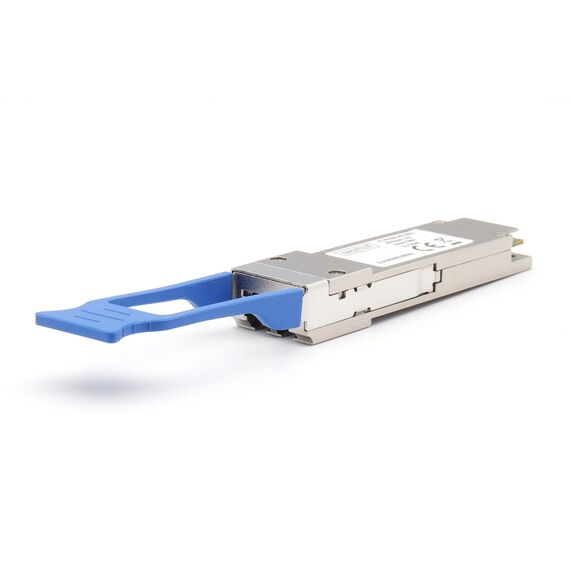

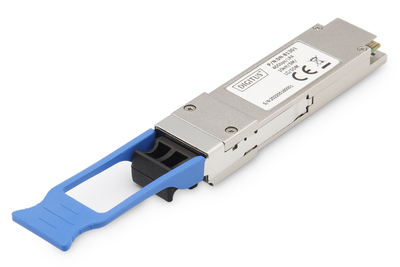

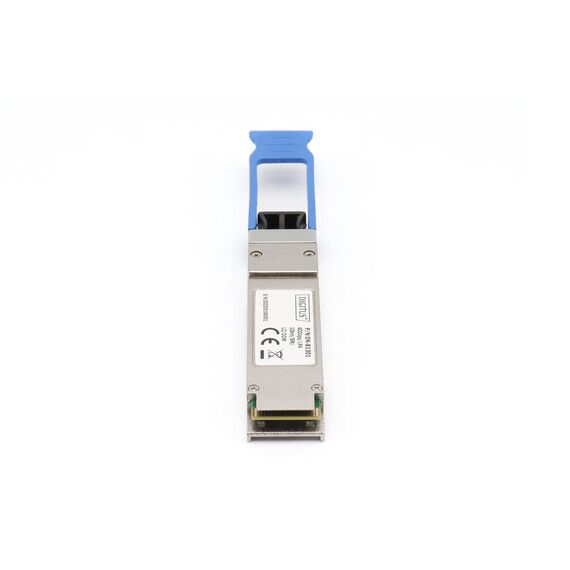

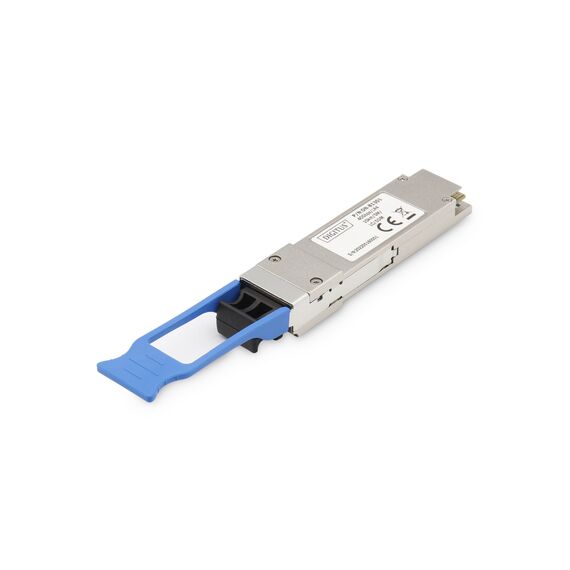

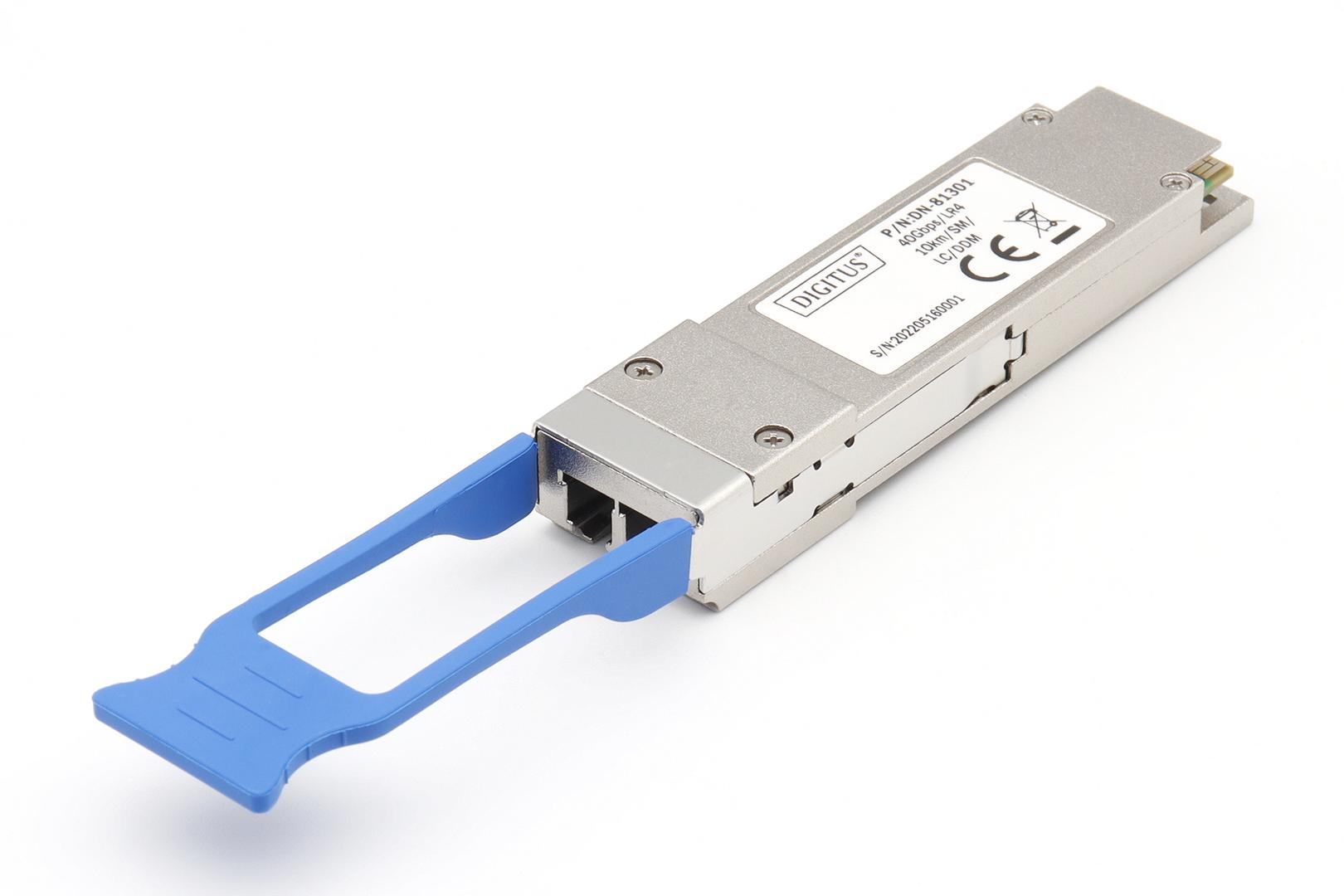

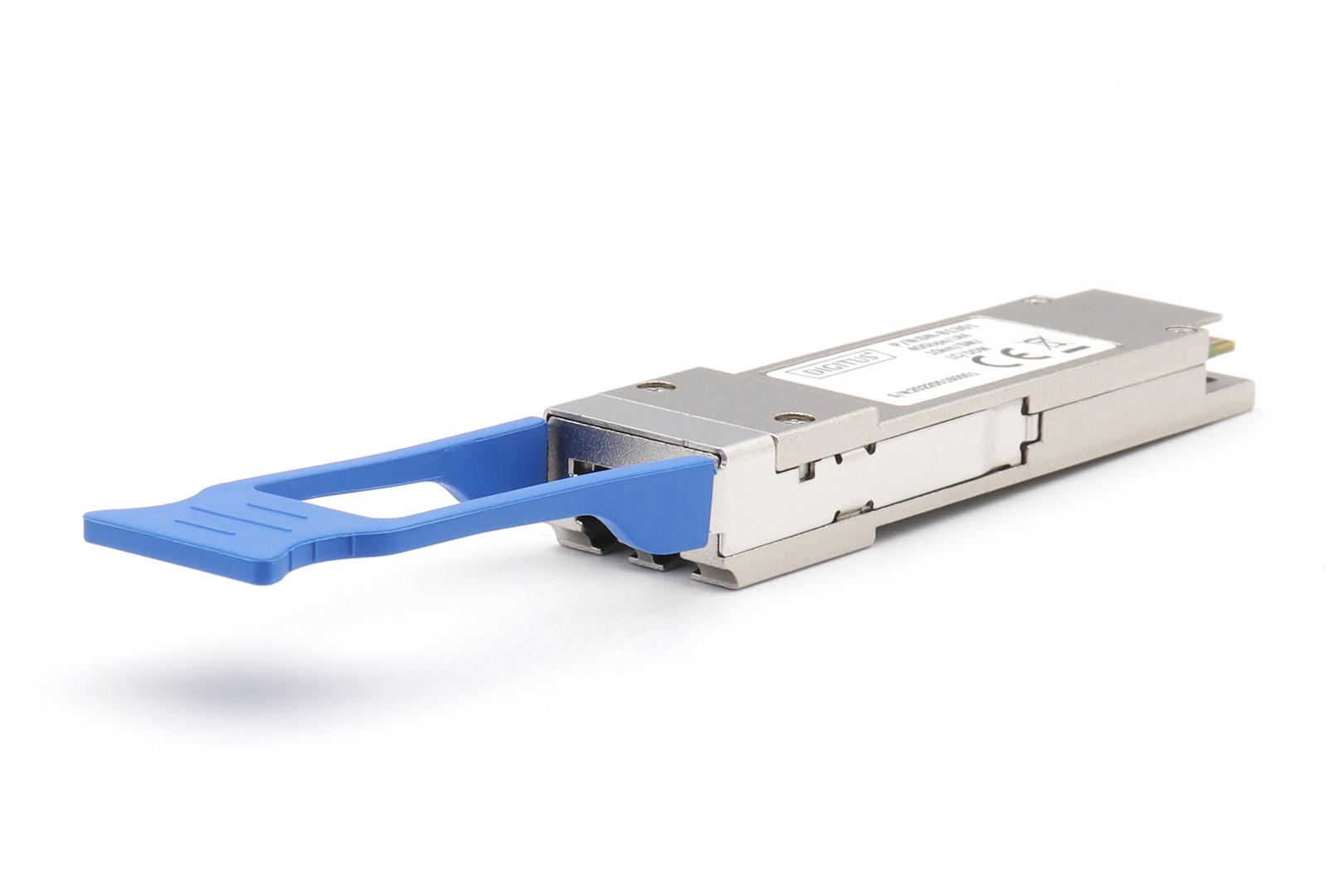

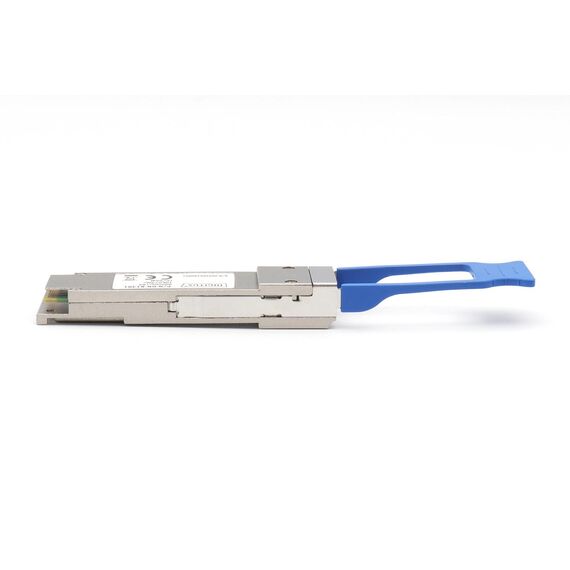

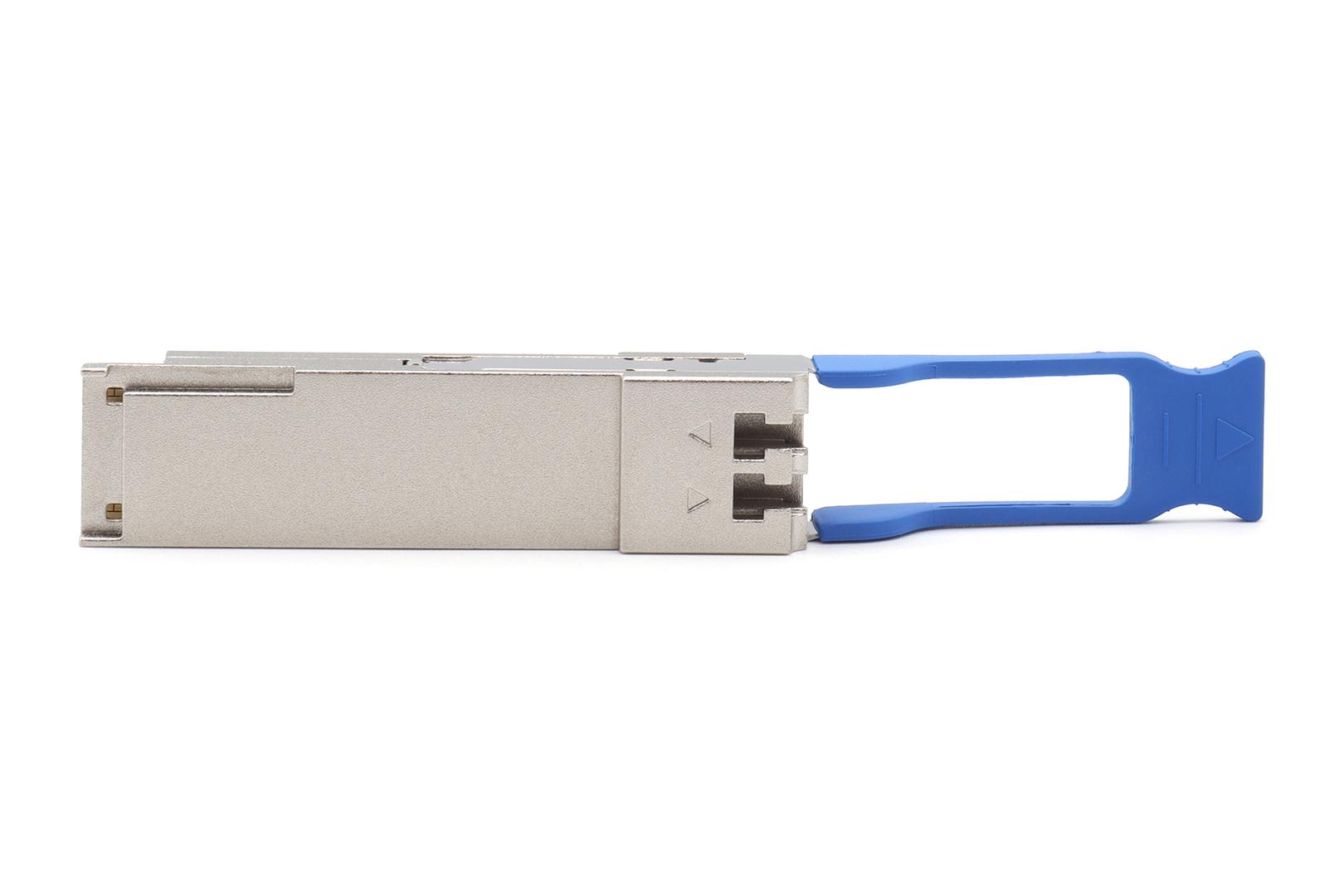

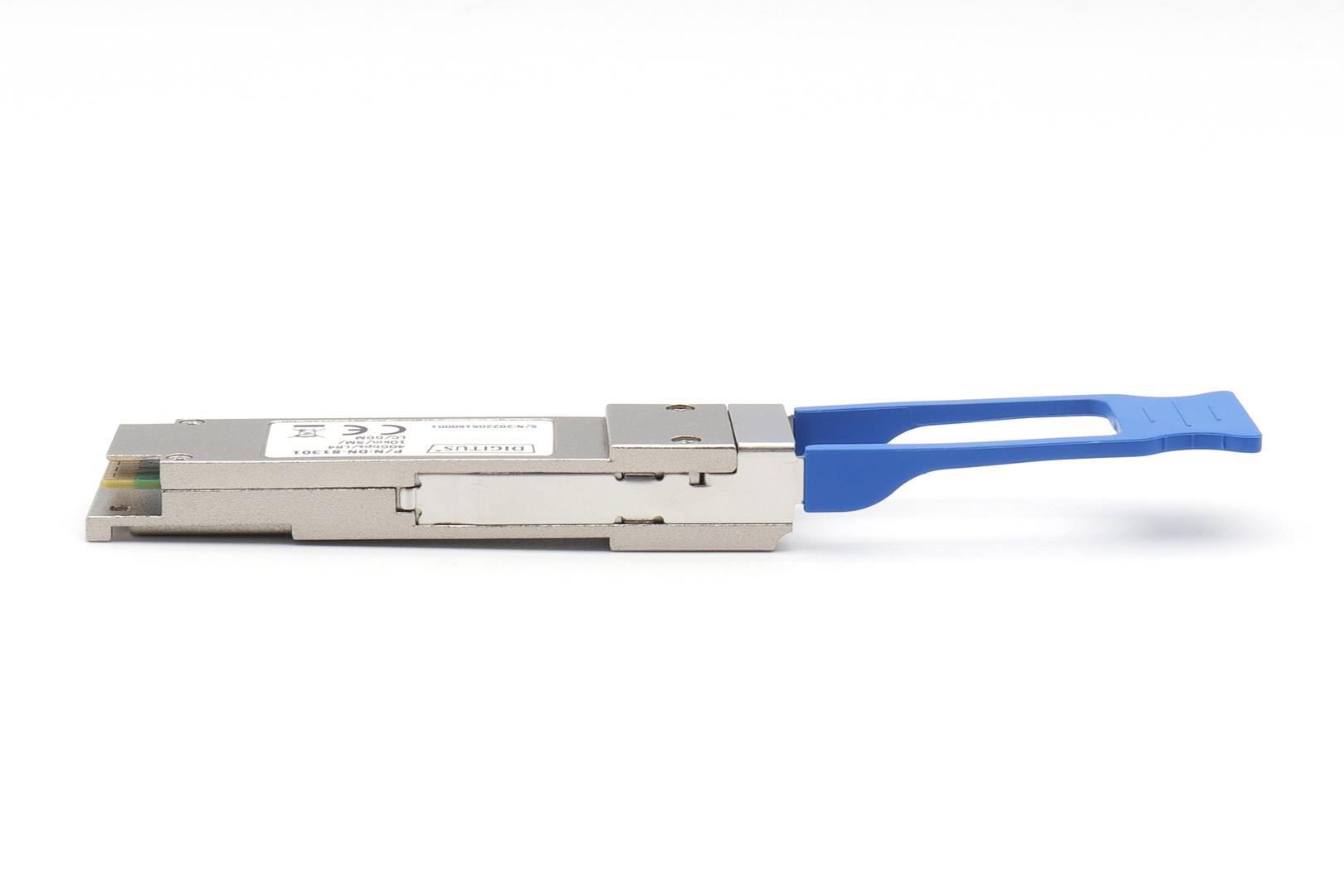

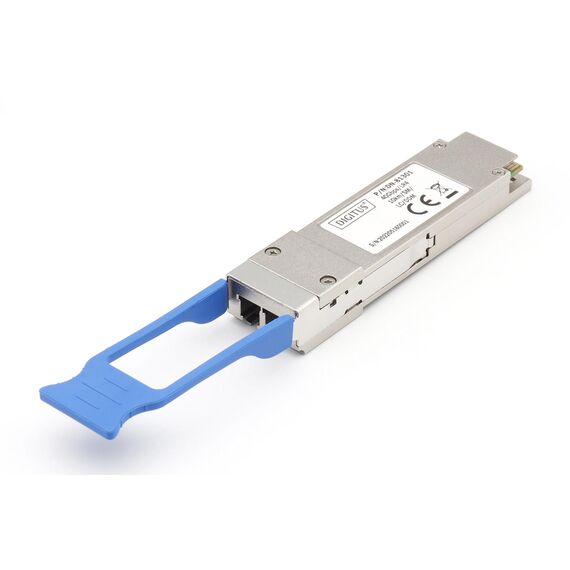

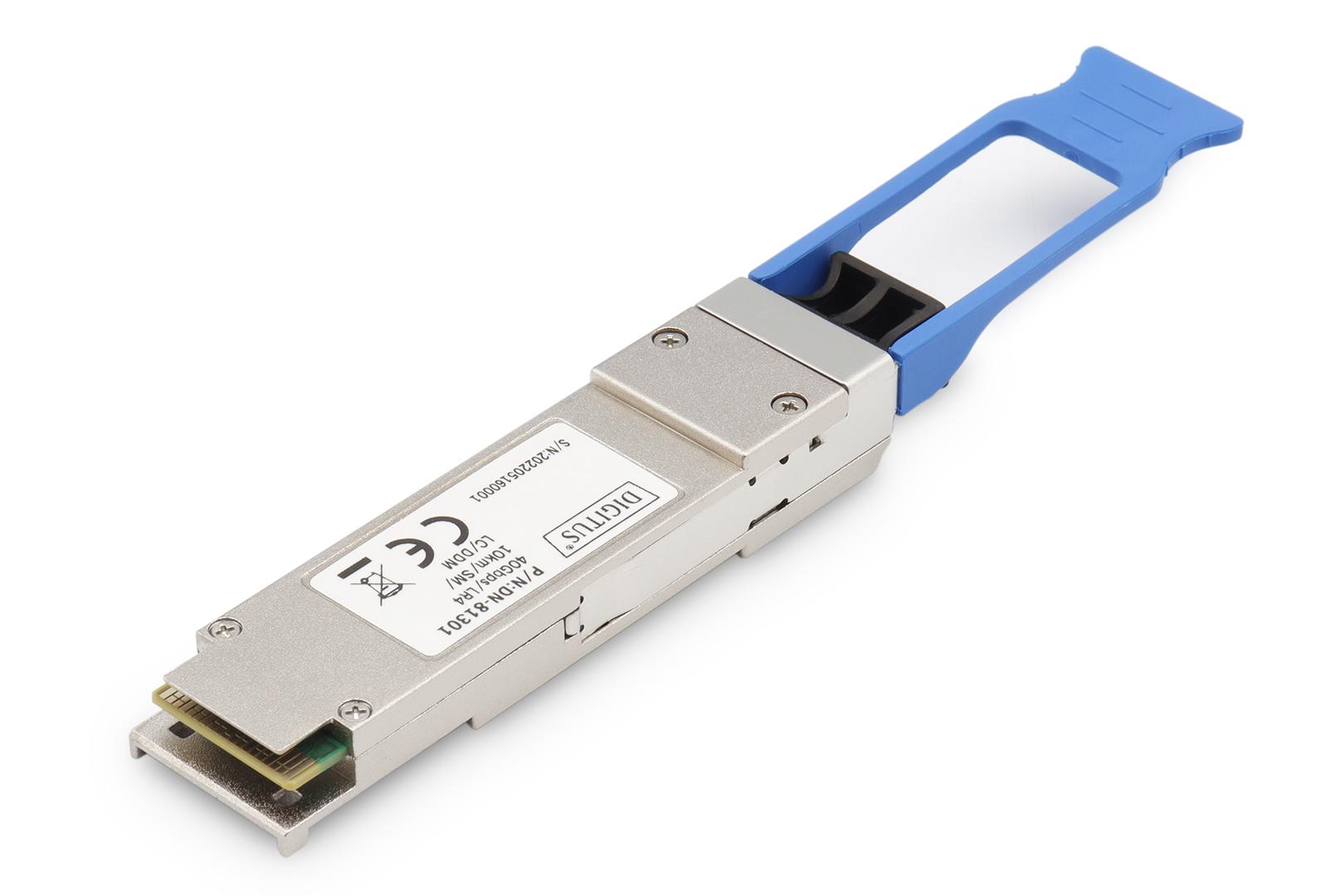

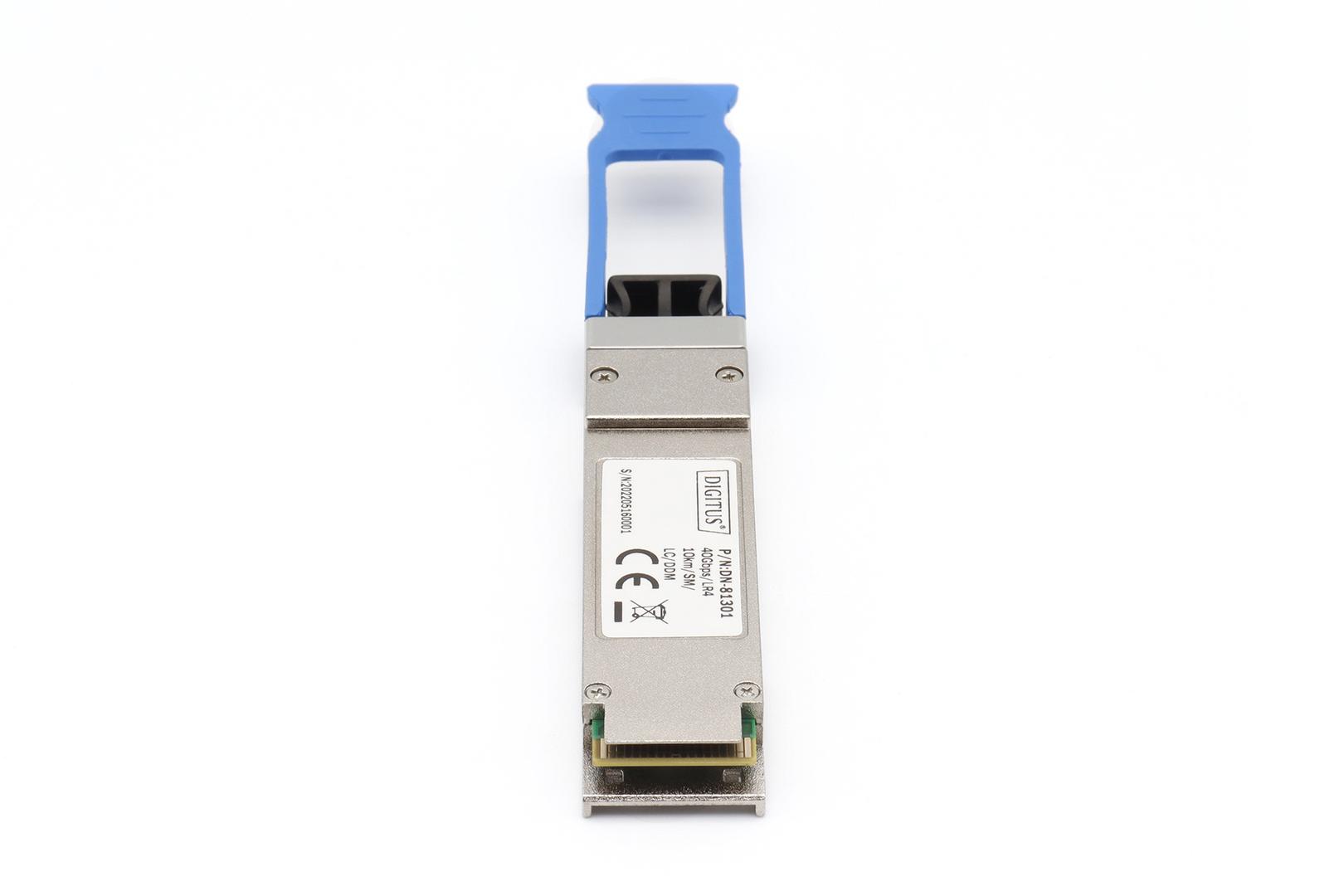

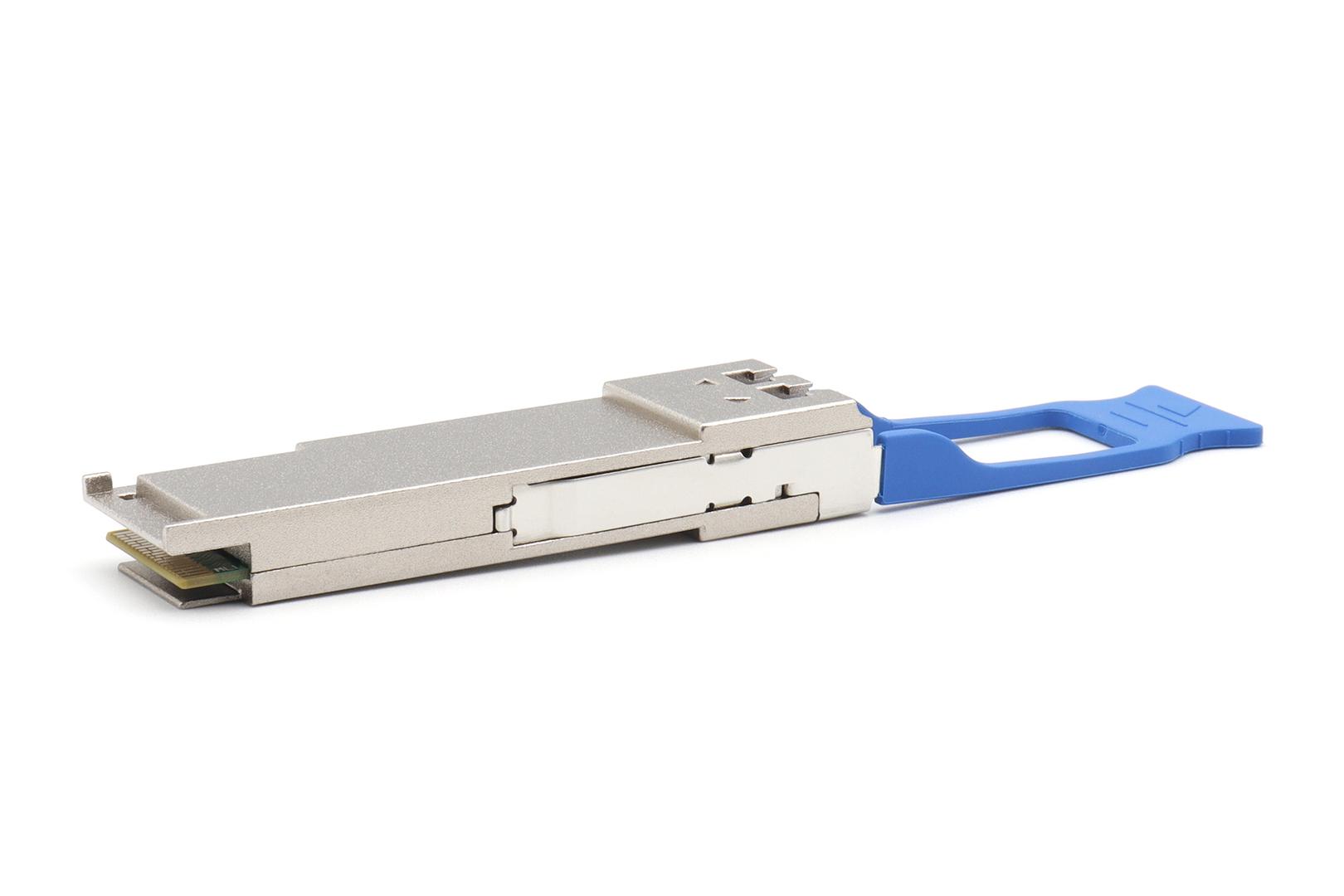

DIGITUS Professional DN-81301 - QSFP+ transceiver module - 40 Gigabit LAN - MPO single-mode - up to 10 km - 1310 nm | DN-81301
DN-81301
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
· QSFP+ module· Compatible with the following manuafacturers: Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE

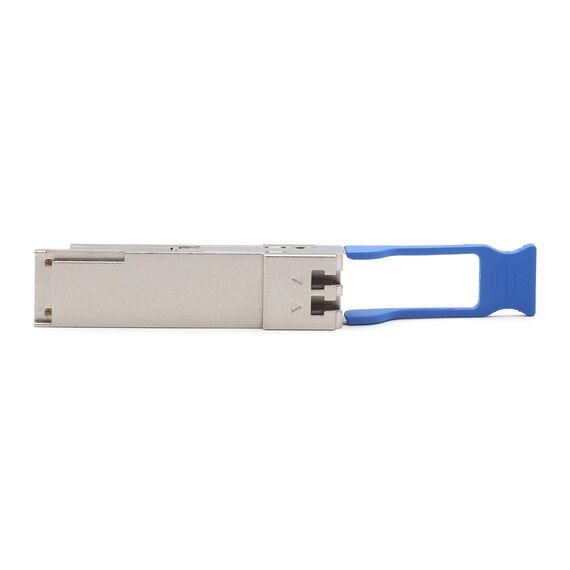

· Connector: 1x LC
· Wavelength: 1310nm, Singlemode
· 40 Gbps Maximum Data Rate
· Transmission power: minimum -7 dBm, maximum 2.3 dBm
· Sensitivity Receiving Power: Minimum -11.5 dBm
· For a Distance of up to 10km: Singlemode OS2
· Safe fast-locking mechanism
· Supports DDM (Digital Diagnostic Monitoring)
· High quality and excellent reliability
· Compliant to IEEE 802.3ba 40 Gigabit Standard
· Class 1 laser product compliant with EN 60825-1
· Easy plug-and-play installation
· MSA (Multi Source Agreement) compliant
· Hot pluggable
· 3.3V power supply
· Suitable for OS2 singlemode fiber cables
· Operating temperature: 0 °C ~ 70 °C
Special Fetures
· The Plug & Play fiber optic link enables quick installation· Sends data in high quality and additionally provides excellent reliability
· Distance up to 10km at a maximum data rate of 40 Gbps
· Operating temperature: 0 °C ~ 70 °C
Product Specification
| Device Type | QSFP+ transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit LAN |
| Data Transfer Rate | 40 Gbps |
| Optical Wave Length | 1310 nm |
| Max Transfer Distance | 10 km |
| Features | Hot swap module replacement, Digital Diagnostics Monitoring (DDM) |
| Compliant Standards | IEEE 802.3ba |
| Expansion / Connectivity | |

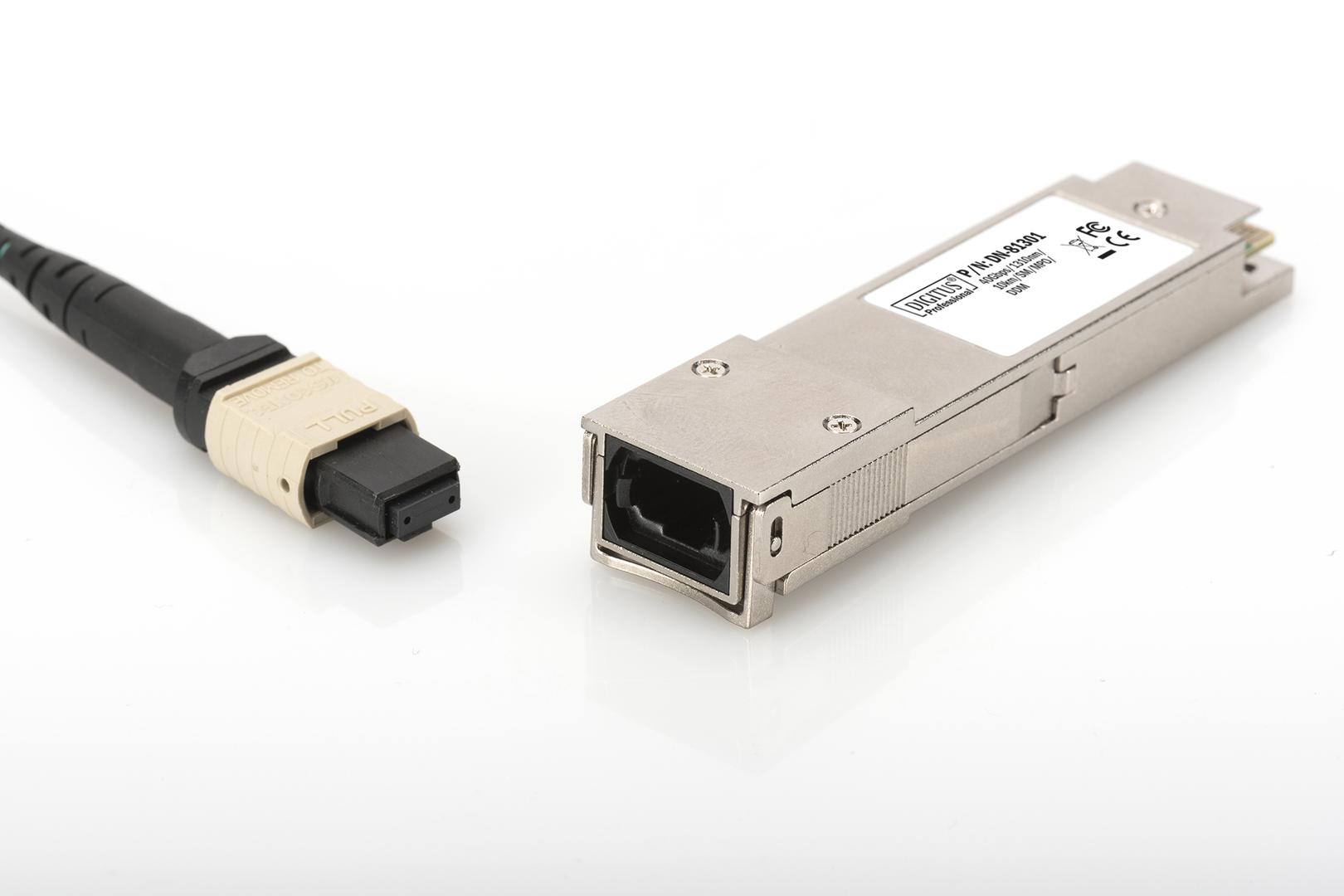

| Interfaces | 1 x 40Gb Ethernet - MPO single-mode |
| Miscellaneous | |
| Compliant Standards | Plug and Play, FCC, Laser Class 1, EN 60825-1, MSA, OM3 |
Features - Digitus - DN-81301
More Details
Product Code
03:187039
EAN Code
4016032424253
Manufacturer
Digitus
No posts found
